MJD340-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> triode> MJD340-13

MJD340-13: DescriptionTransistor type: NPN Collector current Ic: 500mA Collector-emitter breakdown voltage Vce: 300V Rated power: 15V; CategoryDiscrete semiconductor triode; File Size380KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

MJD340-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MJD340-13	-	-	View	Buy Now

MJD340-13 Overview

Transistor type: NPN Collector current Ic: 500mA Collector-emitter breakdown voltage Vce: 300V Rated power: 15V

MJD340-13 Parametric

Parameter Name	Attribute value
Transistor type	NPN
Collector current Ic	500mA
Collector-emitter breakdown voltage Vce	300V
rated power	15V

Preview

Download Datasheet

View All

MJD340

100V NPN HIGH VOLTAGE TRANSISTOR IN TO252 (DPAK)

Features



CEO

> 300V

= 0.5A High Continuous Collector Current

= 0.75A Peak Pulse Current

Ideal for Power Switching or Amplification Applications

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: TO252 (DPAK)

Case Material: Molded Plastic, "Green" Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.34 grams (Approximate)

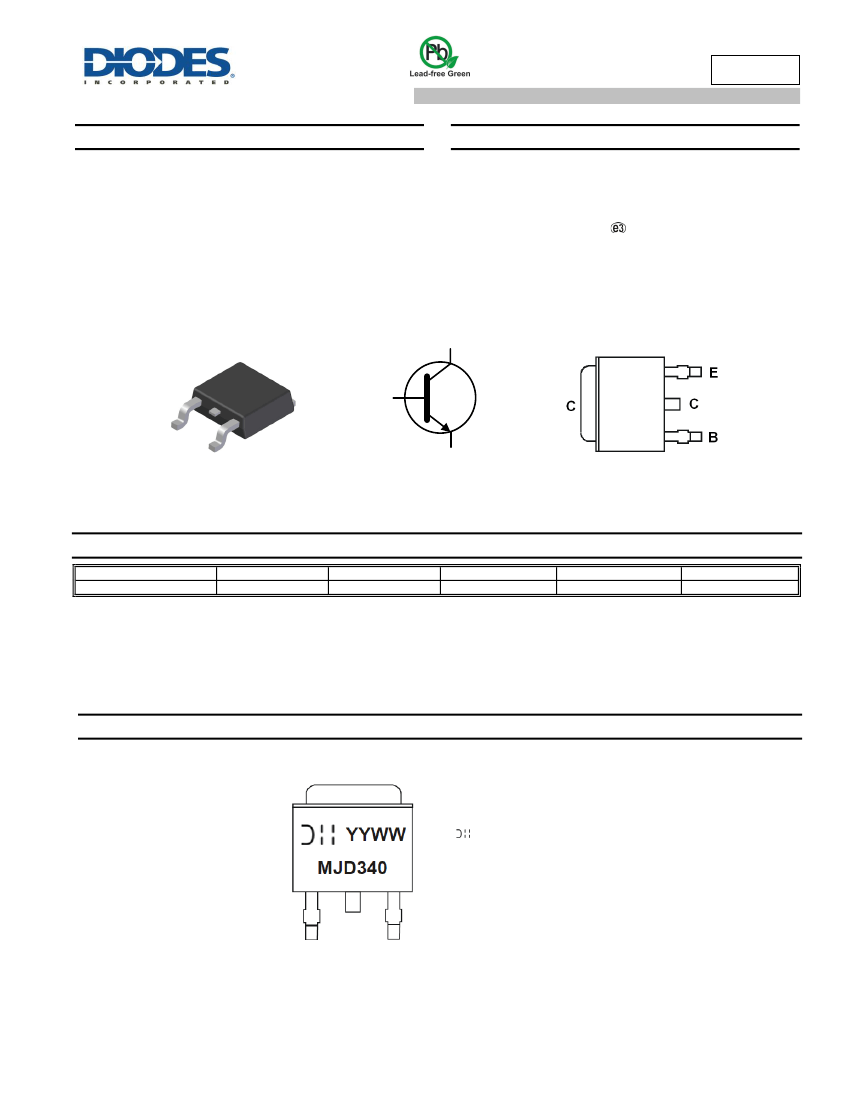

TO252 (DPAK)

Top View

Device Schematic

Pin Out Configuration

Top View

Ordering Information

(Note 4)

Product

MJD340-13

Notes:

Compliance

AEC-Q101

Marking

MJD340

Reel Size (inches)

Tape Width (mm)

Quantity Per Reel

2,500

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.

2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and

Lead-free.

3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.

Marking Information

TO252 (DPAK)

MJD340 = Product Type Marking Code

= Manufacturers’ Code Marking

YYWW = Date Code Marking

YY = Last Two Digits of Year (ex: 18 = 2018)

WW = Week Code (01 to 53)

MJD340

Document number: DS31609 Rev. 3 - 2

1 of 7

www.diodes.com

May 2018
