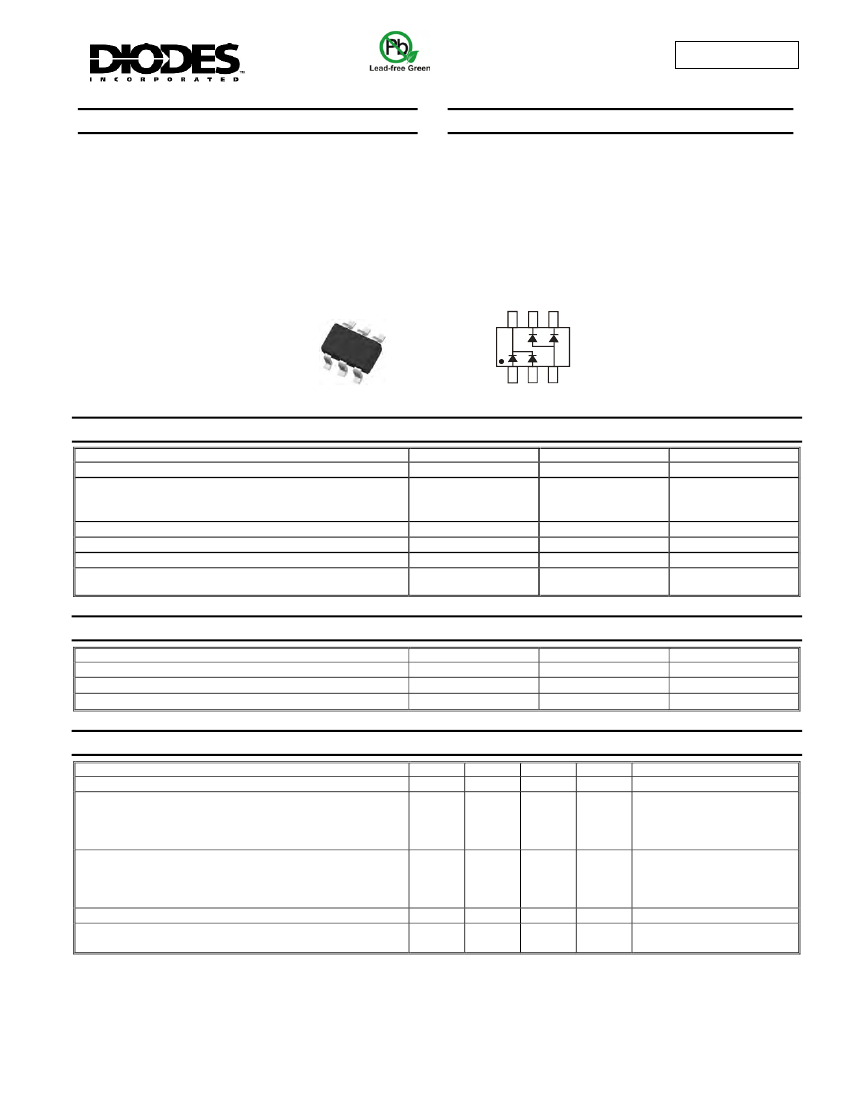

BAW567DW
QUAD SURFACE MOUNT SWITCHING DIODE ARRAY
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
•
•
Fast Switching Speed
Ultra-Small Surface Mount Package
For General Purpose Switching Applications
High Conductance
One BAV70 Circuit and One BAW56 Circuit In One Package
Lead Free/RoHS Compliant (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
"Green" Device (Notes 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
•
SOT-363
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed
over Alloy 42 leadframe).
Polarity: See Diagram
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.006 grams (approximate)
C
1
C
2
C
2
A
1
A
1
A
2
TOP VIEW
TOP VIEW
Internal Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
Value
100
75
53
300
150
2.0
1.0
Unit
V
V
V
mA
mA
A
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
(Note 1)
(Note 1)
@ t = 1.0μs
@ t = 1.0s
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating and Storage Temperature Range
(Note 1)
(Note 1)
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage
Forward Voltage
@T
A
= 25°C unless otherwise specified
(Note 2)
Symbol
V
(BR)R
V
F
Min
75
⎯
Max
⎯
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
V
μA
μA
μA
nA
pF
ns
Test Condition
I
R
= 2.5μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= 150°C
V
R
= 25V, T
J
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Reverse Current
Total Capacitance
Reverse Recovery Time
Notes:
(Note 2)
I
R
C
T
t
rr
⎯
⎯
⎯
1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration pulse test used to minimize self-heating effect.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
5. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
BAW567DW
Document number: DS30147 Rev. 10 - 2
1 of 3
www.diodes.com
February 2008
© Diodes Incorporated
BAW567DW
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (
°
C)

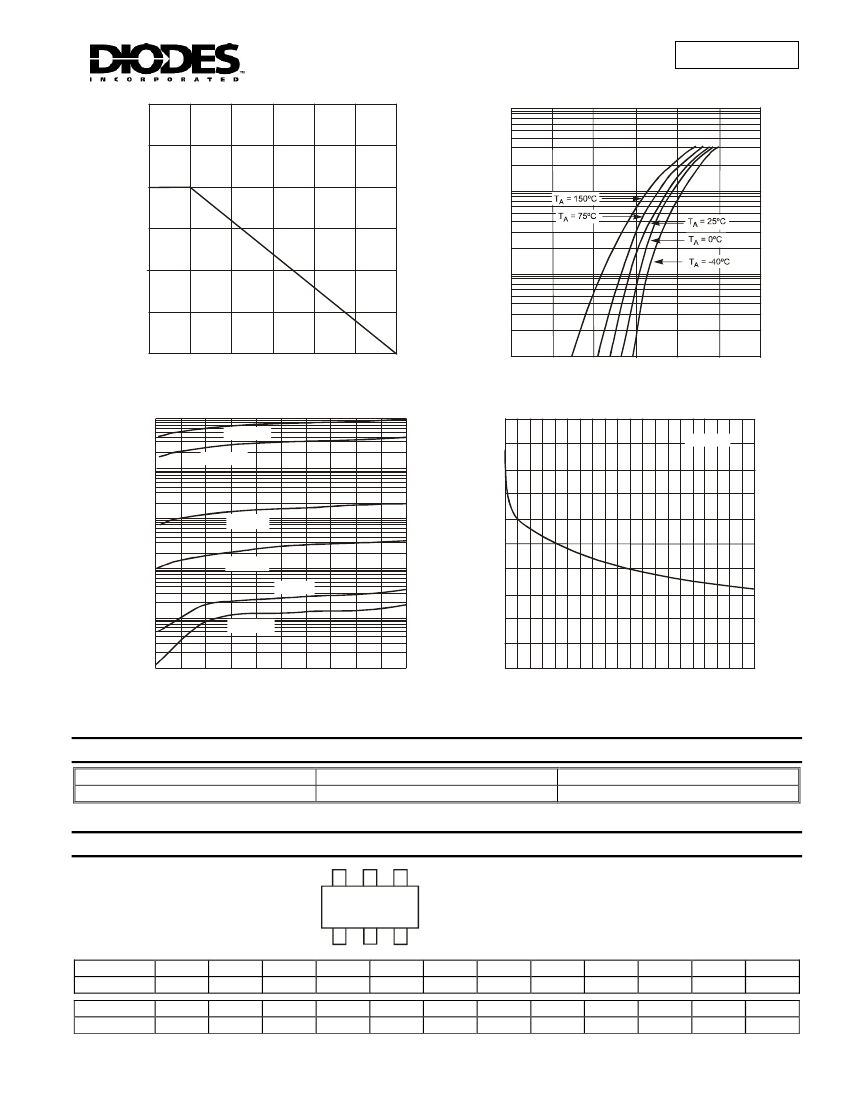

Fig. 1 Power Derating Curve, Total Package
300
1
250
P
D
, POWER DISSIPATION (mW)
200
0.1
150
100
0.01
50
0
0.001
0.5
1.0
1.5
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
T
A
= 150ºC
T
A
= 125ºC
2.0
1.8
C
T
, TOTAL CAPACITANCE (pF)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
f = 1.0MHz
1,000
100
T
A
= 75ºC
10
T
A
= 25ºC
T
A
= 0ºC
1
T
A
= -40ºC
0.1
0
60
80
100
20
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
0.0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element
0
Ordering Information
Part Number
BAW567DW-7-F
Notes:
(Note 6)
Case
SOT-363
Packaging
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KAC = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
KAC
Date Code Key
Year
Code
Month
Code
2001
M
Jan
1
2002
N
Feb
2
2003
P
Mar
3
2004
R
Apr
4
2005
S
May
5
YM
2006
T
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
BAW567DW
Document number: DS30147 Rev. 10 - 2
2 of 3
www.diodes.com
February 2008
© Diodes Incorporated
BAW567DW
Package Outline Dimensions
A
B C
H
K
M
J
D
F
L
SOT-363
Dim
Min
Max
A
0.10
0.30
B
1.15
1.35
C
2.00
2.20
D
0.65 Nominal
F
0.30
0.40
H
1.80
2.20
J
0.10
⎯
K
0.90
1.00
L
0.25
0.40
M
0.10
0.25
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
E
E
Z
G
C
Dimensions Value (in mm)
Z
2.5
G
1.3
X
0.42
Y
0.6
C
1.9
E
0.65
Y
X
