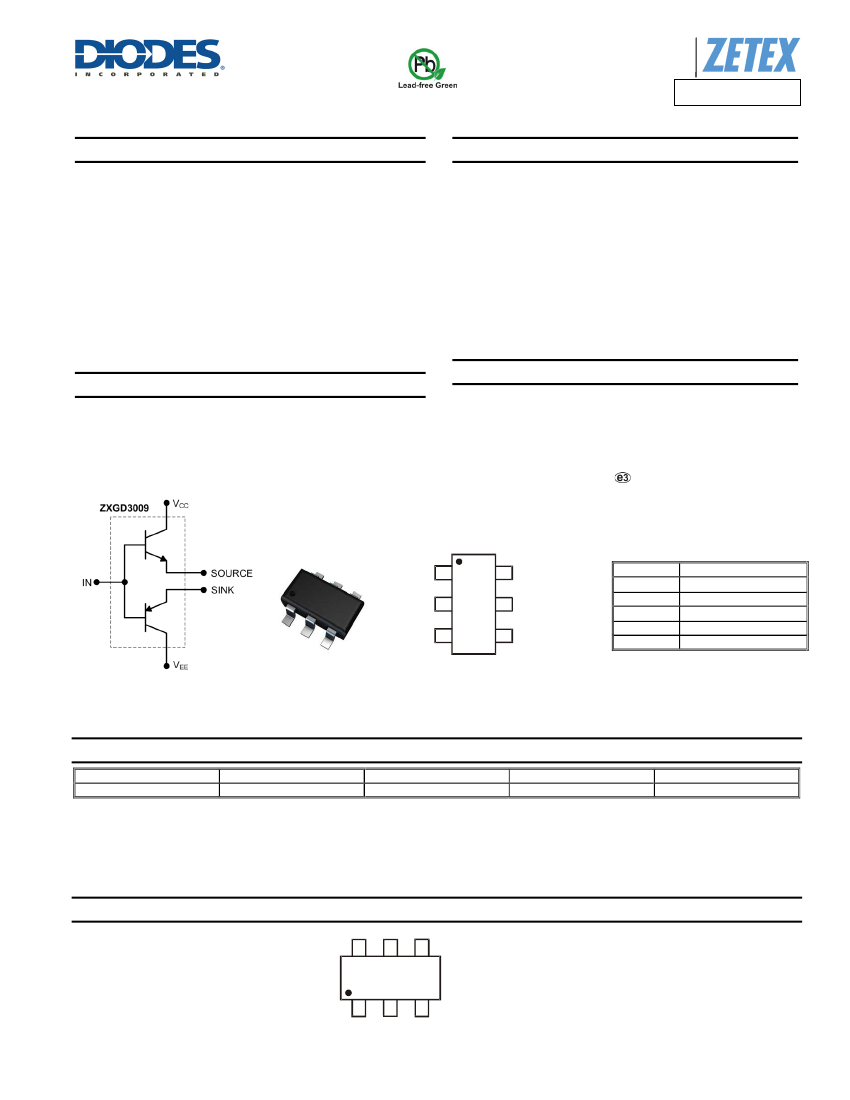

ZXGD3009E6
40V 2A GATE DRIVER IN SOT26
Description
ZXGD3009E6 is a high-speed non-inverting single gate driver for
switching MOSFETs.
capacitive load.
This gate driver ensures rapid switching of the MOSFET to minimize
power losses and distortion in high current switching applications. It
can typically drive 1A into the low gate impedance with just 10mA
input from a controller.
application.
Also, the turn-on and turn-off switching
behavior of the MOSFET can be individually tailored to suit an
In particular, by defining the switching characteristics
appropriately, EMI and cross conduction problems can be reduced.
It can transfer up to 2A peak source/sink
current into the gate for effective charging and discharging the
Features
•
•
•
•
•
•
•
•
•
High-gain buffer with typically 1A output from 10mA input
Emitter-follower that is rugged to latch-up / shoot-through issues
Wide supply voltage to minimize on-losses
Separate source and sink outputs for independent control of
MOSFET turn-on and turn-off times
Optimized pin-out to simplify PCB layout and reduce parasitic
trace inductances
Near-zero quiescent supply current
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Applications
Power MOSFET Gate Driving in:
•
•
•
Power Supplies
DC-DC Converters
Amplifier output stages
Mechanical Data
•
•
•
•
•
Case: SOT26
Case material: Molded Plastic. “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.018 grams (approximate)
SOT26
V
CC
IN
V
EE
SOURCE
Not Internally
Connected
SINK
Pin Name
V
CC
IN
V
EE
SOURCE
SINK
Pin Function
Supply Voltage High
Driver Input
Supply Voltage Low
Source Current Output
Sink Current Output
Internal Device
Schematic
Top View
Top View
Pin-Out
Ordering Information
(Note 4)
Product
ZXGD3009E6TA
Notes:
Marking
3009
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
3009
3009 = Product Type Marking Code
ZXGD3009E6
Datasheet Number: DS36885 Rev. 1 - 2
1 of 8
www.diodes.com
February 2014
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXGD3009E6
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Supply voltage, with respect to V
EE
Input voltage, with respect to V
EE
Output difference voltage (Source – Sink)
Peak Pulsed Output Current (Source and Sink)
Peak Pulsed Input Current
Symbol
V
CC
V
IN
ΔV
(source-sink)
I
OM
I
IM
Value
40
40
±7
±3
±1
Unit
V
V
V
A
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation (Notes 5 & 6)
Linear derating factor
Thermal Resistance, Junction to Ambient (Notes 5 & 6)
Thermal Resistance, Junction to Lead (Note 7)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
1.1
8.8
113
105
-55 to +150
Unit
W
mW/°C
°C/W
°C
ESD Ratings
(Note 8)
Characteristics
Electrostatic Discharge – Human Body Model
Electrostatic Discharge – Machine Model
Notes:
Symbols
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with pin 1 (V
CC
) and pin 3 (V
EE
) on 25mm x 25mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured
under still air conditions whilst operating in steady-state. The heatsink is split in half with pin 1 (V
CC
) and pin 3 (V
EE
) connected separately to each half.
6. For device with two active die running at equal power.
7. Thermal resistance from junction to solder-point at the end of each lead on pin 1 (V
CC
) and pin 3 (V
EE
).
8. Refer to JEDEC specification JESD22-A114 and JESD22-A115
.
ZXGD3009E6
Datasheet Number: DS36885 Rev. 1 - 2
2 of 8
www.diodes.com
February 2014
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXGD3009E6
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Output Voltage, high
Output Voltage, low
Supply Breakdown Voltage
Quiescent Supply Current
Peak Pulsed Source Current
Peak Pulsed Sink Current
Peak Pulsed Source Current
Peak Pulsed Sink Current
Peak Pulsed Source Current
Peak Pulsed Sink Current
Peak Pulsed Source Current
with varying input resistances
Symbol
V
OH
V
OL
BV
CC
I
Q
I
(source)M
I
(sink)M
I
(source)M
I
(sink)M
I
(source)M
I
(sink)M
Min
-
40
40
—
—
—
—
—
—
—
—
Typ
Max
Unit
V
V
nA
A
A
A
Test Condition
I
(source)
= 1µA, V
IN
= V
CC
I
(sink)
= 1µA, V
IN
= V
EE
I
Q
= 100µA, V
IN
= V
CC
I
Q
= 100µA, V
IN
= V
EE
= 0V
V
CC
= 32V, V
IN
= V
CC
V
CC
= 32V, V
IN
= V
EE
= 0V
I
IN
= 10mA, V
CC
= 5V, V
OUT
= 0V
I
IN
=-10mA, V
EE
= 0V, V
OUT
= 5V
I
IN
= 50mA, V
CC
= 5V, V
OUT
= 0V
I
IN
=-50mA, V
EE
= 0V, V
OUT
= 5V
I
IN
= 500mA, V
CC
= 5V, V
OUT
= 0V
I
IN
=-500mA, V
EE
= 0V, V
OUT
= 5V
R
IN
= 100Ω
R
IN
= 1kΩ
R
IN
= 10kΩ
R
IN
= 100Ω
R
IN
= 1kΩ
R
IN
= 10kΩ
V
CC
= 15V, V
EE
= 0V
V
IN
= 15V
C
L
=1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 15V
C
L
=1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
- 0.8 V
CC
- 0.4
V
EE
+ 0.2 V
EE
+ 0.5
—
—
—
—
0.98
0.78
1.58
1.38
2.3
2.6
0.74
0.175
0.019
1.05
0.22
0.025
3.8
15
4
15
18
36
16
40
47
210
39
240
42
290
38
235
—
—
20
20
—
—
—
—
—
—
I
(source)M
—
—
A
Peak Pulsed Sink Current
with varying input resistances
I
(sink)M
—
—
A
Switching Times
with low input resistance
t
d(rise)
t
r
t
d(fall)
t
f
t
d(rise)
t
r
t
d(fall)
t
f
t
d(rise)
t
r
t
d(fall)
t
f
t
d(rise)
t
r
t
d(fall)
t
f
—
—
ns
V
CC
= 12V, V
EE
= 0V
V
IN
= 0 to 10V
R
IN
= 25Ω
C
L
= 1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 0 to 15V
R
IN
= 1kΩ
C
L
= 1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 0 to 15V
R
IN
= 1kΩ
C
L
= 10nF, R
L
= 0.18Ω
R
SOURCE
= 0
Ω,
R
SINK
= 0
Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 0 to 15V
R
IN
= 1kΩ
C
L
= 1nF, R
L
= 0.18Ω
R
SOURCE
= 4.7Ω, R
SINK
= 0Ω
Switching Times
with low load capacitance C
L
= 1nF
—
—
ns
Switching Times
with high load capacitance C
L
= 10nF
—
—
ns
Switching Times
with asymmetric source and sink resistors
—
—
ns
ZXGD3009E6
Datasheet Number: DS36885 Rev. 1 - 2
3 of 8
www.diodes.com
February 2014
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXGD3009E6

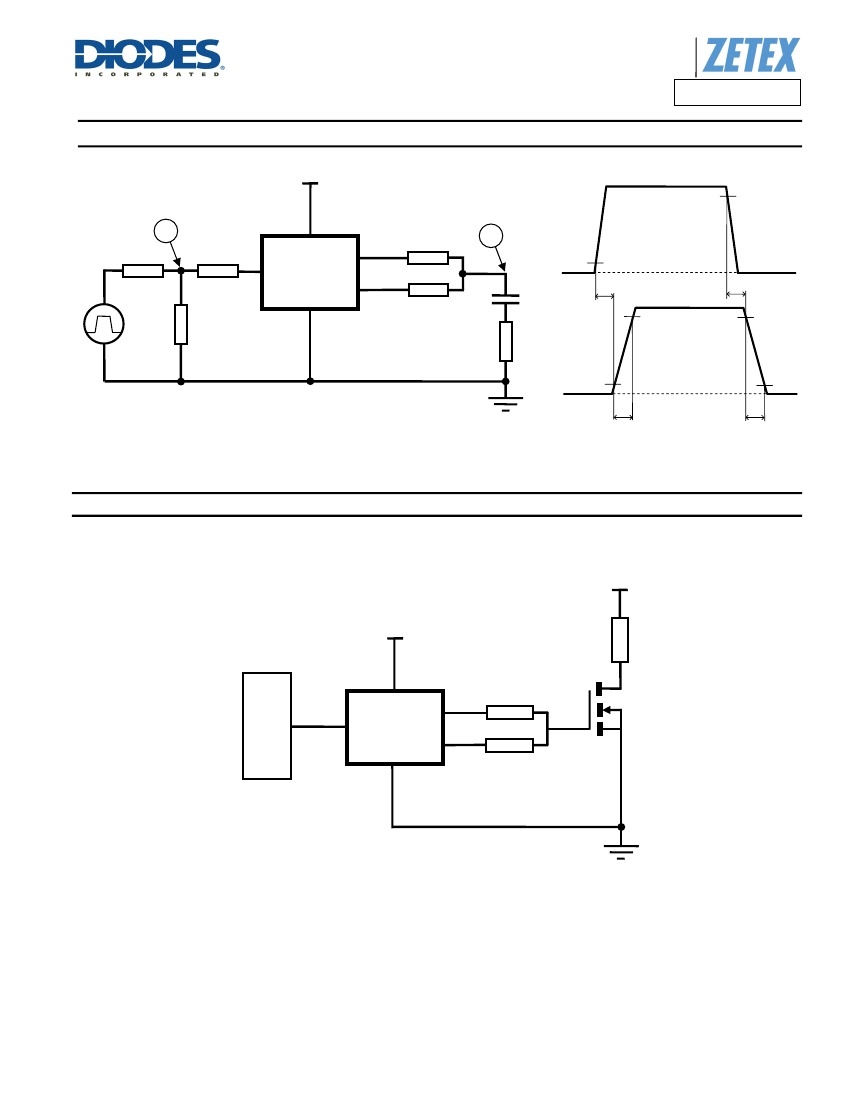

Switching Test Circuit and Timing Diagram
V
CC
V
IN
50Ω
R
IN
IN
V
CC
SOURCE
R
SOURCE
90%
V
OUT
V
IN
10%
ZXGD3009
SINK
R
SINK
C
L
t
d(rise)
90%
R
L
t
d(fall)
90%
V
50Ω
V
EE
V
OUT
10%
10%
t
r
t
f
Typical Application Circuit
V
S
V
CC
V
CC
Controller
SOURCE R
SOURCE
IN
ZXGD3009
SINK
R
SINK
V
EE
ZXGD3009E6
Datasheet Number: DS36885 Rev. 1 - 2
4 of 8
www.diodes.com
February 2014
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXGD3009E6

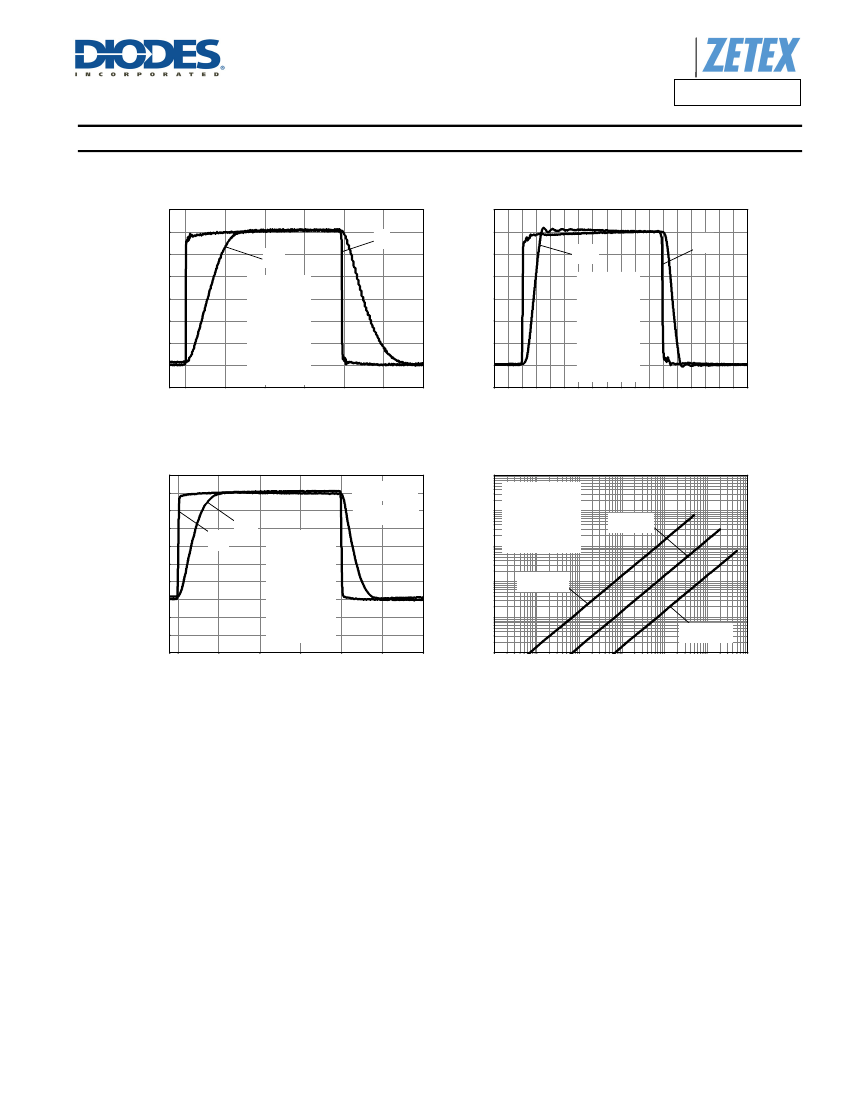

Typical Switching Characteristics
(@T
A
= +25°C, unless otherwise specified.)
15
V
OUT
V
IN
15
V
OUT
V
IN
Voltage (V)
Voltage (V)
10
T
A
= 25°C
V
CC
= 15V
V
IN
= 15V
R
IN
= 1k
Ω
C
L
= 10nF
R
L
= 0.18
Ω
10
T
A
= 25°C
V
CC
= 15V
V
IN
= 15V
R
IN
= 1k
Ω
C
L
= 1nF
R
L
= 0.18
Ω
5
5
0
0
250
0
1000
1250
1500
-100
0
500
Time (ns)
750
100 200 300 400 500 600 700 800
Time (ns)
Switching Speed
10
Switching Speed
15
T
RISE
=290ns
V
OUT
T
FALL
=230ns
T
A
= 25°C
V
CC
=V
+IN
=15V
R
IN
= 1k
Ω
C
L
= 10nF
R
L
= 0.18
Ω
R
SOURCE
=4.7
Ω
R
SINK
= 0
Ω
T
A
= 25°C
Supply Current (A)
1
0.1
0.01
V
CC
= 15V
V
IN
= 15V
Square Wave
C
L
=10nF
Voltage (V)
10
5
0
-5
0
C
L
=1nF
V
IN
1E-3
C
L
=0.1nF
500
1000
Time (ns)
1500
2000
2500
3000
1E-4
10
100
(Frequency (Hz))
1k
10k
100k
1M
Switching Speed
Asymmetric Source and Sink Resistance
Supply Current
ZXGD3009E6
Datasheet Number: DS36885 Rev. 1 - 2
5 of 8
www.diodes.com
February 2014
© Diodes Incorporated
