BSR33TA

Description
Rated power: 1W Collector current Ic: 1A Collector-emitter breakdown voltage Vce: 80V Transistor type: PNP PNP medium power transistors
CategoryDiscrete semiconductor    triode
File Size277KB,7 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

BSR33TA Online Shopping

Suppliers Part Number Price MOQ In stock
BSR33TA - - View Buy Now

BSR33TA Overview

Rated power: 1W Collector current Ic: 1A Collector-emitter breakdown voltage Vce: 80V Transistor type: PNP PNP medium power transistors

BSR33TA Parametric

Parameter NameAttribute value
rated power1W
Collector current Ic1A
Collector-emitter breakdown voltage Vce80V
Transistor typePNP

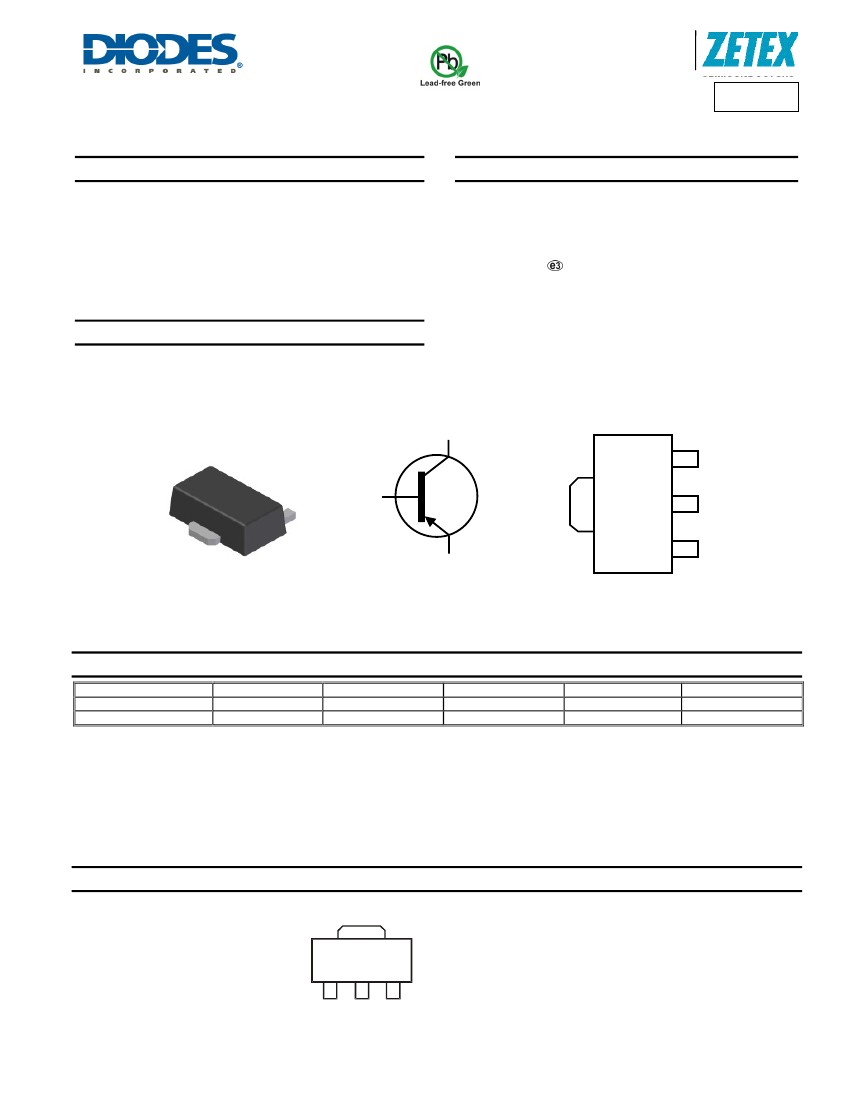

A Product Line of
Diodes Incorporated
BSR33
80V PNP MEDIUM POWER TRANSISTOR IN SOT89
Features
BV
CEO
> -80V
I
C
= -1A High Continuous Current
Low saturation voltage V
CE(sat)
< -250mV @ -150mA
Complementary type BSR43
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case: SOT89
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish, Solderable per MIL-STD-202,
Method 208
Weight: 0.052 grams (Approximate)
Application
Load management functions
Solenoid, relay and actuator drivers
DC – DC modules
SOT89
C
E
B
C
C
B
Top View
Pin-Out
E
Top View
Device Symbol
Ordering Information
(Notes 4 & 5)
Product
BSR33TA
BSR33QTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
BR4
BR4
Reel size (inches)
7
7
Tape width (mm)
12
12
Quantity per reel
1,000
1,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q10x qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
BR4
BR4 = Product Type Marking Code
BSR33
Da
tasheet Number: DS33017 Rev. 5 - 2
1 of 7
www.diodes.com
November 2013
© Diodes Incorporated
