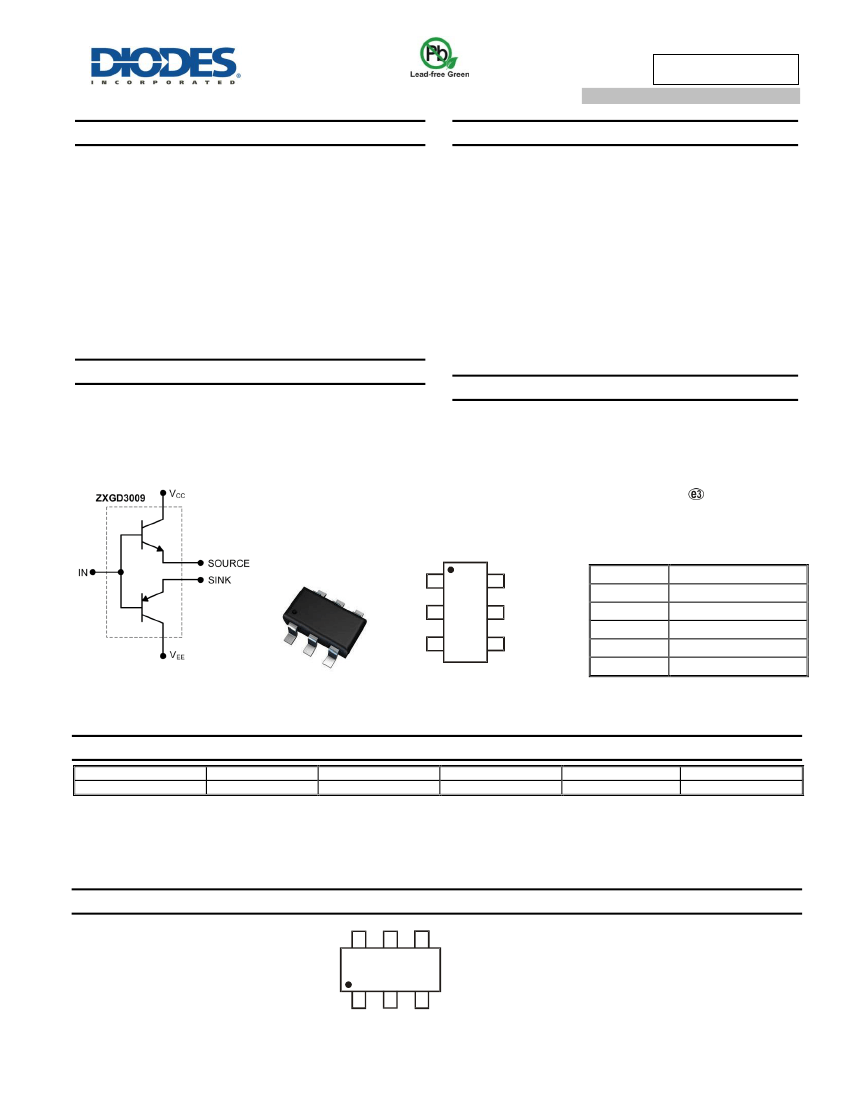

ZXGD3009DY
40V 1A GATE DRIVER IN SOT363
Description
ZXGD3009DY is a high-speed, non-inverting single gate driver for
switching MOSFETs. It can transfer up to 1A peak source/sink current
into the gate for effective charging and discharging of the capacitive
load.
This gate driver ensures rapid switching of the MOSFET to minimize
power losses and distortion in high current switching applications. It
can typically drive 500mA into the low gate impedance with just 10mA
input from a controller. The turn-on and turn-off switching behavior of
the MOSFET can be individually tailored to suit an application. In
particular, by defining the switching characteristics appropriately, EMI
and cross conduction problems can be reduced.
Features
High-Gain Buffer with Typically 500mA Output from 10mA Input
Emitter-Follower that is Rugged to Latch-Up/Shoot-Through
Issues
Wide Supply Voltage to Minimize On-Losses
Separate Source and Sink Outputs for Independent Control of
MOSFET Turn-On and Turn-Off Times
Optimized Pin-Out to Simplify PCB Layout and Reduce
Parasitic Trace Inductances
Near-Zero Quiescent Supply Current
Qualified to AEC-Q101 Standards for High Reliability
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
Power MOSFET Gate Driving in:
Power Supplies
DC-DC Converters
Amplifier Output Stages
Mechanical Data
Case: SOT363
Case material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads.
Solderable per MIL-STD-202, Method 208
Weight: 0.018 grams (Approximate)
SOT363
V
CC
IN
V
EE
Internal Device
Schematic
Top View
Top View
Pin-Out
SOURCE
Not Internally
Connected
Pin Name
V
CC
IN
V
EE
SOURCE
SINK
Pin Function
Supply Voltage High
Driver Input
Supply Voltage Low
Source Current Output *
Sink Current Output *
SINK
* Typically connect SOURCE & SINK
together
Ordering Information
(Note 4)
Part Number
ZXGD3009DYTA
Notes:
Compliance
AEC-Q101
Marking
3009
Reel Size (inches)
7
Tape Width (mm)
8
Quantity Per Reel
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
3009
3009 = Product Type Marking Code
ZXGD3009DY
Datasheet Number: DS36913 Rev. 4 - 2
1 of 8
www.diodes.com
April 2018
© Diodes Incorporated
ZXGD3009DY
Absolute Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Supply Voltage, with Respect to V
EE
Input Voltage, with Respect to V
EE
Output Difference Voltage (Source – Sink)
Peak Pulsed Output Current (Source and Sink)
Peak Pulsed Input Current
Symbol
V
CC
V
IN
V
(source-sink)
I
OM
I
IM
Value
40
40
±7
±2
±1
Unit
V
V
V
A
A
Thermal Characteristics
(@T
A
= +25° unless otherwise specified.)
C,
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Lead (Note 8)
Operating and Storage Temperature Range
(Notes 5 & 7)
(Notes 6 & 7)
(Notes 5 & 7)
(Notes 6 & 7)
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
320
277
391
450
350
-55 to +150
°
C
Unit
mW
°
C/W
ESD Ratings
(Note 9)
Characteristics
Electrostatic Discharge – Human Body Model
Electrostatic Discharge – Machine Model
Notes:
Symbols
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with pin 1 (V
CC
) and pin 3 (V
EE
) on 25mm x 25mm 1oz copper that is on a single-sided 1.6mm FR-4 PCB; device is measured
under still air conditions whilst operating in steady-state. The heatsink is split in half with pin 1 (V
CC
) and pin 3 (V
EE
) connected separately to each half.
6. Same as Note 5, except the device is mounted on minimum recommended pad layout.
7. For device with two active die running at equal power.
8. Thermal resistance from junction to solder-point at the end of each lead on pin 1 (V
CC
) and pin 3 (V
EE
).
9. Refer to JEDEC specification JESD22-A114 and JESD22-A115
.
ZXGD3009DY
Datasheet Number: DS36913 Rev. 4 - 2
2 of 8
www.diodes.com
April 2018
© Diodes Incorporated
ZXGD3009DY
Electrical Characteristics
Characteristic
Output Voltage, High
Output Voltage, Low
Supply Breakdown Voltage
(@T
A
= +25° unless otherwise specified.)
C,
Symbol
V
OH
V
OL
BV
CC
Min
—
40
40
—
I
Q
I
(source)M
I
(sink)M
I
(source)M
I
(sink)M
—
—
—
—
—
Typ
Max
—
—
—
20
20
—
—
—
—
A
Unit
V
Test Condition
I
(source)
= 1µA, V
IN
= V
CC
I
(sink)
= 1µA, V
IN
= V
EE
V
I
Q
= 100µA, V
IN
= V
CC
I
Q
= 100µA, V
IN
= V
EE
= 0V
nA
V
CC
= 32V, V
IN
= V
CC
V
CC
= 32V, V
IN
= V
EE
= 0V
A
I
IN
= 10mA, V
CC
= 5V, V
OUT
= 0V
I
IN
=-10mA, V
EE
= 0V, V
OUT
= 5V
I
IN
= 50mA, V
CC
= 5V, V
OUT
= 0V
I
IN
=-50mA, V
EE
= 0V, V
OUT
= 5V
R
IN
= 100Ω
—
A
R
IN
= 1kΩ
R
IN
= 10kΩ
V
CC
= 15V, V
EE
= 0V
V
IN
= 15V
C
L
=1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 15V
C
L
=1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
- 0.8 V
CC
- 0.4
—
—
—
—
0.98
0.78
1.58
1.38
0.74
0.175
0.019
V
EE
+ 0.2 V
EE
+ 0.5
Quiescent Supply Current
Peak Pulsed Source Current
Peak Pulsed Sink Current
Peak Pulsed Source Current
Peak Pulsed Sink Current
Peak Pulsed Source Current
with Varying Input Resistances
I
(source)M
—
Peak Pulsed Sink Current
with Varying Input Resistances
I
(sink)M
—
1.05
0.22
0.025
R
IN
= 100Ω
—
A
R
IN
= 1kΩ
R
IN
= 10kΩ
t
d(rise)
Switching Times
with Low Input Resistance
t
r
t
d(fall)
t
f
t
d(rise)
Switching Times
with Low Load Capacitance C
L
= 1nF
t
r
t
d(fall)
t
f
t
d(rise)
t
r
t
d(fall)
t
f
—
—
—
3.8
15
4
15
V
CC
= 12V, V
EE
= 0V
V
IN
= 0 to 10V
—
ns
R
IN
= 25Ω
C
L
= 1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 0 to 15V
—
ns
R
IN
= 1kΩ
C
L
= 1nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
V
CC
= 15V, V
EE
= 0V
V
IN
= 0 to 15V
—
ns
R
IN
= 1kΩ
C
L
= 10nF, R
L
= 0.18Ω
R
SOURCE
= 0Ω, R
SINK
= 0Ω
18
36
16
40
Switching Times
with High Load Capacitance C
L
= 10nF
47
210
39
240
ZXGD3009DY
Datasheet Number: DS36913 Rev. 4 - 2
3 of 8
www.diodes.com
April 2018
© Diodes Incorporated
