GBJ6005 - GBJ610
6.0A GLASS PASSIVATED BRIDGE RECTIFIER
Features
·
·
·
·
·
·
·
Glass Passivated Die Construction
High Case Dielectric Strength of 1500V
RMS
Low Reverse Leakage Current
Surge Overload Rating to 170A Peak
Ideal for Printed Circuit Board Applications
UL Listed Under Recognized Component
Index, File Number E94661
Lead Free Finish/RoHS Compliant (Note 4)
Dim
A
B
C
D
E
G
GBJ
Min
29.70
19.70
17.00
3.80
7.30
9.80
2.00
0.90
2.30
4.40
3.40
3.10
2.50
0.60
10.80
Max
30.30
20.30
18.00
4.20
7.70
10.20
2.40
1.10
2.70
4.80
3.80
3.40
2.90
0.80
11.20
L
K
A
M
Mechanical Data
·
·
·
·
·
·
·
·
·
·
Case: GBJ
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Lead Free Plating (Tin Finish).
Terminals: Plated Leads, Solderable per MIL-STD-202,
Method 208
e
3
Polarity: Molded on Body
Mounting: Through Hole for #6 Screw
Mounting Torque: 5.0 in-lbs Maximum
Marking: Type Number
Weight: 6.6 grams (approximate)
B
_
J
D
H
I
C
S
P
R
N
H
I
J
K
L
M
N
3.0 X 45°
G
E
E
P
R
S
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Rectified Output Current
@ T
C
= 110°C
Non-Repetitive Peak Forward Surge Current, 8.3 ms single
half-sine-wave superimposed on rated load
Forward Voltage per element
Peak Reverse Current
at Rated DC Blocking Voltage
I
2
t Rating for Fusing (t < 8.3ms) (Note 1)
Typical Total Capacitance per Element (Note 2)
Typical Thermal Resistance Junction to Case (Note 3)
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
@ T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
R
I
2
t
C
T
R
qJC
T
j
, T
STG
GBJ
6005
50
35
GBJ
601
100
70
GBJ
602
200
140
GBJ
604
400
280
6.0
170
1.0
5.0
500
120
55
1.8
-65 to +150
GBJ
606
600
420
GBJ
608
800
560
GBJ
610
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
°C/W
°C
@ I
F
= 3.0A
@ T
C
= 25°C
@ T
C
= 125°C
Non-repetitive, for t > 1ms and < 8.3 ms.
Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
Thermal resistance from junction to case per element. Unit mounted on 75 x 75 x 1.6mm aluminum plate heat sink.
RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
DS21216 Rev. 7 - 2
1 of 3
www.diodes.com
GBJ6005-GBJ610
ã
Diodes Incorporated
I
O
, AVERAGE RECTIFIED CURRENT (A)
With heatsink
5
4
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
6
10
1.0
3
Without heatsink
2
0.1
1
Resistive or
Inductive load
T
j
= 25°C
0
25
50
75
100
125
150
0.01
0
0.4
0.8
1.2
1.6
1.8
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

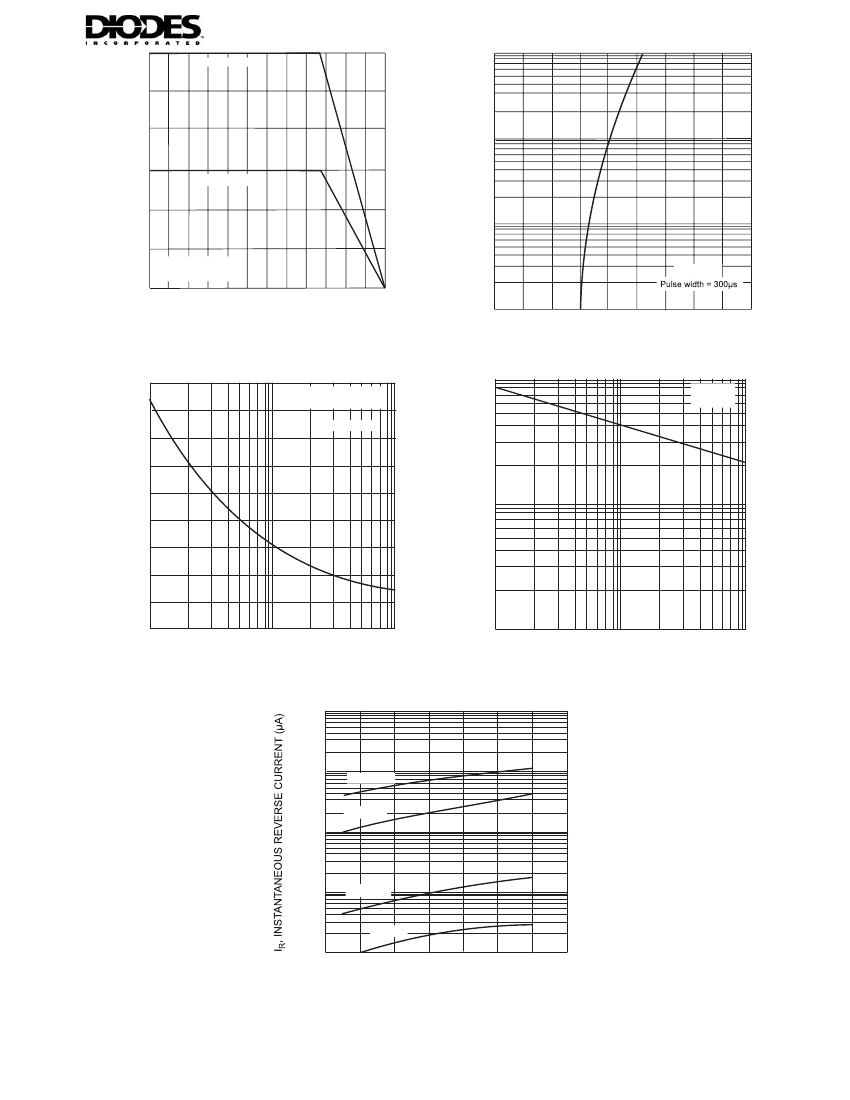

Fig. 2 Typical Forward Characteristics (per element)
100
T
j
= 25°C
f = 1MHz
T
C
, CASE TEMPERATURE (°C)
Fig. 1 Forward Current Derating Curve
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
180
Single half-sine-wave
160
T
j
= 150°C
120
C
T
, TOTAL CAPACITANCE (pF)
100
10
80
40
0
1
10
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Maximum Non-Repetitive Surge Current
1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance, Per Element
1000
100
T
j
= 125°C
T
j
= 100°C
10
1.0
T
j
= 50°C
T
j
= 25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typical Reverse Characteristics
DS21216 Rev. 7 - 2
2 of 3
www.diodes.com
GBJ6005-GBJ610
Ordering Information
Device
GBJ6005-F
GBJ601-F
GBJ602-F
GBJ604-F
GBJ606-F
GBJ608-F
GBJ610-F
Notes:
(Note 5)
Packaging
GBJ
GBJ
GBJ
GBJ
GBJ
GBJ
GBJ
Shipping
15/Tube
15/Tube
15/Tube
15/Tube
15/Tube
15/Tube
15/Tube
5. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf
