74LVC1G06
SINGLE INVERTER BUFFER/DRIVER WITH OPEN DRAIN OUTPUT
Description
The 74LVC1G06 is a single inverter gate with an open drain output.
The device is designed for operation with a power supply range of
1.65V to 5.5V. The input is tolerant to 5.5V allowing this device to be
used in a mixed voltage environment. The device is fully specified for
partial power down applications using I
OFF
. The I
OFF
circuitry disables
the output preventing damaging current backflow when the device is
powered down. The open-drain output can be connected to other
open drain outputs to implement active-low wired-OR or active-high
wired-AND functions. The maximum sink current is 32mA.

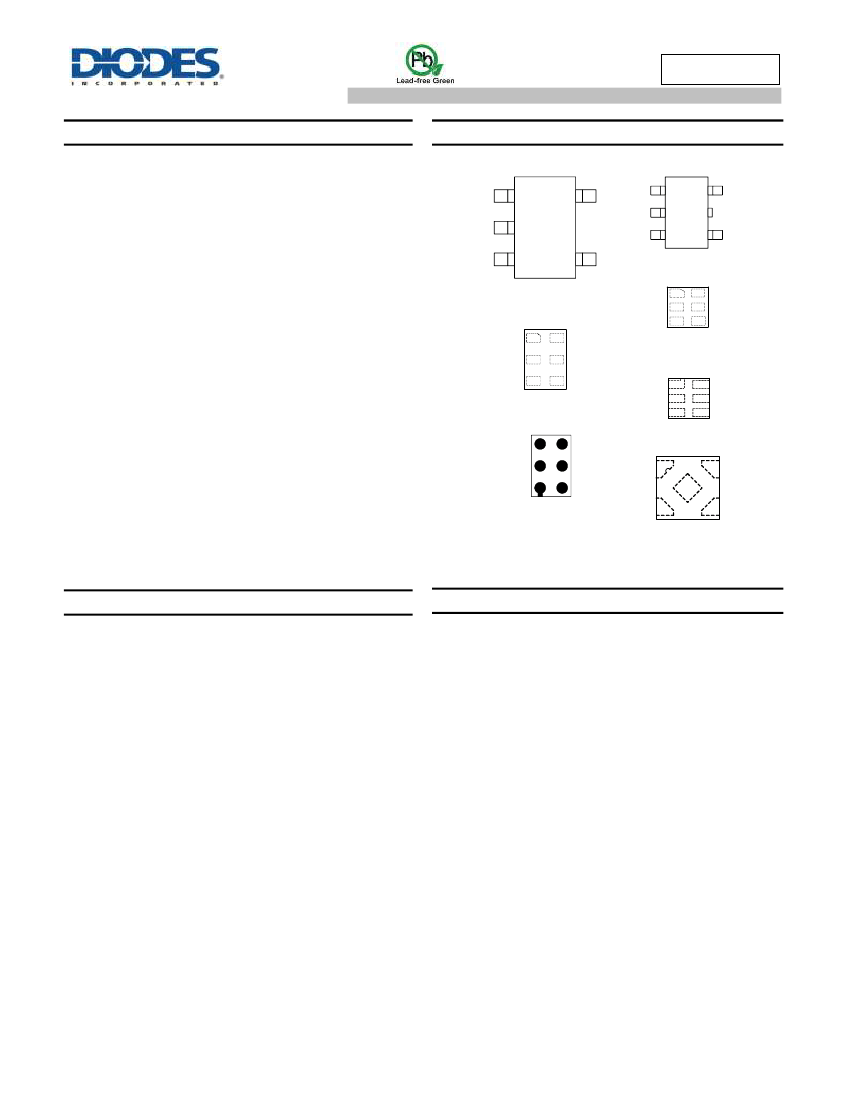

Pin Assignments
( Top View )
NC
1
A
2
5
Vcc
( Top View )
NC
1
A
2
GND
3
5
Vcc
4
Y
GND
3
SOT25 / SOT353
( Top View )
4
Y
SOT553
(Top View )
NC
A
GND
NC
A
GND
1
2
3
8
5
4
Vcc
NC
Vcc
NC
3
4
Y
X1-DFN1010-6
(Type B)
6
2
5
1
(Top View )
Y
X2-DFN1410-6
( Bottom View )
GND
3
A
2
NC
1
NC
A
GND
Vcc
2
5
NC
3
4
Y
X2-DFN1010-6
1
6
4
Y
5
NC
6
Vcc
(Top View)
NC
1
3
GND
5
Vcc
X2-DFN1409-6
Chip Scale
Alternative
A
2
4
Y
X2-DFN0808-4
Packages not to scale
Features
Wide Supply Voltage Range from 1.65 to 5.5V
24mA Sink Current at 3.3V
CMOS Low Power Consumption
I
OFF
Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Range of Package Options
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such as:
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation / GPS
MP3 players ,Cameras, Video Recorders
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
74LVC1G06
Document number: DS32272 Rev. 11 - 2
1 of 16
www.diodes.com
April 2018
© Diodes Incorporated
74LVC1G06
Ordering Information
(Note 4)
74 LVC1G 06 XXX -7
Logic Device
74 : Logic Prefix
LVC : 1.65 to 5.5 V
Logic Family
1G : One Gate
06 :
Function
1-Input
Inverter Buffer
with open drain
output
Package
Packing
W5 : SOT25
-7 : 7” Tape & Reel
SE : SOT353
Z : SOT553
FS3 : X2-DFN0808-4
FW5 : X1-DFN1010-6 (Type B)
FW4 :X2-DFN1010-6
FX4 : X2- DFN1409-6
FZ4 : X2- DFN1410-6
Package
Size
3.0mm x 2.8mm x 1.2mm
0.95 mm lead pitch
2.0mm x 2.0mm x 1.1mm
0.65 mm lead pitch
1.6mm x 1.6 mm x 0.62mm
0.5 mm lead pitch
0.8mm x 0.8 mm x 0.35mm
0.5 mm pad pitch (diamond)
1.0mm x 1.0mm x 0.5mm
0.35 mm pad pitch
1.0mm x 1.0mm x 0.4mm
0.35 mm pad pitch
1.4mm x 0.9mm x 0.4mm
0.5 mm pad pitch
1.4mm x 1.0mm x 0.4mm
0.5 mm pad pitch
7” Tape and Reel
Quantity
Part Number Suffix
3,000/Tape & Reel
3,000/Tape & Reel
4,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
5,000/Tape & Reel
-7
-7
-7
-7
-7
-7
-7
-7
Part Number
74LVC1G06W5-7
74LVC1G06SE-7
74LVC1G06Z-7
74LVC1G06FS3-7
74LVC1G06FW5-7
74LVC1G06FW4-7
74LVC1G06FX4-7
74LVC1G06FZ4-7
Notes:
Package Code
W5
SE
Z
FS3
FW5
FW4
FX4
FZ4
Package
(Notes 5 & 6)
SOT25
SOT353
SOT553
X2-DFN0808-4
X1-DFN1010-6
(Type B)
X2-DFN1010-6
X2-DFN1409-6
Chip scale alternative
X2-DFN1410-6
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Pad layout as shown on Diodes Inc. suggested pad layout which can be found on our website at http://www.diodes.com/package-outlines.html.
6. The taping orientation is located on our website at http://www.diodes.com/datasheets/ap02007.pdf.
Pin Descriptions
Pin Name
NC
A
GND
Y
V
CC
Description
No Connection
Data Input
Ground
Data Output
Supply Voltage
Logic Diagram
A
2
4
Y
Function Table
Inputs
A
H
L
Output
Y
L
Z
74LVC1G06
Document number: DS32272 Rev. 11 - 2
2 of 16
www.diodes.com
April 2018
© Diodes Incorporated
74LVC1G06
Absolute Maximum Ratings
(Notes 7 & 8) (@T
A
= +25°C, unless otherwise specified.)
Symbol
ESD HBM
ESD CDM
ESD MM
V
CC
V
I
V
O
V
O
I
IK
I
OK
I
O
I
CC,
I
GN
T
J
T
STG
Notes:
Description
Human Body Model ESD Protection
Charged Device Model ESD Protection
Machine Model ESD Protection
Supply Voltage Range
Input Voltage Range
Voltage Applied to Output in High Impedance or I
OFF
State
Voltage Applied to Output in High or Low State.
Input Clamp Current V
I
< 0
Output Clamp Current
Continuous Output Current
Continuous Current Through V
CC
or GND
Operating Junction Temperature
Storage Temperature
Rating
2
1
200
-0.5 to 6.5
-0.5 to 6.5
-0.5 to 6.5
-0.5 to 6.5
-50
-50
±50
±100
-40 to +150
-65 to +150
Unit
kV
kV
V
V
V
V
V
mA
mA
mA
mA
°C
°C
7. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device
operation should be within recommend values.
8. Forcing the maximum allowed voltage could cause a condition exceeding the maximum current or conversely forcing the maximum current could
cause a condition exceeding the maximum voltage. The ratings of both current and voltage must be maintained within the controlled range.
Recommended Operating Conditions
(Note 9) (@T
A
= +25°C, unless otherwise specified.)
Symbol
V
CC
Operating Voltage
Parameter
Operating
Data retention only
V
CC
= 1.65V to 1.95V
V
IH
High-Level Input Voltage
V
CC
= 2.3V to 2.7V
V
CC
= 3V to 3.6V
V
CC
= 4.5V to 5.5V
V
CC
= 1.65V to 1.95V
V
IL
Low-Level Input Voltage
V
CC
= 2.3V to 2.7V
V
CC
= 3V to 3.6V
V
CC
= 4.5V to 5.5V
V
I
V
O
Input Voltage
Output Voltage
V
CC
= 1.65V
V
CC
= 2.3V
I
OL
Low-Level Output Current
V
CC
= 2.7V
V
CC
= 3V
V
CC
= 4.5V
V
CC
= 1.8V ± 0.15V, 2.5V ± 0.2V
Δt/ΔV
T
A
Note:
Min
1.65
1.5
0.65 x V
CC
1.7
2
0.7 x V
CC
—
—
—
—
0
0
—
—
—
—
—
—
—
—
—
-40
Max
5.5
—
—
—
—
—
0.35 x V
CC
0.7
0.8
0.3 x V
CC
5.5
5.5
4
8
12
16
24
32
20
10
5
+125
Unit
V
V
V
V
V
V
mA
Input Transition Rise or Fall Rate V
CC
= 3.3V ± 0.3V
V
CC
= 5V ± 0.5V
Operating Free-Air Temperature —
ns/V
°C
9. Unused inputs should be held at V
CC
or Ground.
74LVC1G06
Document number: DS32272 Rev. 11 - 2
3 of 16
www.diodes.com
April 2018
© Diodes Incorporated
74LVC1G06
Package Characteristics
(All typical values are at V
CC
= 3.3V, T
A
= +25°C)
Symbol
Parameter
Test Conditions
SOT25
SOT353
SOT553
X2-DFN0808-4
X1-DFN1010-6 (Type B)
X2-DFN1010-6
X2-DFN1409-6
X2-DFN1410-6
SOT25
SOT353
SOT553
X2-DFN0808-4
X1-DFN1010-6 (Type B)
X2-DFN1010-6
X2-DFN1409-6
X2-DFN1410-6
V
CC
Min
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
204
371
231
400
435
445
470
460
52
143
105
225
250
250
275
265
Max
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Unit
θ
JA
Thermal Resistance
Junction-to-Ambient
(Note 10)
°C/W
θ
JC
Thermal Resistance
Junction-to-Case
(Note 10)
°C/W
Note:
10. Test condition for each of the 8 package types: Device mounted on FR-4 substrate PC board, 2oz copper, with minimum recommended pad layout.
Switching Characteristics
Figure 1 Typical Values at T
A
= +25°C and nominal voltages 1.8V, 2.5V, 2.7V, 3.3V, and 5.0V.
Parameter
From
Input
To
Output
V
CC
1.8V ± 0.15V
2.5V ± 0.2V
2.7V
3.3 V ± 0.3V
5.0V ± 0.5V
T
A
= -40°C to +85°C
Min
1.0
0.5
0.5
0.5
0.5
Typ
3.0
1.9
2.5
2.3
1.7
Max
6.5
4.0
4.5
4.0
3.0
T
A
= -40°C to +125°C
Min
1.0
0.5
0.5
0.5
0.5
Max
8.5
5.5
6.0
5.5
4.0
Unit
t
pd
A or B
Y
ns
Operating Characteristics
T
A
= +25°C
Parameter
C
pd
Power Dissipation
Capacitance
Test
Conditions
f = 10MHz
V
CC
= 1.8V
Typ
3
V
CC
= 2.5V
Typ
3
V
CC
= 3.3V
Typ
4
V
CC
= 5V
Typ
6
Unit
pF
74LVC1G06
Document number: DS32272 Rev. 11 - 2
5 of 16
www.diodes.com
April 2018
© Diodes Incorporated
