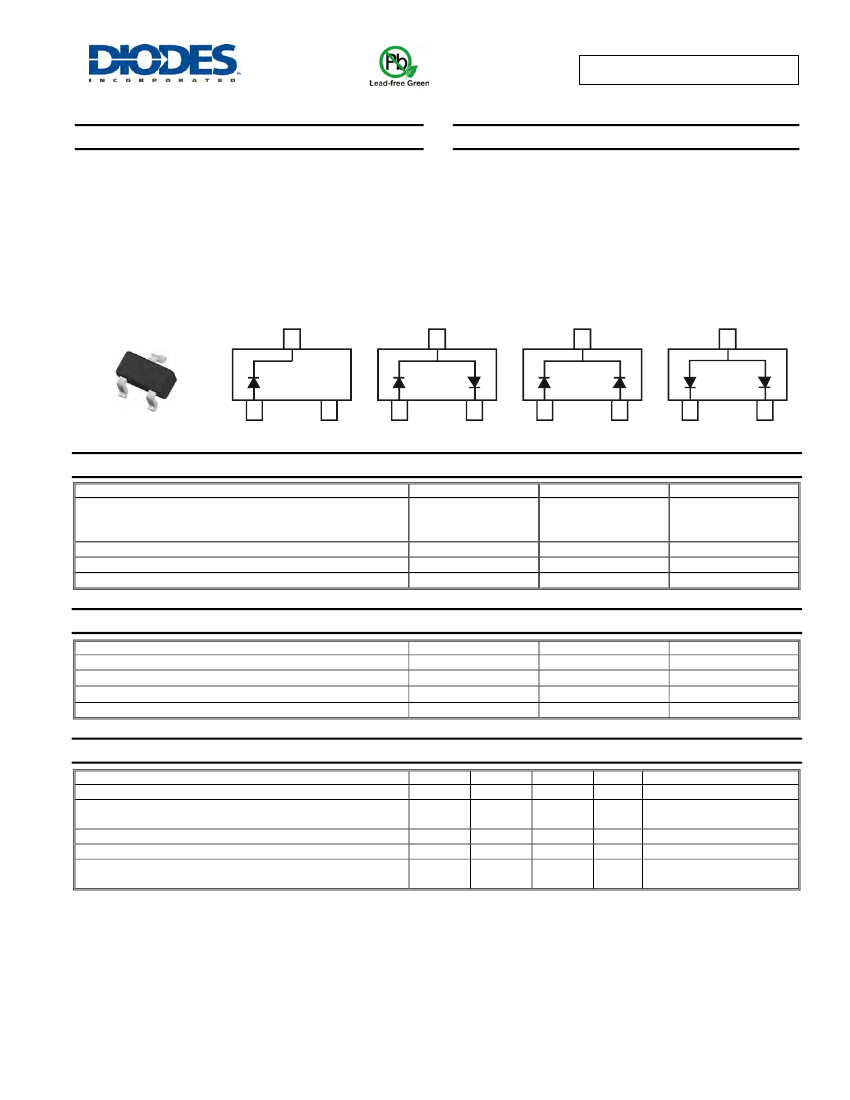

BAS70T /-04T /-05T /-06T
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
Low Turn-on Voltage
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Ultra-Small Surface Mount Package
Lead Free/RoHS Compliant (Note 3)
"Green" Device (Note 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-523
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish - Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagrams Below
Marking Information: See Page 2
Ordering Information, See Page 2
Weight: 0.002 grams (approximate)
Top View
BAS70T
BAS70-04T
BAS70-05T
BAS70-06T
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
Value
70
49
70
100
Unit
V
V
mA
mA
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Non-Repetitive Peak Forward Surge Current
(Note 1)
@ t
p
<
1.0s
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air
Operating Temperature Range
Storage Temperature Range
(Note 1)
(Note 1)
Symbol
P
D
R
θ
JA
T
J
T
STG
Value
150
833
-55 to +125
-65 to +150
Unit
mW
°C/W
°C
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage
Forward Voltage
Leakage Current
Total Capacitance
Reverse Recovery Time
Notes:
@T
A
= 25°C unless otherwise specified
(Note 2)
Symbol
V
(BR)R
V
F
(Note 2)
I
R
C
T
Min
70
—
⎯
⎯
—
Max
—
410
1000
100
2.0
5.0
Unit
—
mV
nA
pF
ns
Test Condition
I
R
=
10μA
t
p
<300µs
,
I
F
=
1.0mA
t
p
<300µs
,
I
F
=
15mA
t
p
< 300µs
,
V
R
= 50V
V
R
= 0V
,
f = 1.0MHz
I
F
= I
R
= 10mA to IR = 1.0mA,
I
rr
= 0.1 x
I
R
, R
L
= 100Ω
t
rr
1. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration pulse test used to minimize self-heating effect.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
5. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
BAS70T /-04T /-05T /-06T
Document number: DS30261 Rev. 11 - 2
1 of 3
www.diodes.com
July 2008
© Diodes Incorporated

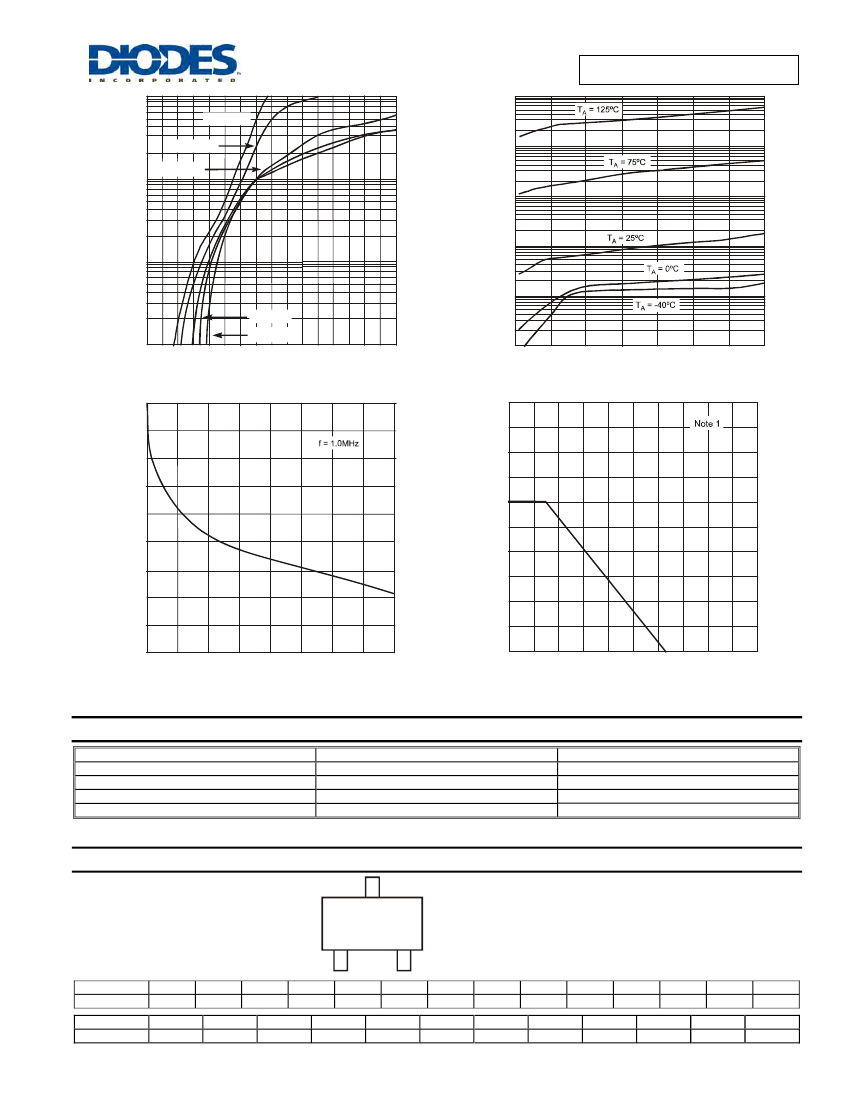

BAS70T /-04T /-05T /-06T
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
T
A
= 125ºC
T
A
= 75ºC
T
A
= 25ºC
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
100
10,000
1,000
10
100
10
1.0
1
T
A
= 0ºC
0.1
0
T
A
= -40ºC
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
0.1
0
70
10
20
30
40
50
60
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
1.8
1.6
C
T
, TOTAL CAPACITANCE (pF)
P
D
, POWER DISSIPATION (mW)
250
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
35
20
25
40
10
15
30
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
5
200
150
100
50
0
0
200
80
120
160
40
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve, Total Package
Ordering Information
Part Number
BAS70T-7-F
BAS70-04T-7-F
BAS70-05T-7-F
BAS70-06T-7-F
Notes:
(Note 6)
Case
SOT-523
SOT-523
SOT-523
SOT-523
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
xx = Product Type Marking Code
7C = BAS70T
7D = BAS70-04T
7E = BAS70-05T
7F = BAS70-06T
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
2008
V
Jun
6
2009
W
Jul
7
2010
X
Aug
8
2011
Y
Sep
9
2012
Z
2013
A
Oct
O
2014
B
Nov
N
2015
C
Dec
D
July 2008
© Diodes Incorporated
xx
YM
Date Code Key
Year
2002
Code
N
Month
Code
Jan
1
2003
P
Feb
2
2004
R
Mar
3
2005
S
2006
T
Apr
4
2007
U
May
5
BAS70T /-04T /-05T /-06T
Document number: DS30261 Rev. 11 - 2
2 of 3
www.diodes.com
BAS70T /-04T /-05T /-06T

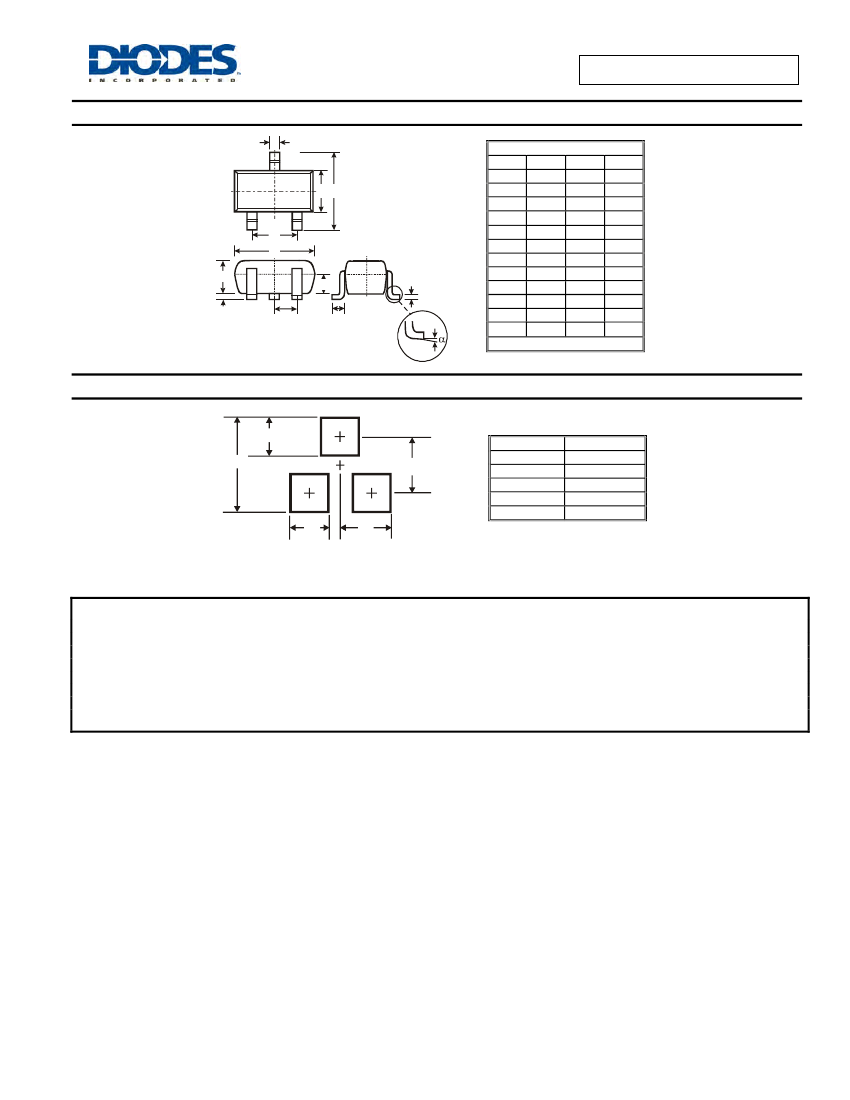

Package Outline Dimensions
A
B C
G
H
K
M
N
J
D
L
SOT-523
Dim
Min
Max
Typ
A
0.15
0.30
0.22
B
0.75
0.85
0.80
C
1.45
1.75
1.60
D
0.50
⎯
⎯
G
0.90
1.10
1.00
H
1.50
1.70
1.60
J
0.00
0.10
0.05
K
0.60
0.80
0.75
L
0.10
0.30
0.22
M
0.10
0.20
0.12
N
0.45
0.65
0.50
8°
0°
α
⎯
All Dimensions in mm
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
1.8
X
0.4
Y
0.51
C
1.3
E
0.7
X
E
