DZT2907A
PNP SURFACE MOUNT TRANSISTOR
NEW PRODUCT
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary NPN Type Available (DZT2222A)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Amplification and Switching
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
3
2
1
4
SOT-223
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-223
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Matte Tin annealed over Copper Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Page 4
Ordering Information: See Page 4
Weight: 0.115 grams (approximate)
3 E
C 4
2 C
1
COLLECTOR
2,4
1 B
TOP VIEW
BASE
3
EMITTER
Schematic and Pin Configuration
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
Value
-60
-60
-5
-600
-800
Unit
V
V
V
mA
mA
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Continuous Current (Note 3)
Peak Collector Current
Thermal Characteristics
Characteristic
Power Dissipation @ T
A
= 25°C
Power Derating Factor above 25°C (Note 4)
Operating and Storage Temperature Range
Thermal Resistance, Junction to Ambient Air @ T
A
= 25°C (Note 4)
Notes:
1.
2.
3.
4.
Symbol
P
d
P
der
T
j
, T
STG
R
θ
JA
Value
1000 (Note 3)
1500 (Note 4)
12
-55 to +150
83.3
Unit
mW
mW/°C
°C
ο
C/W
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Device mounted on 2” x 2” FR-4 PC board, 2 oz. copper, single sided, pad layout as shown on page 4, or on Diodes Inc. suggested pad
layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Device mounted on FR-4 PCB, 7cm
2
of copper pad area.
DS30921 Rev. 5 - 2
1 of 4
www.diodes.com
DZT2907A
© Diodes Incorporated
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 5)
@T
A
= 25°C unless otherwise specified
Symbol
I
CBO
I
CEX
I
BL
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
V
CE(SAT)
Min
⎯
⎯
⎯
⎯
-60
-60
-5
⎯
⎯
75
100
100
100
50
⎯
⎯
200
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
-0.01
-10
-50
-50
⎯
⎯
⎯
-0.4
-1.6
⎯
⎯
⎯
300
⎯
-1.3
-2.6
⎯
8
30
45
10
40
100
80
30
Unit
μA
nA
nA
V
V
V
V
V
⎯
⎯
⎯
⎯
⎯
V
V
MHz
pF
pF
ns
ns
ns
ns
ns
ns
Test Conditions
V
CB
= -50V, I
E
= 0
V
CB
= -50V, I
E
= 0, T
A
= 150
°
C
V
CE
= -30V, V
EB(OFF)
= -0.5V
V
CE
= -30V, V
EB(OFF)
= -0.5V
I
C
= -10
μA,
I
E
= 0
I
C
= -10 mA, I
B
= 0
I
E
= -10
μA,
I
C
= 0
I
C
= -150mA, I
B
= -15mA
I
C
= -500mA, I
B
= -50mA
V
CE
= -10V, I
C
= -100μA
V
CE
= -10V, I
C
= -1mA
V
CE
= -10V, I
C
= -10mA
V
CE
= -10V, I
C
= -150mA
V
CE
= -10V, I
C
= -500mA
I
C
= -150mA, I
B
= -15mA
I
C
= -500mA, I
B
= -50mA
V
CE
= -20V, I
C
= -50mA, f = 100MHz
V
CB
= -10V, I
E
= 0A, f =1MHz
V
EB
= -2V, I
C
= 0A, f =1MHz
NEW PRODUCT
Collector-Base Cutoff Current
Collector Cutoff Current
Base Cutoff Current
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
ON CHARACTERISTICS (Note 5)
Collector-Emitter Saturation Voltage
DC Current Gain
h
FE
Base-Emitter Saturation Voltage
SMALL SIGNAL CHARACTERISTICS
Current Gain-Bandwidth Product
Output Capacitance
Input Capacitance
SWITCHING CHARACTERISTICS
Turn-On Time
Delay Time
Rise Time
Turn-Off Time
Storage Time
Fall Time
Notes:
V
BE(SAT)
f
T
C
obo
C
ibo
t
on
t
d
t
r
t
off
t
s
t
f
V
CC
= -30V, I
C
= -150mA, I
B1
= -15mA
V
CC
= -6V, I
C
= -150mA, I
B1
= I
B2
= -15mA
5. Pulse Test: Pulse width, tp<300 uS, Duty Cycle, d< =0.02

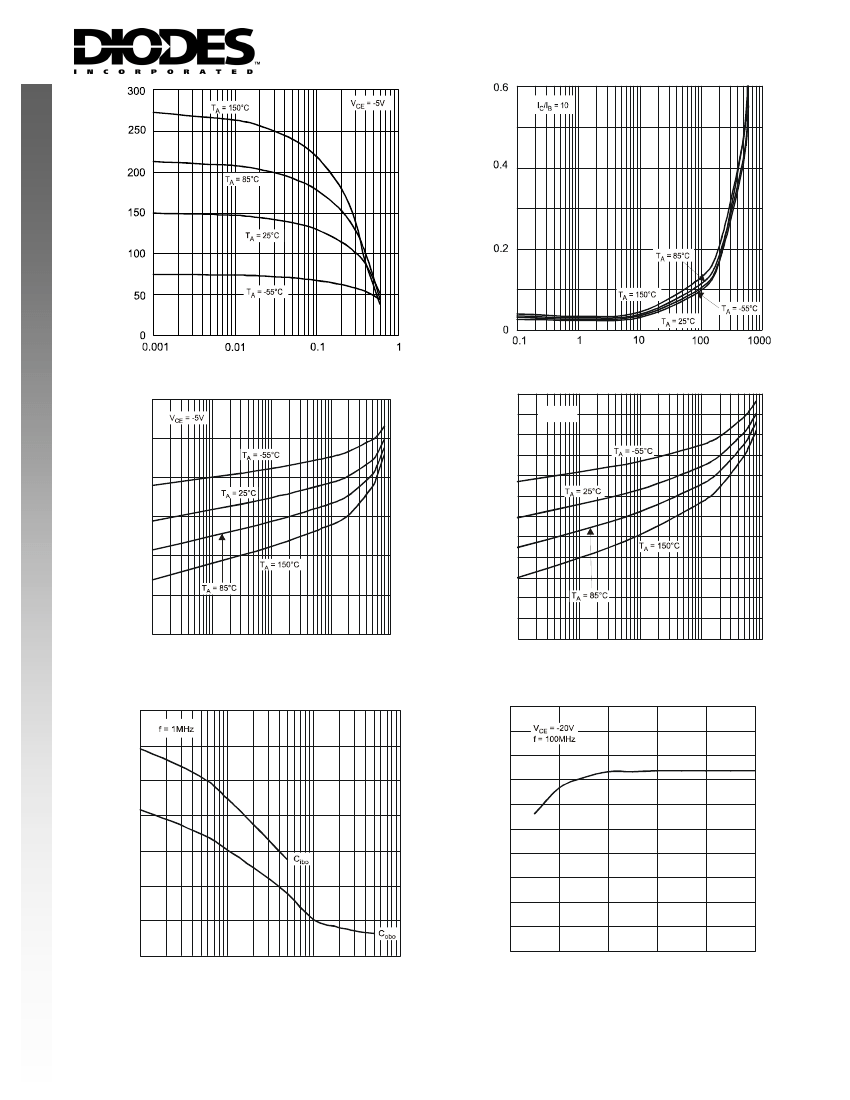

Typical Characteristics
1.0
@T
A
= 25°C unless otherwise specified
P
D
, POWER DISSIPATION (mW)
0.8
0.6
0.4
0.2
0
150
25
75
100
125
50
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Power Dissipation vs. Ambient Temperature (Note 3)
0
-I
C
, COLLECTOR CURRENT (A)
0
-V
CE
, COLLECTOR EMITTER VOLTAGE (V)
Fig. 2 Typical Collector Current as a
Function of Collector Emitter Voltage
DS30921 Rev. 5 - 2
2 of 4
www.diodes.com
DZT2907A
© Diodes Incorporated
-V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
NEW PRODUCT
h
FE
, DC CURRENT GAIN
-I
C
, COLLECTOR CURRENT (A)
Fig. 3 Typical DC Current Gain vs. Collector Current
-V
BE(ON)
, BASE-EMITTER TURN-ON VOLTAGE (V)
1.2
-I
C
, COLLECTOR CURRENT (mA)
Fig. 4 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
1.2
I
C
/I
B
= 10
-V
BE(SAT)
, BASE-EMITTER
SATURATION VOLTAGE (V)
1
10
100
1000
1
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
0.1
0
0.1
1
10
100
1000
-I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Typical Base-Emitter Saturation Voltage
vs. Collector Current
500
f
T
, GAIN BANDWIDTH PRODUCT (MHz)
450
400
350
300
250
200
150
100
50
0
-I
C
, COLLECTOR CURRENT (mA)
Fig. 5 Typical Base-Emitter Turn-On Voltage
vs. Collector Current
35
30
25
20
15
10
5
0
0.1
CAPACITANCE (pF)
1
10
100
0
20
40
60
80
100
V
R
, REVERSE VOLTAGE (V)
Fig. 7 Typical Capacitance Characteristics
-I
C
, COLLECTOR CURRENT (mA)
Fig. 8 Typical Gain-Bandwidth Product
vs. Collector Current
DS30921 Rev. 5 - 2
3 of 4
www.diodes.com
DZT2907A
© Diodes Incorporated
Ordering Information
(Note 6)
Device
DZT2907A-13
Packaging
SOT-223
Shipping
2500/Tape & Reel
NEW PRODUCT
Notes:
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
(Top View)
YWW
K2F
= Manufacturer’s code marking
K2F = Product type marking code
YWW = Date code marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
Package Outline Dimensions
SOT-223
Dim Min Max Typ
A
1.55 1.65 1.60
A1
0.010 0.15 0.05
b1
2.90 3.10 3.00
b2
0.60 0.80 0.70
C
0.20 0.30 0.25
D
6.45 6.55 6.50
E
3.45 3.55 3.50
E1
6.90 7.10 7.00
e
—
—
4.60
e1
—
—
2.30
L
0.85 1.05 0.95
Q
0.84 0.94 0.89
All Dimensions in mm
Suggested Pad Layout: (Based on IPC-SM-782)
(Unit:mm)
