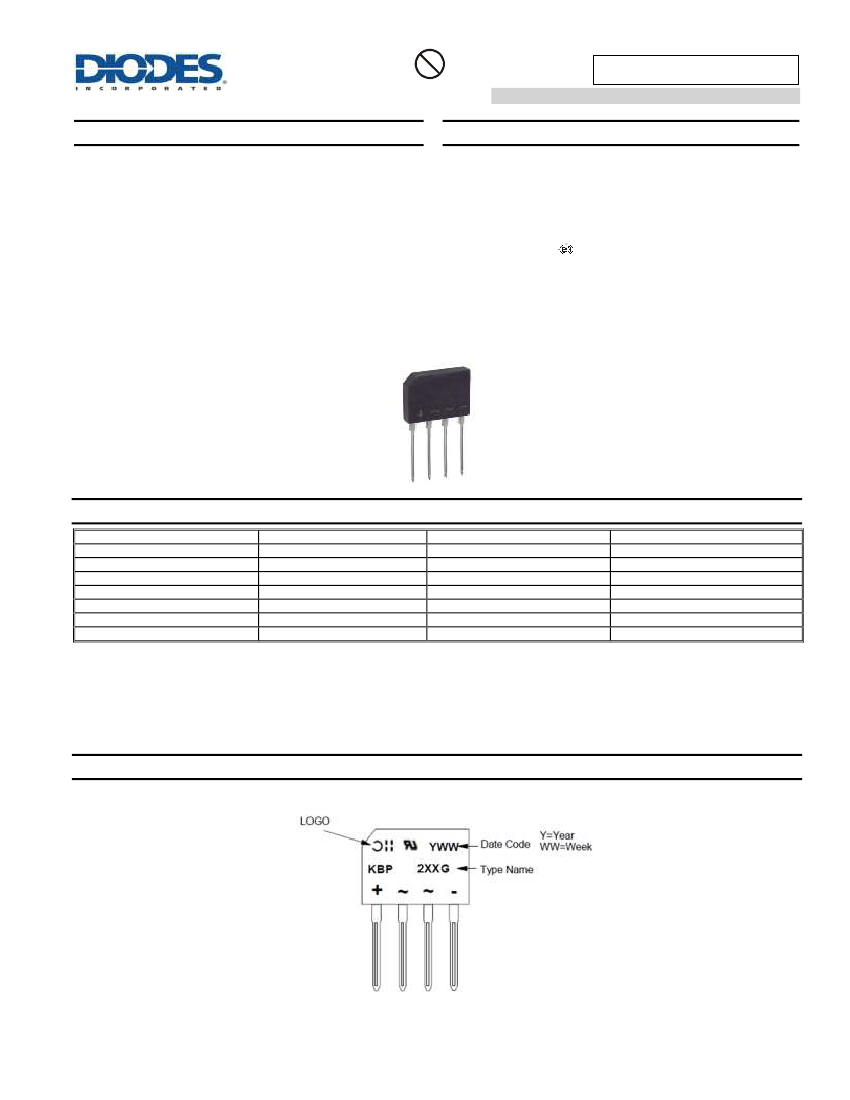

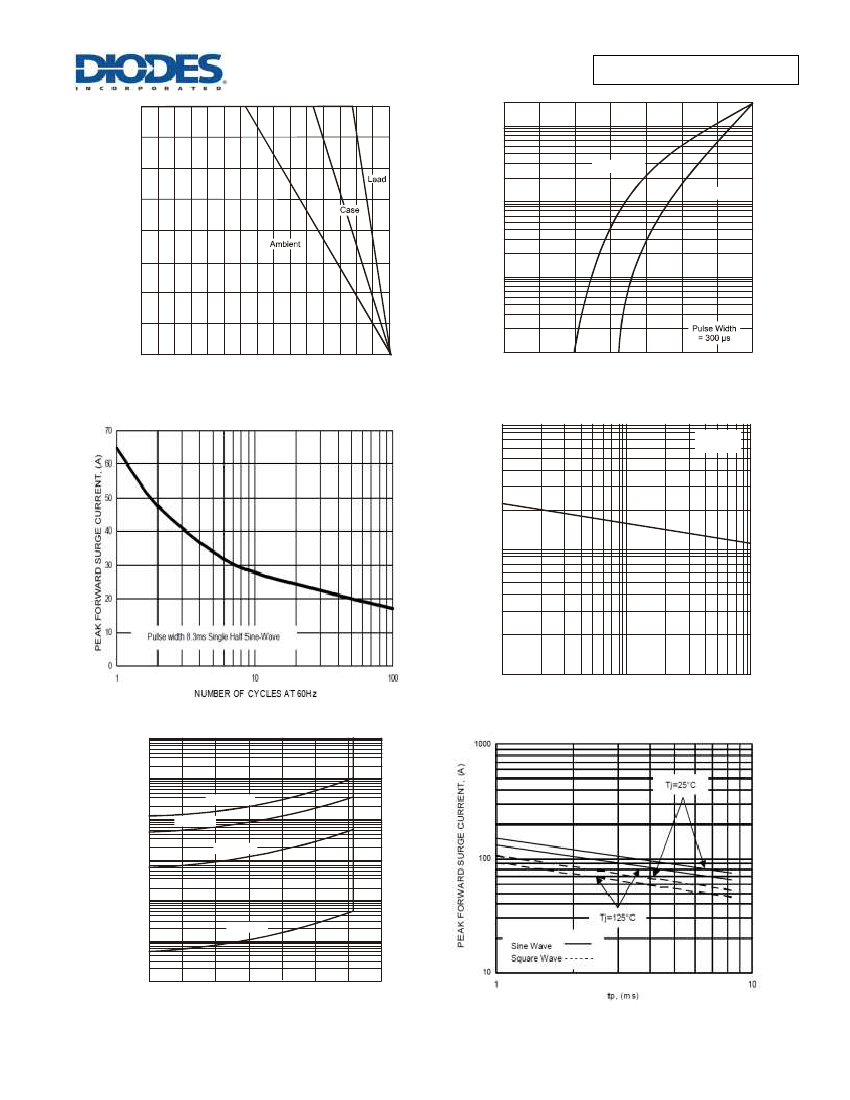

KBP2005G-KBP210G

2.0A GLASS PASSIVATED BRIDGE RECTIFIER

Features and Benefits



Glass Passivated Die Construction

High Case Dielectric Strength of 1,500 V

RMS

Low Reverse Leakage Current

Surge Overload Rating to 65A Peak

Ideal for Printed Circuit Board Applications

UL Listed Under Recognized Component Index, File Number

E94661

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Mechanical Data



Case: KBP

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Tin Plated Leads. Solderable per MIL-STD-

202, Method 208

Polarity: Marked on Body

Marking: Type Number

Weight: 1.52 grams (Approximate)

KBP

Ordering Information

(Note 3)

Part Number

KBP2005G

KBP201G

KBP202G

KBP204G

KBP206G

KBP208G

KBP210G

Notes:

Compliance

Commercial

Case

KBP

Packaging

35 Pieces per Tube

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

KBP2005G-KBP210G

Document number: DS21205 Rev. 11 - 2

1 of 5

www.diodes.com
