RS1MSWFQ
1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER
Product Summary
(@T
A
= +25°C)
V
RRM
(V)
1,000
I
O
(A)
1
V
F
Max (V)
1.3
I
R
Max (µA)
10
Features and Benefits
Glass Passivated Die Construction
Fast Recovery Time For High Efficiency
Small Form Factor, Low Profile
Ideally Suited for Automated Assembly
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
ADVANCED INFORMATION
Description and Applications
The RS1MSWFQ is a rectifier packaged in the SOD123F package.
Providing fast recovery time for high efficiency, this device is ideal for
applications such as:
Reverse Protection
Switching
Blocking
Mechanical Data
Case: SOD123F
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.0016 grams (Approximate)
SOD123F
Top View
Bottom View
Schematic View
Ordering Information
(Note 5)
Part Number
RS1MSWFQ-7
Notes:
Compliance
Automotive
Case
SOD123F
Packaging
3,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOD123F
R1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex.: C = 2015)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
Jan
1
2015
C
Feb
2
2016
D
Mar
3
Apr
4
2017
E
May
5
2018
F
Jun
6
Jul
7
2019
G
Aug
8
2020
H
Sep
9
2021
I
Oct
O
Nov
N
2022
J
Dec
D
RS1MSWFQ
Document number: DS38315 Rev. 2 - 2
1 of 5
www.diodes.com
November 2015
© Diodes Incorporated
RS1MSWFQ
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
T
= +75°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
I
FSM
Value
1,000
700
1.0
25
Unit
V
V
A
A
ADVANCED INFORMATION
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Case (Note 6)
Thermal Resistance Junction to Ambient (Note 6)
Operating and Storage Temperature Range
Symbol
R
θJC
R
θJA
T
J,
T
STG
Value
13
82
-55 to +150
Unit
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage Drop
Leakage Current (Note 7)
Reverse Recovery Time
Total Capacitance
Notes:
Symbol
V
(BR)R
V
F
I
R
t
rr
C
T
Min
1,000
—
—
—
—
Typ
—
1.1
0.95
0.2
5
240
3
Max
—
1.3
—
10
200
500
—
Unit
V
V
µA
ns
pF
Test Condition
I
R
= 5µA
I
F
= 1A, T
J
= +25°C
I
F
= 1A, T
J
= +125°C
V
R
= 1,000V, T
J
= +25°C
V
R
= 1,000V, T
J
= +125°C
I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A
V
R
= 4.0V
DC
, f = 1MHz
6. Device mounted on FR4 PCB with 1x recommended pad layout, 1-inch 2oz, please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for
the latest version.
7. Short duration pulse test used to minimize self-heating effect.
RS1MSWFQ
Document number: DS38315 Rev. 2 - 2
2 of 5
www.diodes.com
November 2015
© Diodes Incorporated
RS1MSWFQ
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.8
10
T
A
=150°C
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
Note 6
1
T
A
=125°C
0.1
T
A
=85°C
T
A
=25°C
ADVANCED INFORMATION
0.01
T
A
=-55°C
0.001
0.0001
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)

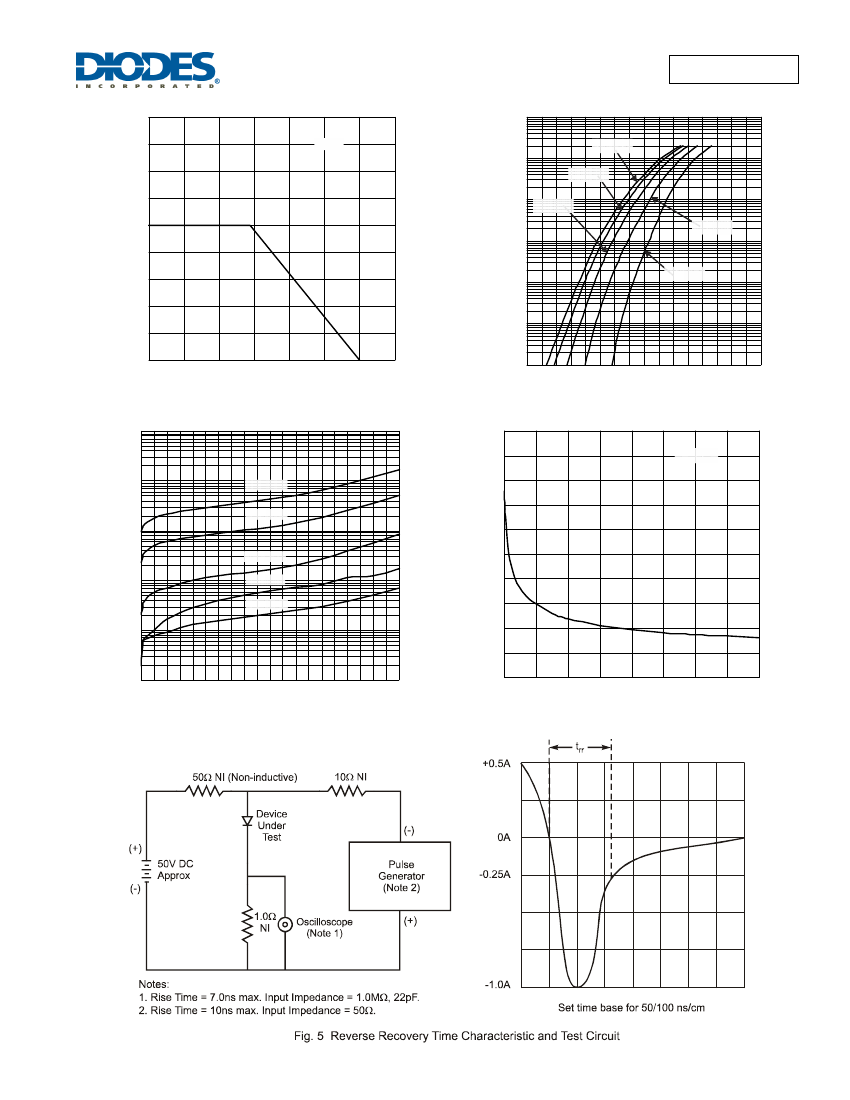

Figure 1 Forward Current Derating Curve
175
0.00001
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics
10
f = 1MHz
100
I
R
, LEAKAGE CURRENT (µA)
T
A
=125°C
C
T
, TOTAL CAPACITANCE (pF)
10
T
A
=150°C
8
1
T
A
=85°C
6
0.1
T
A
=25°C
T
A
=-55°C
4
0.01
2
0.001
0
100 200 300 400 500 600 700 800 900 1000
V
R
, REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics
0
0
5
10
15
20
25
30
V
R
, REVERSE VOLTAGE (V)
Figure 4 Total Capacitance
35
40
RS1MSWFQ
Document number: DS38315 Rev. 2 - 2
3 of 5
www.diodes.com
November 2015
© Diodes Incorporated
RS1MSWFQ
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
SOD123F (Type B)
ADVANCED INFORMATION
L
SOD123F (Type B)
Dim Min Max
Typ
A
0.81 1.15
—
b
0.80 1.35
—
c
0.05 0.30
—
D
1.70 1.90
1.80
E
2.60 2.80
2.70
He
3.30 3.70
3.50
L
0.35 0.85
—
All Dimensions in mm
D
b
E
c
He
A
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOD123F (Type B)
X
Dimensions
Y
G
X
X1
Y
Value
(in mm)
1.90
1.00
3.90
1.50
G
X1
RS1MSWFQ
Document number: DS38315 Rev. 2 - 2
4 of 5
www.diodes.com
November 2015
© Diodes Incorporated
RS1MSWFQ
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for
use provided in the labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
ADVANCED INFORMATION
RS1MSWFQ
Document number: DS38315 Rev. 2 - 2
5 of 5
www.diodes.com
November 2015
© Diodes Incorporated
