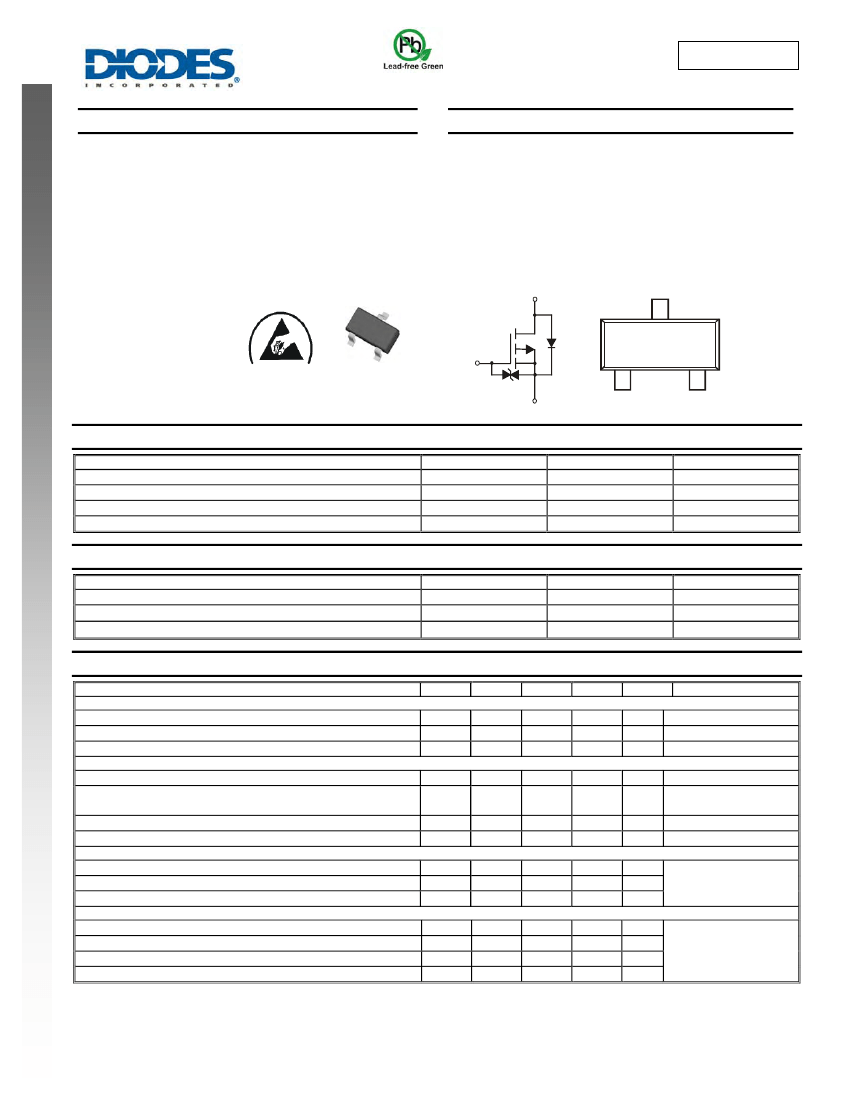

DMP3030SN
P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
•
•
•
•
•
•
•
•
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Lead Free By Design/RoHS Compliant (Note 2)
ESD Protected Gate
"Green" Device (Note 4)
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
•
•
•
•
•
•
•
•
SC59
NEW PRODUCT
Case: SC59
Case Material: Molded Plastic, “Green” Molding
Compound. UL Flammability Classification Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020C
Terminals: Finish
⎯
Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Marking Information: See Page 3
Ordering & Date Code Information: See Page 3
Weight: 0.014 grams (approximate)
Drain
D
Gate
ESD protected
TOP VIEW
Gate
Protection
Diode
Source
G
S
Internal Schematic
EQUIVALENT CIRCUIT
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
DSS
V
GSS
I
D
I
DM
Value
-30
±20
-0.7
-2.8
Unit
V
V
A
A
Characteristic
Drain-Source Voltage
Gate-Source Voltage
Drain Current (Note 1) Steady State
Pulsed Drain Current (Note 3)
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
P
d
R
θ
JA
T
j
, T
STG
Value
500
250
-65 to +150
Unit
mW
°C/W
°C
Characteristic
Total Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
BV
DSS
I
DSS
I
GSS
V
GS(th)
R
DS (ON)
|Y
fs
|
V
SD
C
iss
C
oss
C
rss
t
D(ON)
t
D(OFF)
t
r
t
f
Min
-30
⎯
⎯
-1.0
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
0.20
0.35
1
-0.8
160
120
50
10
25
25
40
Max
⎯
-10
±10
-3.0
0.25
0.45
⎯
-1.1
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Unit
V
μA
μA
V
Ω
S
V
pF
pF
pF
ns
ns
ns
ns
Test Condition
V
GS
= 0V, I
D
= -250µA
V
DS
= -30V, V
GS
= 0V
V
GS
=
±20V,
V
DS
= 0V
V
DS
= -10V, I
D
= -1.0mA
V
GS
= -10V, I
D
= -0.4A
V
GS
= -4.5V, I
D
= -0.4A
V
DS
= -10V, I
D
= -0.4A
V
GS
= 0V, I
S
= -0.7A
V
DS
= -10V, V
GS
= 0V
f = 1.0MHz
Characteristic
OFF CHARACTERISTICS (Note 5)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage
ON CHARACTERISTICS (Note 5)
Gate Threshold Voltage
Static Drain-Source On-Resistance
Forward Transfer Admittance
Diode Forward Voltage (Note 5)
DYNAMIC CHARACTERISTICS
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
SWITCHING CHARACTERISTICS
Turn-On Delay Time
Turn-Off Delay Time
Turn-On Rise Time
Turn-Off Fall Time
Notes:
1.
2.
3.
4.
5.
V
DD
= -10V, I
D
= -0.4A,
V
GS
= -5.0V, R
GEN
= 50Ω
Device mounted on FR-4 PCB.
No purposefully added lead.
Pulse width
≤10μS,
Duty Cycle
≤1%.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Short duration pulse test used to minimize self-heating effect.
DMP3030SN
Document number: DS30787 Rev. 5 - 2
1 of 4
www.diodes.com
August 2011
© Diodes Incorporated
DMP3030SN
3
-10V
-5V
-4.5V
-4V
T
A
= 25°C
V
DS
= 10V
3
2.5
2.5
2
2
-3.5V
NEW PRODUCT
1.5
1.5
1
-3V
1
T
J
= 125°C
0.5
V
GS
= -2.5V
0.5
T
J
= 25°C
T
J
= -55°C
0
0
1
2
3
4
-V
DS
, DRAIN-SOURCE VOLTAGE (V)

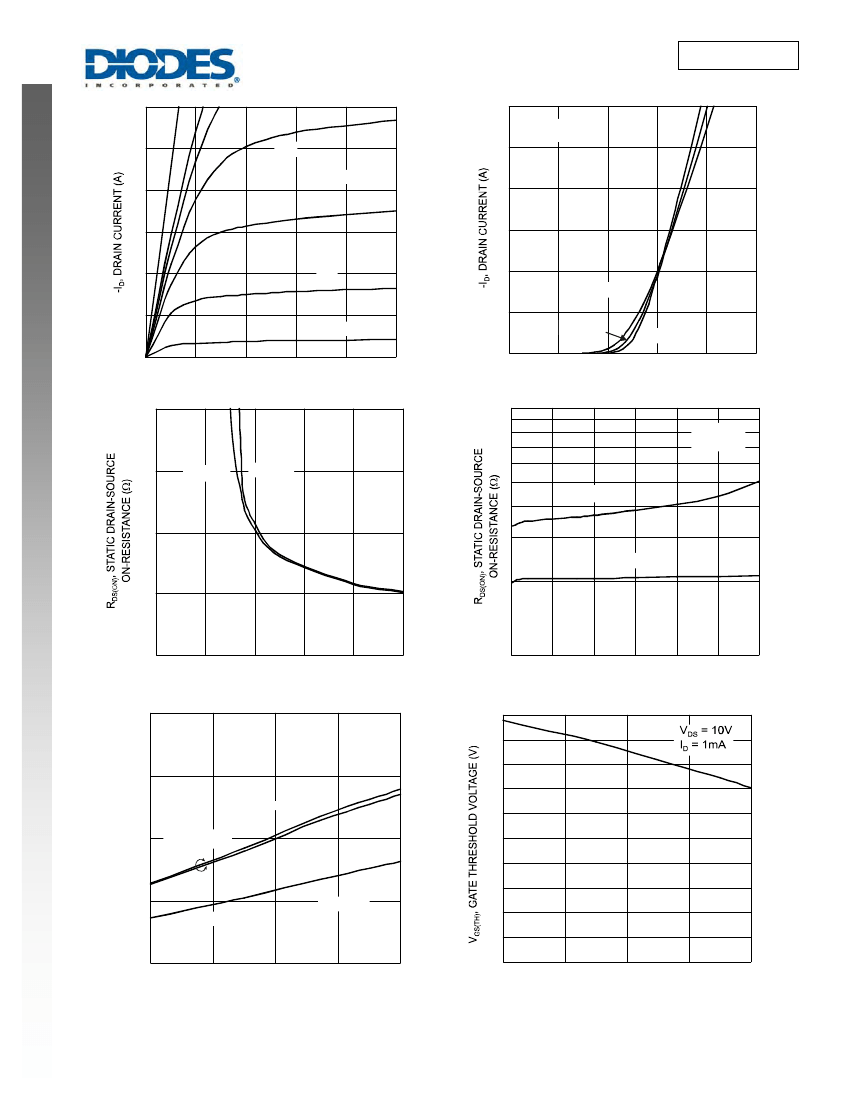

Fig. 1 Typical Output Characteristics
5
0
0
1
2
3
4
-V
GS
, GATE-SOURCE VOLTAGE (V)
Fig. 2 Typical Transfer Characteristics
5
0.8
1
T
J
= 25°C
0.6
I
D
= -0.4A
I
D
= -0.7A
V
GS
= -4.5V
0.4
V
GS
= -10V
0.2
0
0
2
4
6
8
-V
GS
, GATE-SOURCE VOLTAGE (V)
Fig. 3 On-Resistance vs. Gate Voltage
10
0.1
0
1
1.5
2
2.5
-I
D
, DRAIN CURRENT (A)
Fig. 4 On-Resistance vs. Drain Current
0.5
3
0.8
2
1.8
R
DS(ON)
, STATIC DRAIN-SOURCE
ON-RESISTANCE (
Ω
)
1.6
0.6
1.4
I
D
= -0.4A, -0.7A
1.2
1
0.8
0.6
0.4
V
GS
= -4.5V
0.2
V
GS
= -10V
I
D
= -0.7A
0.4
0.2
0
-50
0
50
100
150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 On-Resistance Variation with Temperature
0
50
100
150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 6 Gate-Source Threshold Voltage with Temperature
0
-50
DMP3030SN
Document number: DS30787 Rev. 5 - 2
2 of 4
www.diodes.com
August 2011
© Diodes Incorporated
DMP3030SN
1,000
f = 1MHz
V
GS
= 0V
T
A
= 25°C
NEW PRODUCT
C
ISS
100
C
OSS
C
RSS
10
0
5
10
15
20
25
-V
DS
, DRAIN-SOURCE VOLTAGE (V)

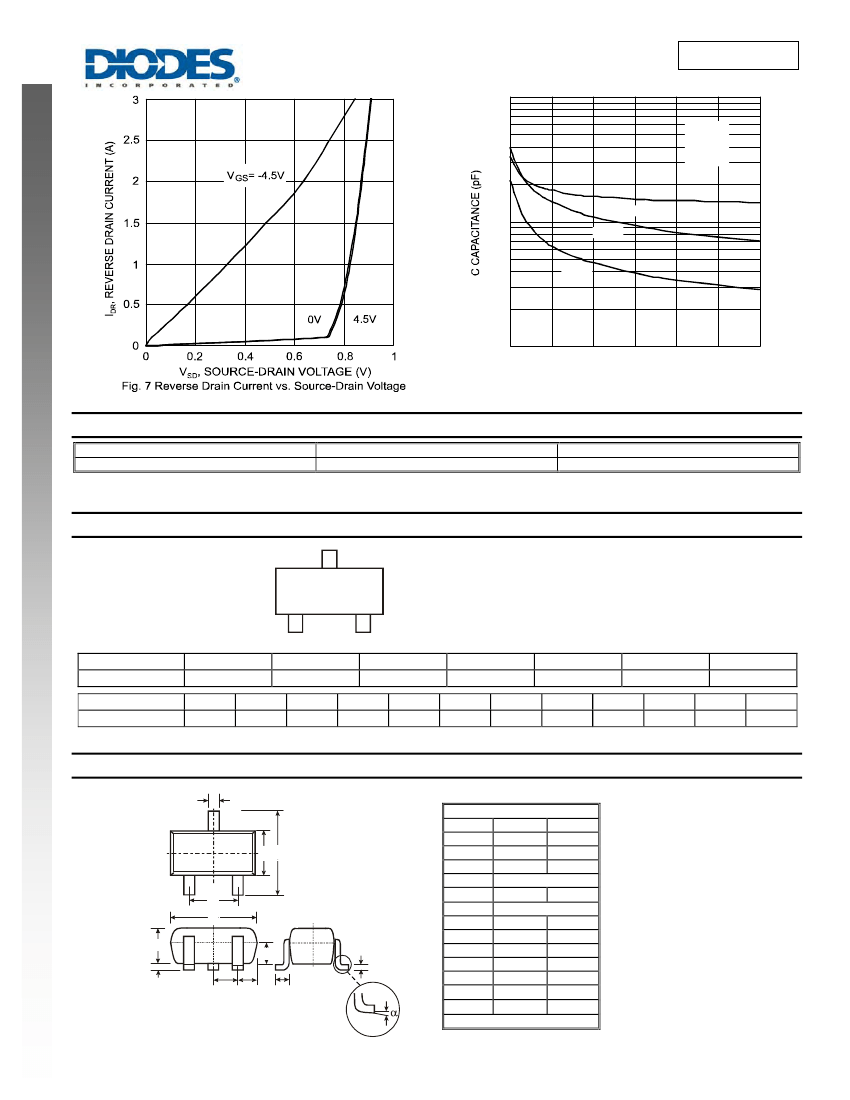

Fig. 8 Typical Total Capacitance
30
Ordering Information
Part Number
DMP3030SN-7
Notes:
(Note 6)
Case
SC59
Packaging
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
PS2 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: T = 2006
M = Month ex: 9 = September
PS2
Date Code Key
Year
Code
Month
Code
2006
T
Jan
1
Feb
2
2007
U
Mar
3
Apr
4
YM
2008
V
May
5
Jun
6
2009
W
Jul
7
2010
X
Aug
8
Sep
9
2011
Y
Oct
O
Nov
N
2012
Z
Dec
D
Package Outline Dimensions
A
TOP VIEW
B C
G
H
K
N
J
M
D
E
L
Dim
Max
A
0.50
B
1.70
C
3.00
D
0.95
E
⎯
⎯
G
1.90
H
2.90
3.10
J
0.013
0.10
K
1.00
1.30
L
0.35
0.55
M
0.10
0.20
N
0.70
0.80
0°
8°
α
All Dimensions in mm
SC59
Min
0.35
1.50
2.70
DMP3030SN
Document number: DS30787 Rev. 5 - 2
3 of 4
www.diodes.com
August 2011
© Diodes Incorporated
DMP3030SN

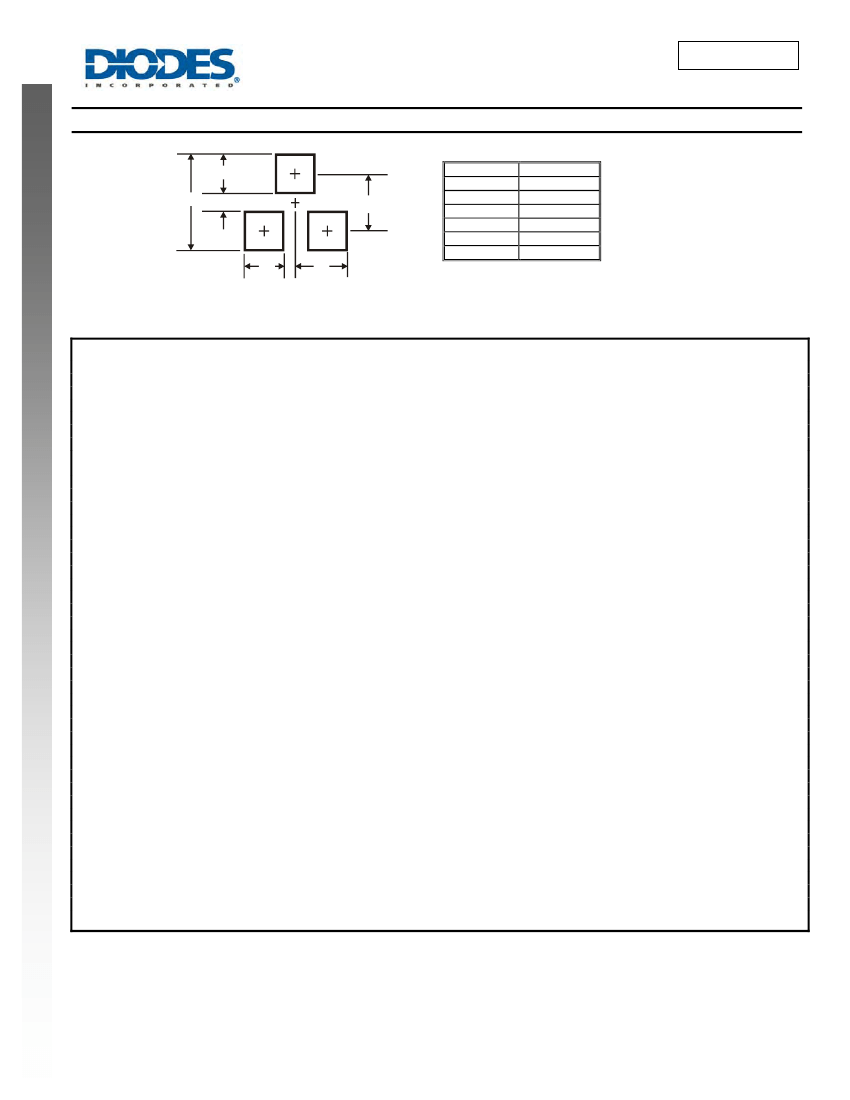

Suggested Pad Layout
Y
Z
G
Dimensions Value (in mm)
Z
4.0
G
1.2
X
0.9
Y
1.4
C
2.6
E
0.95
NEW PRODUCT
C
X
E
