DMN2056U-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> MOS (field effect tube)> DMN2056U-7

DMN2056U-7: DescriptionDrain-source voltage (Vdss): 20V Continuous drain current (Id) (at 25°C): 4A Gate-source threshold voltage: 1V @ 250uA Drain-source on-resistance: 38mΩ @ 3.6A, 4.5V Maximum power dissipation ( Ta=25°C): 940mW Type: N-channel; CategoryDiscrete semiconductor MOS (field effect tube); File Size306KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

DMN2056U-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMN2056U-7	-	-	View	Buy Now

DMN2056U-7 Overview

Drain-source voltage (Vdss): 20V Continuous drain current (Id) (at 25°C): 4A Gate-source threshold voltage: 1V @ 250uA Drain-source on-resistance: 38mΩ @ 3.6A, 4.5V Maximum power dissipation ( Ta=25°C): 940mW Type: N-channel

DMN2056U-7 Parametric

Parameter Name	Attribute value
Drain-source voltage (Vdss)	20V
Continuous drain current (Id) at 25°C	4A
Gate-source threshold voltage	1V @ 250uA
Drain-source on-resistance	38mΩ @ 3.6A,4.5V
Maximum power dissipation (Ta=25°C)	940mW
type	N channel

Preview

Download Datasheet

View All

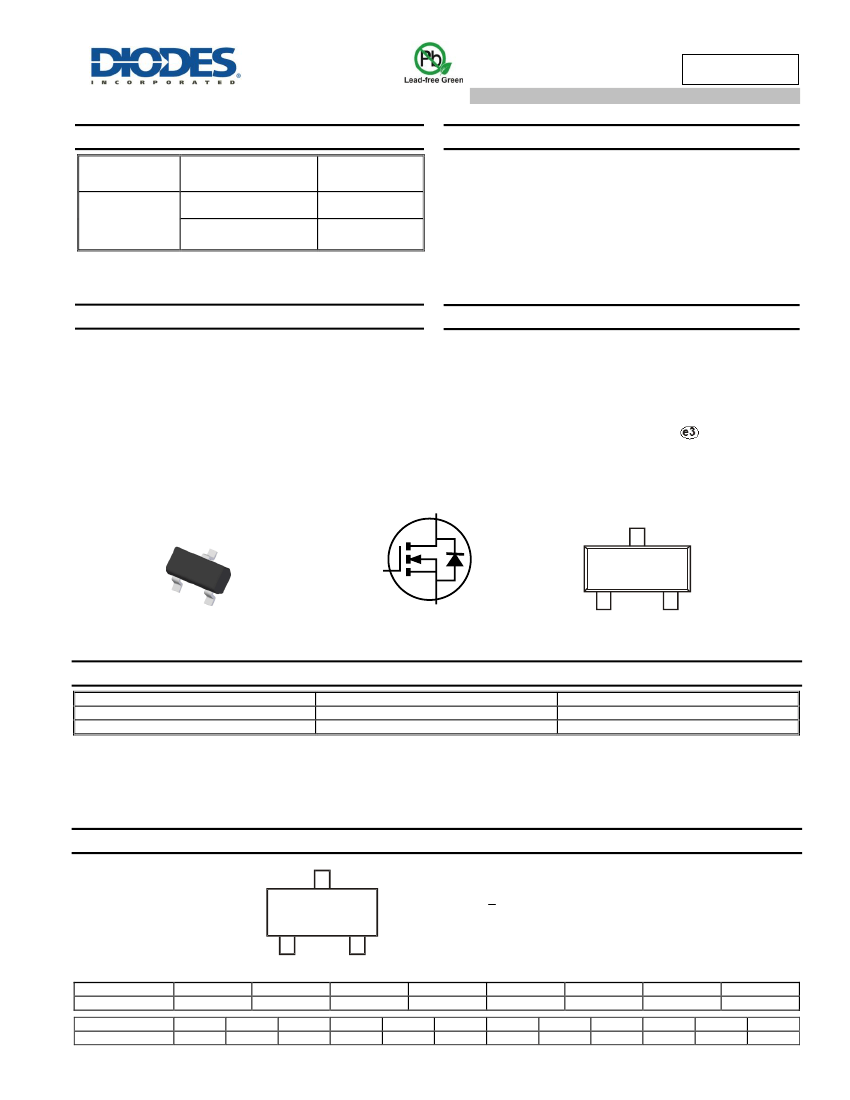

DMN2056U

20V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

DSS

DS(ON)

max

38mΩ @ V

= 4.5V

20V

45mΩ @ V

= 2.5V

3.7A

max

= +25°

4.0A

Features and Benefits



Low On-Resistance

Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description and Applications

This MOSFET is designed to minimize the on-state resistance

DS(ON)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish



Matte Tin Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Terminals Connections: See Diagram Below

Weight: 0.009 grams (Approximate)



Battery Charging

Power Management Functions

DC-DC Converters

Portable Power Adaptors



Top View

Internal Schematic

Top View

Ordering Information

(Note 4)

Part Number

DMN2056U-7

DMN2056U-13

Notes:

Case

SOT23

Packaging

3000/Tape & Reel

10000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

56U = Product Type Marking Code

YM = Date Code Marking

Y or Y = Year (ex: D = 2016)

M = Month (ex: 9 = September)

56U

Date Code Key

Year

Code

Month

Code

2016

Jan

Feb

2017

Mar

2018

Apr

May

2019

Jun

2020

Jul

Aug

2021

Sep

2022

Oct

Nov

2023

Dec

June 2016

DMN2056U

Document number: DS38480 Rev. 1 - 2

1 of 7

www.diodes.com

DMN2056U-7 Related Products

	DMN2056U-7	DMN2056U-13
Description	Drain-source voltage (Vdss): 20V Continuous drain current (Id) (at 25°C): 4A Gate-source threshold voltage: 1V @ 250uA Drain-source on-resistance: 38mΩ @ 3.6A, 4.5V Maximum power dissipation ( Ta=25°C): 940mW Type: N-channel	MOSFET N-CHANNEL 20V 4A SOT23-3
Drain-source voltage (Vdss)	20V	20V
