100% Unclamped Inductive Switching – Ensures More Reliable
and Robust End Application
Low R
DS(ON)
– Minimizes Power Losses
Low Q
G
– Minimizes Switching Losses
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
), yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
High Frequency Switching
Sync. Rectification
DC-DC Converters

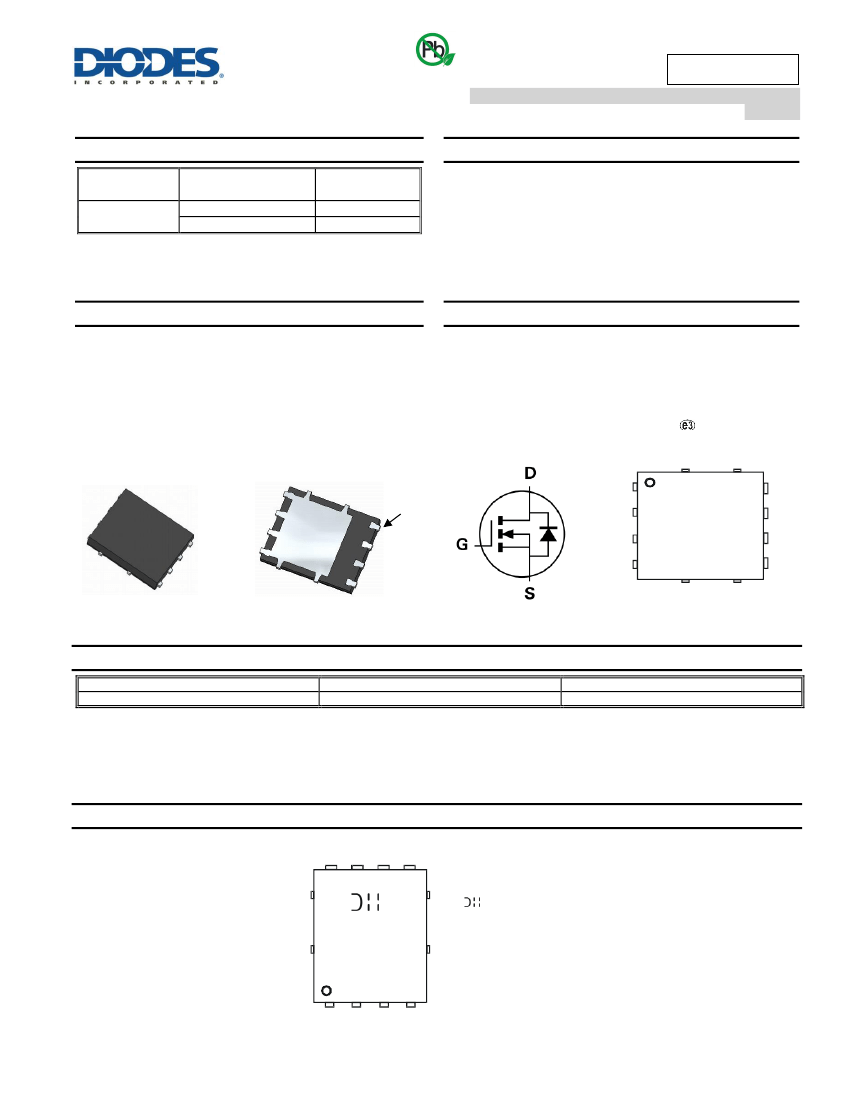

PowerDI5060-8
Mechanical Data
Case: PowerDI 5060-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
®
S
D
D
D
D
Pin1
S
S
G
Top View
Bottom View
Internal Schematic
Top View
Pin Configuration
Ordering Information
(Note 4)
Part Number
DMT6009LPS-13
Notes:
Case
PowerDI5060-8
Packaging
2,500/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
D
D
D
D
T6009LS
YY WW
= Manufacturer’s Marking
T6009LS = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 16 = 2016)
WW = Week (01 - 53)
S
