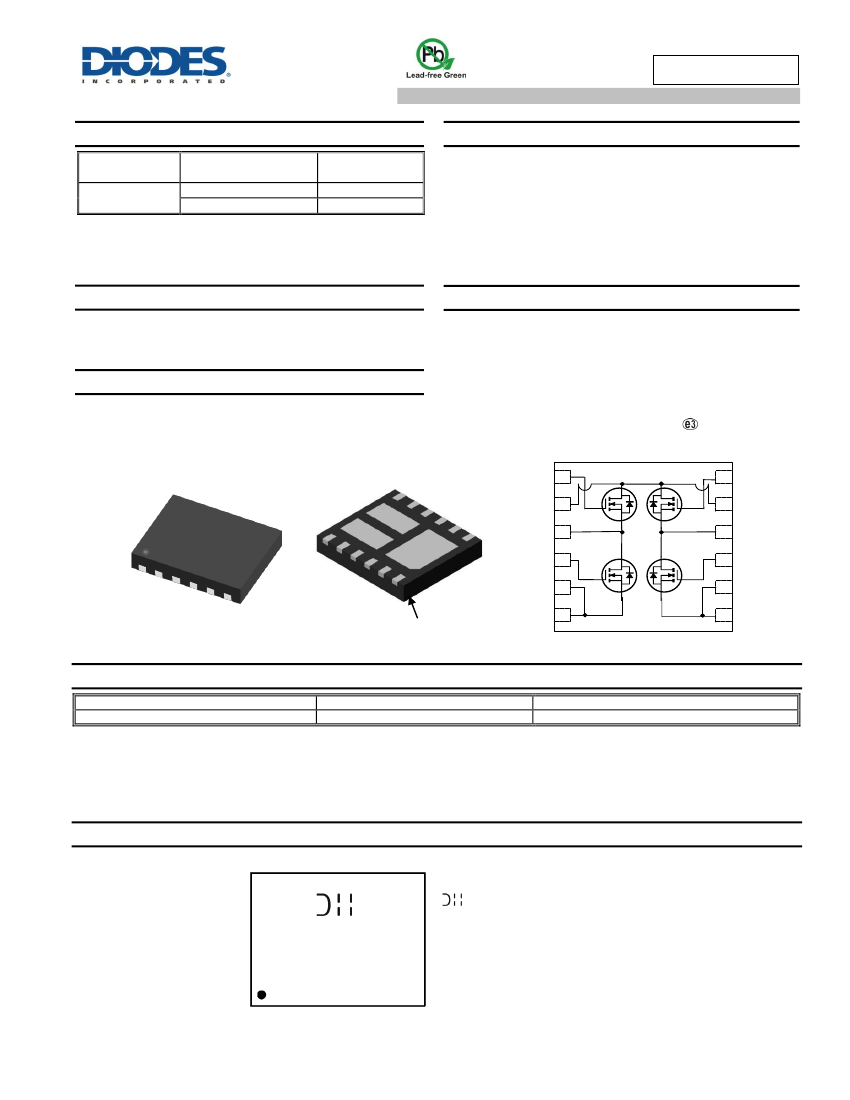

Halogen and Antimony Free. “Green” Device (Note 3)
Description
This new generation complementary MOSFET H-Bridge features low
on-resistance achievable with low gate drive.
Mechanical Data
Case: V-DFN5045-12 (Type B)
Case Material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
G1
1
12
Applications
Motor Control
DC-DC Converters
Power Management
V-DFN5045-12 (Type B)
S4/D3
S1/D2
S2
G4
D1/D4
S3
S3
G3
D3/S4
D1/D4
G4
D1/D4
2
11
S1/D2
G2
3
Q1 Q4
10
S4/D3
G3
D1/D4
S2
G2
S1/D2
D1/D4
G1
S2
5
8
4
9
S3
S3
Pin 1
Top View
Bottom View
S2
Q2
6
Q3
7
Internal Schematic
Ordering Information
(Note 4)
Part Number
DMHT6016LFJ-13
Notes:
Case
V-DFN5045-12 (Type B)
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
