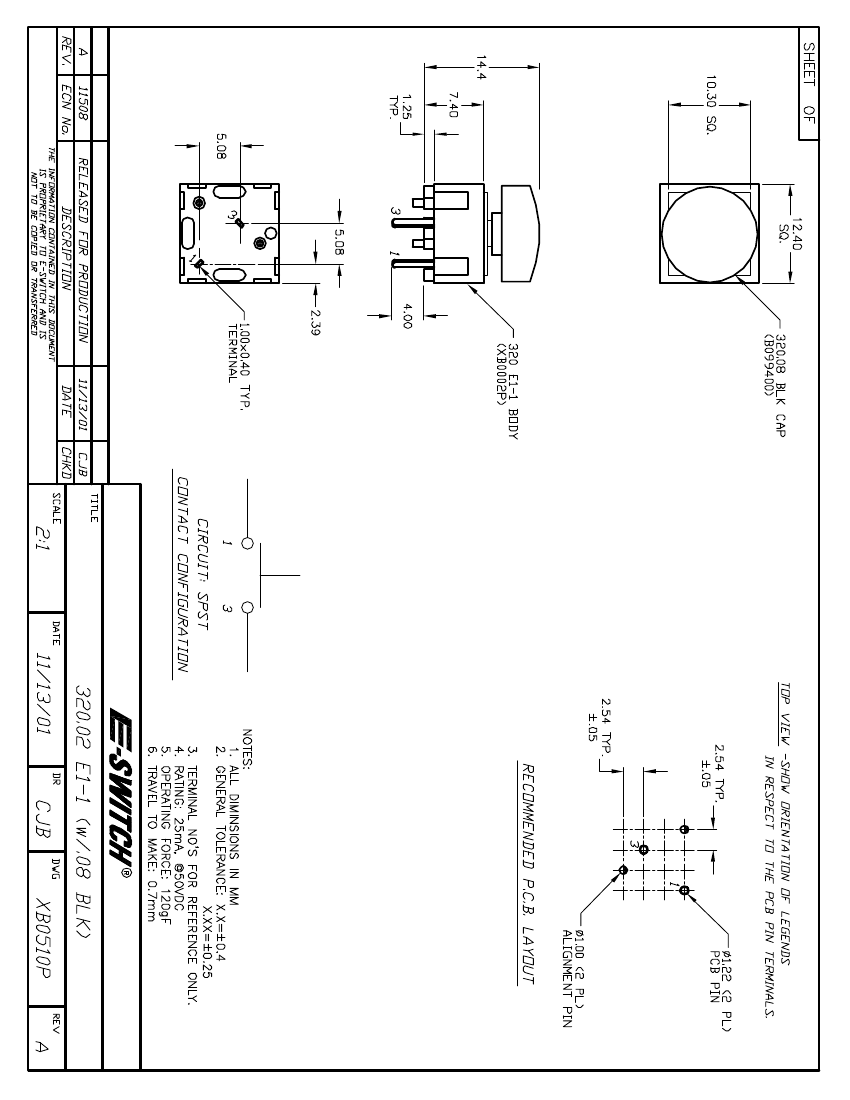

320.02E11.08BLK datasheet, PDF

320.02E11.08BLK: DescriptionCircuit structure: SPST Contact rated current: 25mA @ 50VDC Button head type: Round Button Button action direction: Top Actuated; CategoryMechanical and electronic products switch; File Size22KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

320.02E11.08BLK Overview

Circuit structure: SPST Contact rated current: 25mA @ 50VDC Button head type: Round Button Button action direction: Top Actuated

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.276 inch
Actuator stroke	0.7112 mm
Actuator type	PUSHBUTTON
body width	12.3952 mm
body height	7.3914 mm
Body length or diameter	12.3952 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	0.25A@50VDC
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	500VRMS V
Electrical life	1000000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	320
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	4
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal length	0.157 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1
