LC1258EENP1RLGR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > accessories> Key switch> LC1258EENP1RLGR

Preview

LC1258EENP1RLGR: DescriptionSelf-locking/no lock: Self-locking switch height: 8.30mm Contact rated current: 300mA Action force: 230±100gf Installation type: through hole, right angle Dimensions (length and width): 27.10mm x 5.00mm Circuit structure: SPDT self-locking; Categoryaccessories Key switch; File Size165KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

LC1258EENP1RLGR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LC1258EENP1RLGR	-	-	View	Buy Now

LC1258EENP1RLGR Overview

Self-locking/no lock: Self-locking switch height: 8.30mm Contact rated current: 300mA Action force: 230±100gf Installation type: through hole, right angle Dimensions (length and width): 27.10mm x 5.00mm Circuit structure: SPDT self-locking

LC1258EENP1RLGR Parametric

Parameter Name	Attribute value
Rated voltage - DC	30V
Rated voltage - AC	-
Self-locking/no lock	Self-locking
Button action direction	Lateral actuation
Switch height	8.30mm
Actuator/cap color	grey
Contact rated current	300mA
Button header type	round plunger
Whether with indicator light	Without lights
force	230±100gf
Installation type	Through hole, right angle
Indicator type, color	-
Termination type	PC pin
Overall dimensions (length and width)	27.10mm x 5.00mm
Circuit configuration	SPDT
Operating temperature	-

Preview

Download Datasheet

View All

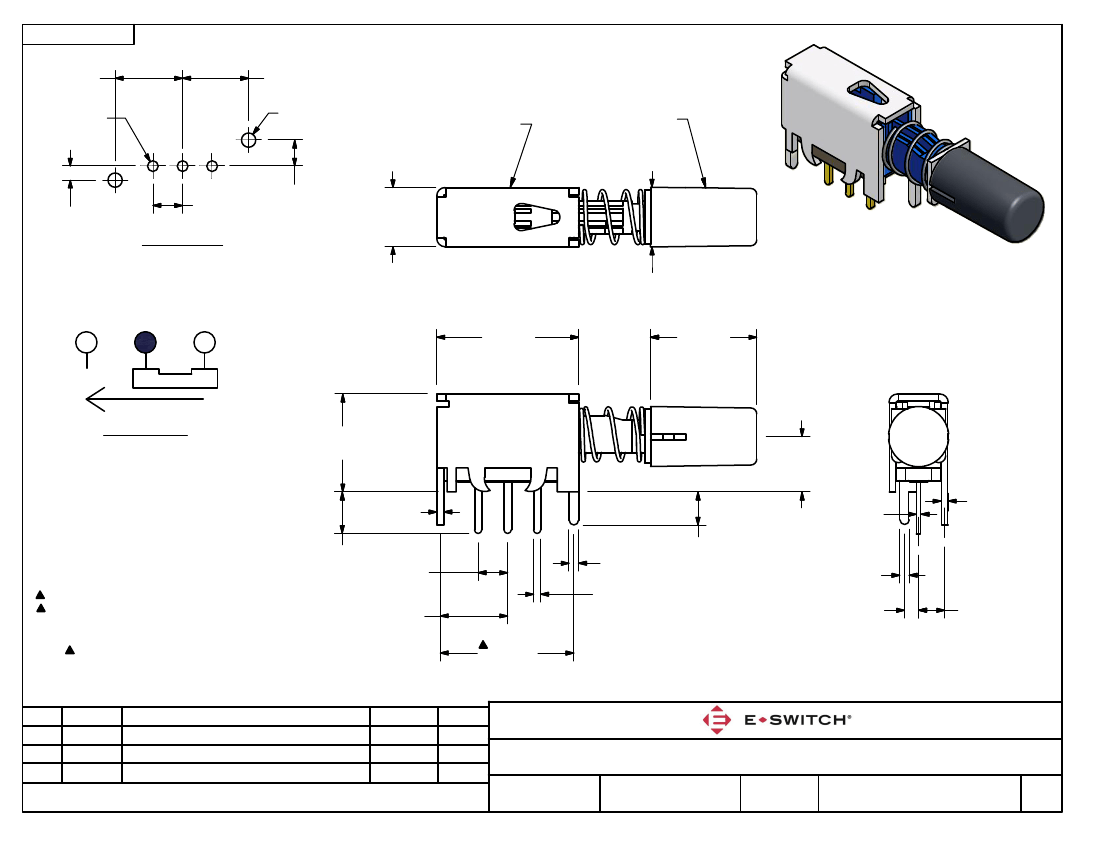

SHEET 1 OF 1

5.70

[.224 in]

.90 (3)

[.035 in]

5.60

[.220 in]

1.20 (2)

[.047 in]

PUSH SWITCH

LC1258EENP (P070130)

GRAY CAP

1RLGR (Q800303)

1.20

[.047 in]

2.50

[.098 in]

P.C.B. LAYOUT

2.20

[.087 in]

5.00

[.20 in]

5.0

[.20 in]

3

2

1

12.00

[.47 in]

6.1

[.24 in]

9.0

[.35 in]

CIRCUIT: SPDT

NON-SHORTING

8.30

[.327 in]

4.7

[.19 in]

.40

[.016 in]

.80

[.031 in]

.60

[.024 in]

2.80

[.110 in]

.60

[.024 in]

NOTES:

1. ALL DIMENSIONS IN MM.

2. GENERAL TOLERANCE: X.X = 0.4

X.XX = 0.25

3. TERM. NOS. FOR REFERENCE ONLY.

4. RATING: DC 30V, 0.3A

5. ACTUATION FORCE: 230 100 GF

6. TOTAL TRAVEL: 3.5 MM

7. TRAVEL TO LOCK: 2.5 MM

8.

DENOTES CRITICAL PARAMETER.

9. 2002/95/EC (ROHS) COMPLIANT

.60

[.024 in]

3.50

[.138 in]

3

2

1

2.50

[.098 in]

5.70

[.224 in]

11.30

[.445 in]

.80

[.031 in]

1.20

[.047 in]

2.20

[.087 in]

C

B

A

REV

22327

15621

12472

PCR NO

Update Print, Redraw in new format

new tooling for cap

RELEASED

DESCRIPTION

5/27/16

12/20/05

10/10/02

DATE

MW

PH

CB

BY

SCALE

DATE

DR

DWG

REV

TITLE

LC1258EENP1RLGR

3:1

10/10/2002

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

BLR

XP0110A

C
