SS451A

Description
Omnipolar Hall switch
CategoryAnalog mixed-signal IC    The signal circuit
File Size409KB,4 Pages
ManufacturerHoneywell
Websitehttp://www.ssec.honeywell.com/
Environmental Compliance
Download Datasheet Parametric View All

SS451A Online Shopping

Suppliers Part Number Price MOQ In stock
SS451A - - View Buy Now

SS451A Overview

Omnipolar Hall switch

SS451A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Parts packaging codeSIP
package instructionSIP-3
Contacts3
Reach Compliance Codecompliant
Analog Integrated Circuits - Other TypesANALOG CIRCUIT
JESD-30 codeR-PSIP-T3
length4.1 mm
Number of functions1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum supply voltage (Vsup)24 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)5 V
surface mountNO
Temperature levelAUTOMOTIVE
Terminal formTHROUGH-HOLE
Terminal pitch1.27 mm
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.6 mm
Base Number Matches1

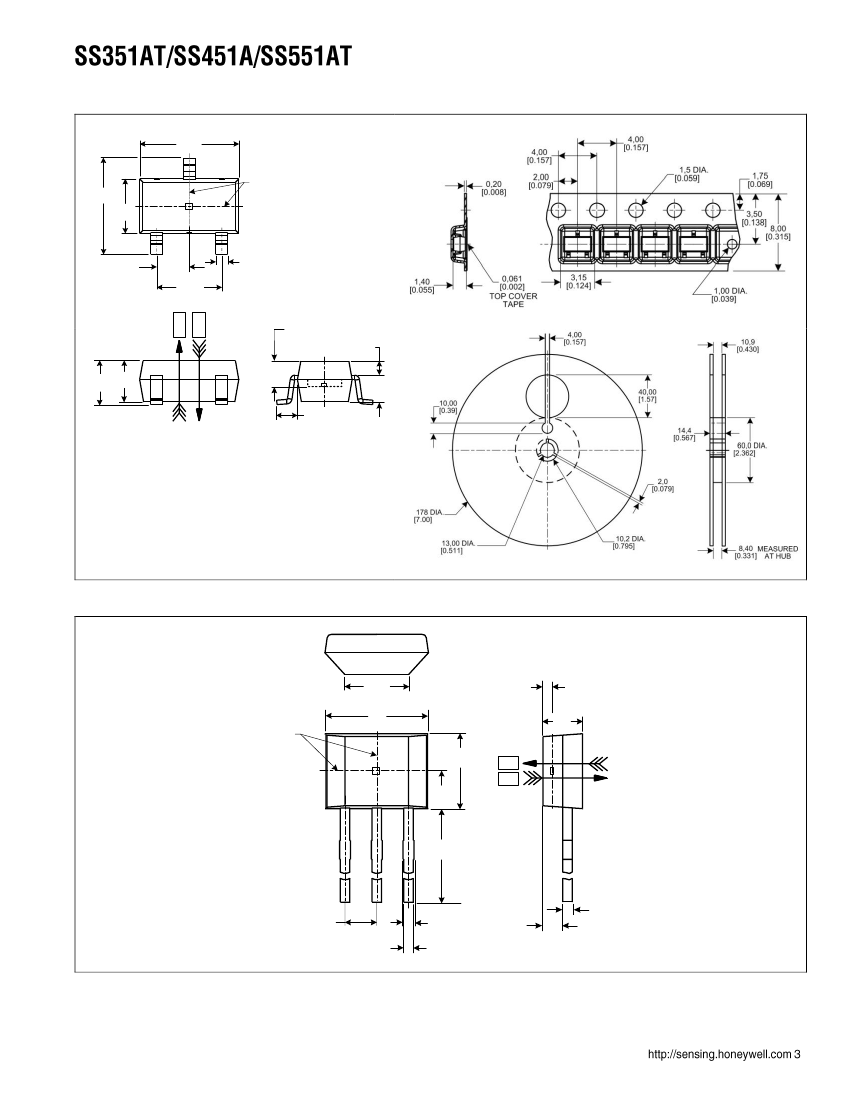

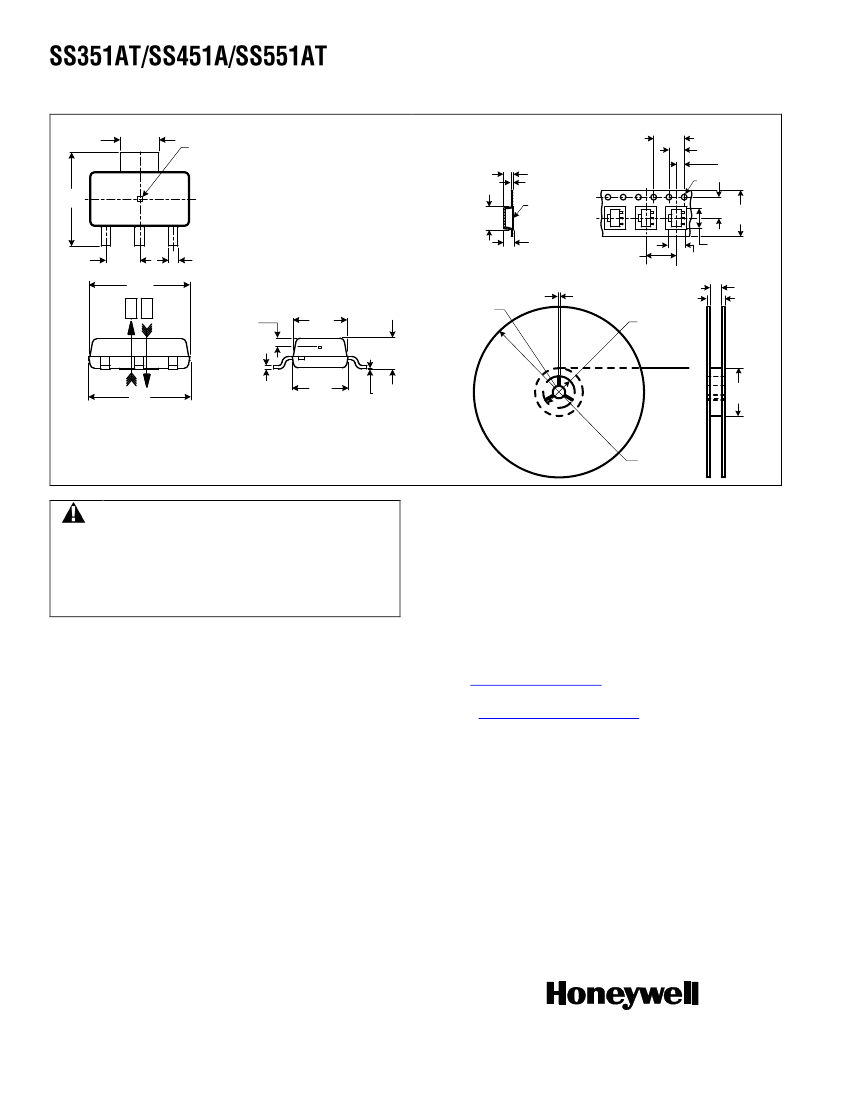

Installation Instructions for the
SS351AT/SS451A/SS551AT
Omnipolar Digital Hall-Effect Sensor ICs
GENERAL INFORMATION
The SS351AT, SS451A and SS551AT are omnipolar devices,
meaning that they may be turned on (output low) by either a
North pole or a South pole. The device will turn off (output
high) when the magnetic field is removed.
ISSUE 2
50046920
Max.
28.0
28.0
20
no limit
Unit
V
V
mA
Gauss
-28.0
-0.5
Table 1. Absolute Maximum Ratings
Min.
Typ.
Characteristic
Supply voltage
Applied Output
Voltage
Output Current
Magnetic Flux
CAUTION
ELECTROSTATIC DISCHARGE
DAMAGE
This component is sensitive to
electrostatic discharge (ESD).
Take normal ESD precautions in
handling this product to prevent
ESD-induced damage and/or
degradation,
Failure to comply with these
instructions may result in
product damage.
SOLDERING/ASSEMBLY
Note 1:
The magnetic field strength (gauss) required to cause
the switch to change state (operate and release) will be as
specified in the magnetic characteristics. To test the switch
against the specified magnetic characteristics, the switch must
be placed in a uniform magnetic field.
NOTICE
Absolute maximum ratings are the extreme limits that the
device will withstand without damage to the device.
However, the electrical and mechanical characteristics are
not guaranteed as the maximum limits (above
recommended operating conditions) are approached, nor
will the device necessarily operate at absolute maximum
ratings.

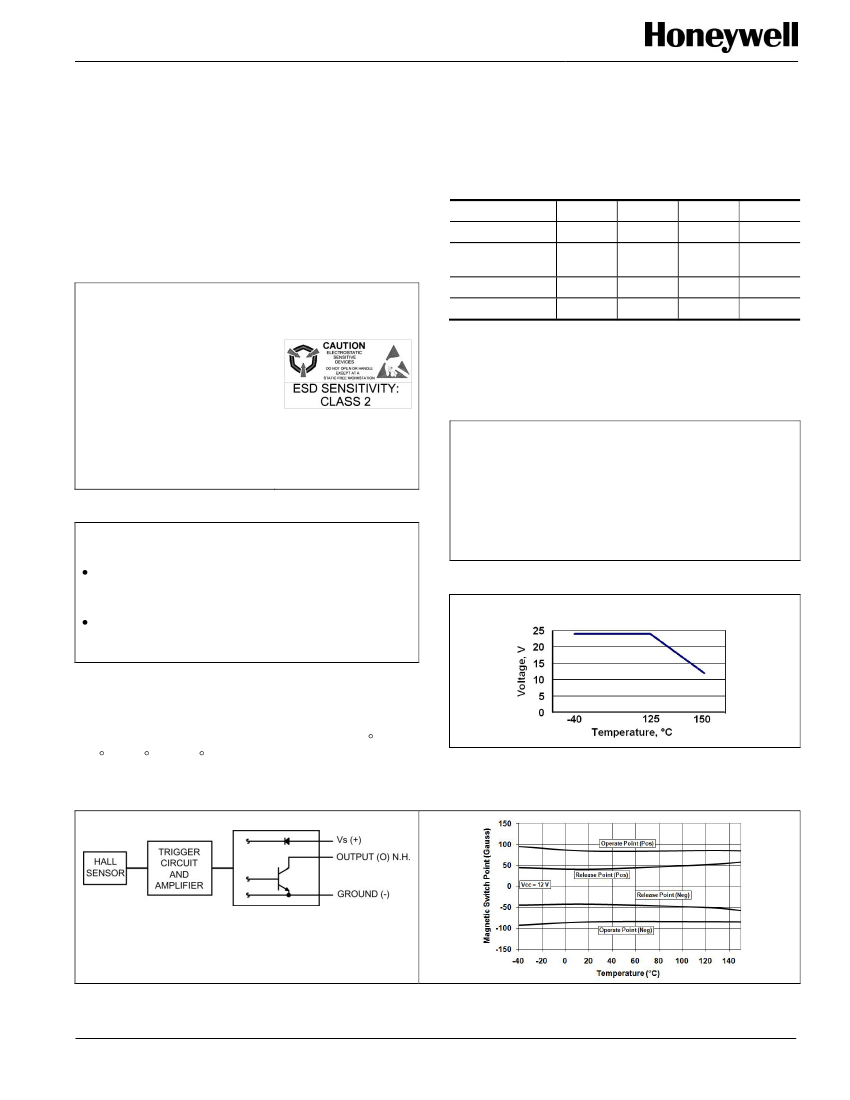

Figure 1. SS351AT Rated Supply Voltage vs Temperature
CAUTION
SOLDERING INSTRUCTIONS
Ensure leads are adequately supported during any
forming/shearing operation so that they are not stressed
inside the plastic case.
Limit exposure to high temperatures.
Failure to comply with these instructions may result in
product damage.
Surface-mount (SS351AT and SS551AT):
Use an infrared
reflow process with temperatures of 245 °C [473 °F] peak for
10 s max.
Through-hole leads (SS451A):
Wave solder at 250 C to
260 C [482 F to 500 F] for 3 s max.

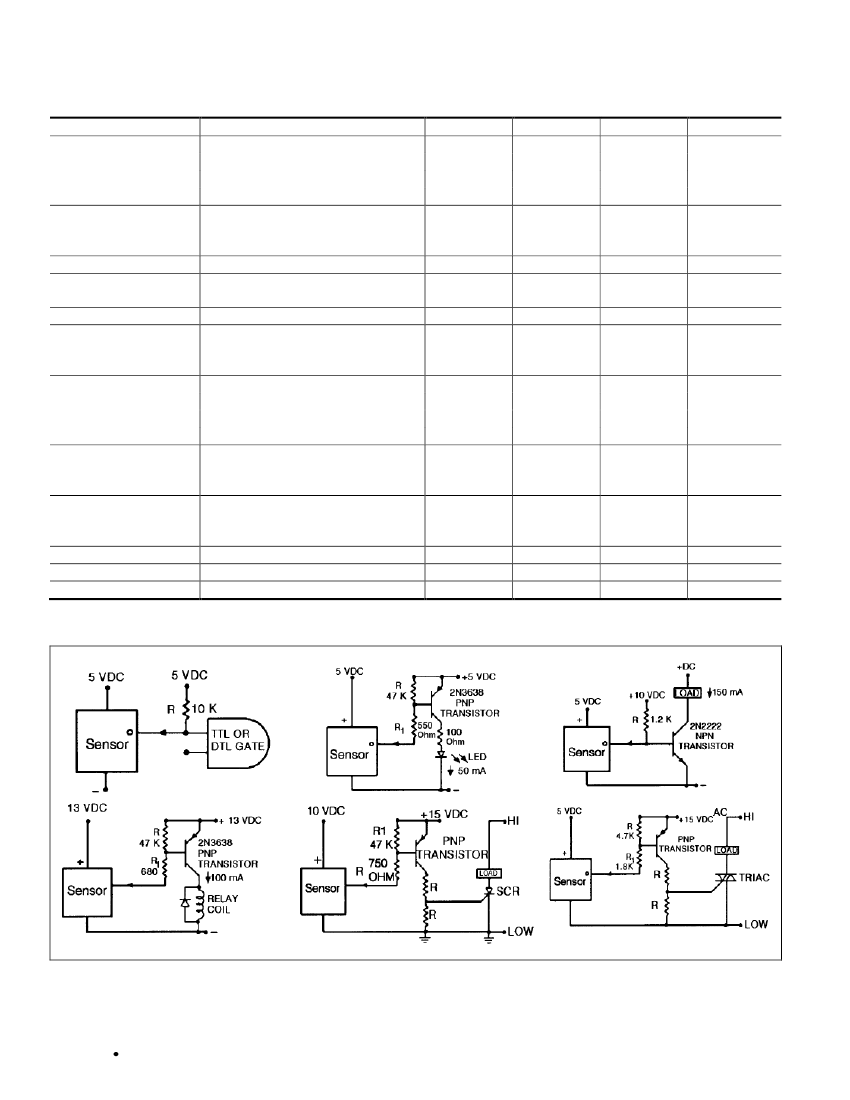

Figure 2. Current Sinking Output Block Diagram
Figure 3. Typical SS351AT/SS451A/SS551AT Magnetic
Performance vs Temperature
Sensing and Control
