EiceDRIVER™
1EDN751x/1EDN851x
Features
Fast, Precise, Strong and Compatible
•
•
•
•
5 ns slew rate to support high speed Superjunction MOSFET (like CoolMos™ C7) or GaN devices
19 ns propagation delay precision for fast MOSFET and GaN switching
8 A sink and 4 A source driver capability enables fast switching for very high efficiency applications and
powers low ohmic MOSFET
Industry standard packages and pinout ease system-design upgrades
The New Reference in Ruggedness
•
•
•
4.2 V and 8 V UVLO (Under Voltage Lock Out) options ensure instant MOSFET protection under abnormal
conditions
-10 V input voltage capability delivers robustness and crucial safety margin when device is driven from pulse-
transformers
5 A reverse current robustness eliminates the need for output protection circuitry
Applications
•
•
•
•
•
•
•
Server SMPS (Switch Mode Power Supplies)
TeleCom SMPS
DC-to-DC Converter
Bricks
Power Tools
Industrial SMPS
Motor Control
Example Topologies
•
•
•
Synchronous Rectification
Power Factor Correction PFC (DCM, CCM)
LLC, ZVS in combination with pulse transformer for isolation
Description
The 1EDN7x/1EDN8x is an advanced single-channel driver. It is suited to drive logic and normal level MOSFETs
and supports OptiMOS
TM
, CoolMOS
TM
, Standard Level MOSFETs, Superjunction MOSFETs, as well as IGBTs and
GaN Power devices.
Data Sheet
Please read the Important Notice and Warnings at the end of this document
Rev. 2.1
2017-10-02
www.infineon.com/1EDN
EiceDRIVER™
1EDN751x/1EDN851x
Description
The control and enable inputs are LV-TTL compatible (CMOS 3.3 V) with an input voltage range from -5 V to +20 V.
-10 V input pin robustness protects the driver against latch-up or electrical overstress which can be induced by
parasitic ground inductances. This greatly enhances system stability.
4.2 V and 8 V UVLO (Under Voltage Lock Out) options ensure instant MOSFET and GaN protection under abnormal
conditions. Under such circumstances, this UVLO mechanism provides crucial independence from whether and
when other supervisors circuitries detect abnormal conditions.
The output is able to sink 8 A and source 4 A currents utilizing a true rail-to-rail stage. This ensures very low on-
resistance of 0.85
Ω
up to the positive and 0.35
Ω
down to the negative rail respectively. Industry-leading reverse
current robustness eliminates the need for Schottky diodes at the outputs and reduces the bill-of-material.
The pinout of the 1EDN family is compatible with the industry standard. Three package variants, SOT23 6-pin, 5-
pin and WSON 6-pin, allow optimization of PCB board space usage and thermal characteristics.
VDD
Load
1EDN751x/
1EDN851x
From Controller
IN+
IN-
GND
VDD
OUT_SRC
OUT_SNK
R
g 2
R
g1
M
1
C
VDD
Figure 1
Typical application
Data Sheet
2
Rev. 2.1
2017-10-02
EiceDRIVER™
1EDN751x/1EDN851x
Table of Contents
Table of Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1
1.1
1.2
2
3
4
4.1
4.2
4.3
4.4
4.5
5
5.1
5.2
5.3
5.4
6
7
8
9
Product Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Undervoltage Lockout Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin Configuration and Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driver Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driver Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Undervoltage Lockout (UVLO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
10
10
10
10
11
12
12
12
14
14
Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Typical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Outline Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Data Sheet
3
Rev. 2.1
2017-10-02
EiceDRIVER™
1EDN751x/1EDN851x
Product Versions
1
Table 1
Package
Product Versions
Product Versions
Type. UVLO
Part Number
IC Topside
Marking Code
71
81
The 1EDN751x/1EDN851x is available in 2 different Undervoltage Lockout and 3 package versions.

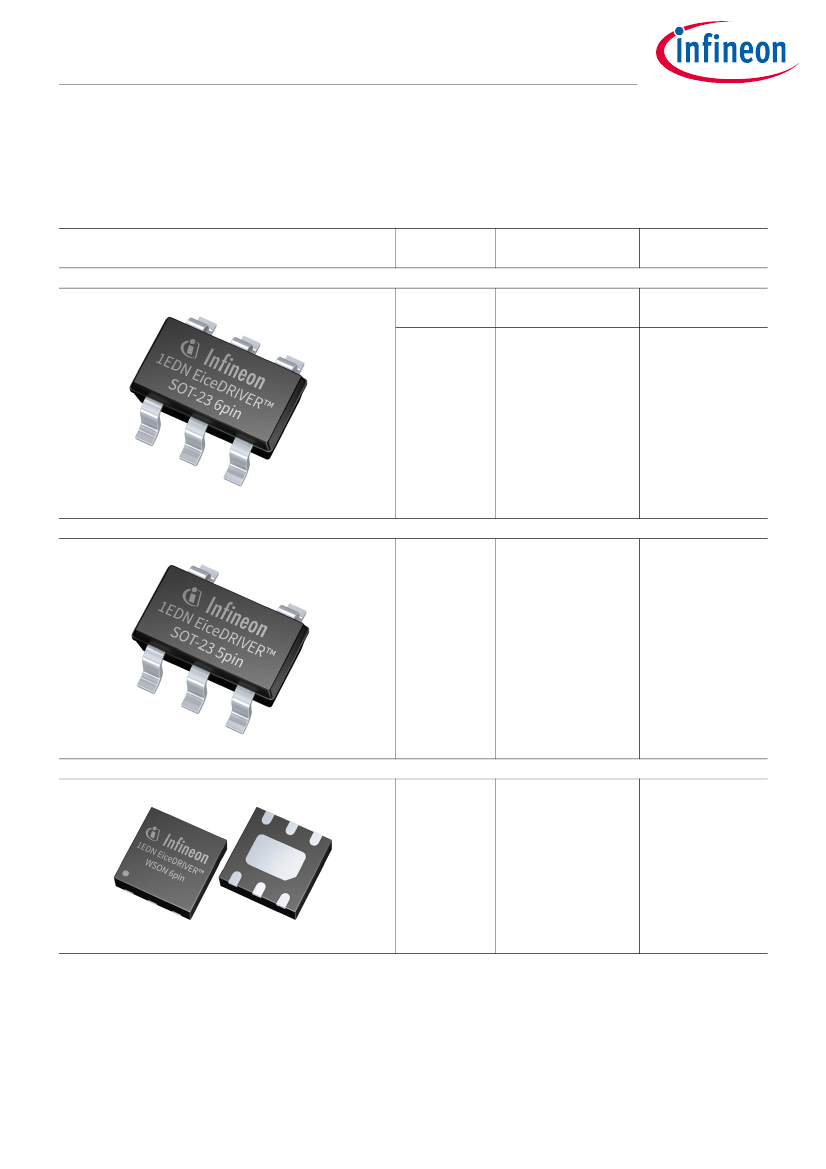

PG-SOT23-6-2
4.2 V
8V
1EDN7511B
1EDN8511B
PG-SOT23-5-1
4.2 V
1EDN7512B
72
PG-WSON-6-1
4.2 V
1EDN7512G
1N7512
AG_XXX
HYYWW
1.1
•
•
Undervoltage Lockout Versions
The 2 Undervoltage Lockout versions are indicated by the variable x in the product version 1EDNz:
z=7: lower voltage for logic level MOSFETs (typ. 4.2 V)
z=8: higher voltage for standard and superjunction MOSFETs (typ. 8.0 V)
Please refer to the functional description section for more details in
Chapter 4.5
Data Sheet
4
Rev. 2.1
2017-10-02
EiceDRIVER™
1EDN751x/1EDN851x
Product Versions
1.2
•
•
•
Package Versions
Following versions regarding UVLO and output configuration are available.
a standard SOT-23; 6 pin (1EDN7511B and 1EDN8511B)
a standard SOT-23; 5 pin (1EDN7512B)
a leadless WSON-6; 6 pin (1EDN7512G)
Data Sheet
5
Rev. 2.1
2017-10-02
