SVM-42T-P2.0

Description
Wire Gauge - AWG: - Coating Thickness: - Wire Gauge - mm²: - Product Type: Crimp Terminal Certification: RoHS. If you purchase more than 100 pieces of this material, every 100 pieces will be shipped.
CategoryThe connector    Connector bracket
File Size196KB,4 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

SVM-42T-P2.0 Overview

Wire Gauge - AWG: - Coating Thickness: - Wire Gauge - mm²: - Product Type: Crimp Terminal Certification: RoHS. If you purchase more than 100 pieces of this material, every 100 pieces will be shipped.

SVM-42T-P2.0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresCONTACT FINISH: TIN
CertificationCSA; UL
Assembly nameCONTACT
Maximum number of cable entries0.126 inch
Minimum cable entry0.067 inch
Connector bracket typeCONNECTOR ACCESSORY
Contact point genderMALE
Contact resistance10 mΩ
DIN complianceNO
IEC complianceNO
MIL complianceNO
MaterialPHOSPHOR BRONZE
Installation methodSTRAIGHT
Maximum operating temperature90 °C
Minimum operating temperature-25 °C
Rated current20 A
Rated voltage (AC)600 V
Rated voltage (DC)600 V
Terminal length0.287 inch
Terminal typeCRIMP
used forVL CONNECTOR
Maximum wire diameter16 AWG
Minimum wire diameter22 AWG

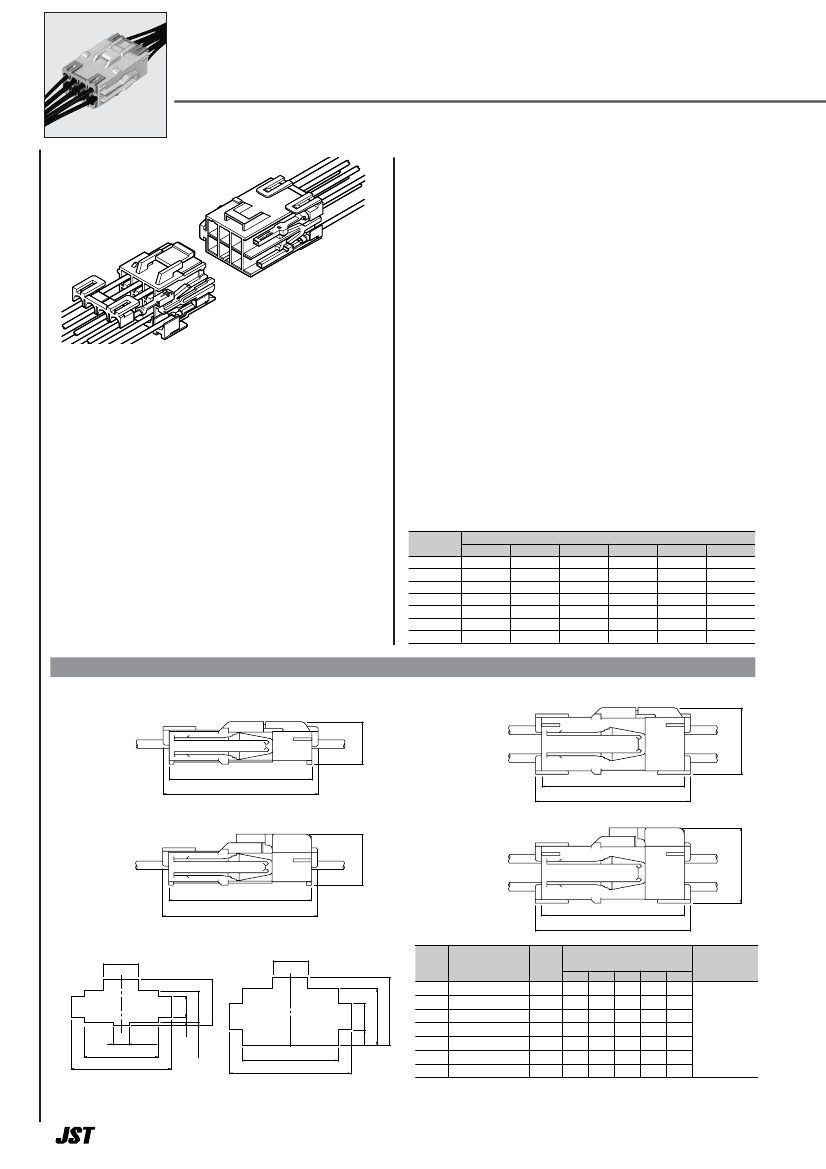

VL
CONNECTOR
6.2mm pitch/Disconnectable Crimp style Wire-to-wire connectors
(Combined use for both wire-to-board and wire-to-wire connections)
Specifications –––––––––––––––––––
• Current rating: 20 A AC, DC max.
• Voltage rating: 600 V AC, DC max.
• Temperature range: -25˚C to +90˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 7 mΩ max.
After environmental tests/ 10 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 2,000 VAC/minute
• Applicable wire: AWG #22 to #12
0.3 to 3.5 mm
2
• Applicable panel thickness: 0.5 to 2.0 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Note: The current rating varies depending on the number of circuits and the wire
size used in each connector. The table below lists the current rating as a
function of the number of circuits and the wire size.
Current unit: A
This VL connector is designed for wire-to-wire
and wire-to-board 6.2 mm pitch connector
corresponding to large current up to 20 A
(1 or 2-circuit with 3.5 mm
2
wire). Secondary
retainer, which prevents from insufficient
insertion of contact and coming off contact,
may use and large current circuit can be
connected certainly and safety.
• Housing lances for contact retention
• Secondary retainer
• Suited for circuits with high power requirements
• Panel lock construction
Circuits
1
2
3
4
6
8
12
#12
20
20
19
18
16
16
15
#14
15
15
14
13
12
11
10
Wire size (AWG)
#16
#18
10
10
9
9
8
7
7
8
8
8
7
7
6
6
#20
6
6
6
6
5
5
4
#22
4
4
4
4
3
3
3
Standards ––––––––––––––––––––
1
Certified LR20812
2
R9351103
Inner-housing lock
0
Recognized E60389

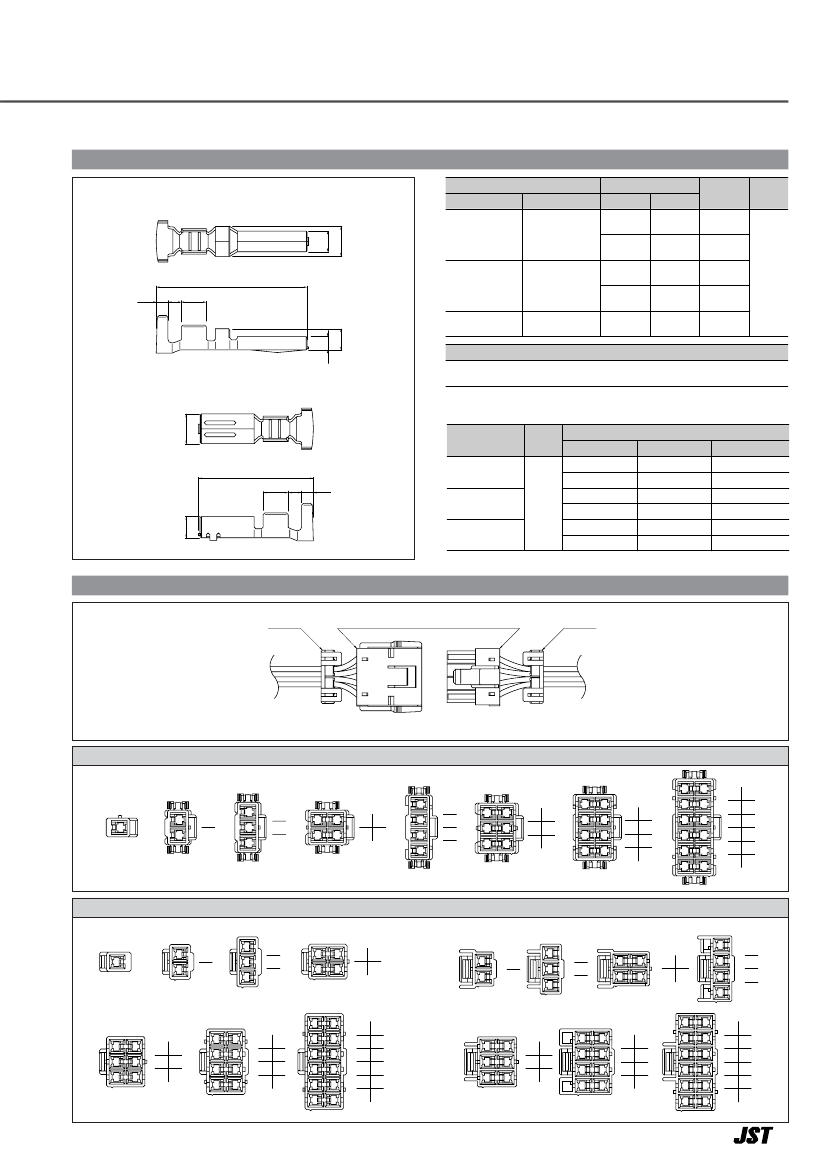

Panel layout and Assembly layout
<2, 3, 4 circuits (single-row)>
<4, 6, 8, 12 circuits>
19.3
(including retainer)
40.5
44.1 (including retainer)
40.5
44.1 (including retainer)
Inner-housing lock
12.2
40.5
44.1 (including retainer)
Outer-housing lock
14.6
Outer-housing lock
21.7
(including retainer)
40.5
44.1 (including retainer)
Shape
I
9.8
±0.13
Shape
II
9.8
±0.13
Circuits
2
18.6
±0.13
C
D
3
4
4
6
0.5
±0.13
4.2
±0.13
A
B
E
(Single-row)
A
B
8
12
Receptacle
housing
Model No.
VLR-02V
VLR-03V
VLR-04V
VLR-04VN
VLR-06V
VLR-08V
VLR-12V
Panel
hole
shape
1
1
2
1
2
2
2
Panel hole dimensions (mm)
General tolerance
A, B, D:
±0.13
C, E:
±0.1
A
13.8
20.0
13.8
26.2
20.0
26.2
38.9
B
20.6
26.8
20.6
33.0
26.8
33.0
45.4
C
5.7
5.7
7.0
5.7
7.0
7.0
7.0
D
8.5
8.5
15.4
8.5
15.4
15.4
15.4
E
1.4
1.4
4.2
1.4
4.2
4.2
4.2
Applicable
panel
thickness (mm)
12.2
±0.13
C
D
0.5
2.0
Note: 1. Punch holes in the panel according to the figures and table shown above. Burrs must be removed.
2. The strength of the panel must be considered when punching two or more holes.
3. The connector must be inserted from the same side as the hole is punched.
1
E
