Multilayer Ceramic Chip Capacitor
Part Number:
1206Y1K00222KST
Description:
1206 1000V 2.2nF ±10% X7R (2R1) to AEC
-Q200
A range of X7R MLC capacitors fully tested and
approved to automotive specification AEC-Q200.
Available in 0603 to 3640 chip sizes with capacitance
values up to 5.6uF as standard. A variety of termination
options are available, including FlexiCap™, the world's
first commercially available flexible termination.
Parts with WS2 suffix use StackiCap™ technology.
Parts with NC suffix code must be conformally coated
after mounting (including between board and chip) to
prevent flashover.

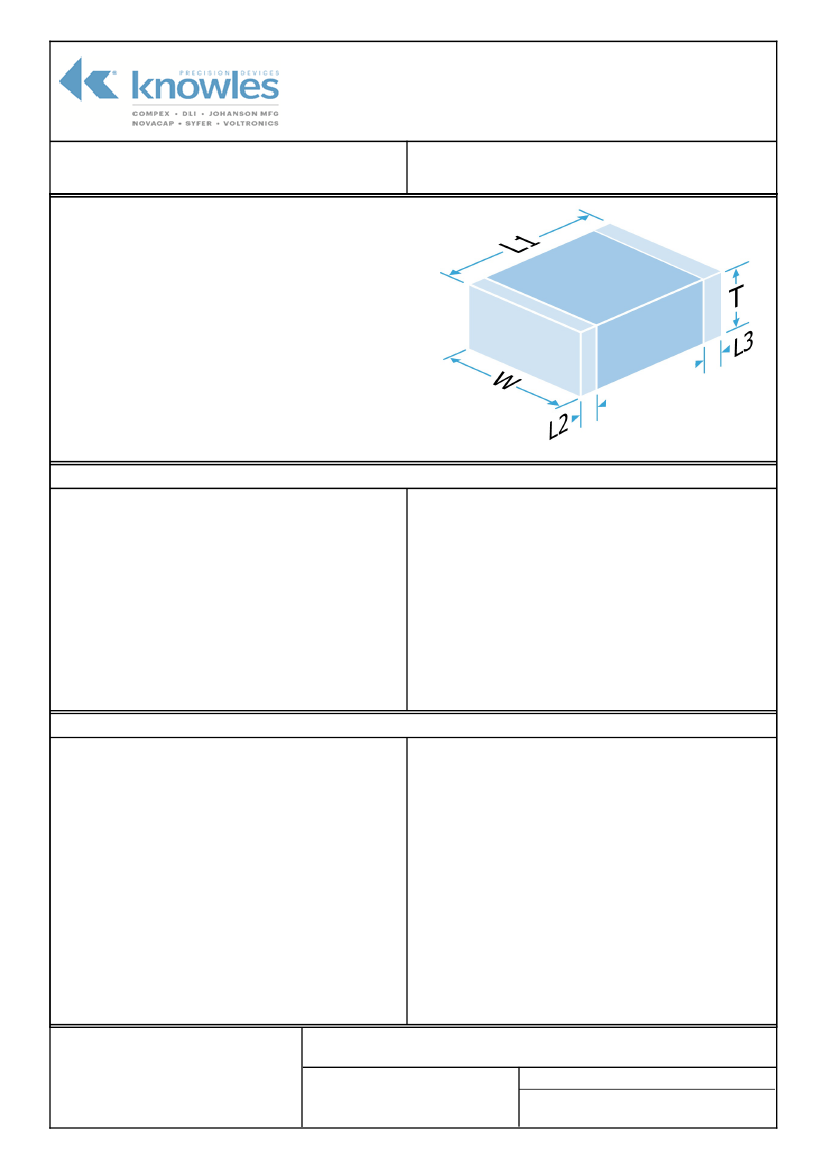

Mechanical Specification
Size Code
Length (L1) in mm (")
Width (W) in mm (")
Thickness (T) in mm (")
Minimum Termination Band (L2,L3) in mm (")
Maximum Termination Band (L2,L3) in mm (")
Termination Material
Solderability
Packaging
1206
3.2 +0.30/-0.20 (0.126 +0.012/-0.008)
1.6 ± 0.20 (0.063 ± 0.008)
1.7 Max (0.068 Max)
0.25 (0.010)
0.75 (0.030)
FlexiCap™ Polymer termination, Nickel barrier, Sn Plated Solder
(RoHS compliant)
IEC-60068-2-58
7" Reel Horizontal Orientation, 2500 per reel
General Electrical Specification
Rated Voltage
Nominal Capacitance Value
Capacitance Tolerance
Tangent of Loss Angle (Tan δ)
Capacitance and Tan δ Test Conditions
Voltage Proof
(Voltage applied for 5 secs max. @ 50mA max. charge current)
1000Vdc
2.2nF
±10%
≤0.025
1.0Vrms @ 1kHz
1200Vdc
100.00GOhm @ 100Vdc
X7R (2R1) to AEC-Q200
-55°C / +125°C
No DC Voltage
55/125/56
<2% per decade
This datasheet is for a standard item and is confirmed valid on the date generated, the latest published data
for this part may differ and is available at http://www.knowlescapacitors.com or by contacting us.
© The information contained on this drawing is
confidential and may not be copied in whole or part in
any form or disclosed to a third party without the consent
of Knowles and any customer mentioned within this
specification.
Data is correct to the best of our knowledge, errors and
omissions excepted.
Min Insulation Resistance (IR)
Dielectric Classification
Rated Temperature Range
Maximum Capacitance Change over Temperature Range
Climatic Category (IEC)
Ageing Characteristic
±15%
Rated DC Voltage -
Knowles Precision Devices - Sales
Europe: KPD-Europe-sales@knowles.com
Asia: KPD-Asia-sales@knowles.com
USA: KPD-NA-sales@knowles.com
www.knowlescapacitors.com
Date: Friday, January 18, 2019
20190118 072021287UTC
Multilayer Ceramic Chip Capacitor
Part Number:
1206Y1K00222KST
Description:
Environmental
RoHS Compliant to 2011/65/EC as amended by 2015/863/EU Compliant
REACH Compliant
California Proposition 65
191 compliant
No exposure risk
1206 1000V 2.2nF ±10% X7R (2R1) to AEC
-Q200

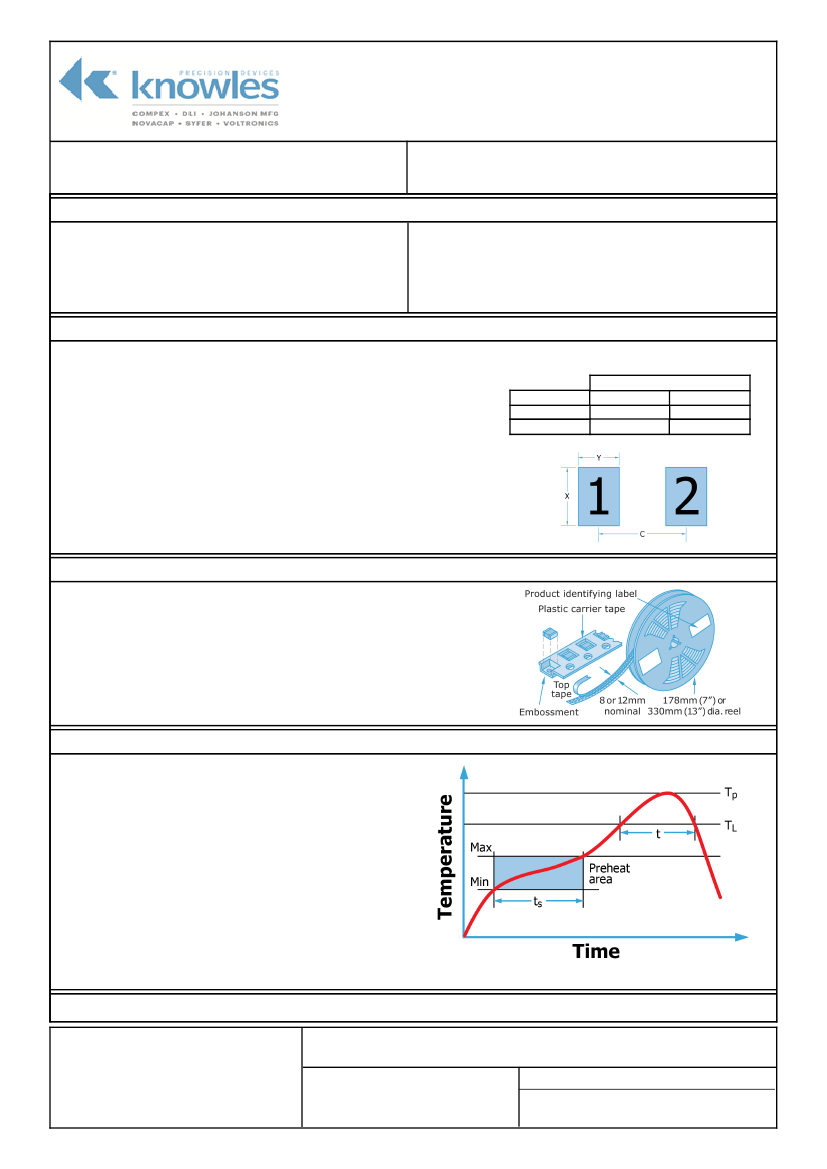

Board Layout
Knowles' conventional 2-terminal chip capacitors can
generally be mounted using pad designs in accordance with
international specification IPC-7351, Generic Requirements
for Surface Mount Design and Land Pattern Standards, but
there are some other factors that have been shown to reduce
mechanical stress, such as reducing the pad width to less
than the chip width. In addition, the position of the chip on the
board should be considered.
Some high voltage parts may require modifications to the
board layout and/or the addition of a conformal coating to
prevent flashover. Refer to application note AN0043 for
further information.
IPC-7351 pad design
1206
C
Y
X
3.00mm
1.15mm
1.80mm
0.118"
0.045"
0.071"
Packaging
Tape packaging information for tape-and-reel parts:
Tape and reel packing of surface mounting chip capacitors for
automatic placement are in accordance with IEC60286-3.
Soldering
Reflow solder in accordance with IPC-A-610. Recommended
reflow profile as laid down in
IPC/JEDEC J-STD-020.
Wave soldering is also possible, but care must be taken for
case sizes 1210 and larger and component thickness
>1.0mm. Trials are encouraged.
Hand soldering is not recommended and can lead to
component damage through thermal shock.
PdAg terminations are primarily intended for conductive epoxy
attachment - they may be suitable for soldering but trials are
recommended.
Application notes with mounting and handling guidance are available on request.
Compex
DLI
Johanson MFG
Novacap
Syfer
Voltronics
Knowles Precision Devices - Sales
Europe: KPD-Europe-sales@knowles.com
Asia: KPD-Asia-sales@knowles.com
USA: KPD-NA-sales@knowles.com
www.knowlescapacitors.com
This datasheet is for a standard item and is confirmed valid on the date generated, the latest published data
for this part may differ and is available at http://www.knowlescapacitors.com or by contacting us.
© The information contained on this drawing is
confidential and may not be copied in whole or part in
any form or disclosed to a third party without the consent
of Knowles and any customer mentioned within this
specification.
Data is correct to the best of our knowledge, errors and
omissions excepted.
Date: Friday, January 18, 2019
20190118 072021287UTC
