Multilayer Ceramic Chip Capacitor
Part Number:
2220YA250331KETU16
Approval
Specifications:
Certification:
IEC/EN60384-14:2013
UL-60384-14:2014
CAN/CSA E60384-14:2014
Unmarked parts are uncertified but
manufactured in accordance with the above
specifications.
Description:
2220 250Vac 50/60Hz / 2500Vdc 330pF
±10% X7R (2R1) to AEC-Q200
Classification:
These capacitors comply with the
requirements of IEC/EN 60384-14:2013. For
class Y2/X1.
Component Marking and Certification Bodies:
Not Applicable

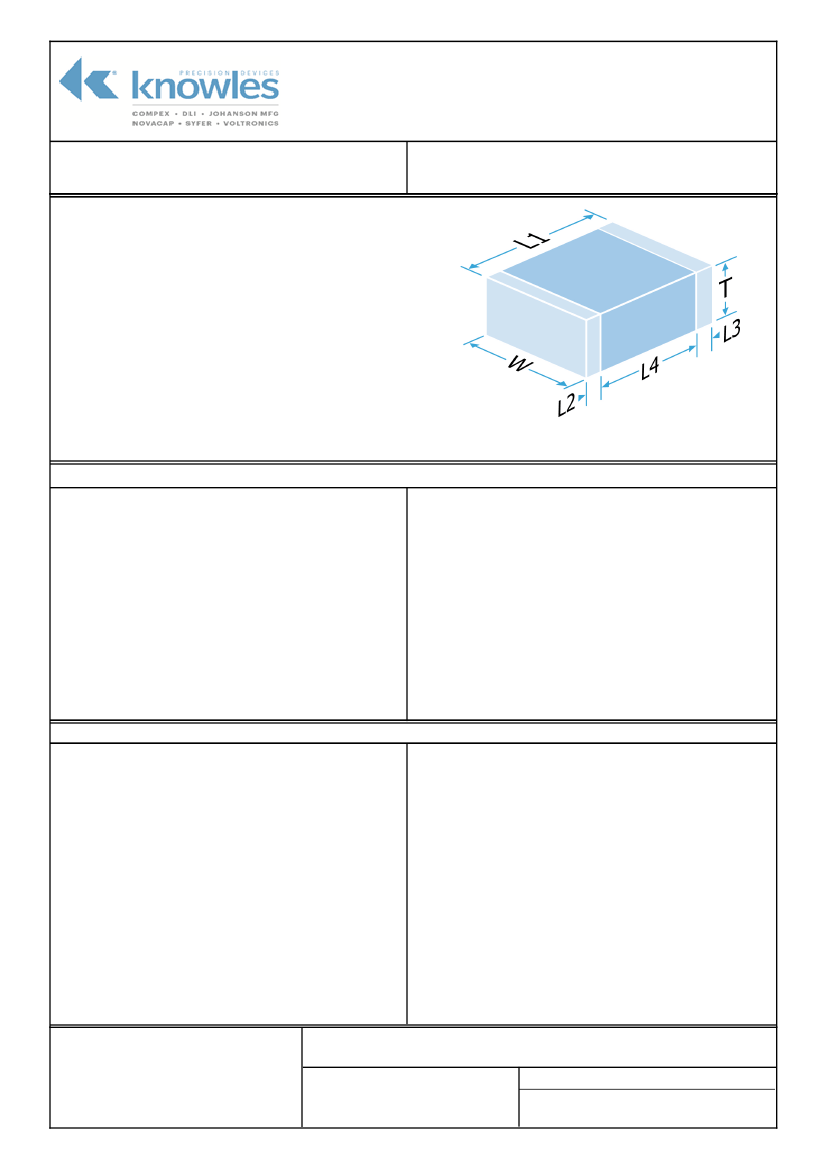

Mechanical Specification
Size Code
Length (L1) in mm (")
Width (W) in mm (")
Thickness (T) in mm (")
Minimum Termination Band (L2,L3) in mm (")
Maximum Termination Band (L2,L3) in mm (")
Minimum Band Gap (L4) in mm (")
Termination Material
Solderability
Packaging
2220
5.7 ± 0.40 (0.225 ± 0.016)
5.0 ± 0.40 (0.197 ± 0.016)
2.54 Max (0.1 Max)
0.25 (0.010)
1.00 (0.040)
4.0 (0.158)
FlexiCap™ Polymer termination, Nickel barrier, Sn Plated Solder
(RoHS compliant)
IEC-60068-2-58
7" Reel Horizontal Orientation, 500 per reel
General Electrical Specification
Rated Voltage
Nominal Capacitance Value
Capacitance Tolerance
Tangent of Loss Angle (Tan δ)
Capacitance and Tan δ Test Conditions
Voltage Proof
(Voltage applied for 5 secs max. @ 50mA max. charge current)
250Vac 50/60Hz / 2500Vdc 5kV impulse
330pF
±10%
≤0.025
1.0Vrms @ 1kHz
3000Vdc/2000Vac
100.00GOhm @ 100Vdc
X7R (2R1) to AEC-Q200
-55°C / +125°C
No DC Voltage
55/125/56
<2% per decade
This datasheet is for a standard item and is confirmed valid on the date generated, the latest published data
for this part may differ and is available at http://www.knowlescapacitors.com or by contacting us.
© The information contained on this drawing is
confidential and may not be copied in whole or part in
any form or disclosed to a third party without the consent
of Knowles and any customer mentioned within this
specification.
Data is correct to the best of our knowledge, errors and
omissions excepted.
Min Insulation Resistance (IR)
Dielectric Classification
Rated Temperature Range
Maximum Capacitance Change over Temperature Range
Climatic Category (IEC)
Ageing Characteristic
±15%
Rated DC Voltage -
Knowles Precision Devices - Sales
Europe: KPD-Europe-sales@knowles.com
Asia: KPD-Asia-sales@knowles.com
USA: KPD-NA-sales@knowles.com
www.knowlescapacitors.com
Date: Friday, January 18, 2019
20190118 030012189UTC
Multilayer Ceramic Chip Capacitor
Part Number:
2220YA250331KETU16
Description:
2220 250Vac 50/60Hz / 2500Vdc 330pF
±10% X7R (2R1) to AEC-Q200
Environmental
RoHS Compliant to 2011/65/EC as amended by 2015/863/EU Compliant
REACH Compliant
California Proposition 65
191 compliant
No exposure risk

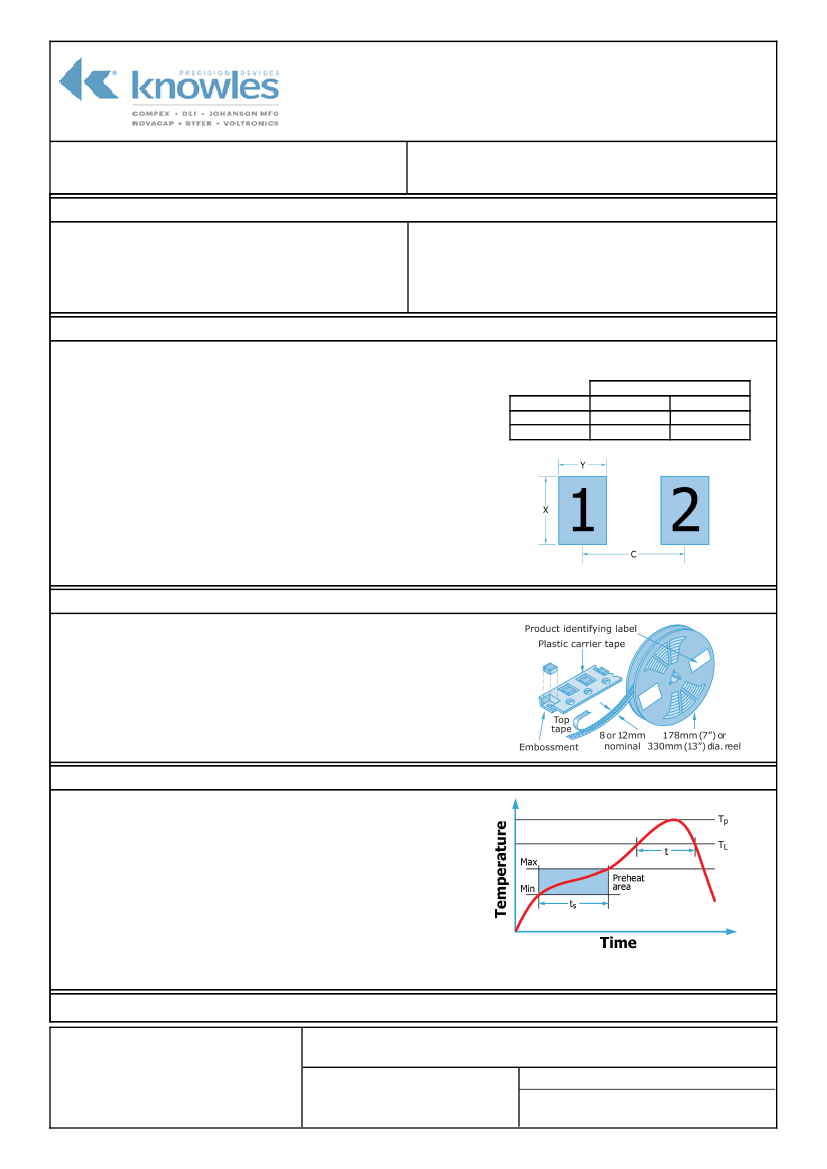

Board Layout
Knowles' conventional 2-terminal chip capacitors can
generally be mounted using pad designs in accordance with
international specification IPC-7351, Generic Requirements
for Surface Mount Design and Land Pattern Standards, but
there are some other factors that have been shown to reduce
mechanical stress, such as reducing the pad width to less
than the chip width. In addition, the position of the chip on the
board should be considered.
Some high voltage parts may require modifications to the
board layout and/or the addition of a conformal coating to
prevent flashover. Refer to application note AN0043 for
further information.
IPC-7351 pad design
2220
C
Y
X
5.30mm
1.50mm
5.40mm
0.209"
0.059"
0.213"
Packaging
Tape packaging information for tape-and-reel parts:
Tape and reel packing of surface mounting chip
capacitors for automatic placement are in accordance
with IEC60286-3.
Soldering
Reflow solder in accordance with IPC-A-610.
Recommended reflow profile as laid down in
IPC/JEDEC J-STD-020.
Wave soldering is also possible, but care must be
taken for case sizes 1210 and larger and component
thickness >1.0mm. Trials are encouraged.
Hand soldering is not recommended and can lead to
component damage through thermal shock.
Application notes with mounting and handling guidance are available on request.
Compex
DLI
Johanson MFG
Novacap
Syfer
Voltronics
