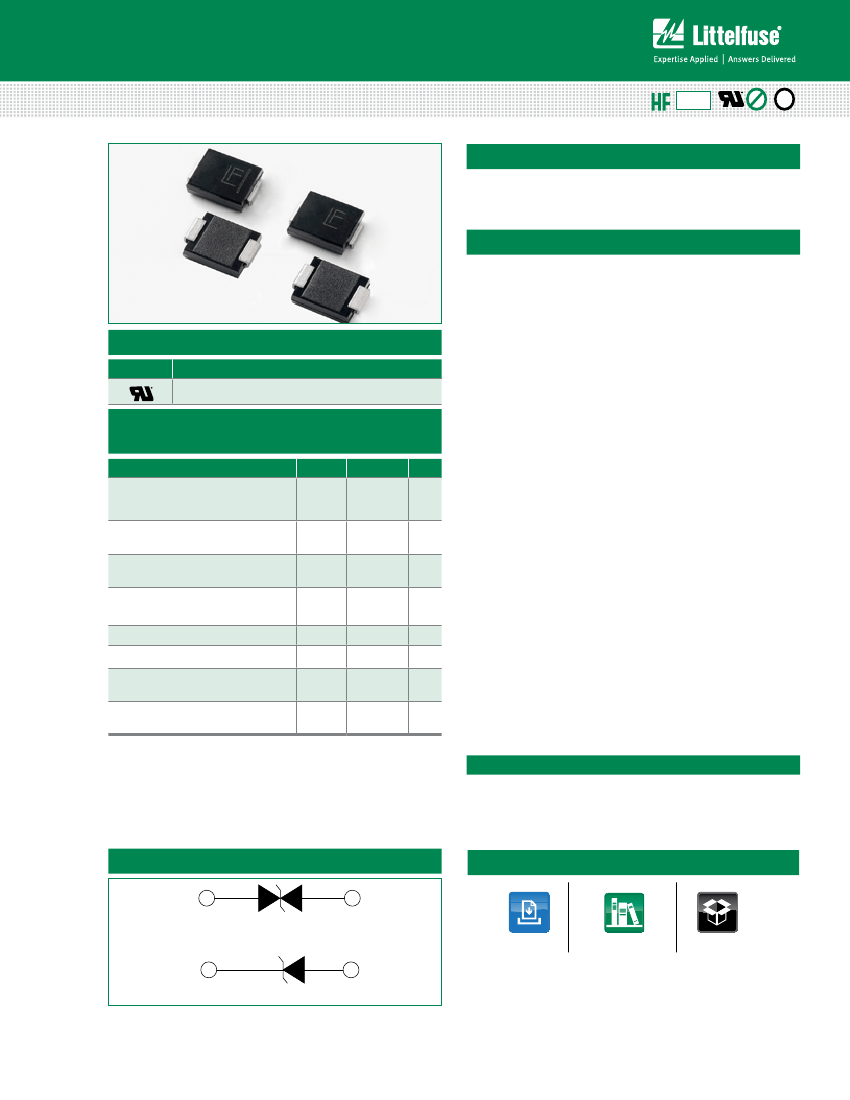

Transient Voltage Suppression Diodes
Surface Mount – 1500W > SMCJ series
SMCJ Series
Uni-directional
Bi-directional
Description
RoHS
Pb
e3
The SMCJ series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• 1500W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 1μA
when V
BR
min>12V
• For surface mounted
applications to optimize
board space
• Low profile package
• Built-in strain relief
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
30kV(Air), 30kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2
• EFT protection of data
lines in accordance with
IEC 61000-4-4
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
Additional Infomarion
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• Glass passivated chip
junction
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient, typical value
is 0.1%)
• Plastic package is
flammability rated V-0 per
Underwriters Laboratories
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2), (Note 5)
Power Dissipation on Infinite Heat
Sink at T
L
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
Only (Note 4)
Operating Temperature Range
Storage Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
T
STG
R
θJL
R
θJA
Value
1500
6.5
200
3.5/5.0
-65 to 150
-65 to 175
15
75
Unit
W
W
A
V
°C
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
J
(initial) =25
O
C per Fig. 3.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
4. V
F
< 3.5V for single die parts and V
F
< 5.0V for stacked-die parts.
5. The P
PPM
of stacked-die parts is 2000W and please contact littelfuse for the detail
stacked-die parts.
Functional Diagram
Bi-directional
Datasheet
Cathode
Uni-directional
Anode
Resources
Samples
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 1500W > SMCJ series
Electrical Characteristics
(T =25°C unless otherwise noted)
A
Part
Number
(Uni)
SMCJ5.0A
SMCJ6.0A
SMCJ6.5A
SMCJ7
.0A
SMCJ7
.5A
SMCJ8.0A
SMCJ8.5A
SMCJ9.0A
SMCJ10A
SMCJ11A
SMCJ12A
SMCJ13A
SMCJ14A
SMCJ15A
SMCJ16A
SMCJ17A
SMCJ18A
SMCJ20A
SMCJ22A
SMCJ24A
SMCJ26A
SMCJ28A
SMCJ30A
SMCJ33A
SMCJ36A
SMCJ40A
SMCJ43A
SMCJ45A
SMCJ48A
SMCJ51A
SMCJ54A
SMCJ58A
SMCJ60A
SMCJ64A
SMCJ70A
SMCJ75A
SMCJ78A
SMCJ85A
SMCJ90A
SMCJ100A
SMCJ110A
SMCJ120A
SMCJ130A
SMCJ150A
SMCJ160A
SMCJ170A
SMCJ180A
SMCJ200A
SMCJ220A
SMCJ250A
SMCJ300A
SMCJ350A
SMCJ400A
SMCJ440A
Part
Number
(Bi)
SMCJ5.0CA
SMCJ6.0CA
SMCJ6.5CA
SMCJ7
.0CA
SMCJ7
.5CA
SMCJ8.0CA
SMCJ8.5CA
SMCJ9.0CA
SMCJ10CA
SMCJ11CA
SMCJ12CA
SMCJ13CA
SMCJ14CA
SMCJ15CA
SMCJ16CA
SMCJ17CA
SMCJ18CA
SMCJ20CA
SMCJ22CA
SMCJ24CA
SMCJ26CA
SMCJ28CA
SMCJ30CA
SMCJ33CA
SMCJ36CA
SMCJ40CA
SMCJ43CA
SMCJ45CA
SMCJ48CA
SMCJ51CA
SMCJ54CA
SMCJ58CA
SMCJ60CA
SMCJ64CA
SMCJ70CA
SMCJ75CA
SMCJ78CA
SMCJ85CA
SMCJ90CA
SMCJ100CA
SMCJ110CA
SMCJ120CA
SMCJ130CA
SMCJ150CA
SMCJ160CA
SMCJ170CA
SMCJ180CA
SMCJ200CA
SMCJ220CA
SMCJ250CA
SMCJ300CA
SMCJ350CA
SMCJ400CA
SMCJ440CA
Marking
UNI
GDE
GDG
GDK
GDM
GDP
GDR
GDT
GDV
GDX
GDZ
GEE
GEG
GEK
GEM
GEP
GER
GET
GEV
GEX
GEZ
GFE
GFG
GFK
GFM
GFP
GFR
GFT
GFV
GFX
GFZ
GGE
GGG
GGK
GGM
GGP
GGR
GGT
GGV
GGX
GGZ
GHE
GHG
GHK
GHM
GHP
GHR
GHT
GHV
GHX
GHZ
GJE
GJG
GJK
GJM
BI
BDE
BDG
BDK
BDM
BDP
BDR
BDT
BDV
BDX
BDZ
BEE
BEG
BEK
BEM
BEP
BER
BET
BEV
BEX
BEZ
BFE
BFG
BFK
BFM
BFP
BFR
BFT
BFV
BFX
BFZ
BGE
BGG
BGK
BGM
BGP
BGR
BGT
BGV
BGX
BGZ
BHE
BHG
BHK
BHM
BHP
BHR
BHT
BHV
BHX
BHZ
BJE
BJG
BJK
BJM
Reverse
Stand off
Voltage
V
R
(Volts)
5.0
6.0
6.5
7
.0
7
.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
200.0
220.0
250.0
300.0
350.0
400.0
440.0
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
6.40
6.67
7
.22
7
.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167
.00
178.00
189.00
201.00
224.00
246.00
279.00
335.00
391.00
447
.00
492.00
MAX
7
.00
7
.37
7
.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
185.00
197
.00
209.00
222.00
247
.00
272.00
309.00
371.00
432.00
494.00
543.00
Test
Current
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum Maximum Maximum
Agency
Clamping
Peak
Reverse
Approval
Voltage V
C
Pulse
Leakage I
R
@ I
pp
Current I
pp
@ V
R
(V)
(A)
(µA)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17
.0
18.2
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
243.0
259.0
275.0
292.0
324.0
356.0
405.0
486.0
567
.0
648.0
713.0
163.0
145.7
134.0
125.0
116.3
110.3
104.2
97
.4
88.3
82.5
75.4
69.8
64.7
61.5
57
.7
54.4
51.4
46.3
42.3
38.6
35.7
33.1
31.0
28.2
25.9
23.3
21.7
20.6
19.4
18.2
17
.3
16.1
15.5
14.6
13.3
12.4
11.9
11.0
10.3
9.3
8.5
7
.8
7
.2
6.2
5.8
5.5
5.1
4.6
4.2
3.7
3.1
2.6
2.3
2.1
800
800
500
200
100
50
20
10
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
For parts without A , the V
BR
is ± 10% and V
C
is 5% higher than with A parts
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 1500W > SMCJ series
I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional

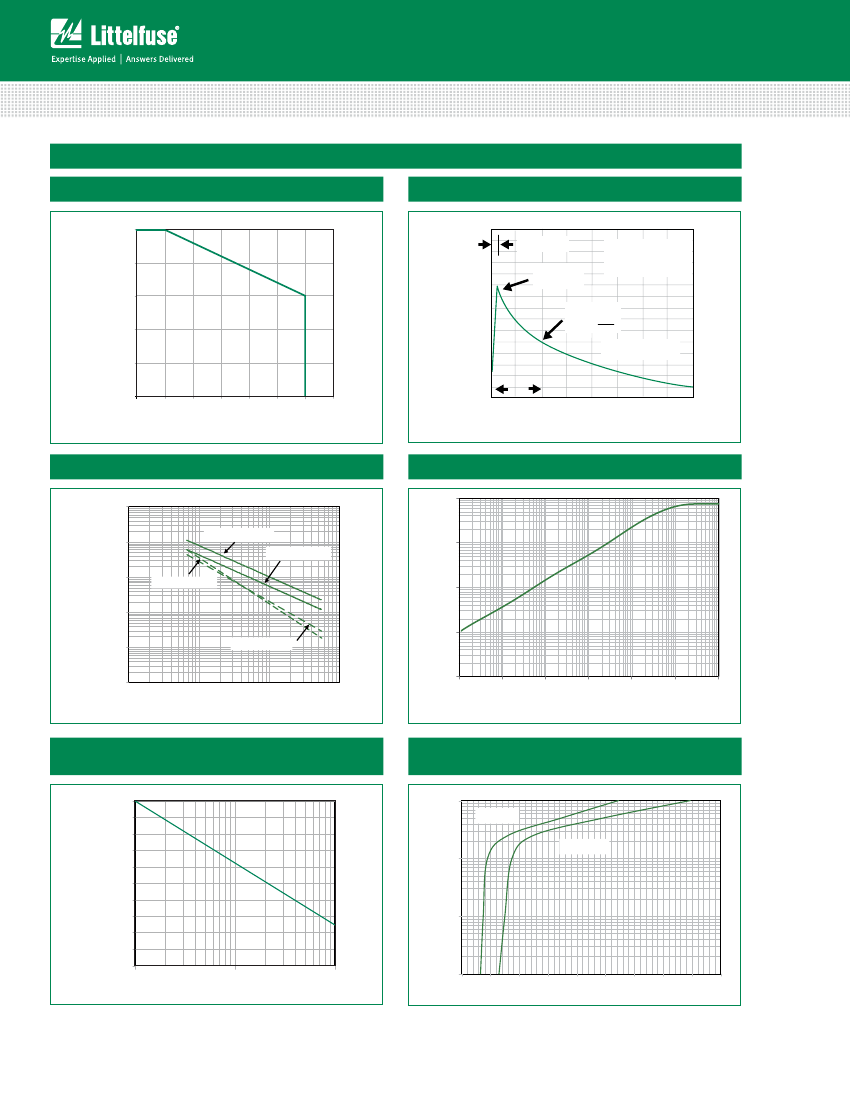

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
100
P
PPM
-Peak Pulse Power (kW)
TJ initial = Tamb
Voltage Across TVS
Voltage or Current
10
stacked-die, 2kW
at 10x1000µs,
25°C
Current Through TVS
1
Single die, 1.5kW
at 10x1000µs,
25°C
0.1
0.001
Time
0.01
0.1
1
10
t
d
-Pulse Width (ms)
continues on next page.
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 1500W > SMCJ series
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A
Figure 3 - Peak Pulse Power Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
Figure 4 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
80
60
40
20
0
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100 125 150
T
J
- Initial Junction Temperature (ºC)
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
100000
Uni-directional V=0V
Bi-directional V=0V
Figure 6 - Typical Transient Thermal Impedance
Transient Thermal Impedance (
°
C/W)
100
10000
10
Cj(pF)
1000
Uni-directional V=V
R
1
100
10
Bi-directional V=V
R
0.1
1
1
10
100
1000
0.01
0.001
0.01
0.1
1
10
100
1000
V
BR
- Reverse Breakdown Voltage(V)
T
P
- Pulse Duration (s)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
200
160
140
120
100
80
60
40
20
0
1
10
Number of Cycles at 60 Hz
100
Figure 8 - Peak Forward Voltage Drop vs Peak Forward
Current (Typical Values)
100.0
I
FSM
- Peak Forward Surge Current (A)
IF- Peak Forward Current(A)
180
Single die
Stacked-die
10.0
1.0
0.1
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
VF-Peak Forward Voltage(V)
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 1500W > SMCJ series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp (T
A
)
to peak
T
S(max)
to T
A
- Ramp-up Rate
Reflow
- Temperature (T
A
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free
assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
260°C
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Time (t)
Environmental Specifications
High Temp. Storage
HTRB
Temperature Cycling
MSL
H3TRB
RSH
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22-A111
Physical Specifications
Weight
Case
Polarity
Terminal
0.007 ounce, 0.21 grams
JEDEC DO214AB. Molded plastic body
over glass passivated junction
Color band denotes positive end
(cathode) except Bidirectional.
Matte Tin-plated leads, Solderable per
JESD22-B102
Dimensions
DO-214AB (SMC J-Bend)
Cathode Band
(for Uni-directional products only)
Dimensions
A
B
C
D
Inches
Min
0.114
0.260
0.220
0.079
0.030
-
0.305
0.006
0.129
0.094
-
0.094
Max
0.126
0.280
0.245
0.103
0.060
0.008
0.320
0.012
-
-
0.165
-
Millimeters
Min
2.900
6.600
5.590
2.060
0.760
-
7
.750
0.152
3.300
2.400
-
2.400
Max
3.200
7
.110
6.220
2.620
1.520
0.203
8.130
0.305
-
-
4.200
-
A
B
H
D
F
G
J
K
L
C
E
F
G
H
I
J
K
L
E
I
Solder Pads
(all dimensions in mm)
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
京公网安备 11010802033920号
EEWORLD
