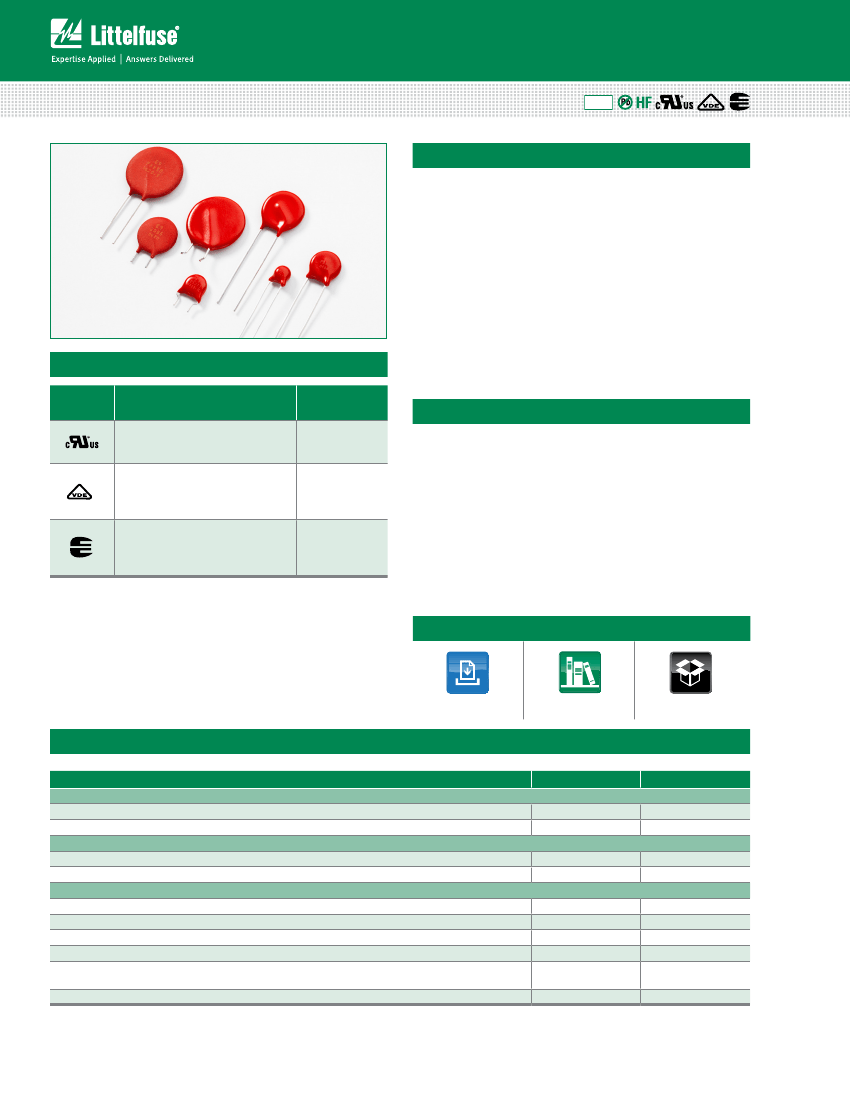

The ZA Series of transient voltage surge suppressors
are radial leaded varistors (MOVs) designed for
use in the protection of low and medium-voltage
circuits and systems. Typical applications include
motor control, telecom, automotive systems,
solenoid, and power supply circuits to protect circuit
board components and maintain data integrity.
These devices are available in five model sizes:
5mm, 7mm, 10mm, 14mm and 20mm, and feature
a wide V
DC
voltage range of 5.5V to 615V.
Agency Approvals
Agency
Agency Approval
Agency File
Number
See ZA Series Device Ratings and Specifications
Table for part number and brand information.
Features
• Lead–free, Halogen-
Free and RoHS
compliant
•
Wide operating voltage
range V
M(AC)RMS
4V to 460V
DC voltage ratings
5.5V to 615V
No derating up to
85ºC ambient
•
5 model sizes
available: 5, 7 10,
,
14, and 20mm
Radial lead package for
hard-wired or printed
circuit board designs
Available in tape and
reel or bulk pack
Standard lead
form options
UL144*
CECC 42201-006
IEC 61051-1
IEC 61051-2
IEC 60950-1 (Annex Q)**
CECC 42201-006
IEC 61051-1
IEC 61051-2
IEC 60950-1 (Annex Q)**
Notes:
* - Except parts V8ZAxxP and V12ZAxxP
.
** - For 14mm (V120 to V180) and 20mm (V120 to V180).
E320116
116895
•
E1273/F
•
•
•
•
Additional Information
Datasheet
Resources
Samples
Absolute Maximum Ratings
• For ratings of individual members of a series, see Device Ratings and Specifications chart
Continuous
Steady State Applied Voltage:
AC Voltage Range (V
M(AC)RMS
)
DC Voltage Range (V
M(DC)
)
Transients:
Peak Pulse Current (I
TM
)
For 8/20µs Current Wave (See Figure 2)
Single Pulse Energy Range (Note 1)
For 10/1000µs Current Wave (W
TM
)
Operating Ambient Temperature Range (T
A
)
Storage Temperature Range (T
STG
)
Temperature Coefficient (a ) of Clamping Voltage (V
C
) at Specified Test Current
V
ZA Series
4 to 460
5.5 to 615
Units
V
V
50 to 6500
0.1 to 52
-55 to +85
-55 to +125
<0.01
2500
1000
A
J
ºC
ºC
%/ºC
V
MΩ
Hi-Pot Encapsulation (COATING Isolation Voltage Capability)
(Dielectric must withstand indicated DC voltage for one minute per MIL–STD–202, Method 301)
COATING Insulation Resistance
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any
other conditions above those indicated in the operational sections of this specification is not implied.
