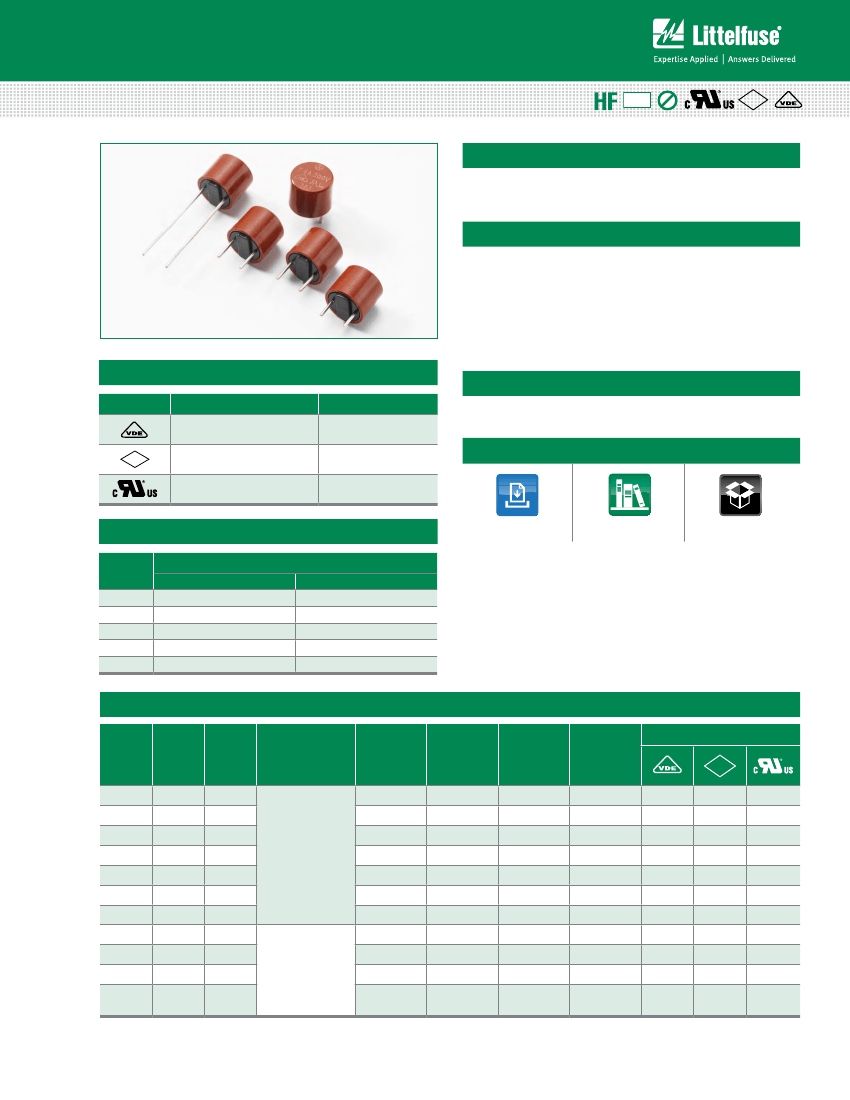

Radial Lead Fuses
TR5
®
> Time-Lag Fuse > 383 Series
383 Series, TR5
®
Time-Lag Fuse
Description
RoHS
Pb
PS
E
The 383 series are TR5
®
time-lag 300V rated fuses and
designed in accordance to IEC60127-3.
Features
• Halogen free, Lead-free
and RoHS compliant
• Reduced PCB space
requirements
• Direct solderable or
plug-in versions
Agency Approvals
Agency
Agency File Number
Ampere Range
• Internationally approved
• Low internal resistance
• Shock safe casing
• Vibration resistant
Applications
• Electronic Ballast
Additional Information
40022712
PS
E
4A - 5A
1A - 5A
6.3A - 10A
1A - 10A
JET1896-31007-2001
JET1896-31007-1006
E67006
Electrical Characteristics for Series
% of
Ampere
Rating
150%
210%
275%
400%
1000%
Opening Time
1A - 6.3A
1 Hour,
Min.
2 Minutes,
Max.
400 ms,
Min.;
10 s,
Max.
150 ms,
Min.;
3 s,
Max.
20 ms,
Min.
; 150 ms,
Max.
8A - 10A
1 Hour,
Min.
300 s,
Max.
1 s,
Min.;
20 s,
Max.
150 ms,
Min.;
3 s,
Max.
20 ms,
Min.
; 150 ms,
Max.
Datasheet
Resources
Samples
Electrical Characteristics Specifications by Item
Amp
Code
1100
1125
1160
1200
1250
1315
1400
1500
1630
1800
2100
Rated
Current
1.00 A
1.25 A
1.60 A
2.00 A
2.50 A
3.15 A
4.00 A
5.00 A
6.30 A
8.00 A
10.00
A
Max
Voltage
Rating
300 V
300 V
300 V
300 V
300 V
300 V
300 V
300 V
300 V
300 V
300 V
50A@320VAC
100A@250VAC
100A@300VAC
50A@320VAC
Breaking
Capacity
Nominal
Cold
Resistance
(Ohms)
0.0625
0.0500
0.0377
0.0280
0.0215
0.0176
0.0138
0.0108
0.0076
0.0059
0.0042
Voltage
Drop
1.0×I
N
max. (mV)
100
95
90
85
80
75
70
65
65
63
57
Power
Dissipation
1.5×I
N
max. (mW)
400
465
490
670
750
900
1200
1250
1400
1600
1600
Melting
Integral
10×I
N
max. (A
2
s)
4.85
6.88
12.67
17
.80
29.69
45.35
72.00
121.25
148.84
233.60
365.00
X
X
Agency Approvals
PS
E
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice. Application testing is strongly recommended.
Revised: 04/13/16
Radial Lead Fuses
TR5
®
> Time-Lag Fuse > 383 Series

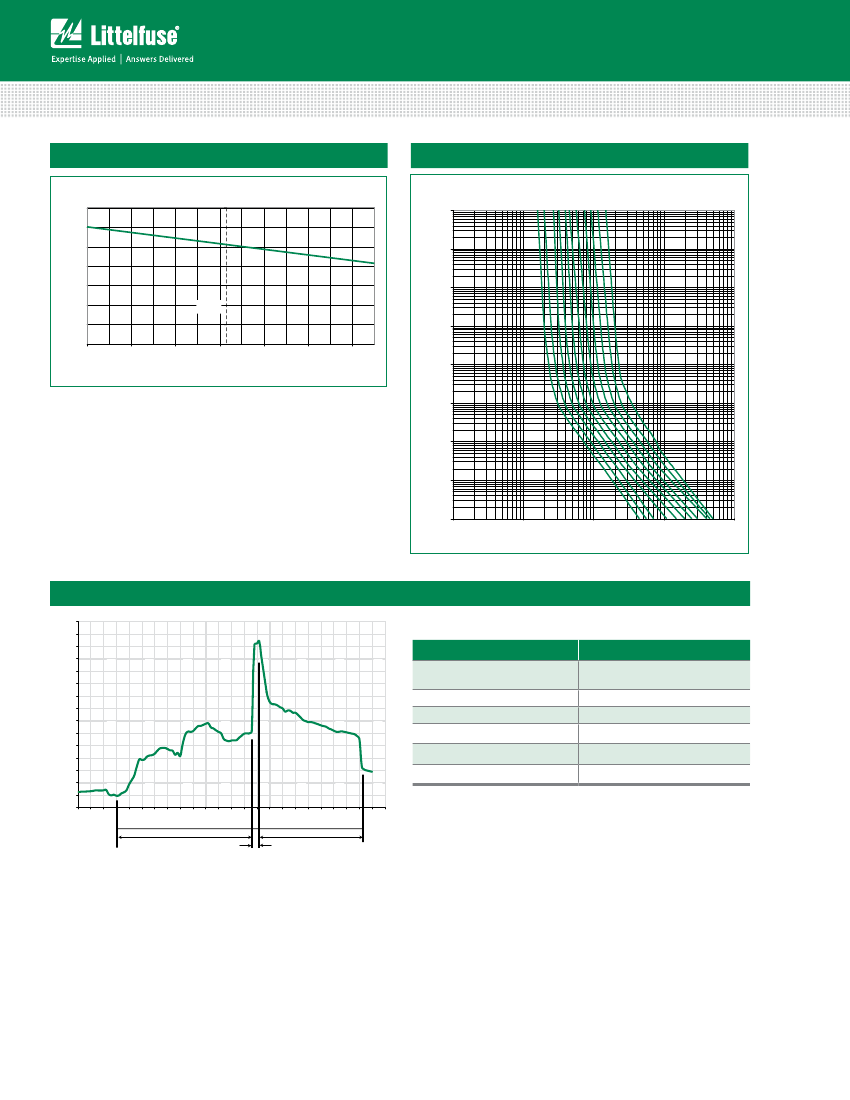

Temperature Rerating
Temperature Re-rating
Curve
Average Time Current Curves
10A
8A
6.3A
5A
4A
3.15A
2.5A
2A
1.6A
1.25A
1A
140
140
120
120
PERCENT OF
OF RATING
PERCENT
RATING
100000
100
100
80
80
60
60
40
40
20
20
0
0
-40°C
-40
-20°C
-20
0°C
0
20°C
20
40°C
40
60°C
60
80°C
80
10000
1000
23°C
23°C
100
TIME IN SECONDS
AMBIENT TEMPERATURE
AMBIENT TEMPERATURE (°C)
10
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25%
for continuous operation.
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
Soldering Parameters - Wave Soldering
300
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350°C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/13/16
Radial Lead Fuses
TR5
®
> Time-Lag Fuse > 383 Series
Product
Characteristics
Characteristics
Materials
Materials
Lead Pull Strength
Lead Pull Strength
Solderability
Solderability
Soldering Heat
Soldering Heat
Resistance
Resistance
Base/Cap: Brown
Thermoplastic
Thermoplastic
Polyamide PA 6.6,
Polyamide PA6.6, UL 94 V0
UL 94 V-0
Round Pins:
tin-plated Copper
Copper, Tin-plated
10
N (IEC 60068-2-21)
10
N (IEC 60068-2-21)
260ºC,
≤ 3s
(Wave)
260°C,
≤ 3s.
(Wave)
350ºC,
≤ 1s
(Soldering Iron)
350°C,
≤ 1s.
(Soldering Iron)
260ºC,
10s
(IEC 60068-2-20)
260°C,
10s.
(IEC60068-2-20)
350ºC,
3s
(Soldering Iron)
350°C,
3s.
(Soldering Iron)
-65°C
-40ºC to
Operating Temperature
to +85°C
+85ºC (consider re-rating)
Operating Temperature
-40ºC to +85ºC /21 days
Climatic Category
-40°C /
(IEC 60068-1,-2-1,-2-2,-2-78)
+85°C / 21days
Climatic Category
(IEC60068-1,-2-1,-2-2,-2-78)
+10ºC to +60ºC
RH ≤ 75% yearly average, without
Stock Conditions
+10°C to +60°C
dew, maximum value for 30
Stock Condition
relative
days–95%
humidity 75% yearly average,
without dew, maximum value for 30 days-95%
24 cycles at 15 min. each
(IEC 60068-2-6)
24 cycles at 15min. Each (IEC60068-2-6)
Vibration Resistance
Vibration Resistance
10 - 60
10 -
at 0.75
at 0.75 mm amplitude
Hz
60 Hz
mm amplitude
60 -
Hz at 10g
at 10 g acceleration
60 - 2000
2000 Hz
acceleration
Dimensions
8.5
Part Numbering System
383 xxxx 0000
Series
Amp Code
0.5 min
Refer to Amp Code column of
Electrical Characteristics Table
max. 8
0.6
Packaging Code
0000 Tape/Ammopack (1,000pcs.)
0410 Short Leads - Bulk (1,000pcs.)
L
5.08
Holes in PCB
Long Leads (L=18.8mm)
Short Leads (L=4.3mm)
Packaging
Packaging Option
383 Series
Tape & Ammopack
Short Leads
Packaging Specification
N/A
N/A
Quantity
1,000
1,000
Quantity &
Packaging Code
0000
0410
Taping Width
N/A
N/A
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/13/16
1 + 0.1
