MCP2515-I/SO Overview

Type: Controller Driver/Receiver Number: 1/1 Protocol Category: CAN Bus Data Rate: 1Mbps Chip CAN Bus Controller SPI Number of Transmit Buffers: 3 Number of Receive Buffers: 2 Minimum Supply Voltage: 2.7V Maximum Supply Voltage Value: 5.5V Digital Chip Package: SOIC Number of Pins: 18 Number of Filters: 6 Number of Masks: 2 Number of Interrupts: 1 Minimum Operating Temperature: -40°C Maximum Operating Temperature: 85°C MSL: MSL 1 - None Restricted SVHC (Substances of Very High Concern): No SVHC (20-Jun-2013) Operating temperature range: -40°C to +85°C Interface: SPI Data rate: 1Mbps Supply voltage range: 2.7V to 5.5V Supply current: 10mA Surface Mount Device: SMD

MCP2515-I/SO Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	SOP,
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Address bus width
boundary scan	NO
maximum clock frequency	25 MHz
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width
JESD-30 code	R-PDSO-G18
JESD-609 code	e3
length	11.55 mm
low power mode	YES
Humidity sensitivity level	1
Number of serial I/Os	1
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

User Manual

Preview

Download Datasheet

View All

MCP2515

Stand-Alone CAN Controller with SPI Interface

Features:

• Implements CAN V2.0B at 1 Mb/s:

- 0 – 8 byte length in the data field

- Standard and extended data and remote

frames

• Receive Buffers, Masks and Filters:

- Two receive buffers with prioritized message

storage

- Six 29-bit filters

- Two 29-bit masks

• Data Byte Filtering on the First Two Data Bytes

(applies to standard data frames)

• Three Transmit Buffers with Prioritization and

Abort Features

• High-Speed SPI Interface (10 MHz):

- SPI modes

0,0

and

1,1

• One-Shot mode Ensures Message Transmission

is Attempted Only One Time

• Clock Out Pin with Programmable Prescaler:

- Can be used as a clock source for other

device(s)

• Start-of-Frame (SOF) Signal is Available for

Monitoring the SOF Signal:

- Can be used for time-slot-based protocols

and/or bus diagnostics to detect early bus

degradation

• Interrupt Output Pin with Selectable Enables

• Buffer Full Output Pins Configurable as:

- Interrupt output for each receive buffer

- General purpose output

• Request-to-Send (RTS) Input Pins Individually

Configurable as:

- Control pins to request transmission for each

transmit buffer

- General purpose inputs

• Low-Power CMOS Technology:

- Operates from 2.7V – 5.5V

- 5 mA active current (typical)

- 1 µA standby current (typical) (Sleep mode)

• Temperature Ranges Supported:

- Industrial (I): -40°C to +85°C

- Extended (E): -40°C to +125°C

Description

Microchip Technology’s MCP2515 is a stand-alone

Controller Area Network (CAN) controller that

implements the CAN specification, version 2.0B. It is

capable of transmitting and receiving both standard

and extended data and remote frames. The MCP2515

has two acceptance masks and six acceptance filters

that are used to filter out unwanted messages, thereby

reducing the host MCU’s overhead. The MCP2515

interfaces with microcontrollers (MCUs) via an industry

standard Serial Peripheral Interface (SPI).

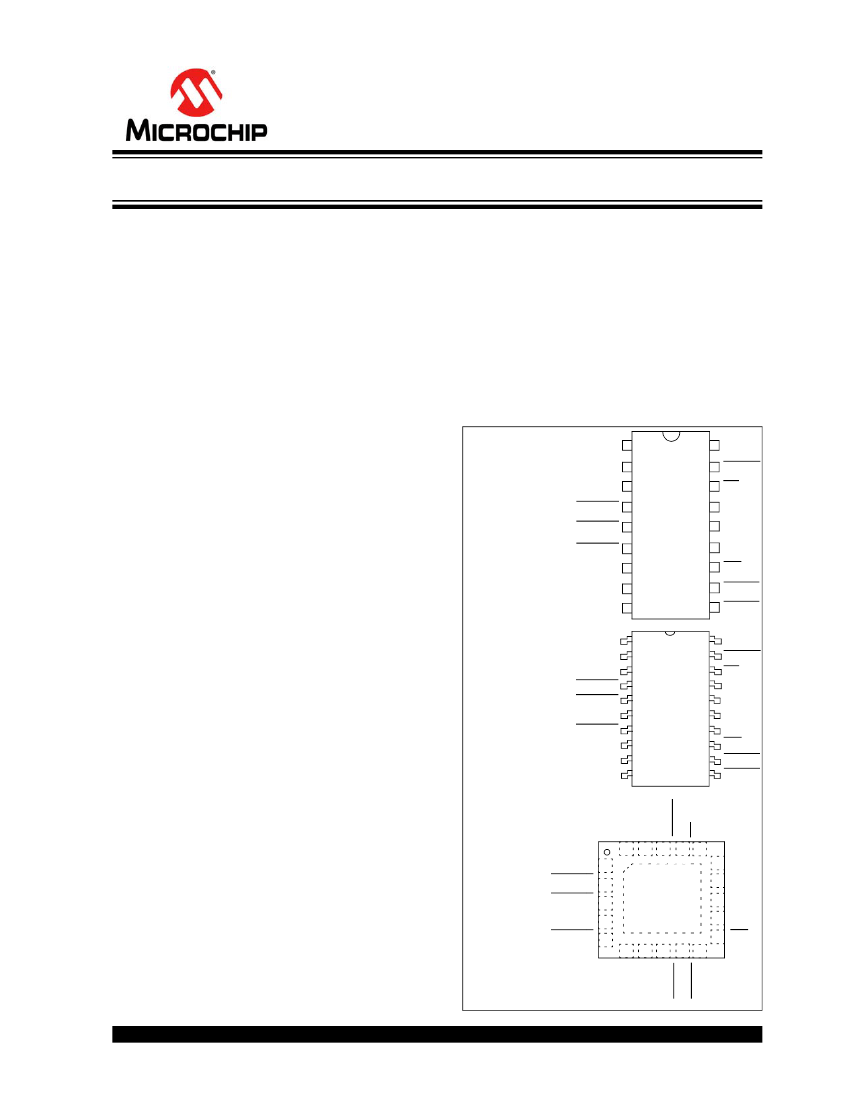

Package Types

18-Lead PDIP/SOIC

TXCAN

RXCAN

CLKOUT/SOF

TX0RTS

TX1RTS

TX2RTS

OSC2

OSC1

Vss

TXCAN

RESET

SCK

INT

RX0BF

RX1BF

RESET

SCK

INT

RX0BF

RX1BF

MCP2515

RESET

RX1BF

20-LEAD TSSOP

TXCAN

RXCAN

CLKOUT/SOF

TX0RTS

TX1RTS

TX2RTS

OSC2

OSC1

20 19 18 17 16

CLKOUT 1

TX0RTS 2

TX1RTS 3

NC 4

TX2RTS 5

OSC2

* Includes Exposed Thermal

Pad (EP); see

Table 1-1.

OSC1

GND

9 10

RX0BF

15 SO

14 SI

13 NC

12 SCK

11 INT



2003-2012 Microchip Technology Inc.

DS21801G-page 1

MCP2515

20-Lead 4x4 QFN*

RXCAN

MCP2515

MCP2515-I/SO Related Products

	MCP2515-I/SO	MCP2515-I/ST	MCP2515-E/SOG	MCP2515-E/PG	MCP2515-E/STG
Description	Type: Controller Driver/Receiver Number: 1/1 Protocol Category: CAN Bus Data Rate: 1Mbps Chip CAN Bus Controller SPI Number of Transmit Buffers: 3 Number of Receive Buffers: 2 Minimum Supply Voltage: 2.7V Maximum Supply Voltage Value: 5.5V Digital Chip Package: SOIC Number of Pins: 18 Number of Filters: 6 Number of Masks: 2 Number of Interrupts: 1 Minimum Operating Temperature: -40°C Maximum Operating Temperature: 85°C MSL: MSL 1 - None Restricted SVHC (Substances of Very High Concern): No SVHC (20-Jun-2013) Operating temperature range: -40°C to +85°C Interface: SPI Data rate: 1Mbps Supply voltage range: 2.7V to 5.5V Supply current: 10mA Surface Mount Device: SMD	Type: Controller Number of Drivers/Receivers: 1/1 Protocol Category: CAN Bus Data Rate: 1Mbps Interface Controller	1 CHANNEL(S), 1M bps, SERIAL COMM CONTROLLER, PDSO18, 7.50 MM, LEAD FREE, PLASTIC, SOIC-18	1 CHANNEL(S), 1M bps, SERIAL COMM CONTROLLER, PDIP18, 0.300 INCH, LEAD FREE, PLASTIC, DIP-18	1 CHANNEL(S), 1M bps, SERIAL COMM CONTROLLER, PDSO20, 4.40 MM, LEAD FREE, PLASTIC, TSSOP-20
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	TSSOP	SOIC	DIP	TSSOP
package instruction	SOP,	TSSOP,	SOP,	DIP,	TSSOP,
Contacts	18	20	18	18	20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
boundary scan	NO	NO	NO	NO	NO
maximum clock frequency	25 MHz	25 MHz	40 MHz	40 MHz	40 MHz
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
JESD-30 code	R-PDSO-G18	R-PDSO-G20	R-PDSO-G18	R-PDIP-T18	R-PDSO-G20
JESD-609 code	e3	e3	e3	e3	e3
length	11.55 mm	6.5 mm	11.55 mm	22.86 mm	6.5 mm
low power mode	YES	YES	YES	YES	YES
Number of serial I/Os	1	1	1	1	1
Number of terminals	18	20	18	18	20
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	SOP	DIP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	1.2 mm	2.65 mm	5.334 mm	1.2 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	4.5 V	4.5 V	4.5 V
surface mount	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm	2.54 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	4.4 mm	7.5 mm	7.62 mm	4.4 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Humidity sensitivity level	1	1	1	-	1
Maker	-	-	Microchip	Microchip	Microchip
Nominal supply voltage	-	-	5 V	5 V	5 V
