TABLE OF CONTENTS
L
SHEET NO.
SHEET DESCRIPTION
1

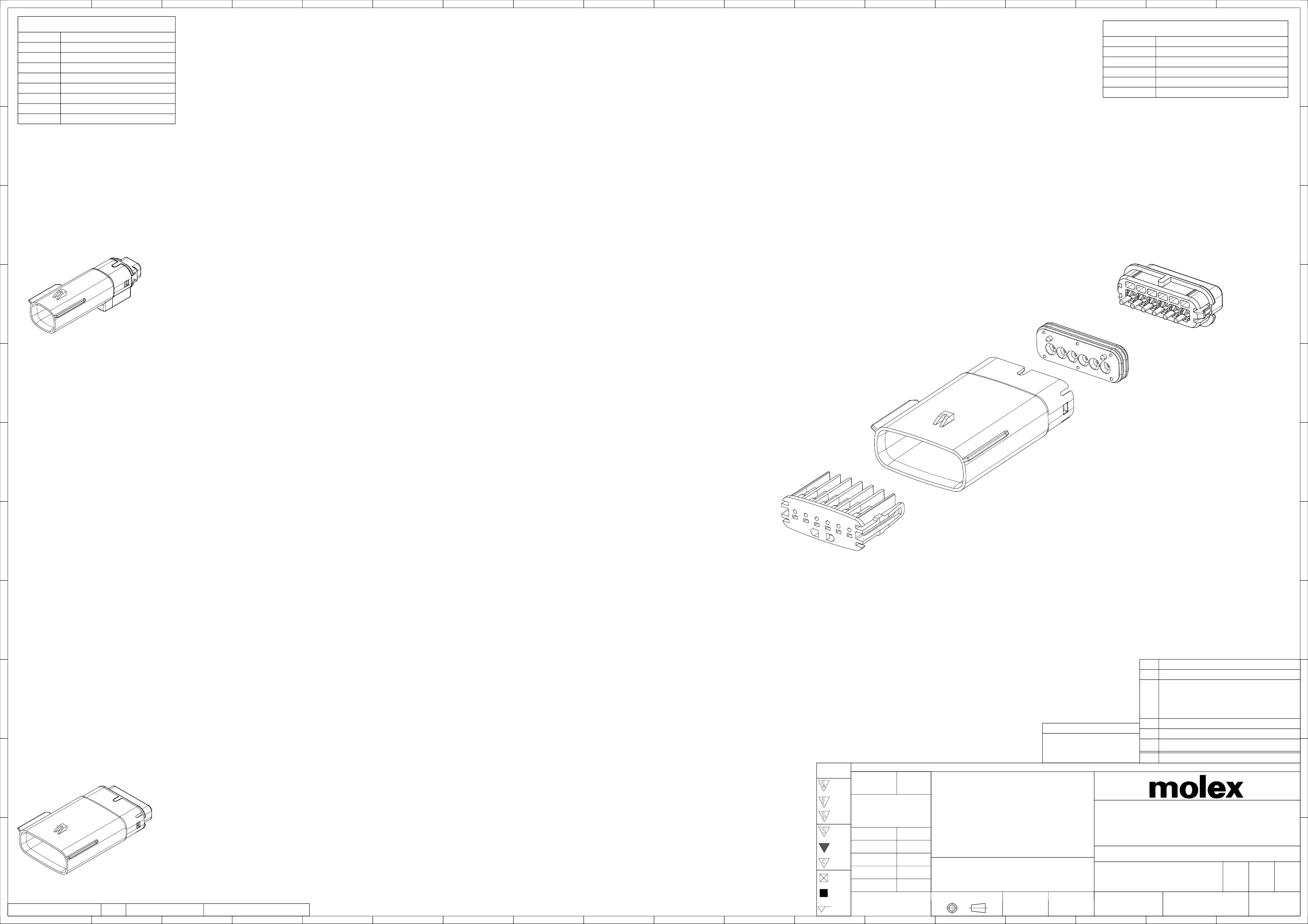

NOTES AND BOM
2

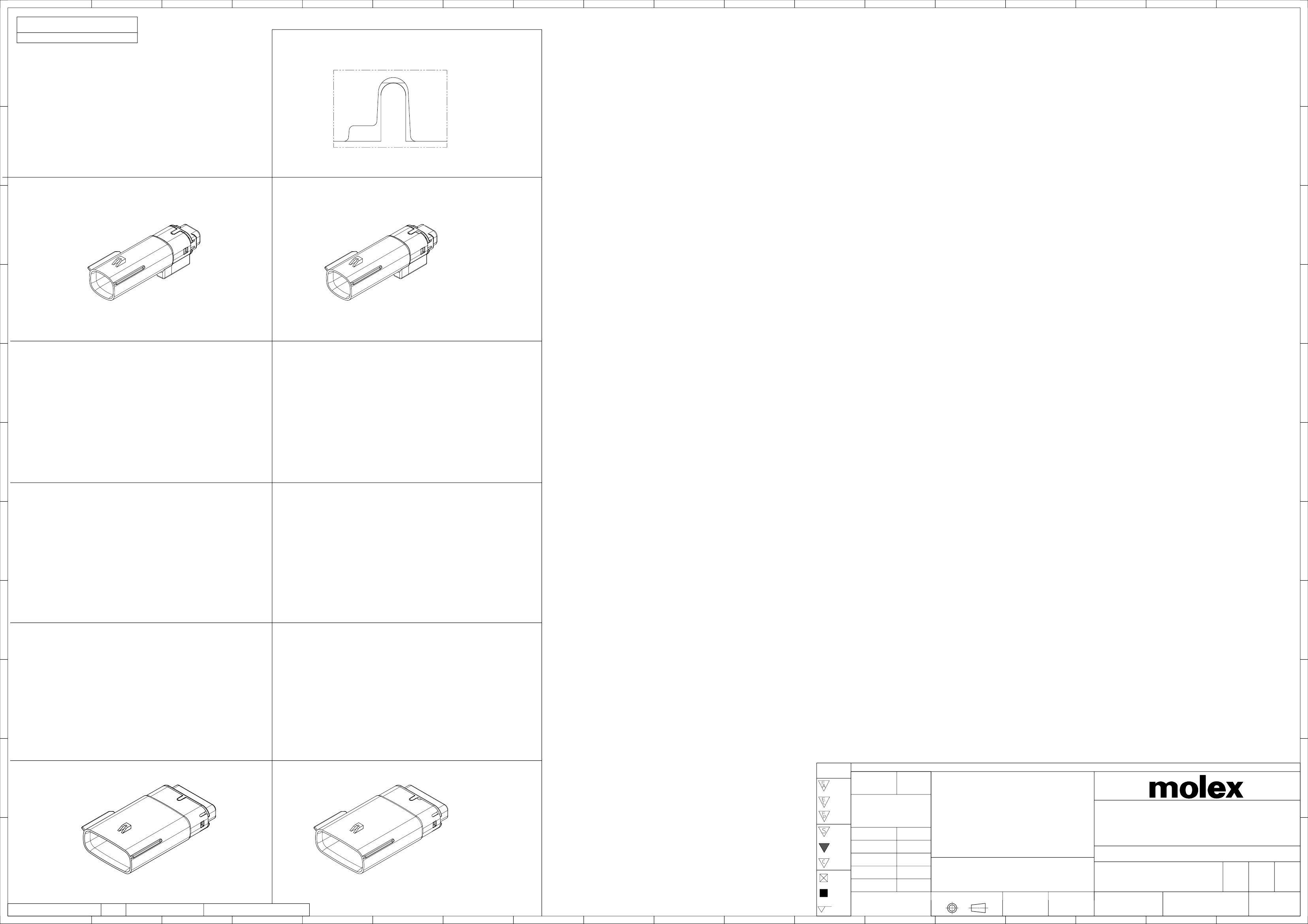

CONFIGURATIONS
3-4

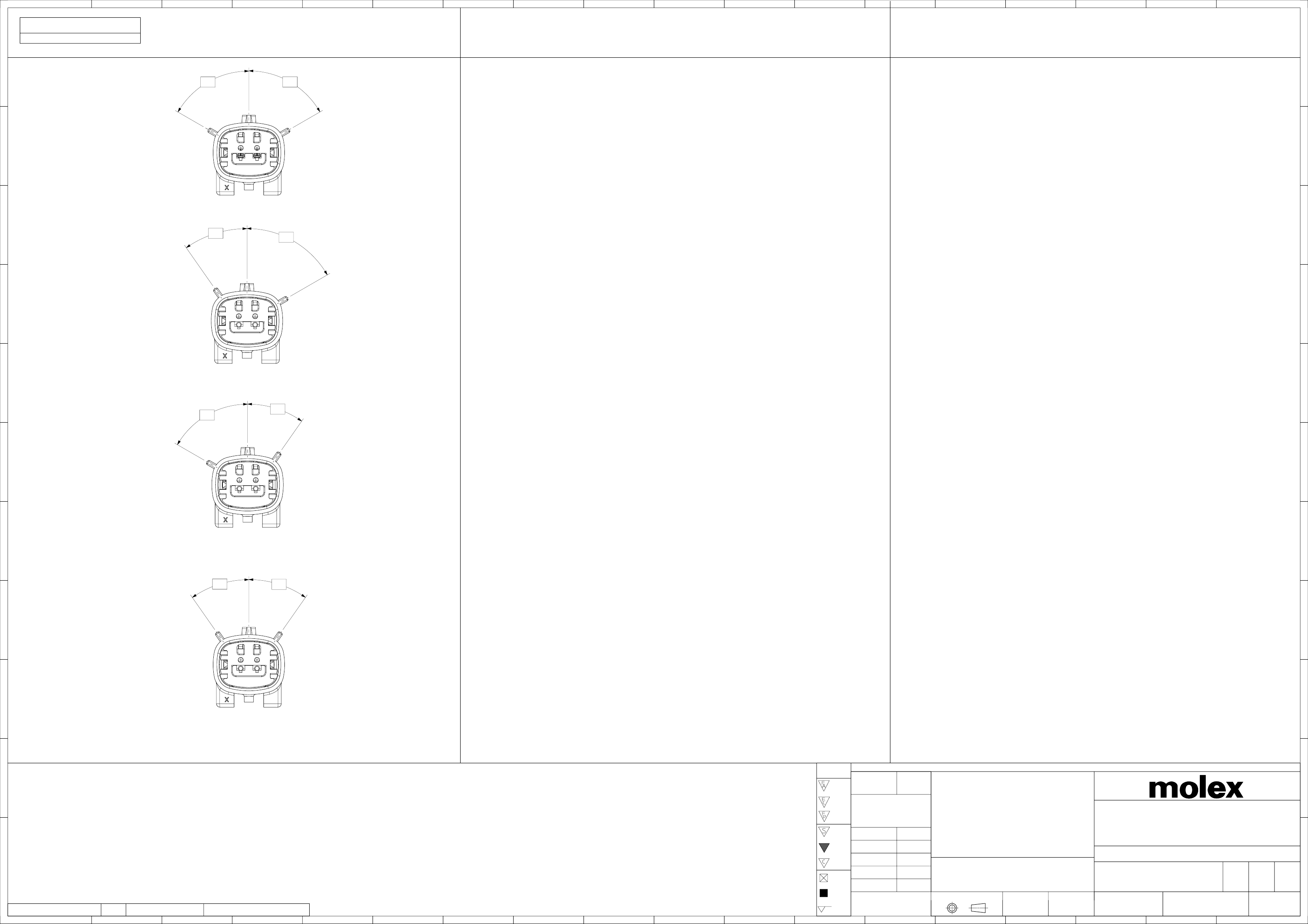

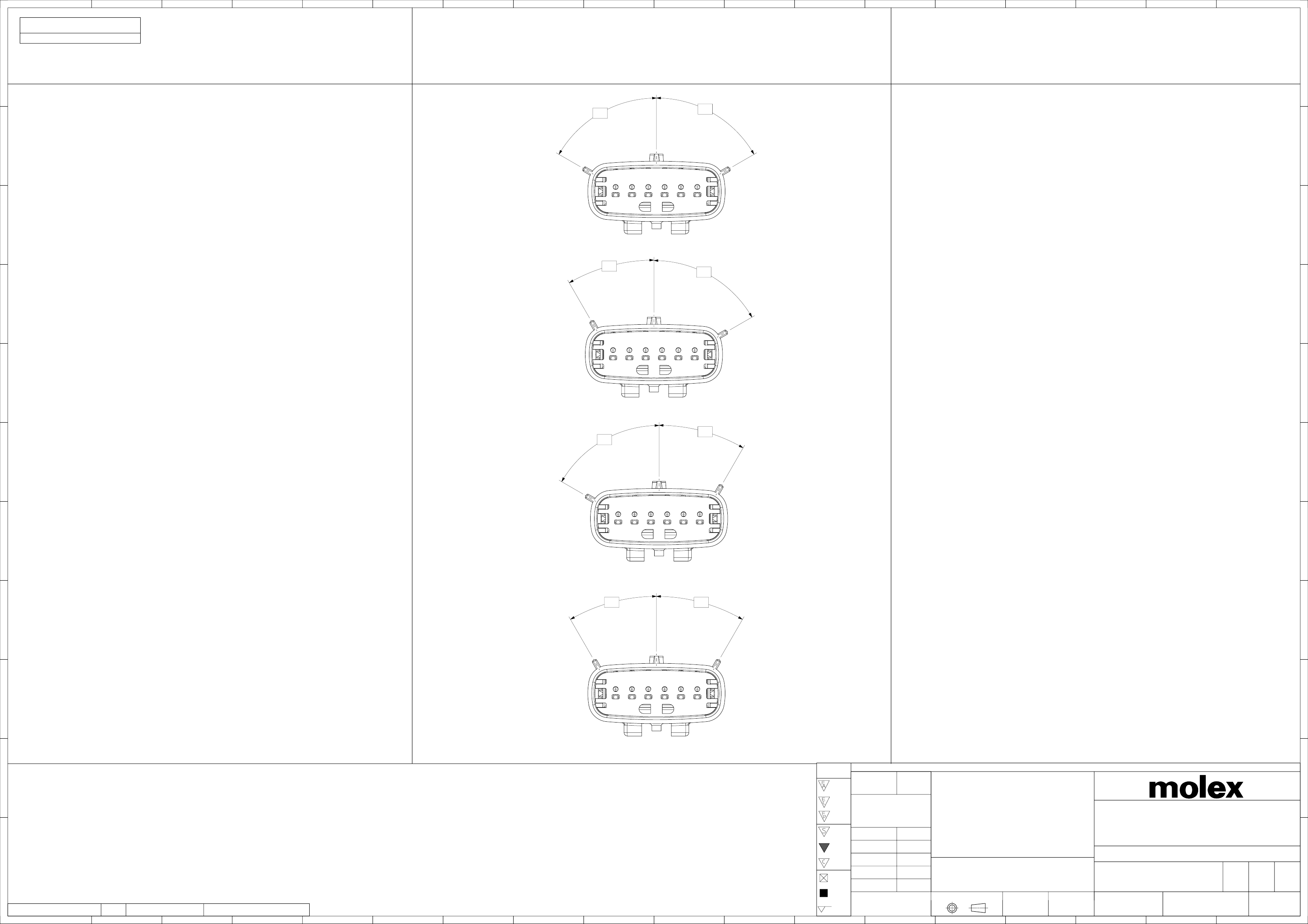

KEY CONFIGURATIONS
5

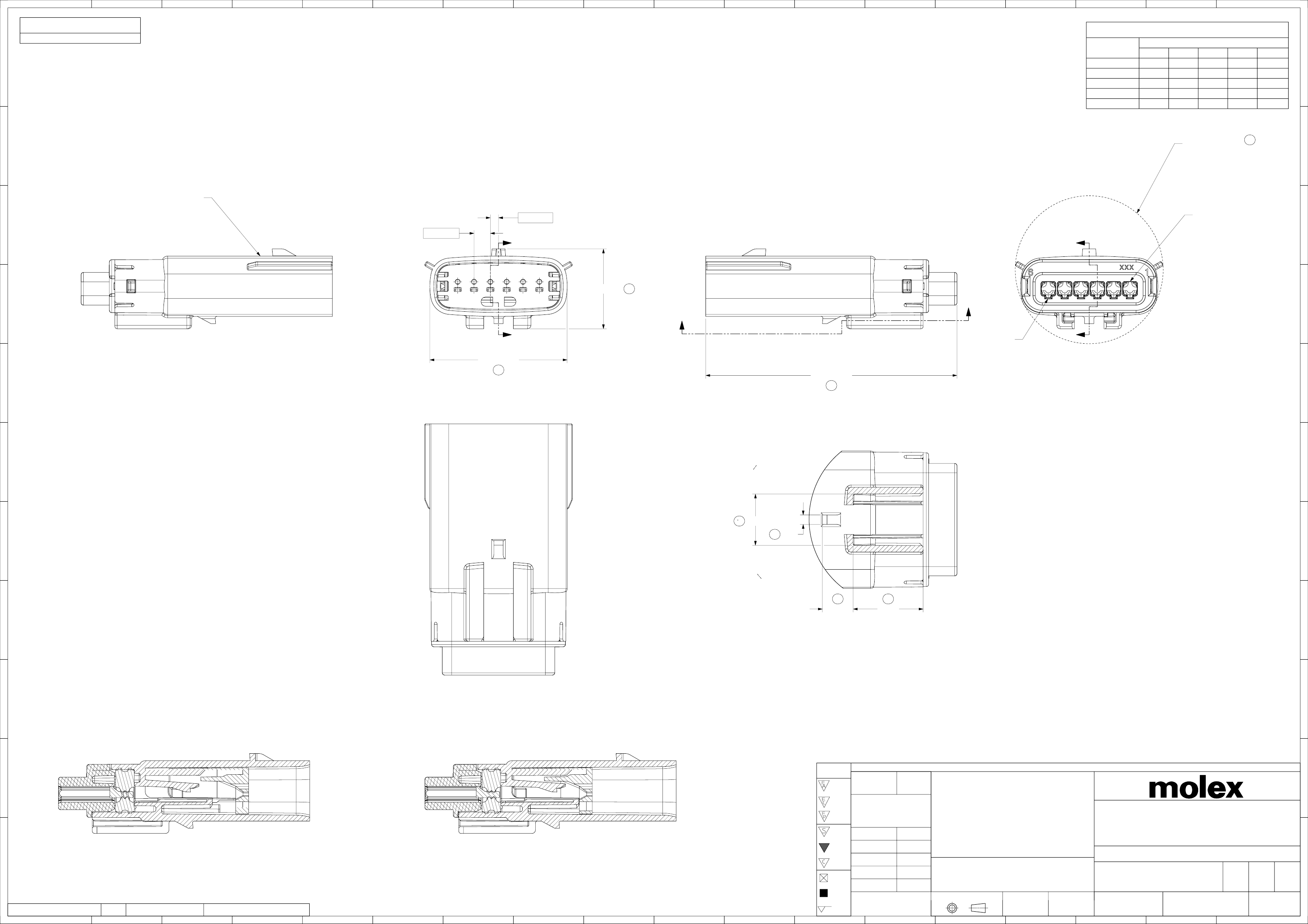

BLADE SEALED ASSEMBLY
6
SYSTEM PACKAGING
7
BACKSHELL NOTES
8
BACKSHELL
9
BACKSHELL CONFIGURATIONS
MATING CONNECTOR DRAWINGS
NOTES: VALID UNLESS OTHERWISE SPECIFIED
DESCRIPTION
1X2
MOLEX INLINE
SD-33471-0001
L
K
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-33472-100
-CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY,
CONNECTOR ASSEMBLY, PACKAGING INFORMATION, CONNECTOR
MATING, SERVICE INSTRUCTIONS, ELECTRICAL CONTINUITY
CHECKING, CRIMPING, AND TROUBLESHOOTING.
-DESIGNED TO MATE WITH RECEPTACLE SEALED ASSEMBLY AS SPECIFIED
IN THE MATING CONNECTOR DRAWINGS CHART.
*DENOTES DRAWINGS THAT CAN BE ACCESSED AT http://ewcap.uscarteams.org/
-ASSEMBLY SHIPPED WITH PLR IN PRE-LOCK POSITION
(SEE PLR PRE-LOCK VIEW SHEET 5).
b. PRODUCT SPECIFICATION SEE:
-STANDARD CONFIGURATION: PS-33471-000
-UL V0 CONFIGURATION: PS-160105-0001
CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY,
RATINGS (CURRENT, TEMPERATURE, SEALING, AND FLAMMABILITY),
TERMINALS, WIRE DIAMETER RANGE, PRODUCT VALIDATION, AND PRODUCT DEVIATIONS.
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: PK-31300-635 (PK-33471-000 FOR 1X5)
d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR
PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-300
e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS
(COMPANY ID#13255)
2. DESIGN - MATERIALS:
a. FOR BILL OF MATERIALS SEE:
-STANDARD CONFIGURATION: SD-33481-0002
-UL V0 CONFIGURATION: SD-160106-0002
3. DESIGN - GEOMETRY:
a. THE 3-D CAD DATA IS BASIC (WITHOUT TOLERANCE) AND MASTER FOR THIS PART
WITH THE EXCEPTION OF UNDERLINED DIMENSIONS. DIMENSIONAL INFORMATION NOT SHOWN
ON THIS DRAWING IS DEFINED BY THE DATA FILE AT ITS LATEST REVISION.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M-2009
c. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
d. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX.
e. LETTERING SHALL BE 0.15 MAX RAISED IN 0.25 MAX RECESS PAD.
THIS INCLUDES RECYCLING CODE, CAVITY ID, VENDOR IDENTIFICATION,
AND CUSTOMER MATERIAL NUMBER.
f. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B).
g. LASER MARKING:
1. PART NUMBER
2. DAY OF THE YEAR
3. SHIFT
4. YEAR
FOR ADDITIONAL INFORMATION SEE SECTION 5 UNDER PROCEDURES IN ES-34735-008.
1X6
SD-33471-0001
K
J
J
H
H
1X2
G
G
F
F
E
E
D
D
C
A1
NX REMASTERING，CHANGE PS
DRAWING NUMBER FROM
PS-160105-0001 TO PS-160074-0001 IN
NOTES 1.b
MINOR GEOMETRY CHANGE FOR UL V0
UPDATED VIEWSETS
INITIAL RELEASE
REV DESCRIPTION
C
INSPECTION NUMBER LOG
LAST NUMBER: 9
ADDED:
REMOVED:
B
A
2
1
REV
SYMBOLS
=
0
=
0
=
0
=
0
=
0
=
0
=
0
1X6
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
MM ONLY
1.5:1
GENERAL TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL
±
±
±
±
±
±
1.0 °
CURRENT REV DESC:
B
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.1
0.2
A
=
0
DRWN:
DSHETTY01
CHK'D: MVANSLAMBROU
APPR:
MVANSLAMBROU
INITIAL REVISION:
DRWN:
APROFFITT
APPR:
KDEKOSKI
THIRD ANGLE PROJECTION
DRAWING
EC NO:
602373
2018/05/25
2018/10/04
2018/10/04
2015/07/21
2016/06/14
SERIES
MX150 BLADE
SINGLE ROW SEALED ASSY MAT SEAL
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
SD-33481-0001
MATERIAL NUMBER
CUSTOMER
PSD
001
A1
A
DOCUMENT STATUS
FORMAT: master-tb-prod-A1
REVISION: H
DATE: 2018/01/18
18
P1
17
RELEASE DATE
16
2018/10/04
15
15:02:02
C
=
0
7
14
13
12
11
10
9
8
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
6
5
A1-SIZE
4
33481
SEE NOTE 2a.
3
GENERAL MARKET
2
1 OF 9
1
