39013043: DescriptionNumber of pins: 4 Number of rows: 2 Series: - Male: Female spacing: 0.165" (4.20mm) Row spacing: 0.165" (4.20mm) 4-pin rectangular housing connector plug 0.165" (4.20mm) Other names: 0039-01-3043 0039-01-3043-P 0039013043-P 39-01-3043 39-01-3043-P 39013043 39013043-P 5559-04P1 0039013043; CategoryThe connector Wire terminal plastic shell; File Size274KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

39013043 Overview

Number of pins: 4 Number of rows: 2 Series: - Male: Female spacing: 0.165" (4.20mm) Row spacing: 0.165" (4.20mm) 4-pin rectangular housing connector plug 0.165" (4.20mm) Other names: 0039-01-3043 0039-01-3043-P 0039013043-P 39-01-3043 39-01-3043-P 39013043 39013043-P 5559-04P1 0039013043

39013043 Parametric

Parameter Name	Attribute value
Number of needles	4
Number of rows	2
series	-
gender	female head
spacing	0.165"(4.20mm)
line spacing	0.165"(4.20mm)

Preview

Download Datasheet

View All

12

11

10

9

8

7

6

5

4

3

2

1

H

G

F

E

D

C

B

A

NOTES:

1. MATERIAL: BLANK=NYLON 6/6, UL 94V-2, COLOR: NATURAL

BL=NYLON 6/6, UL 94V-2, COLOR: BLACK

210=NYLON 6/6, UL 94V-0, COLOR: NATURAL

400=NYLON 6/6, UL 94V-0, COLOR: BLACK

2. FINISH: N/A

3. PRODUCT SPECIFICATION: PS-5556-001

4. PACKAGING SPECIFICATION: PK-5559-002

5. THIS PART MATES WITH RECEPTACLE #5557

6. THIS PART IS FOR USE WITH MOLEX MALE TERMINAL #5558-*

7. PART IS NOT DESIGNED FOR CURRENT SHARING

8. CONNECTORS ARE NOT TO BE MATED OR UNMATED WHILE CIRCUITS ARE LIVE

9. WIRES ARE TO BE DRESSED IN SUCH A MANNER TO ALLOW THE TERMINALS

TO FLOAT FREELY IN THE POCKET

10. PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC SPECIFICATION

PS-45499-002 WITH THE EXCEPTION OF DISCOLORATION. FLASH AND SINK

MEET CLASS "C" RQUIREMENTS.

B

SYMBOLS

=

0

=

0

=

0

=

0

=

0

=

0

=

0

=

0

4 PLACES

±

3 PLACES

±

2 PLACES

±

1 PLACE

±

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: MIGRATE TO ECTR

IN/MM

MM

4:1

INCH

±

0.015

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

172489

0.38

±

0.5 °

0 PLACES

±

ANGULAR TOL

DRWN:

AZAHIROVIC

CHK'D:

JBELL

APPR:

FSMITH

INITIAL REVISION:

DRWN: RJF

APPR:

ROS

THIRD ANGLE PROJECTION

DRAWING

2018/01/24

2018/02/20

2018/02/22

1989/09/22

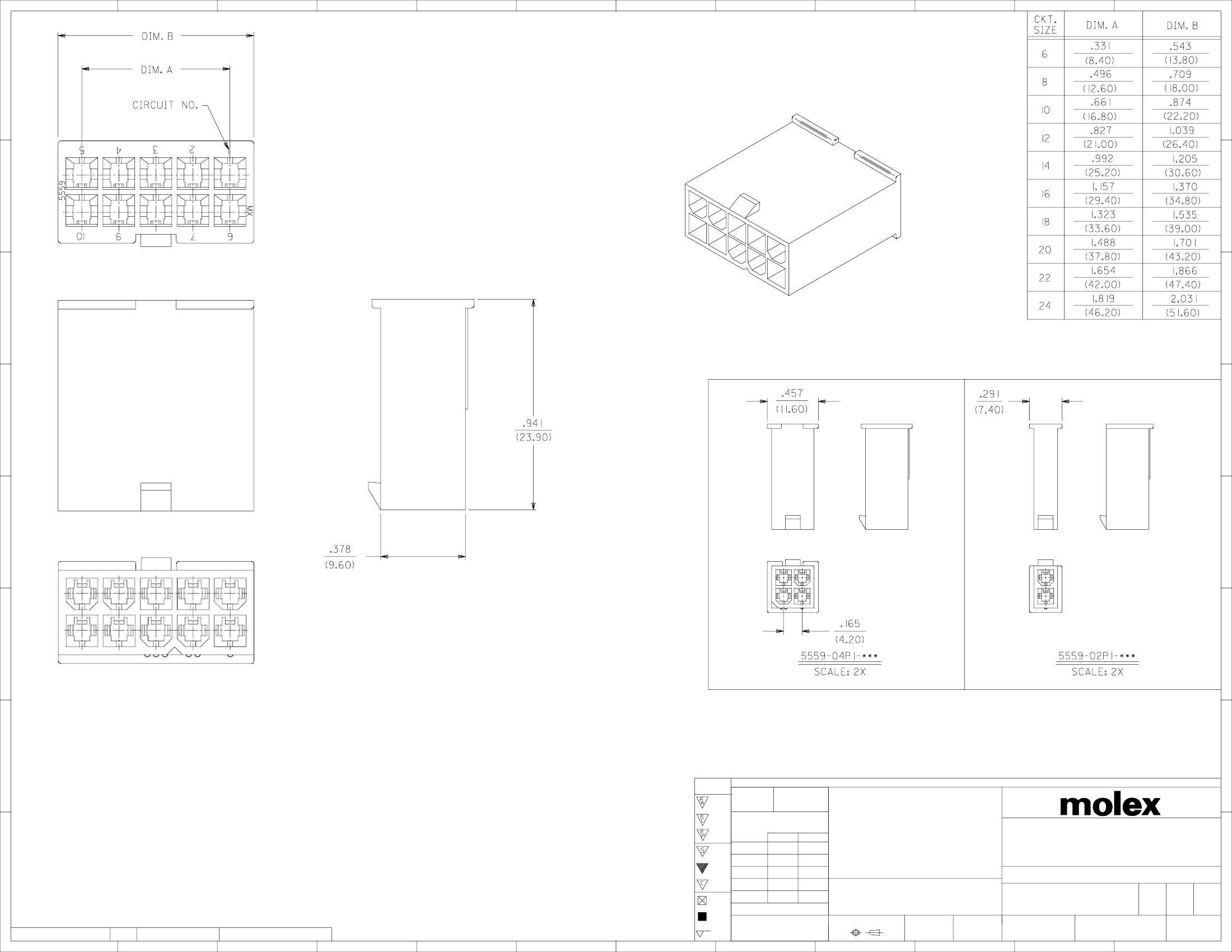

SERIES

MINI FIT JR SERIES

PLUG W/O MTG. EARS

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

A

55590001-SD

MATERIAL NUMBER

CUSTOMER

PSD

000

A

FORMAT: Eng-lega-master-tb-prod-C

REVISION: D

DATE: 2017/10/06

DOCUMENT STATUS

12

P1

RELEASE DATE

11

2018/02/22

10

21:31:13

THIS DRAWING REPLACES DRAWING SD-5559-NP1*

C

=

0

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

C-SIZE

4

5559

3

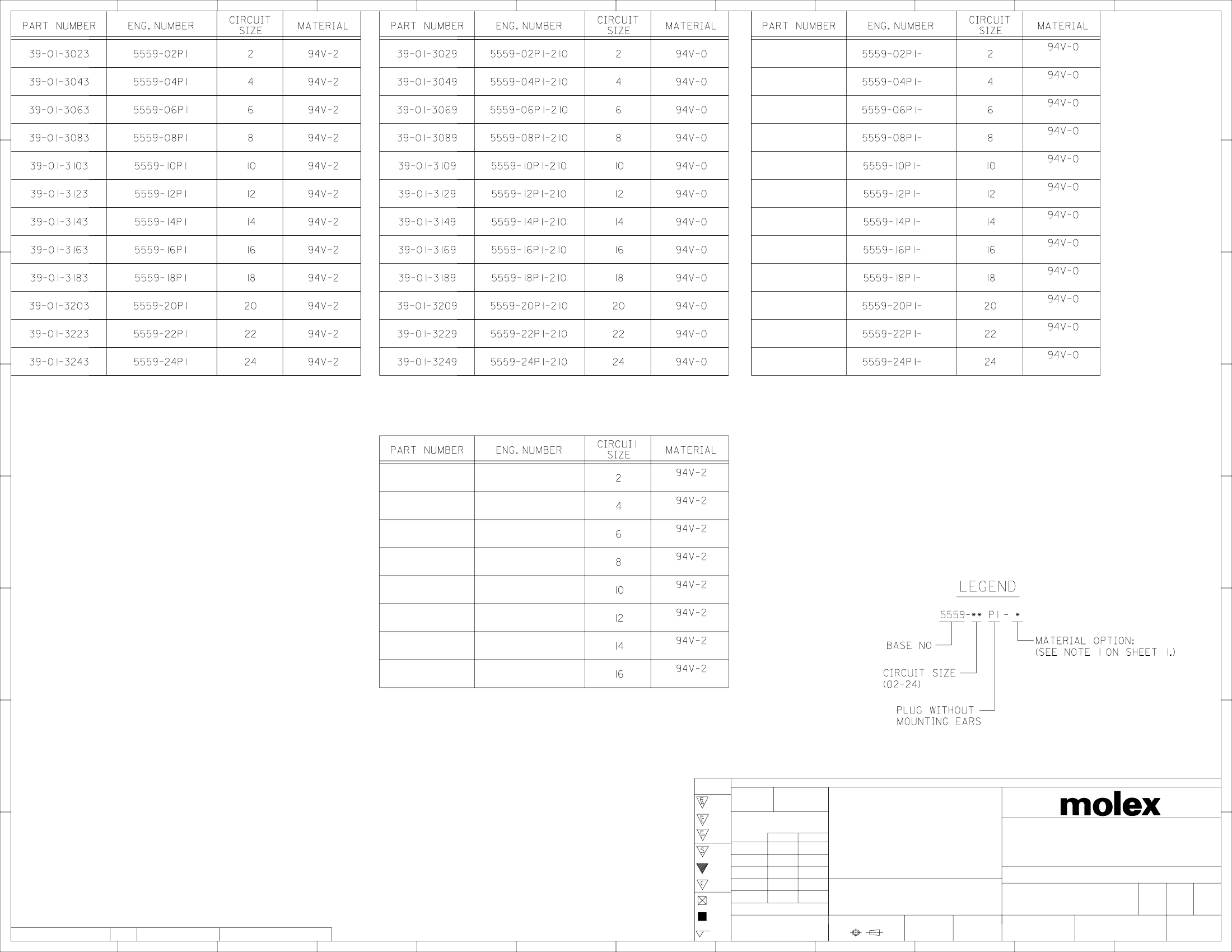

SEE CHART

GENERAL MARKET

1 OF 2

9

8

7

6

5

2

1
