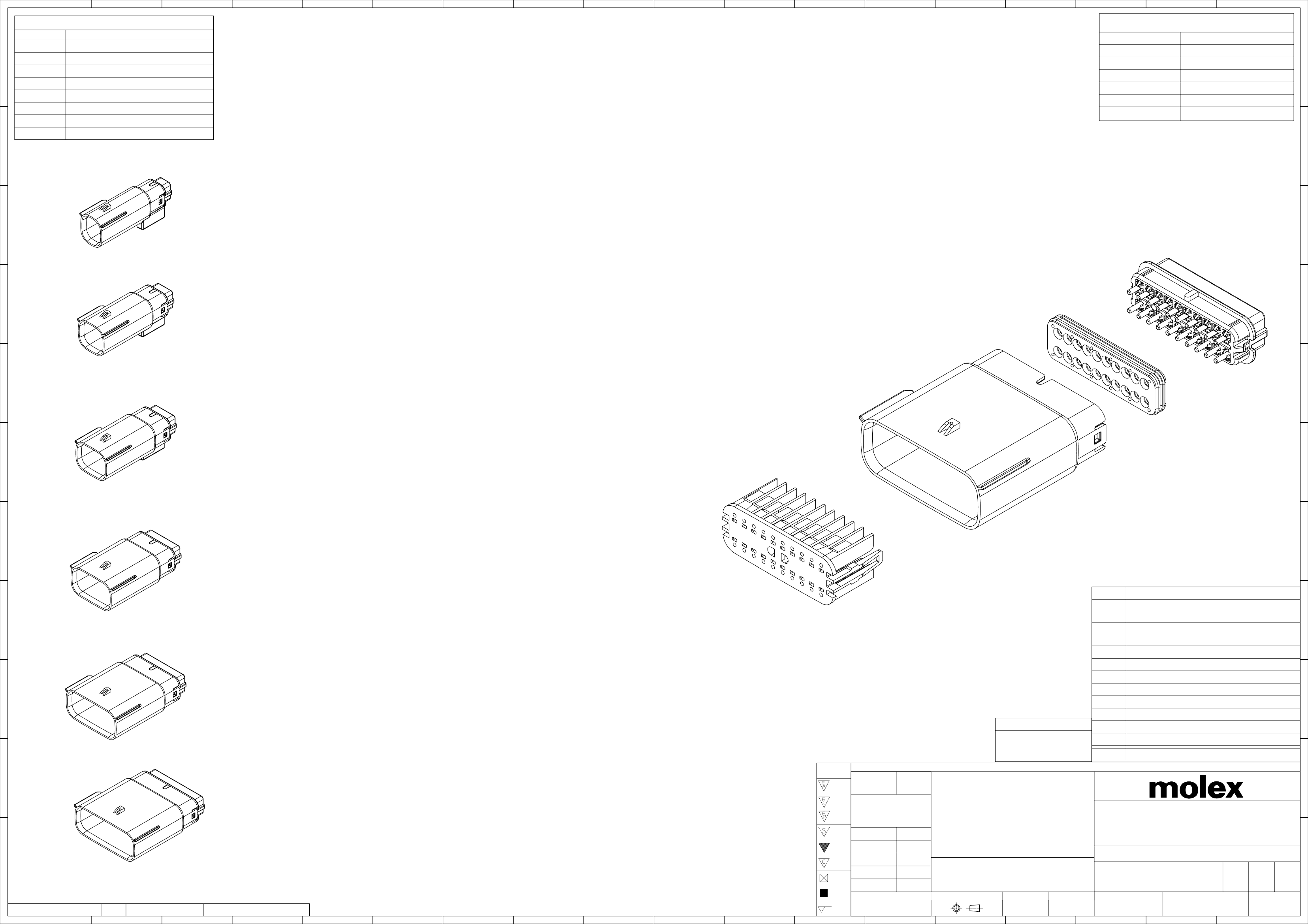

SHEET NO.
L
TABLE OF CONTENTS
NOTES AND BOM
CONFIGURATIONS
SHEET DESCRIPTION
NOTES: VALID UNLESS OTHERWISE SPECIFIED
MATING CONNECTOR DRAWINGS
DESCRIPTION
MOLEX INLINE
1
2
3-4

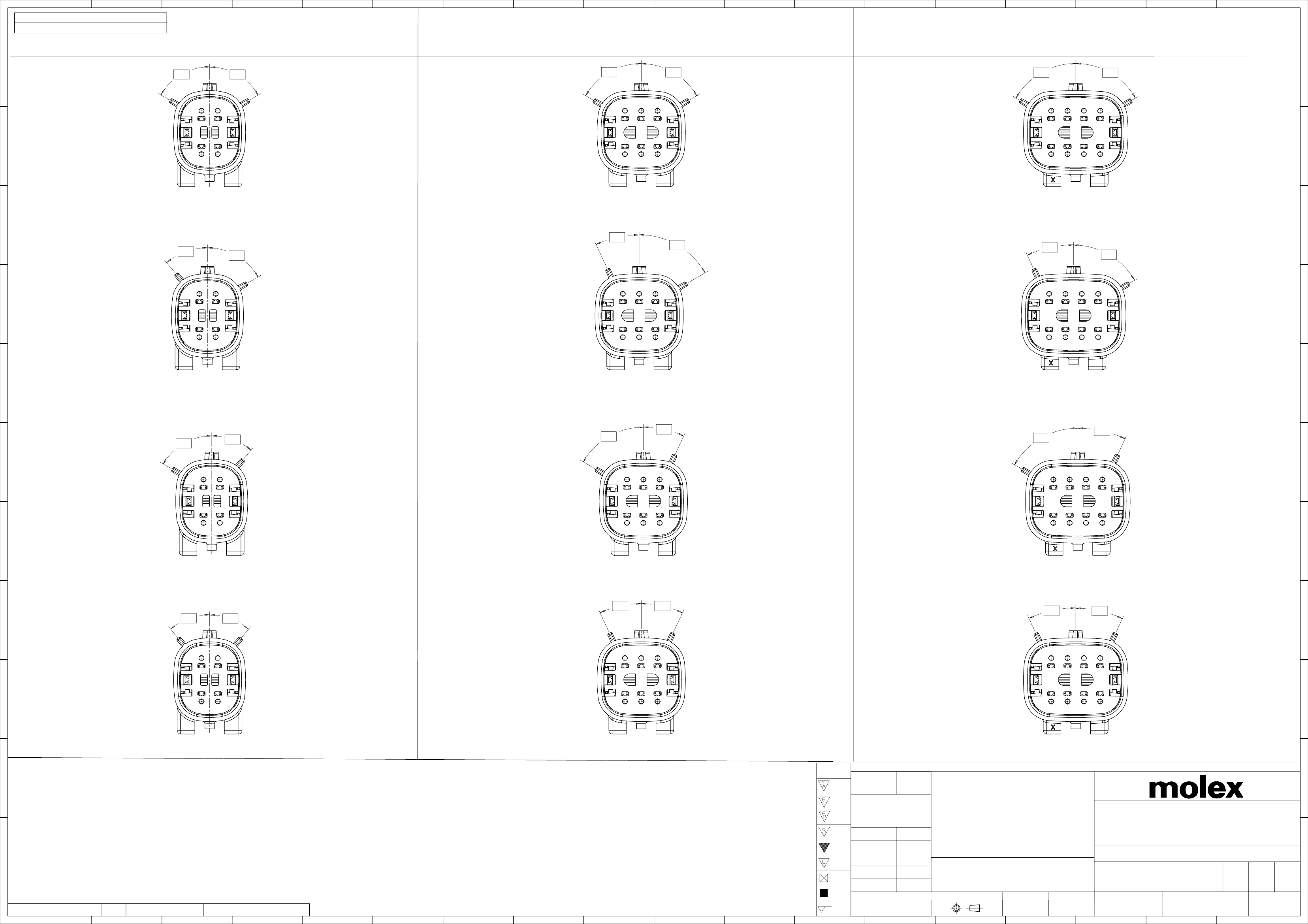

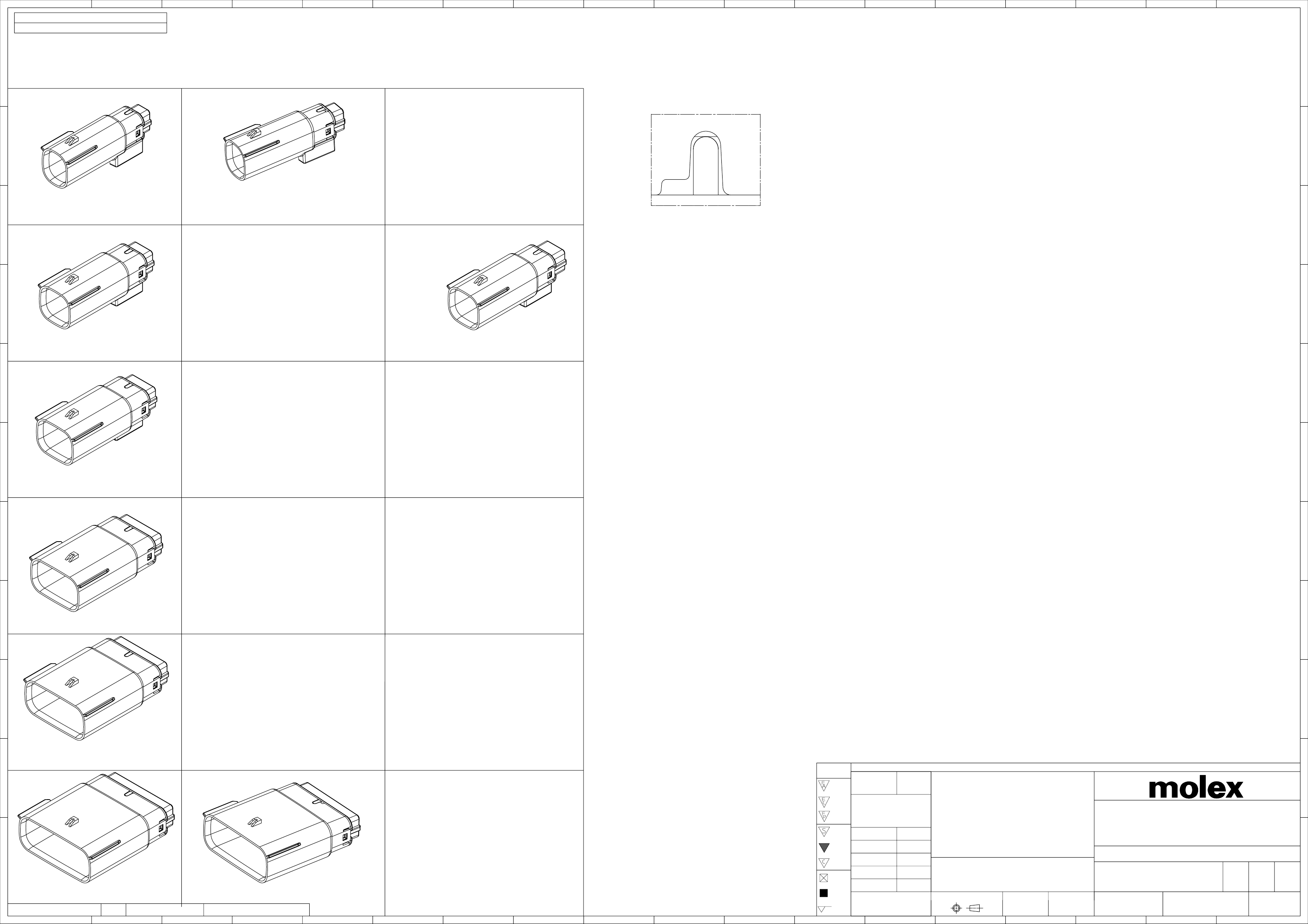

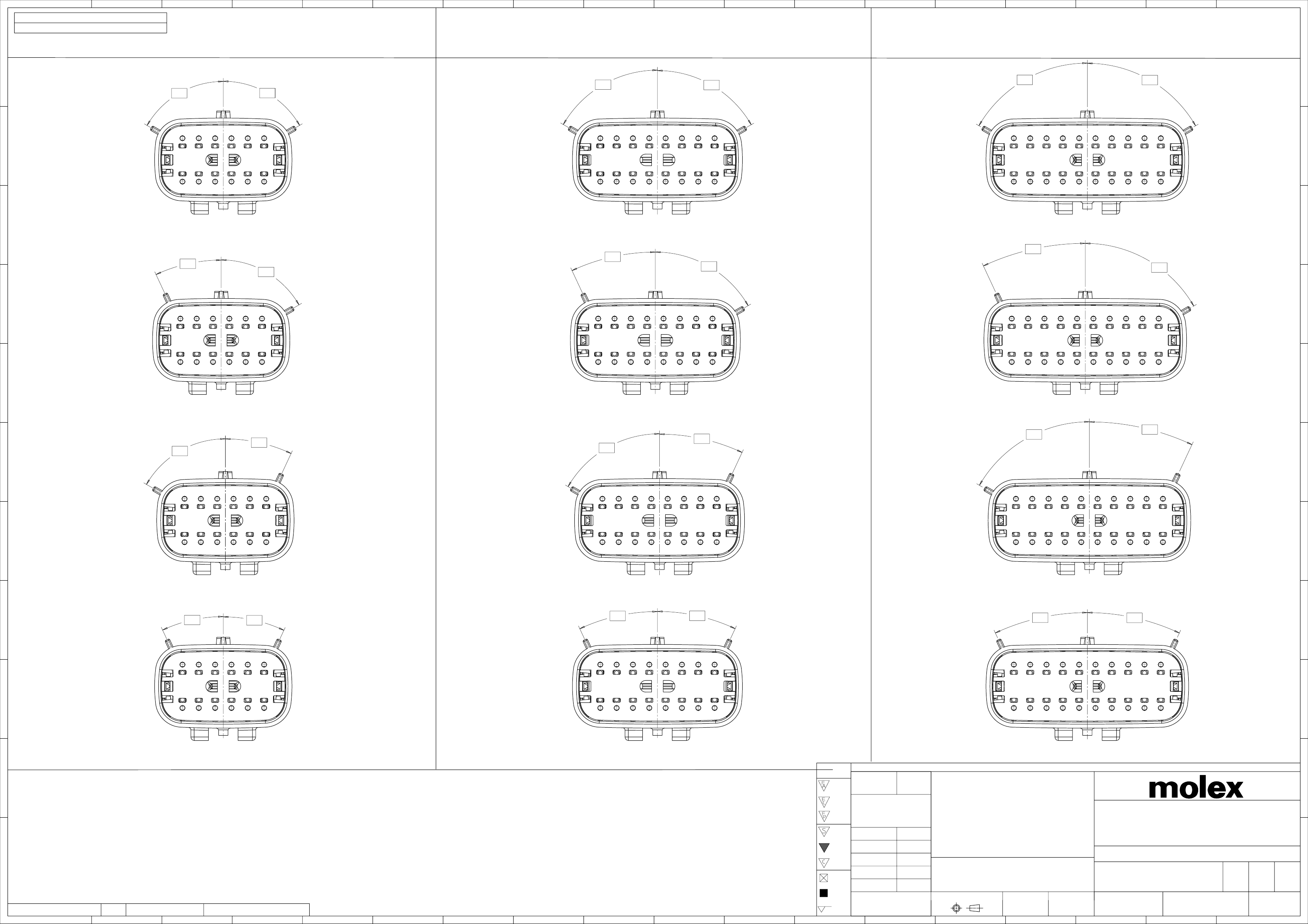

KEY CONFIGURATIONS
5
6
7
8
9
K
BLADE SEALED ASSEMBLY
SYSTEM PACKAGING
BACKSHELL NOTES
BACKSHELL
BACKSHELL CONFIGURATIONS
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-33472-100
-CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY,
CONNECTOR ASSEMBLY, PACKAGING INFORMATION, CONNECTOR
MATING, SERVICE INSTRUCTIONS, ELECTRICAL CONTINUITY
CHECKING, CRIMPING, AND TROUBLESHOOTING.
-DESIGNED TO MATE WITH RECEPTACLE SEALED ASSEMBLY AS SPECIFIED
IN THE MATING CONNECTOR DRAWINGS CHART.
*DENOTES DRAWINGS THAT CAN BE ACCESSED AT <http://ewcap.uscarteams.org/>.
-ASSEMBLY SHIPPED WITH PLR IN PRE-LOCK POSITION
(SEE PLR PRE-LOCK VIEW SHEET 5).
b. PRODUCT SPECIFICATION SEE:
-STANDARD CONFIGURATION: PS-33472-000
-UL V0 CONFIGURATION: TBD
CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY,
RATINGS (CURRENT, TEMPERATURE, SEALING, AND FLAMMABILITY),
TERMINALS, WIRE DIAMETER RANGE, PRODUCT VALIDATION, AND PRODUCT DEVIATIONS.
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: PK-31300-635
d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR
PRODUCTS AND PACKAGING SPECIFICATION: QEHS-699000-300
e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS
(COMPANY ID#13255)
2. DESIGN - MATERIALS:
a. FOR BILL OF MATERIALS SEE:
-STANDARD CONFIGURATION: SD-33482-0002
-UL V0 CONFIGURATION: SD-160084-0002
3. DESIGN - GEOMETRY:
a. THE 3-D CAD DATA IS BASIC (WITHOUT TOLERANCE) AND MASTER FOR THIS PART
WITH THE EXCEPTION OF UNDERLINED DIMENSIONS. DIMENSIONAL INFORMATION NOT SHOWN
ON THIS DRAWING IS DEFINED BY THE DATA FILE AT ITS LATEST REVISION.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M-2009
c. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
d. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX.
e. LETTERING SHALL BE 0.15 MAX RAISED IN 0.25 MAX RECESS PAD.
THIS INCLUDES RECYCLING CODE, CAVITY ID, VENDOR IDENTIFICATION,
AND CUSTOMER MATERIAL NUMBER.
f. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B).
g. LASER MARKING:
1. PART NUMBER
2. DAY OF THE YEAR
3. SHIFT
4. YEAR
FOR ADDITIONAL INFORMATION SEE SECTION 5 UNDER PROCEDURES IN ES-34735-008.
2X2
2X3
2X4
2X6
2X8
SD-33472-0001
SD-33472-0001
SD-33472-0001
SD-33472-0001
SD-33472-0001
SD-33472-0001
L
2X10
K
J
J
2X2
H
H
2X3
G
G
F
F
2X4
E
E
E2
D
ADDED MOLEX BACKSHELL DETAILS
MIGRATED FROM COCREATE AND IMPORTED
DXF FILES
ADDED CHARTED DIMENSIONS FOR 2X2,
2X4, 2X6 AND 2X8 WITH CLIPSLOT
MINOR GEOMETRY CHANGE FOR UL V0
D
2X6
E1
E
D
C3
C2
C
ADD 2X4
ADD 2X3
ADD UL V0 CONFIGURATIONS
C1
C
INSPECTION NUMBER LOG
ADD 2X8
ADD 2X6 BACKSHELL INFO
C
B1
B
ADD 2X6
INITIAL RELEASE
REV DESCRIPTION
B
2X8
LAST NUMBER: 9
ADDED:
REMOVED:
A
REV
B
SYMBOLS
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
=
0
7
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
mm
ANGULAR TOL
±
±
±
±
±
±
1.5:1
1.0 °
CURRENT REV DESC:
GENERAL TOLERANCES
(UNLESS SPECIFIED)
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
0.1
0.2
A
2X10
DRWN:
PMANJUNATHAC
CHK'D: MVANSLAMBROU
APPR:
MVANSLAMBROU
INITIAL REVISION:
DRWN:
APROFFITT
APPR:
VKOSHY
THIRD ANGLE PROJECTION
DRAWING
EC NO:
171650
2018/01/03
2018/02/16
2018/02/16
2014/04/28
2014/05/14
SERIES
MX150 BLADE
DUAL ROW SEALED ASSEMBLY MAT SEAL
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
SD-33482-0001
MATERIAL NUMBER
CUSTOMER
PSD
001
E2
A
DOCUMENT STATUS
FORMAT: master-tb-prod-A1
REVISION: H
DATE: 2017/10/06
18
P1
17
RELEASE DATE
16
2018/02/16
15
22:02:26
C
14
13
12
11
10
9
8
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
6
5
A1-SIZE
4
33482
GENERAL MARKET
3
2
1 OF 11
1
