51441-2072 datasheet, PDF - EEWORLD Datasheet

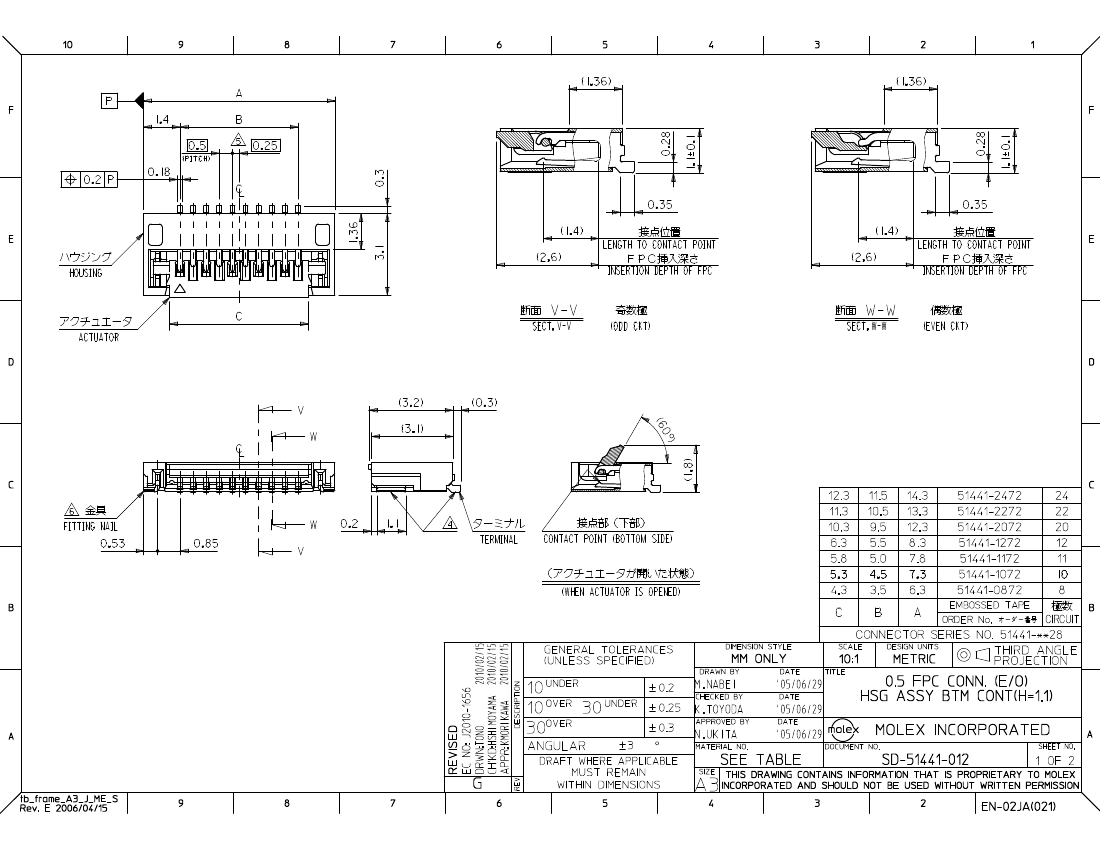

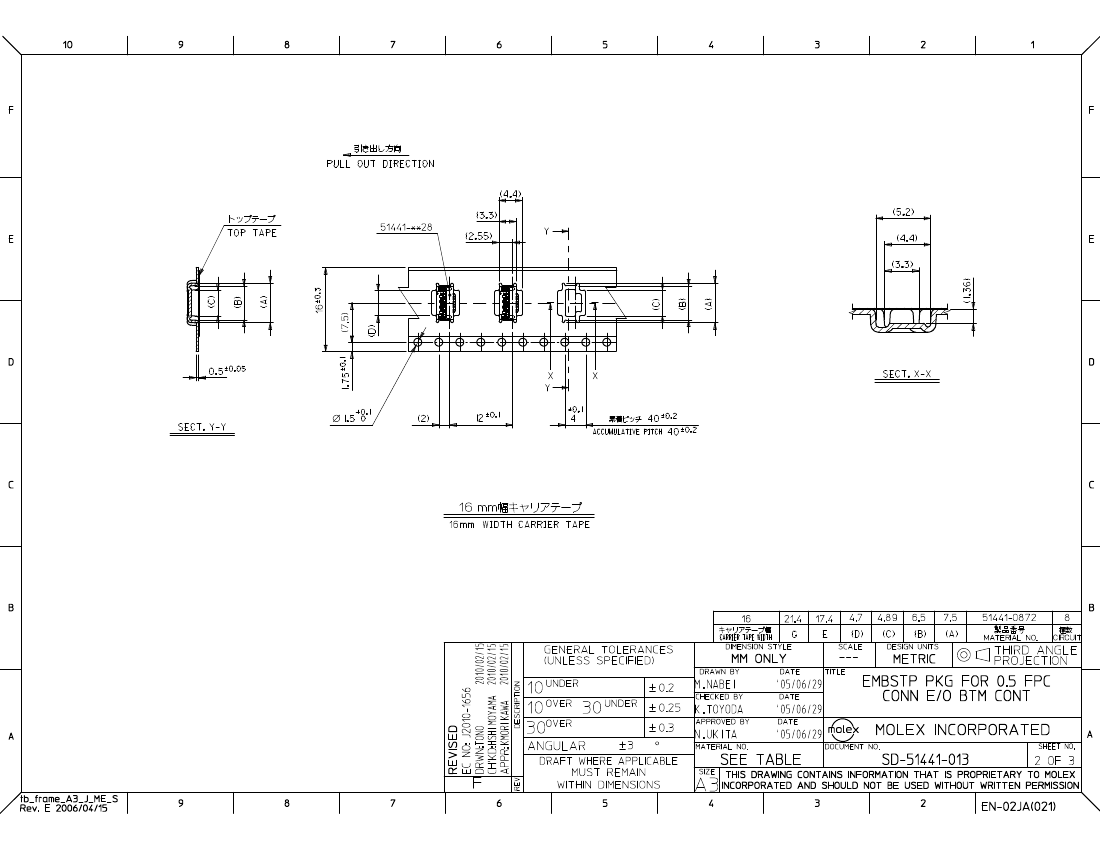

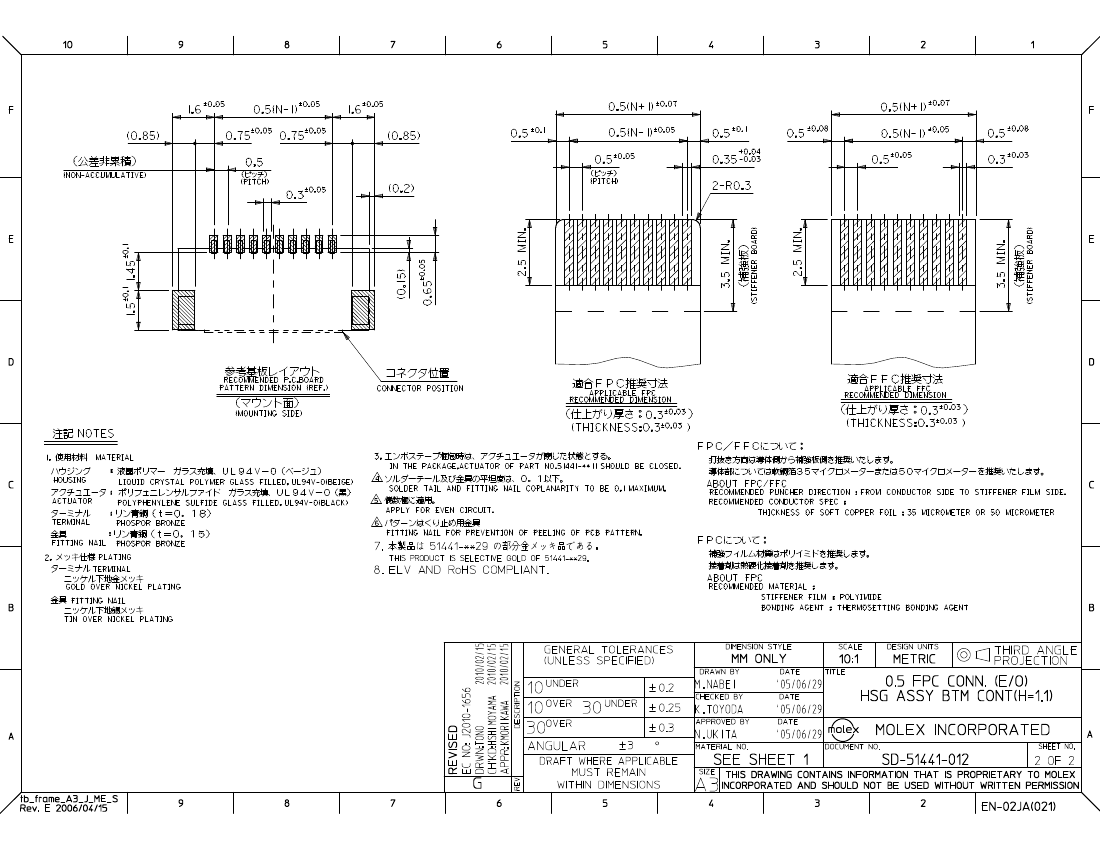

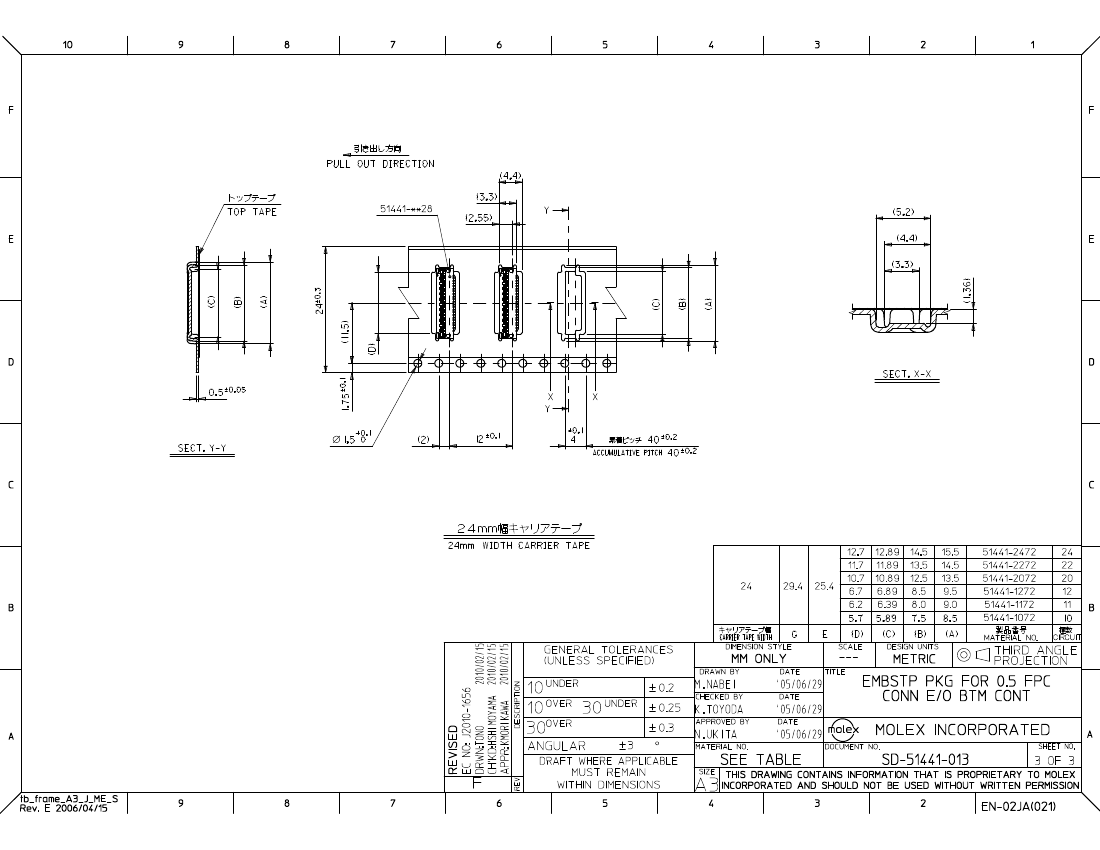

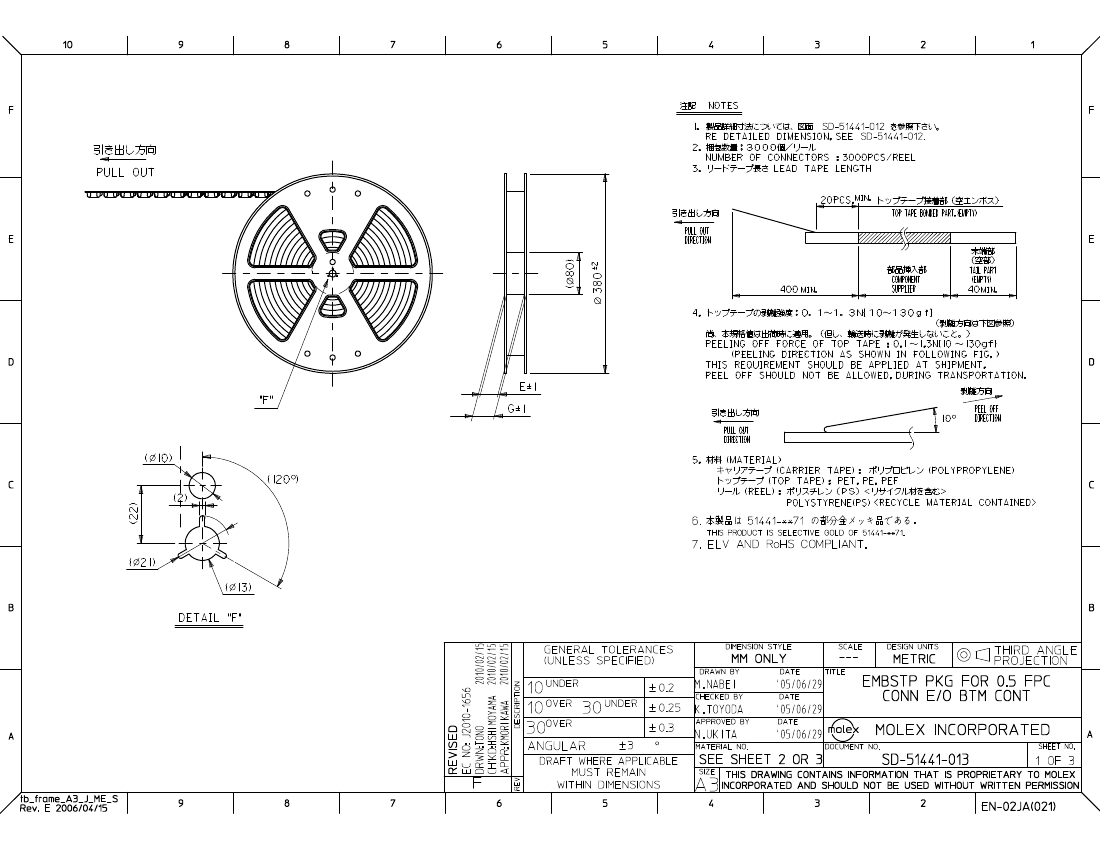

51441-2072: DescriptionPin Count: 20 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Bottom Flex Type: FFC, FPC Other Names: 514412072; CategoryThe connector The connector; File Size460KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51441-2072 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51441-2072	-	-	View	Buy Now

Pin Count: 20 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Bottom Flex Type: FFC, FPC Other Names: 514412072

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ZIF
Board mount options	FITTING NAIL
body width	0.043 inch
subject depth	0.137 inch
body length	0.484 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

	51441-2072	0514410872
Description	Pin Count: 20 Pitch: 0.020" (0.50mm) Contact Type: Contact, Flat Bottom Flex Type: FFC, FPC Other Names: 514412072	conn ffc 8pos .5mm smd R/A zif
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	8
Base Number Matches	1	1
