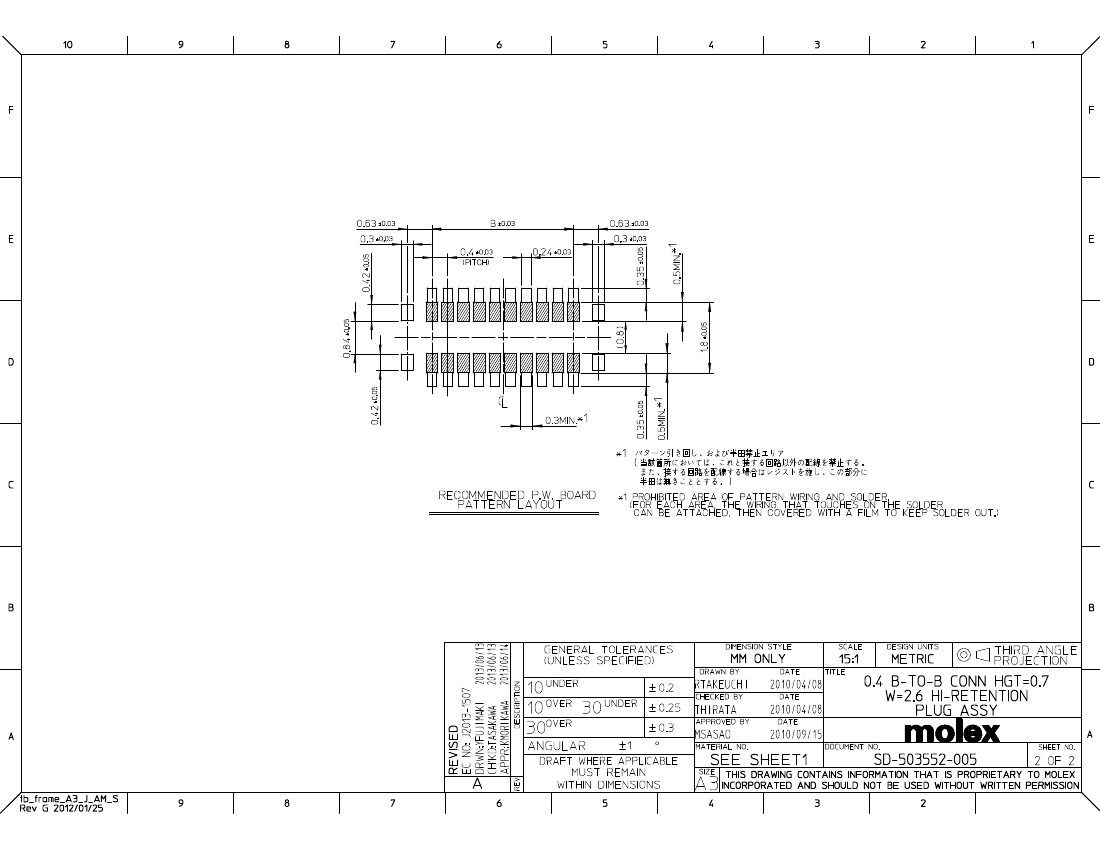

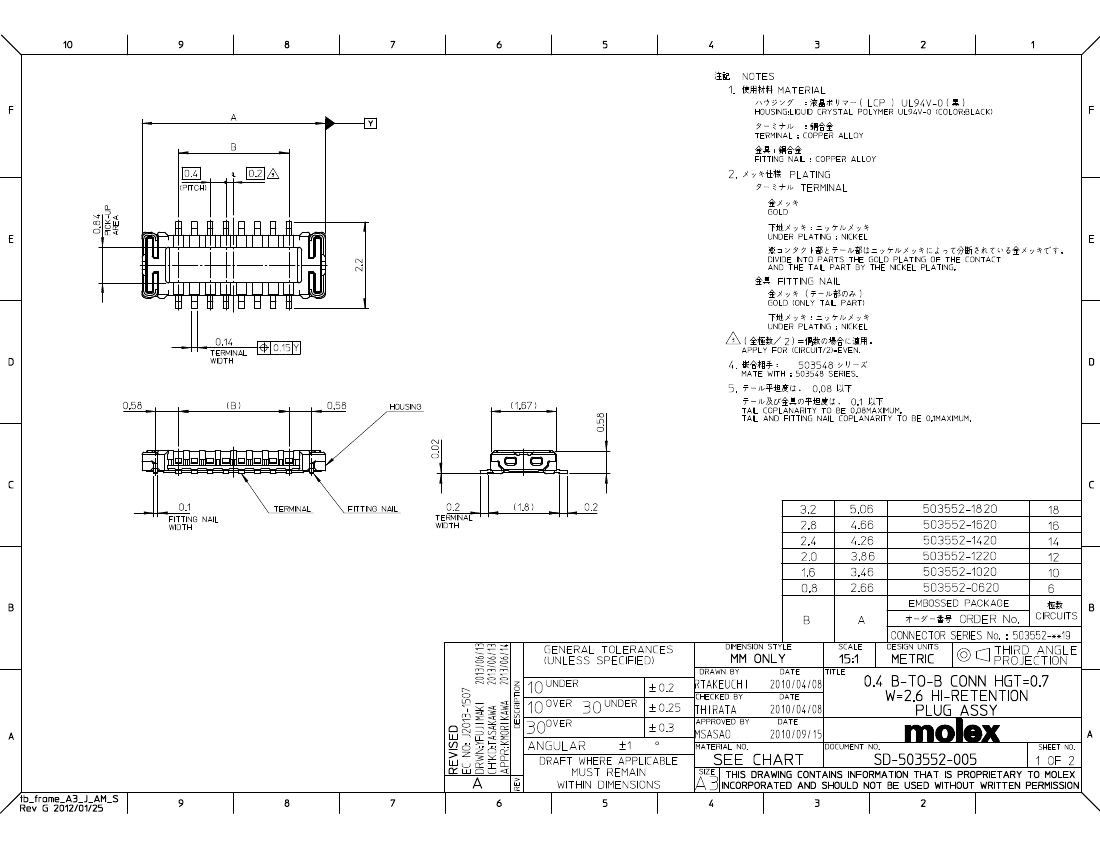

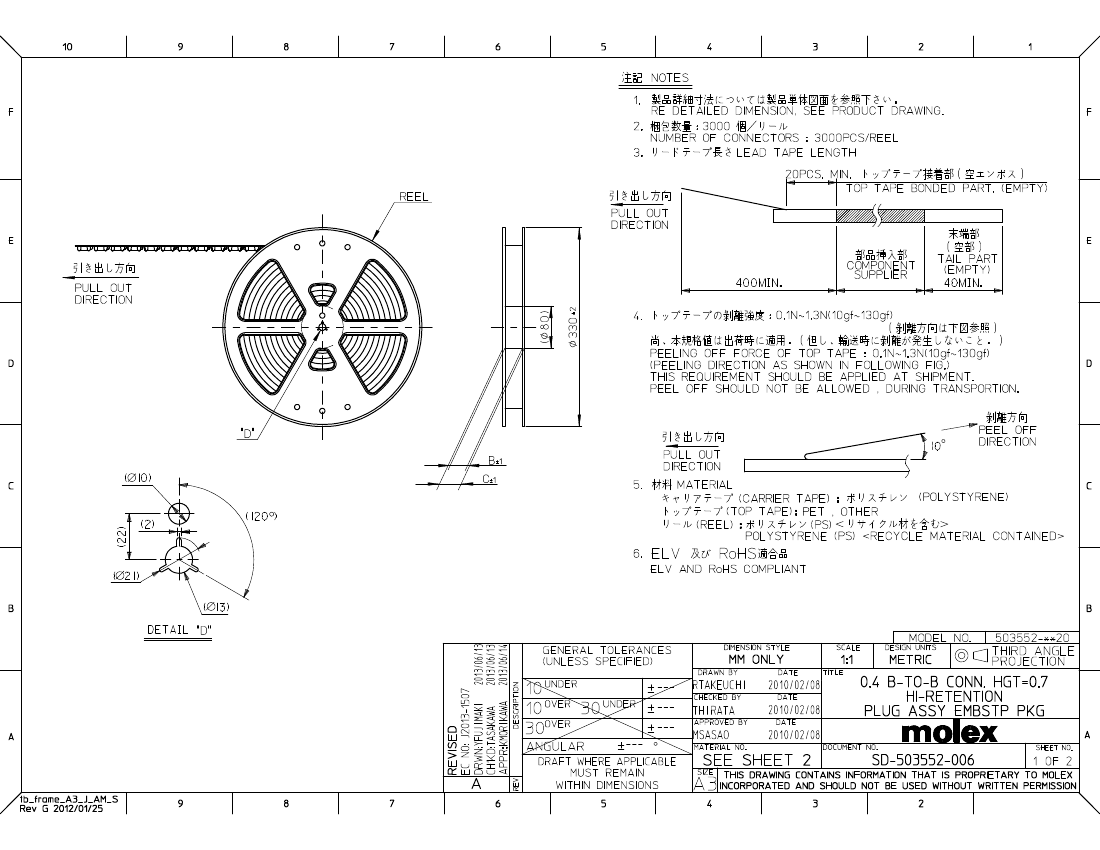

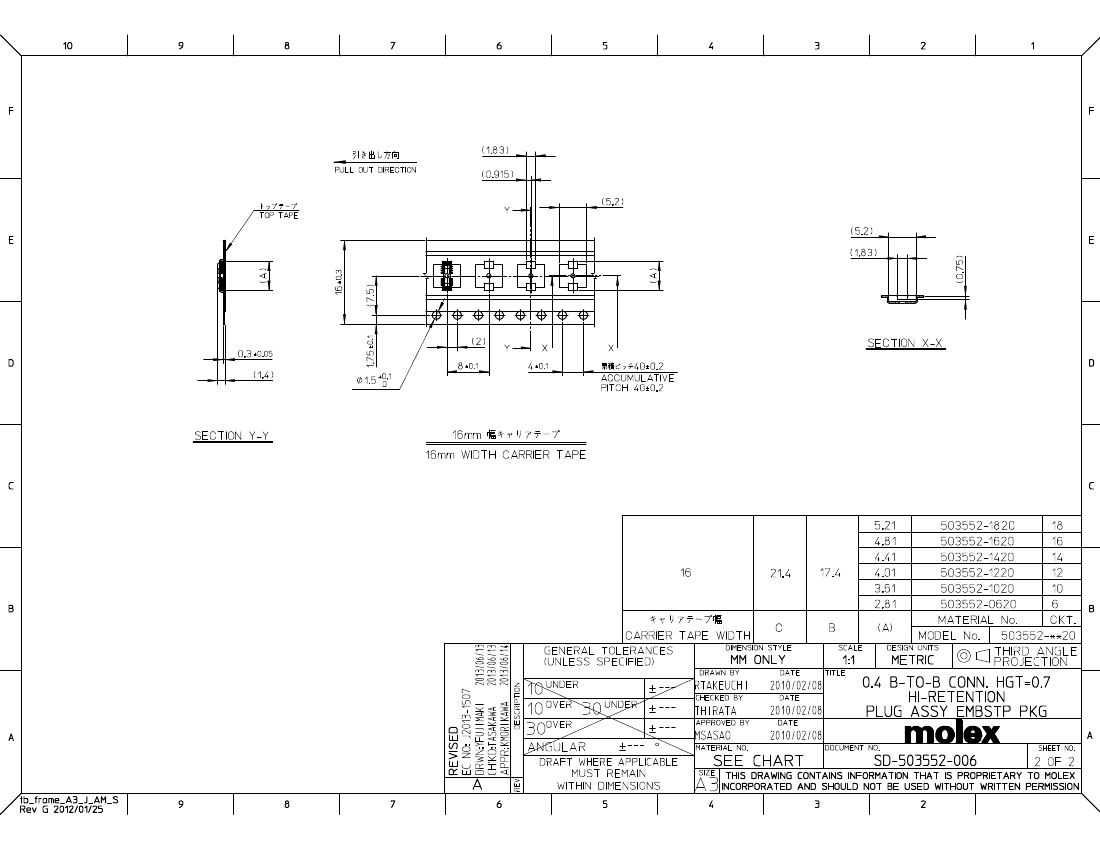

503552-0620 |
503552-1220 |
| Description |
Other names: 5035520620 |
Other names: 5035521220 |
| Is it lead-free? |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
| package instruction |
ROHS AND REACH COMPLIANT |
ROHS AND REACH COMPLIANT |
| Reach Compliance Code |
compliant |
compliant |
| ECCN code |
EAR99 |
EAR99 |
| Other features |
SLIMSTACK |
SLIMSTACK |
| Board mount options |
FITTING NAIL |
FITTING NAIL |
| body width |
0.066 inch |
0.066 inch |
| subject depth |
0.023 inch |
0.023 inch |
| body length |
0.105 inch |
0.152 inch |
| Body/casing type |
PLUG |
PLUG |
| Connector type |
BOARD STACKING CONNECTOR |
BOARD STACKING CONNECTOR |
| Contact to complete cooperation |
GOLD |
GOLD |
| Contact completed and terminated |
Gold (Au) |
GOLD |
| Contact point gender |
MALE |
MALE |
| Contact material |
COPPER ALLOY |
COPPER ALLOY |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
80 mΩ |
80 mΩ |
| Contact style |
BELLOWED TYPE |
BELLOWED TYPE |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
350VDC V |
350VDC V |
| Durability |
30 Cycles |
30 Cycles |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| Insulation resistance |
100000000 Ω |
100000000 Ω |
| Insulator color |
BLACK |
BLACK |
| insulator material |
LIQUID CRYSTAL POLYMER (LCP) |
LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code |
e4 |
e4 |
| MIL compliance |
NO |
NO |
| Plug contact pitch |
0.016 inch |
0.016 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
2 |
2 |
| Number of rows loaded |
2 |
2 |
| Maximum operating temperature |
85 °C |
85 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| polarization key |
POLARIZED HOUSING |
POLARIZED HOUSING |
| Rated current (signal) |
0.3 A |
0.3 A |
| Guideline |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal pitch |
0.4 mm |
0.4 mm |
| Termination type |
SURFACE MOUNT |
SURFACE MOUNT |
| Total number of contacts |
6 |
12 |
| Base Number Matches |
1 |
1 |
