TABLE OF CONTENTS
SHEET DESCRIPTION
NOTES
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
L
SHEET NO.
1
2
3
4
5
L

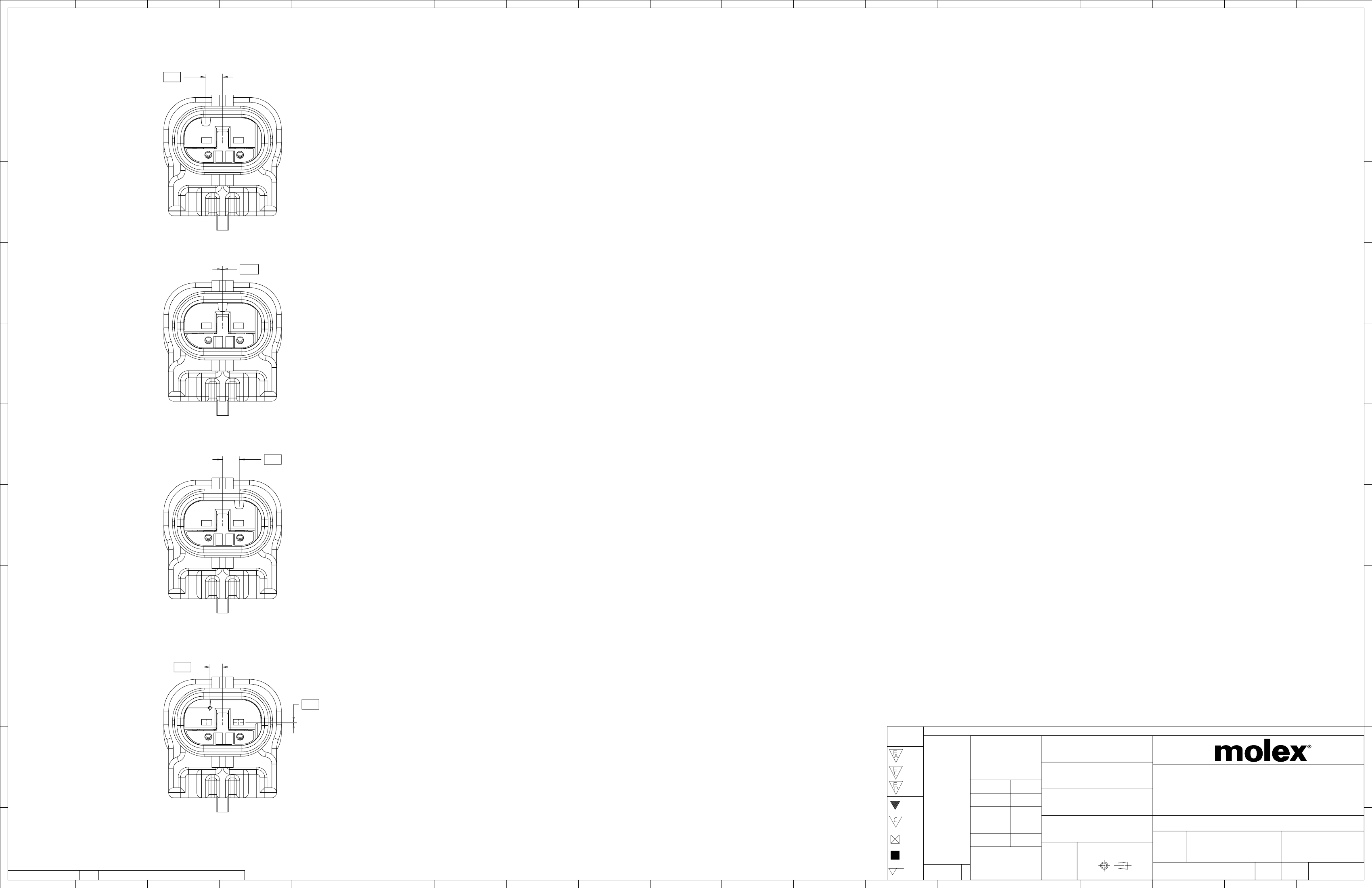

1x2 BLADE SEALED ASSEMBLY KEYING CONFIGURATIONS

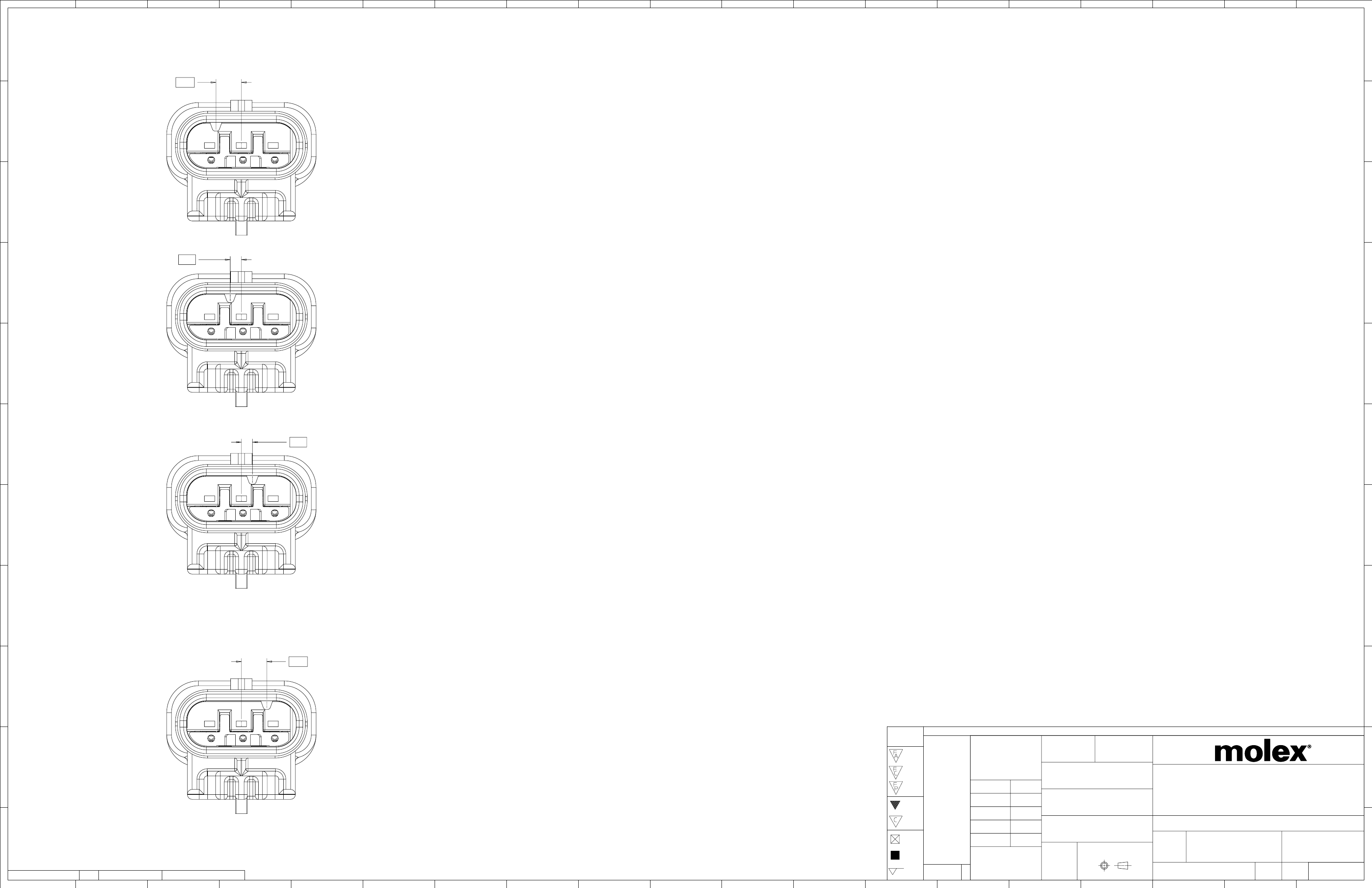

1x3 BLADE SEALED ASSEMBLY KEYING CONFIGURATIONS
CLIP-SLOT CONFIGURATIONS

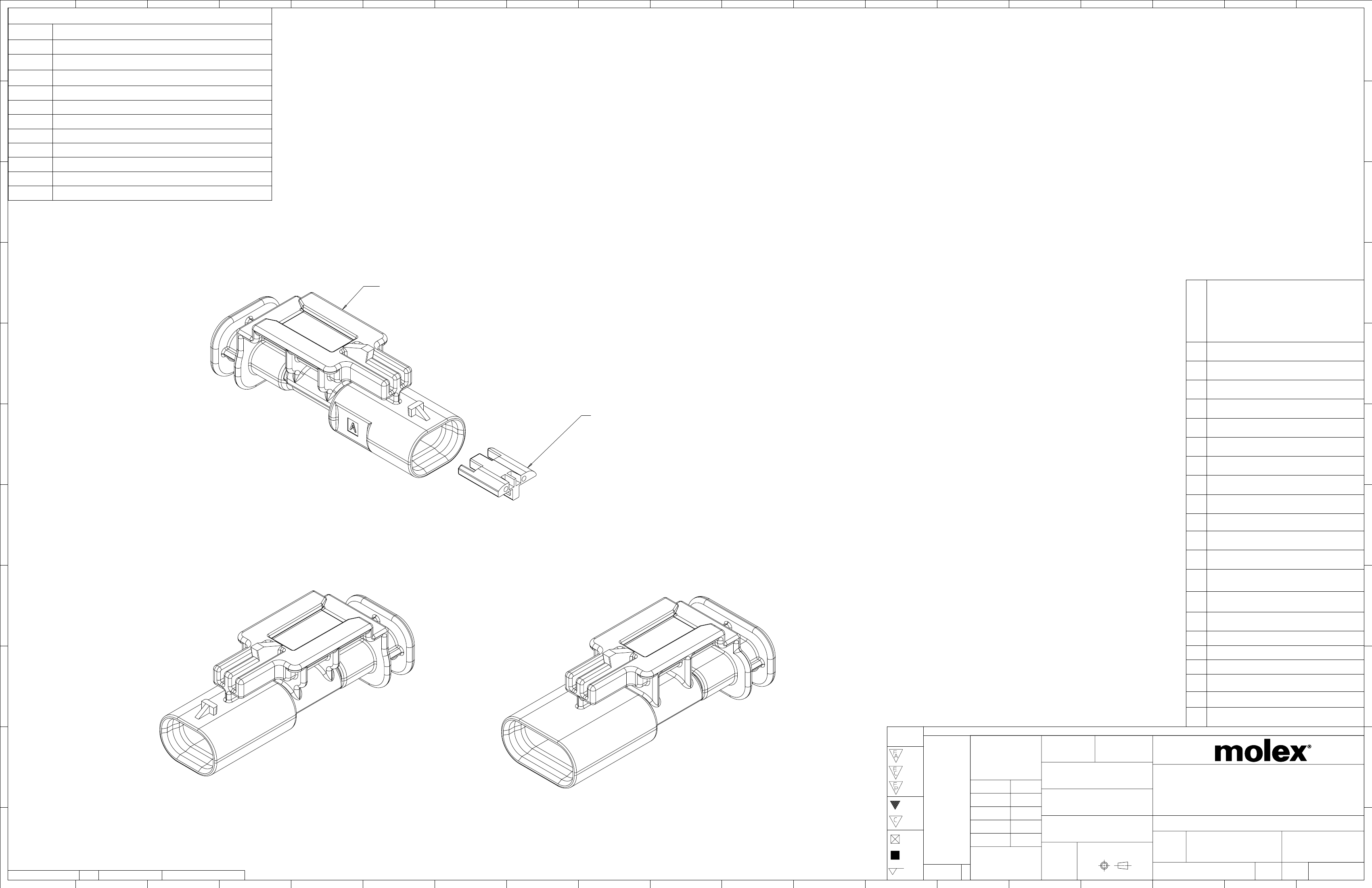

BLADE SEALED ASSEMBLY
CONNECTION SYSTEM PACKAGING
WIRE DRESS COVER INTERFACE OPTIONS
K
K
6
7
8
9
10
1x2 BLADE SEALED ASSEMBLY BOM INTERFACE OPTION 1
1x2 BLADE SEALED ASSEMBLY BOM INTERFACE OPTION 2
1x3 BLADE SEALED ASSEMBLY BOM INTERFACE OPTION 1
1x3 BLADE SEALED ASSEMBLY BOM INTERFACE OPTION 2
NOTES: VALID UNLESS OTHERWISE SPECIFIED
J
J
11
H
CONNECTOR HOUSING
G
1. GENERAL:
a. APPLICATION SPECIFICATION SEE: AS-34900-0001
CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY,
CONNECTOR ASSEMBLY, PACKAGING INFORMATION, CONNECTOR
MATING, SERVICE INSTRUCTIONS, ELECTRICAL CONTINUITY
CHECKING, CRIMPING, AND TROUBLESHOOTING.
b. PRODUCT SPECIFICATION SEE: PS-34900-0001
CONTAINS: PRODUCT INTRODUCTION, PRODUCT SUMMARY,
RATINGS (CURRENT, TEMPERATURE, SEALING, AND FLAMMABILITY),
AND PRODUCT VALIDATION.
c. PACKAGING SPECIFICATION PER MOLEX DRAWING: PK-31301-898
d. PARTS MUST BE IN COMPLIANCE TO MOLEX CHEMICAL SUBSTANCES FOR
PRODUCTS AND PACKAGING SPECIFICATION: ES-40000-5016
e. DATA MUST BE SUBMITTED UNDER THE MOLEX PART NUMBER TO IMDS
(COMPANY ID#13255)
2. DESIGN - MATERIALS:
a. SEE BOM TABLE
PRIMARY LOCK REINFORCEMENT (PLR)
- NX-REMASTERING
FROM MODEL MANAGER
- 1x2 KEY C MOVED TO SALEABLE
A15
- 1X3 WDC INTERFACE 2 PART
NUMBERS UPDATED TO MATCH
E-DRAWING
H
A14
CORRECTED CHARTED DIMENSION 3
FOR 1X3 11MM CLIPSLOT
A13
1x3 KEY A&B SALEABLE (NON 40G)
A12
1X2 KEYS A&B W/ WDC SALEABLE
A11
CORRECTED REVISION LOG
A10
A9
A8
A7
1X2,1X3 WIRE DRESS FEATURES
OK TO TOOL
1X2,1X3 PART # STATUS UPDATED
1X2 40G CLIP-SLOT OK TO TOOL
G
F
E
3. DESIGN - GEOMETRY:
a. THIS IS A 100% CAD GENERATED PART. THE CAD MATHEMATICAL DATA
IS THE MASTER FOR THIS PART. FOR DIMENSIONAL OR ANY INFORMATION
NOT SHOWN ON THIS DRAWING, ANALYZE THE CAD MODEL.
b. GEOMETRIC DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994
c. EDGES AND UNDIMENSIONED DETAILS PER ISO13715
d. CORNERS SHOWN AS SHARP TO BE R 0.2 MAX.
e. LETTERING SHALL BE 0.15 MAX RAISED IN 0.25 MAX RECESS PAD.
THIS INCLUDES RECYCLING CODE, CAVITY ID, VENDOR IDENTIFICATION,
f. VISUAL DEFECTS SHALL MEET COSMETIC STANDARD PS-45499-002 (Class B)
g. LASER MARKING:
1. PART NUMBER
2. DAY OF THE YEAR
3. SHIFT
4. YEAR
F
1X2,1X3 PART # UPDATED TO
"TOOLED BUT NOT VALIDATED"
ADDED 40G CLIP-SLOT PART NUMBERS
BOM CORRECTIONS AND UPDATES
BOM CORRECTIONS AND UPDATES
1x2, 1x3 NON-SIR PART# OK TO TOOL
E
A6
A5
A4
A3
A2
D
ADDED 1x3 11mm CLIP-SLOT PART #
ADDED BLACK PART# AND MINOR
BOM UPDATES
ADDED CLIP SLOT CONFIGURATIONS
1X3 BOM UPDATED
1X3 INLINE ASSY VIEWS ADDED
MINOR BOM CORRECTIONS
UPDATED PACKAGING DIMENSIONS
INITIAL RELEASE
DESCRIPTION
C
D
A
6
5
4
C
INSPECTION NUMBER LOG
LAST NUMBER USED:
ADDED:
REMOVED:
3
2
1
REV
2017/06/22
2017/04/11
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
SYMBOLS
TOLERANCES
MM
4:1
=
0
(UNLESS SPECIFIED)
B
=
=
=
0
0
DRWN BY
DATE
ANGULAR TOL ±
3.0
°
B
4 PLACES
3 PLACES
EC NO:
117908
DRWN:
VYARAPPA
CHK'D:
APPR: KDEKOSKI
±
±
±
±
±
SKRAJENDRANA
CHK'D BY
DATE
2013/11/06
0
0
0
0
0
1.2MM 1X2, 1X3 BLADE
SEALED ASSEMBLY CABLE SEAL
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
1x2 BLADE SEALED ASSEMBLY
1x3 BLADE SEALED ASSEMBLY
=
=
2 PLACES
1 PLACE
0 PLACES
0.1
0.2
0.5
APPR BY
DATE
A
C
DRAWING SIZE
THIRD ANGLE PROJECTION
=
REV
FORMAT: master-tb-prod-D
REVISION: G
DATE: 2017/02/06
RELEASE STATUS
19
P1
RELEASE DATE
18
22.06.2017
17
19:25:24
=
16
15
14
13
12
11
10
9
8
7
A15
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
34899
DOCUMENT NUMBER
D
5
4
SEE BOM
3
2
GENERAL MARKET
A
DOC TYPE
DOC PART
SHEET NUMBER
6
SD-34899-2001
PSD
001
1 OF 11
1
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
BLADE SEALED ASSEMBLY
L
L
LASER MARKING ON THIS
K
SURFACE SEE NOTE 3g
W
4.00
X
⌀
C
MINIMUM PASS-THRU
K
3
J
B
±
0.50
J
44
±
0.50
1
H
W
A
±
0.50
2
TERMINAL POSITION 2
X
REAR VIEW
TERMINAL POSITION 1
H
(WIRE HARNESS SIDE)
G
G
F
F
E

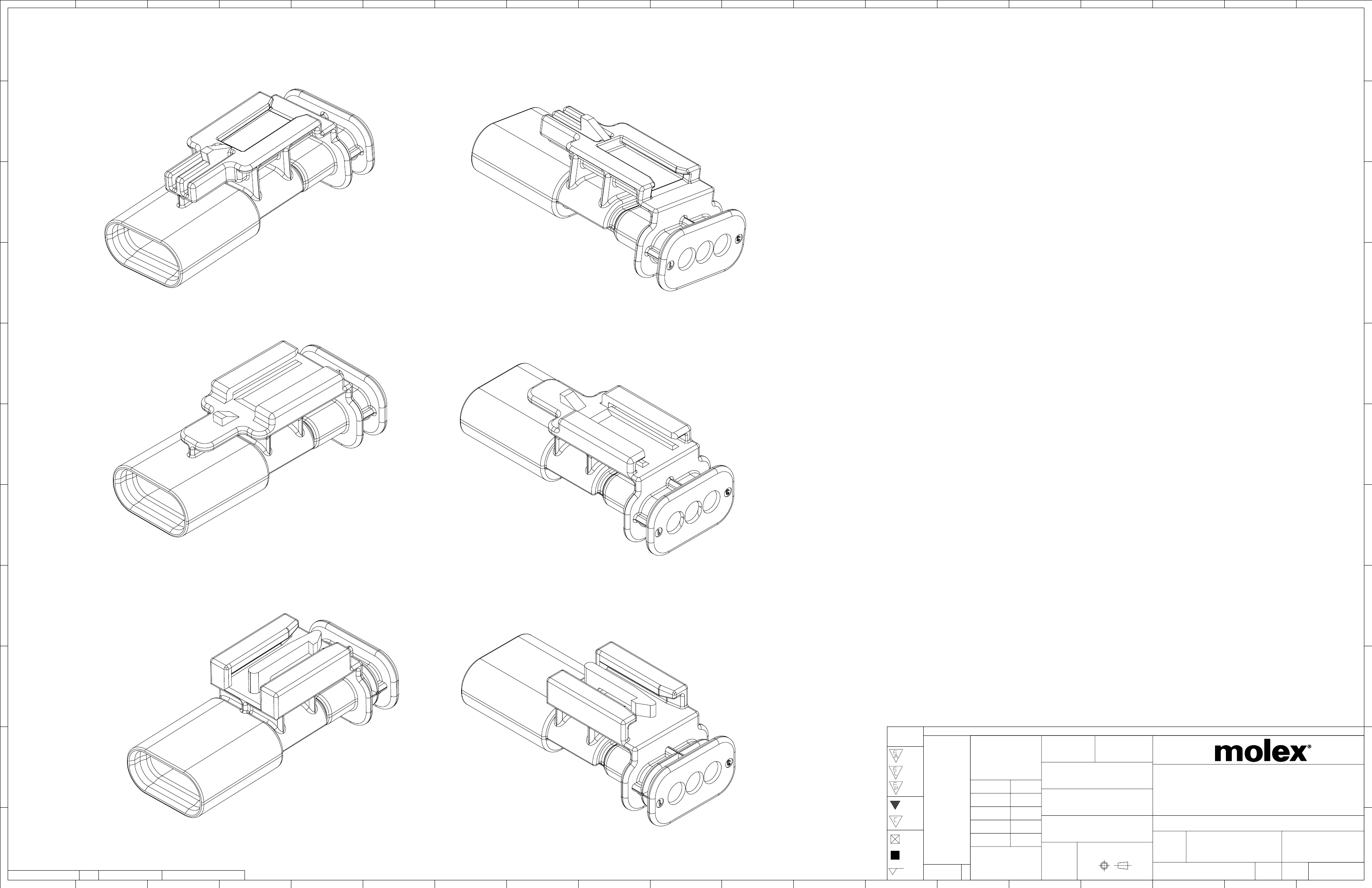

1x3 BLADE SEALED ASSEMBLY, 40G CLIP SLOT
1x3 BLADE SEALED ASSEMBLY, 11mm CLIP SLOT
1x3 BLADE SEALED ASSEMBLY, 7mm CLIP SLOT
1x2 BLADE SEALED ASSEMBLY, 40G CLIP SLOT
1x2 BLADE SEALED ASSEMBLY, 11mm CLIP SLOT
19
19
19
15
15
16.75
14.6
21.75
20.75
20.5
20.25
E
17
16.75
15.5
19
D
1x2 BLADE SEALED ASSEMBLY, 7mm CLIP SLOT
CONFIGURATION
15
A
17
B
18.75
C
D
CHARTED DIMENSIONS
4
15.0
±
0.50
±
0.50
C
C
B
2017/06/22
2017/04/11
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
SYMBOLS
TOLERANCES
MM
4:1
=
0
(UNLESS SPECIFIED)
=
=
0
0
DRWN BY
DATE
ANGULAR TOL ±
3.0
°
B
4 PLACES
3 PLACES
EC NO:
117908
DRWN:
VYARAPPA
CHK'D:
APPR: KDEKOSKI
±
±
±
±
±
SKRAJENDRANA
CHK'D BY
DATE
2013/11/06

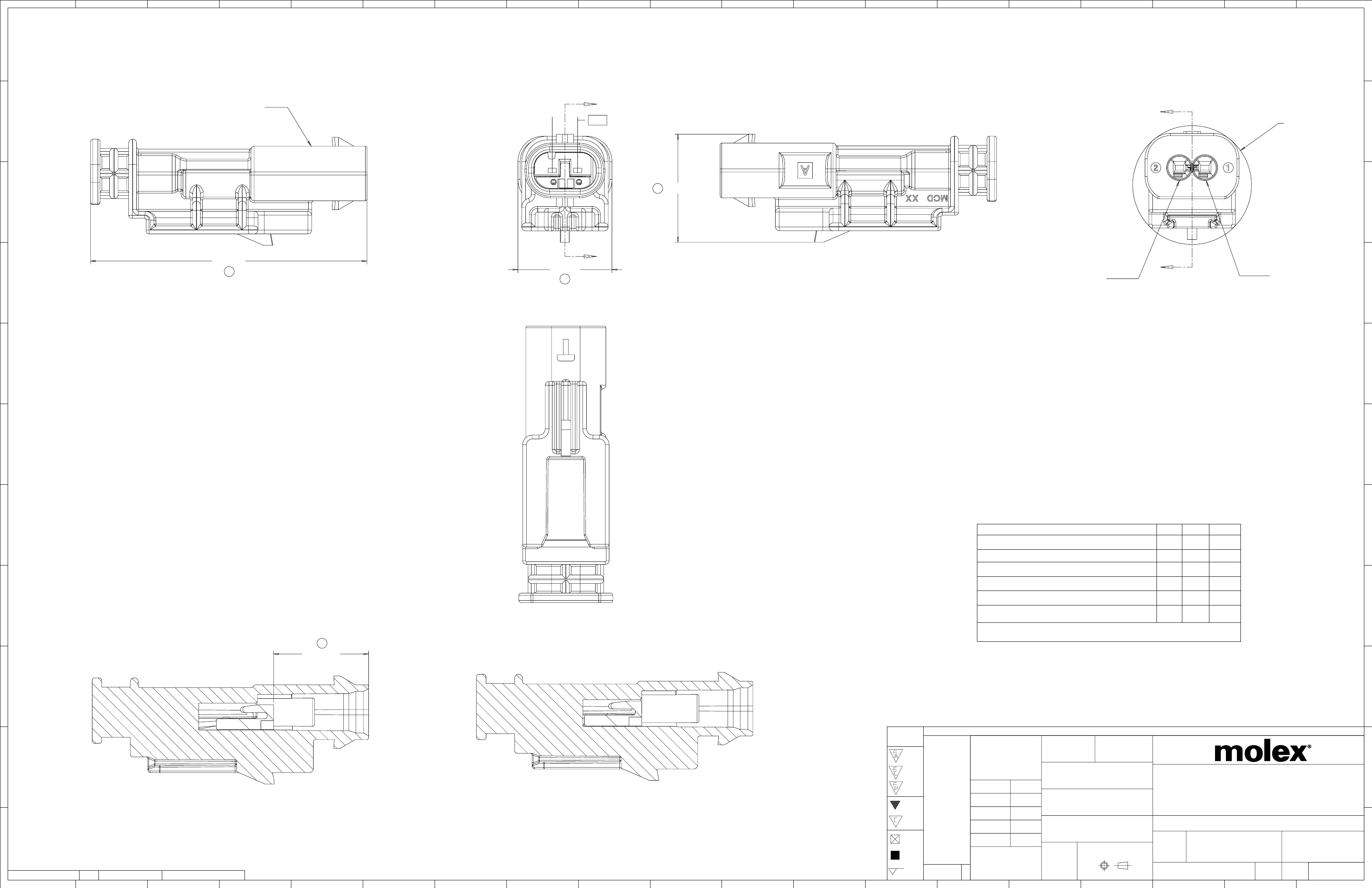

PRIMARY LOCK REINFORCEMENT (PLR) SHOWN
