47151-1001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 47151-1001

47151-1001: DescriptionConnector Type: HDMI Connector Orientation: Horizontal Number of Pins/Contacts: 19 Male and Female: - HDMI Socket Connector 19-Position Surface Mount, Right Angle, Through Hole HDMI High Definition Connector; CategoryThe connector The connector; File Size34KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

47151-1001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	47151-1001	-	-	View	Buy Now

47151-1001 Overview

Connector Type: HDMI Connector Orientation: Horizontal Number of Pins/Contacts: 19 Male and Female: - HDMI Socket Connector 19-Position Surface Mount, Right Angle, Through Hole HDMI High Definition Connector

47151-1001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	ROHS COMPLIANT
Board mount options	SOLDER HOLDING POSTS
body width	0.243 inch
subject depth	0.478 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin/Bismuth (Sn/Bi)
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	10000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	44.0352 N
Insulation resistance	10000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e6
MIL compliance	NO
Mixed contacts	NO
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
Evacuation force-minimum value	4.8928 N
Base Number Matches	1

Preview

Download Datasheet

View All

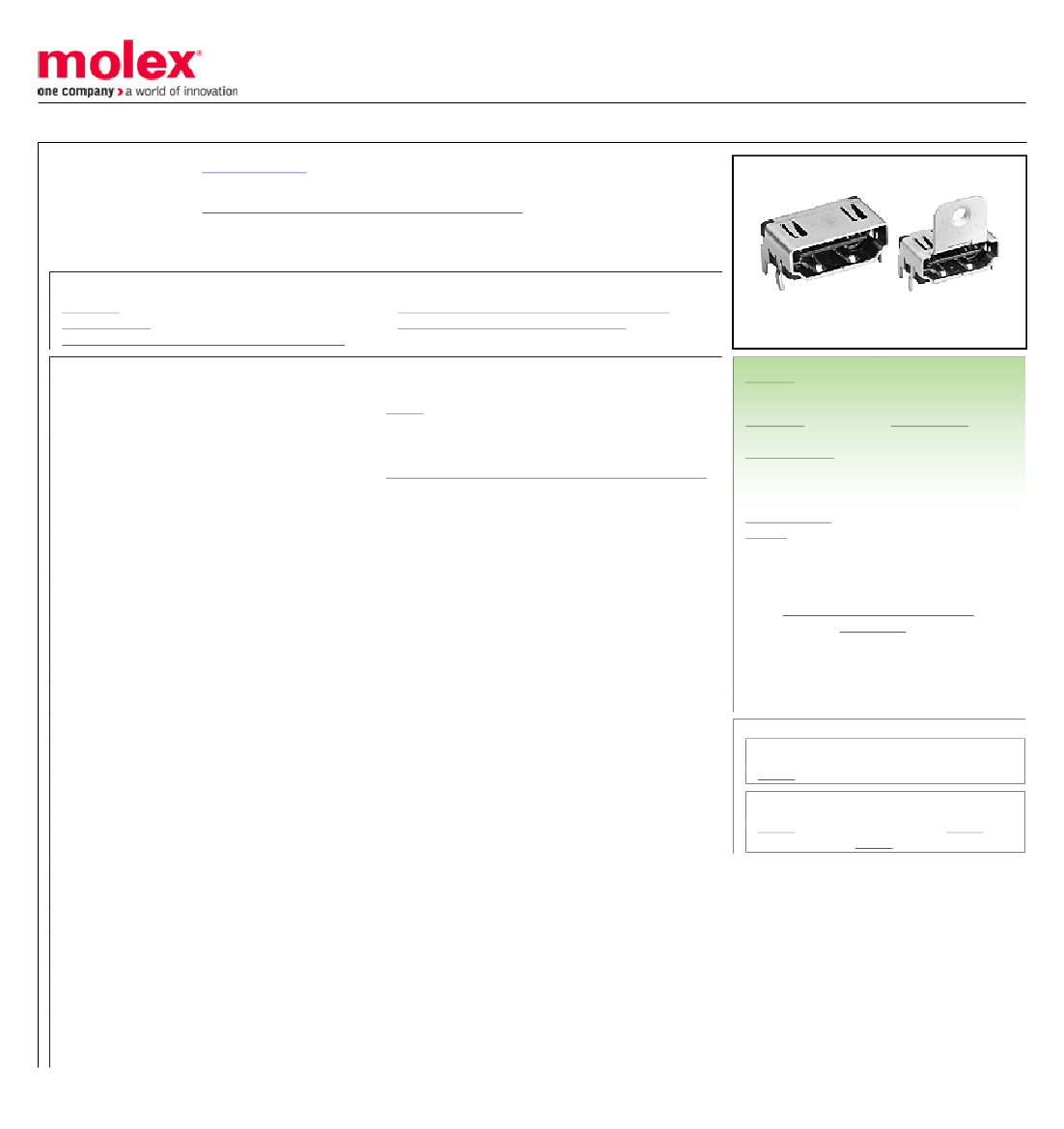

This document was generated on 02/28/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0471511001

Active

High Definition Multimedia Interface (HDMI)* Products

0.50mm Pitch HDMI* Receptacle, Right Angle, Front Solder Tab Length 1.80mm,

Shell Nickel (Ni) Plated, with Back Cover, Black Housing, Tape and Reel Package, 19

Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-47152-001-001 (PDF)

General

Product Family

Series

Application

Component Type

Electrical Model

Overview

Product Name

Type

UPC

Physical

Boot Color

Circuits (Loaded)

Color - Resin

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Ports

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

Packaging Specification PK-47151-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

I/O Connectors

47151

Wire-to-Board

Receptacle

Yes

High Definition Multimedia Interface (HDMI)* Products

HDMI*

N/A

822348824281

N/A

Black

Male

Yes

Copper Alloy

Gold

Tin-Bismuth

2.197/g

Right Angle

Yes

Embossed Tape on Reel

Without Flange

0.50mm

0.762µm

1.016µm

Yes

-20°C to +85°C

Surface Mount

N/A

0.5A

Yes

40V DC

Search Parts in this Series

47151 Series

Mates With

88768 HDMI* Cable Assembly, 88764

HDMI* Adapter, 88767 HDMI* Adapter

Recommended Resources
