NFE31PT222Z1E9L: DescriptionEMI Filter LC-Circuit 6A 25VDC Flat Style SMD T/R; File Size314KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

NFE31PT222Z1E9L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NFE31PT222Z1E9L	-	-	View	Buy Now

NFE31PT222Z1E9L Overview

EMI Filter LC-Circuit 6A 25VDC Flat Style SMD T/R

NFE31PT222Z1E9L Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8543.70.60.00
Number of Terminals	3
Capacitance (pF)	2200
Maximum Current Rating (A)	6
Maximum Voltage Rating	25VDC
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Mounting	Surface Mount
Termination Style	Flat Style
Case Size	1206
Packaging	Tape and Reel
Product Length (mm)	3.2
Product Depth (mm)	1.6
Product Height (mm)	1.6

Preview

Download Datasheet

View All

Note: This datasheet may be out of date.

Product Search Data Sheet

Please download the latest datasheet of NFE31PT222Z1E9# from the official website of Murata

Manufacturing Co., Ltd.

http://www.murata.com/en/products/productdetail?partno=NFE31PT222Z1E9%23

NFE31PT222Z1E9#

“#” indicates a package specification code.

< List of part numbers with package codes >

NFE31PT222Z1E9B

NFE31PT222Z1E9K

NFE31PT222Z1E9L

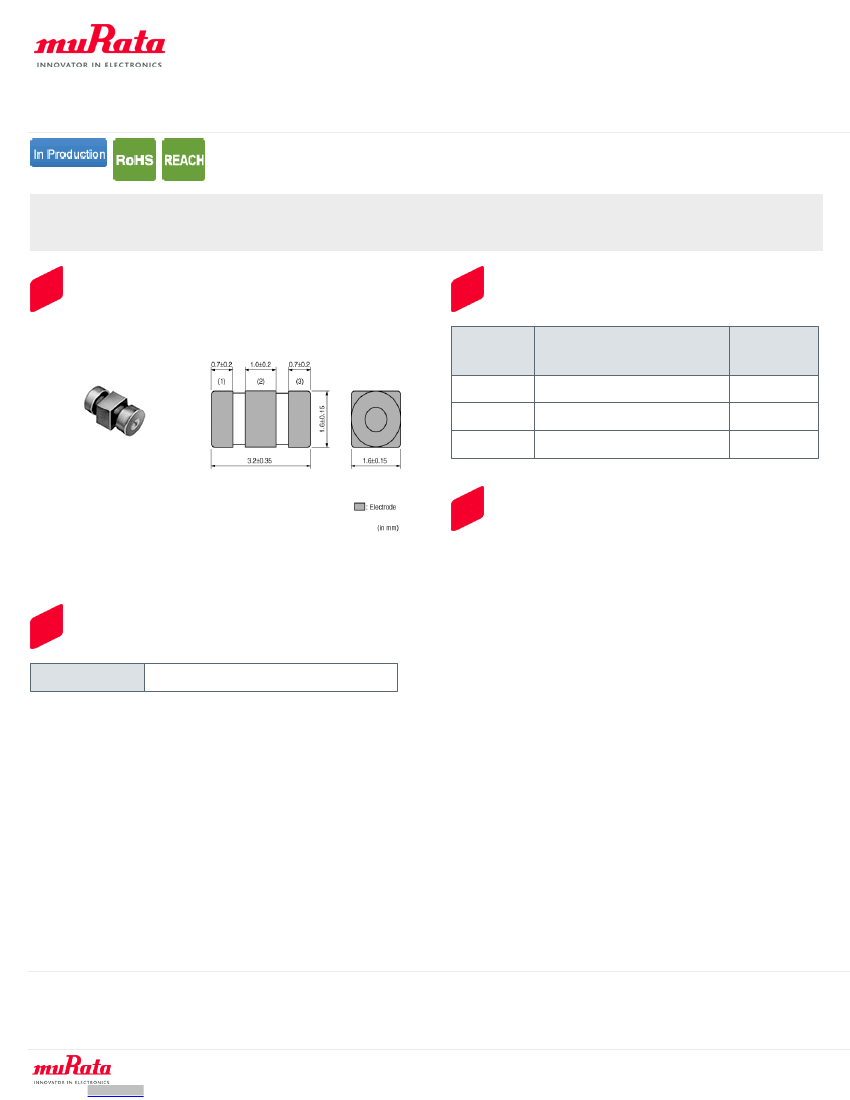

Appearance & Shape

Packaging Information

Standard

Packaging

Specifications

Packing

Quantity

B

K

L

Bulk(Bag)

330mm Embossed Tape

180mm Embossed Tape

500

8000

2000

Features

The chip "EMIFIL" NFE31PT is a small size T-type

circuit EMI suppression filter.

Applications

Other Usage

For general

Features

1. Its large rated current of 6A and low voltage drop

due to small DC resistance are suitable for DC

power line use.

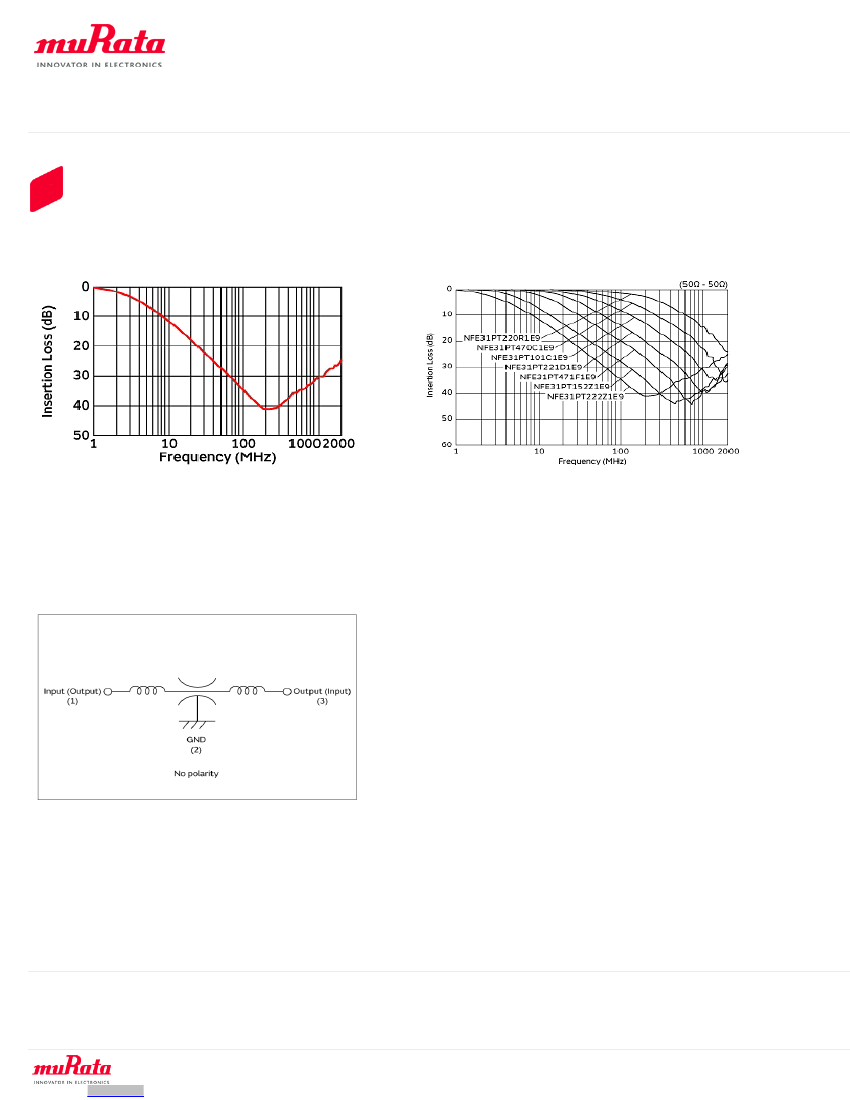

2. The feedthrough capacitor realizes excellent high

frequency characteristics.

3. The structure incorporates built-in ferrite beads

which minimize resonance with surrounding circuits.

4. 22 to 2,200pF lineups can be used in signal lines.

1 of 3

Attention

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated04/05/2021
