D2HW-A201D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D2HW-A201D

D2HW-A201D: DescriptionCircuit structure: SPDT Force: 76gf Switch function: On-Mom; CategoryMechanical and electronic products switch; File Size2MB，11 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

D2HW-A201D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D2HW-A201D	-	-	View	Buy Now

D2HW-A201D Overview

Circuit structure: SPDT Force: 76gf Switch function: On-Mom

D2HW-A201D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OMRON
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	OMRON ELECTRONIC COMPONENTS - D2HW-A201D - MICROSWITCH, PIN PLUNGER, SPDT, 12V, 2A
Actuator stroke	1.4 mm
Actuator type	PIN PLUNGER
body width	5.3 mm
body height	6.5 mm
Body length or diameter	13.3 mm
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	0.75 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
seal	IP50
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

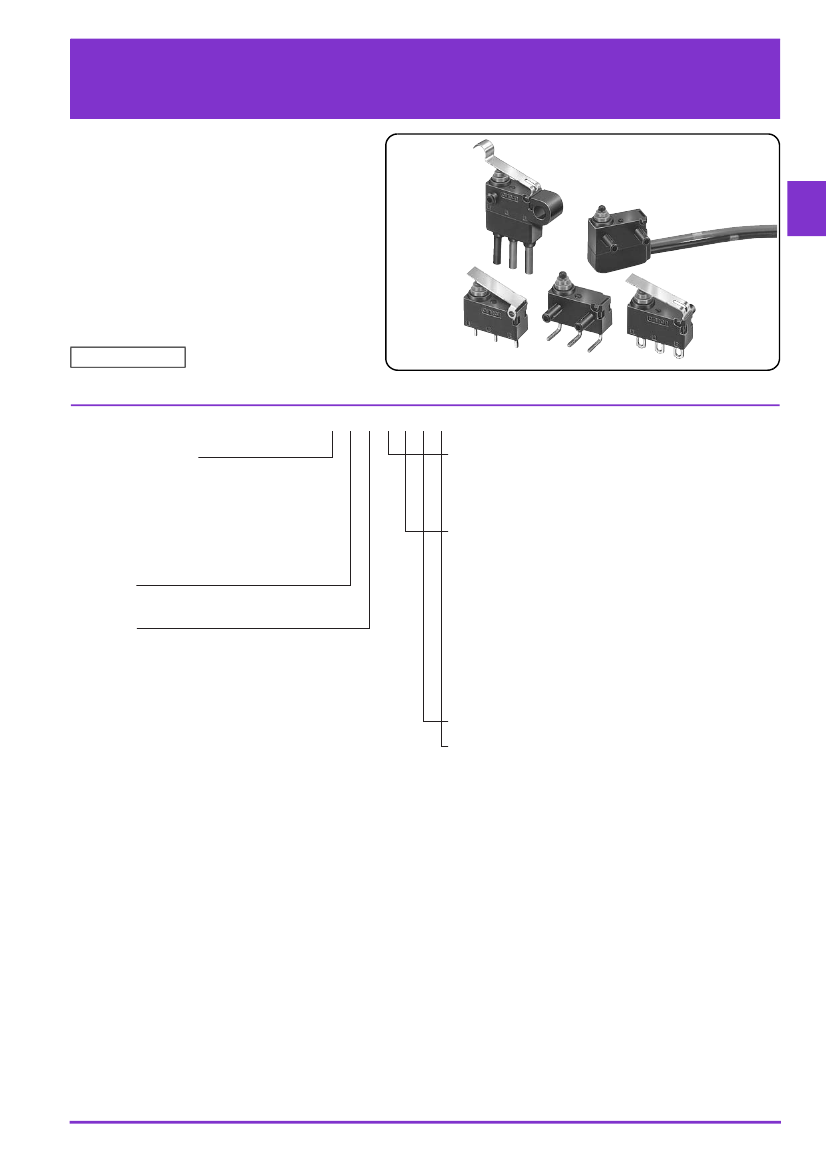

D2HW

Sealed Ultra Subminiature Basic Switch

Smallest sealed snap-action

switch in the industry with a

very long stroke for reliable

ON/OFF action

●

The case dimensions are 78% of conventional

models, contributing to down-sizing of

mechanical modules.

●

Extra-long stroke even without levers.

(OT reference value: 1.4 mm).

●

Made of environmentally-friendly materials.

All models are lead-free, including molded lead

wire models.

RoHS Compliant

Model Number Legend

1 2 3 4 5 6 7

D2HW -

@ @ @ @ @

1. Mounting Structure

A : Without posts (base-mounting)

BR : Long post on right

BL : Long post on left

C : M3-screw mounting models

ER : Short post on right

EL : Short post on left

2. Raitings

2 : 5 VDC 1mA to 12 VDC 2A

3. Actuator

0 : Pin plunger

1 : Hinge lever

2 : Long hinge lever

3 : Simulated roller lever

4 : Hinge roller lever

5 : Straight leaf lever

6 : Leaf lever

7 : Simulated roller leaf lever

8 : Long leaf lever

4. Contact form

1 : SPDT

2 : SPST-NC (Molded lead wire models only)

3 : SPST-NO (Molded lead wire models only)

5. Terminals

D, DS :

DR, DRS :

DL, DLS :

H, HS :

M, MS :

MR, MRS :

ML, MLS :

PCB terminals (Straight)

PCB Terminals (Right-angled)

PCB Terminals (Left-angled)

Solder terminals

Molded lead wires downwards

Molded lead wires on right-side

Molded lead wires on left-side

Note. UL/CSA approved versions are available.

In this case, a "S" will be added to the end of the model number.

The Lead wire is a UL approved wire (AWG24, UL1007).

6. Special Specification

7. Special Industry Specification

D2HW-A201D Related Products

	D2HW-A201D	D2HW-C221H-AQ	D2HW-BR213MRS	D2HW-C203MR-AQ	D2HW-C223MS
Description	Circuit structure: SPDT Force: 76gf Switch function: On-Mom	Circuit structure: SPDT Force: 50gf Switch function: On-Mom	Circuit structure: SPST-NO Action force: 76gf Switch function: Off-Mom	Circuit structure: SPST-NO Action force: 76gf Switch function: Off-Mom	Snap Acting/Limit Switch,
Is it Rohs certified?	conform to	-	conform to	-	conform to
Maker	OMRON	-	OMRON	-	OMRON
Reach Compliance Code	compliant	-	unknown	-	unknown
switch function	SPDT	On-Mom	-	Off-Mom	-
Switch type	SNAP ACTING/LIMIT SWITCH	-	SNAP ACTING/LIMIT SWITCH	-	SNAP ACTING/LIMIT SWITCH
