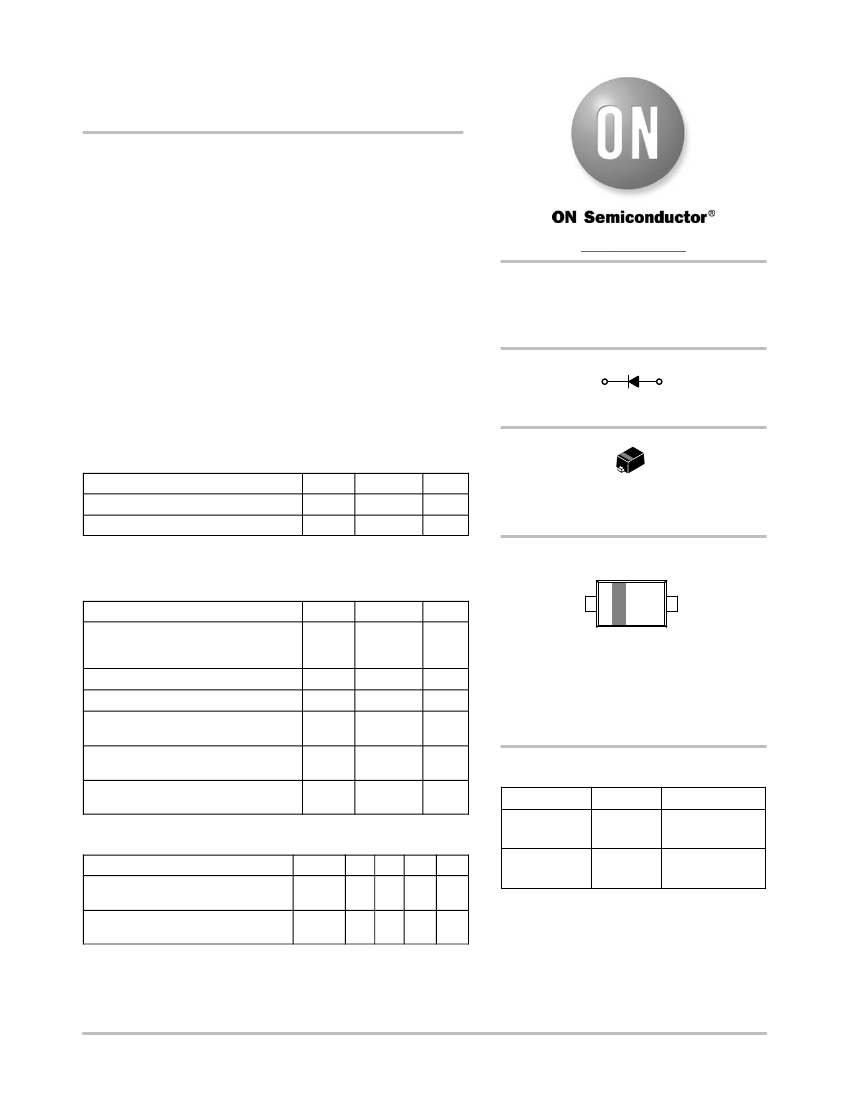

RB520S30T1G,
RB520S30T5G
Schottky Barrier Diode
These Schottky barrier diodes are designed for high−speed
switching applications, circuit protection, and voltage clamping.
Extremely low forward voltage reduces conduction loss. Miniature
surface mount package is excellent for hand−held and portable
applications where space is limited.
Features
www.onsemi.com
•
•
•
•
Extremely Fast Switching Speed
Extremely Low Forward Voltage 0.6 V (max) @ I
F
= 200 mA
Low Reverse Current
ESD Rating: Class 3B per Human Body Model
Class C per Machine Model
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating
Reverse Voltage
Forward Current DC
Symbol
V
R
I
F
Value
30
200
Unit
Vdc
mA
30 VOLT SCHOTTKY
BARRIER DIODE
1
CATHODE
2
ANODE
2
1
SOD−523
CASE 502
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
MARKING DIAGRAM
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR−5 Board,
(Note 1) T
A
= 25°C
Derate above 25°C
Thermal Resistance, Junction−to−Ambient
Junction and Storage Temperature Range
Non−Repetitive Peak Forward
Current, t
p
< 10 msec
Repetitive Peak Forward Current
Pulse Wave = 1 sec, Duty Cycle = 66%
Thermal Resistance,
Junction−to−Ambient
1. FR−5 Minimum Pad.
Symbol
P
D
Max
200
1.57
R
qJA
T
J
, T
stg
I
FSM
I
FRM
R
qJA
635
−55 to +150
600
300
635
Unit
mW
mW/°C
°C/W
°C
mA
mA
1
5J M
G
G
2
5J = Device Code
M = Date Code*
G
= Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation position may vary depending
upon manufacturing location.
ORDERING INFORMATION
°C/W
Device
RB520S30T1G
Package
SOD−523
(Pb−Free)
SOD−523
(Pb−Free)
Shipping
†
4 mm Pitch
3000/Tape & Reel
2 mm Pitch
8000/Tape & Reel
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
Reverse Leakage
(V
R
= 10 V)
Forward Voltage
(I
F
= 200 mA)
Symbol
I
R
V
F
Min
−
−
Typ
−
−
Max
1.0
0.60
Unit
mA
Vdc
RB520S30T5G
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2011
1
August, 2017 − Rev. 11
Publication Order Number:
RB520S30T1/D

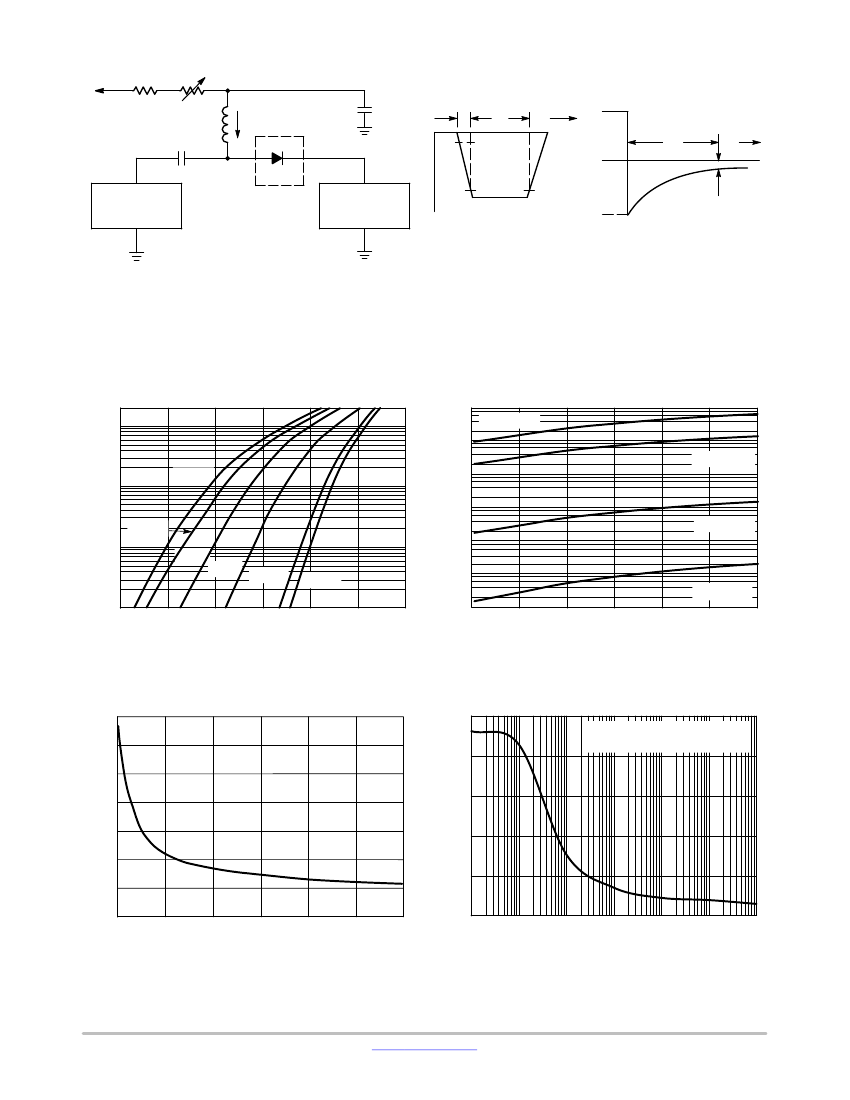

RB520S30T1G, RB520S30T5G
820
W
+10 V
2k
100
mH
0.1
mF
DUT
50
W
Output
Pulse
Generator
50
W
Input
Sampling
Oscilloscope
90%
V
R
INPUT SIGNAL
I
R
i
R(REC)
= 1 mA
OUTPUT PULSE
(I
F
= I
R
= 10 mA; measured
at i
R(REC)
= 1 mA)
I
F
0.1
mF
t
r
t
p
10%
t
I
F
t
rr
t
Notes: 1. A 2.0 kW variable resistor adjusted for a Forward Current (I
F
) of 10 mA.
Notes:
2. Input pulse is adjusted so I
R(peak)
is equal to 10 mA.
Notes:
3. t
p
» t
rr
Figure 1. Recovery Time Equivalent Test Circuit
200
100
I
F
, FORWARD CURRENT (mA)
1000
T
A
=
150°C
100
I
R
, REVERSE CURRENT (mA)
T
A
=
125°C
10
1.0
T
A
=
85°C
0.1
0.01
T
A
=
25°C
1 50°C
10
1 25°C
85°C
25°C
−40°C
−55°C
0.4
0.5
0.6
1.0
0.1
0.0
0.001
0.1
0.2
0.3
0
5
10
15
20
25
30
V
F
, FORWARD VOLTAGE (VOLTS)
V
R
, REVERSE VOLTAGE (VOLTS)
Figure 2. Forward Voltage
Figure 3. Leakage Current
I
FSM
, FORWARD SURGE MAX CURRENT (A)
14
12
C
T
, TOTAL CAPACITANCE (pF)
10
8
6
4
2
0
0
5
10
15
20
25
30
25
Based on square wave currents
T
J
= 25°C prior to surge
20
15
10
5
0
0.001
0.01
0.1
1
10
100
1000
V
R
, REVERSE VOLTAGE (VOLTS)
t
P
, PULSE ON TIME (ms)
Figure 4. Total Capacitance
Figure 5. Forward Surge Current
www.onsemi.com
2
RB520S30T1G, RB520S30T5G
PACKAGE DIMENSIONS
SOD−523
CASE 502
ISSUE E
−X−
D
−Y−
E
2X
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.
MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF
BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PRO-
TRUSIONS, OR GATE BURRS.
DIM
A
b
c
D
E
H
E
L
L2
MILLIMETERS
MIN
NOM
MAX
0.50
0.60
0.70
0.25
0.30
0.35
0.07
0.14
0.20
1.10
1.20
1.30
0.70
0.80
0.90
1.50
1.60
1.70
0.30 REF
0.15
0.20
0.25
b
0.08
1
M
2
X Y
TOP VIEW
A
c
H
E
SIDE VIEW
2X
RECOMMENDED
SOLDERING FOOTPRINT*
L
2X
1.80
2X
0.48
0.40
2X
L2
PACKAGE
OUTLINE
DIMENSION: MILLIMETERS
BOTTOM VIEW
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at
www.onsemi.com/site/pdf/Patent−Marking.pdf.
ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
◊
www.onsemi.com
3
RB520S30T1/D
