TinyLogic UHS Buffer with
Three-State Output
NC7SZ126
Description
The NC7SZ126 is a single buffer with three−State output from
ON Semiconductor’s Ultra−High Speed (UHS) series of TinyLogic.
The device is fabricated with advanced CMOS technology to achieve
ultra−high speed with high output drive while maintaining low static
power dissipation over a broad V
CC
operating range. The device is
specified to operate over the 1.65 V to 5.5 V V
CC
operating range. The
inputs and output are high impedance above ground when V
CC
is 0 V.
Inputs tolerate voltages up to 5.5 V independent of V
CC
operating
voltage. The output tolerates voltages above V
CC
in the 3−STATE
condition.
Features
www.onsemi.com
MARKING
DIAGRAMS
SIP6
CASE 127EB
Pin 1
FFKK
XYZ
•
•
•
•
•
•
•
•
•
•
Ultra−High Speed: t
PD
= 2.6 ns (Typical) into 50 pF at 5 V V
CC
High Output Drive:
±24
mA at 3 V V
CC
Broad V
CC
Operating Range: 1.65 V to 5.5 V
Matches Performance of LCX when Operated at 3.3 V V
CC
Power Down High−Impedance Inputs / Outputs
Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
Proprietary Noise / EMI Reduction Circuitry
Ultra−Small MicroPak™ Packages
Space−Saving SC−74A and SC−88A Packages
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
A
OE
1
EN
Y
FF, 7Z26, Z26
KK
XY
Z
M
G
UDFN6
CASE 517DP
Pin 1
FFKK
XYZ
SC−74A
CASE 318BQ
7Z26M
G
G
SC−88A
CASE 419A−02
Z26M
G
G

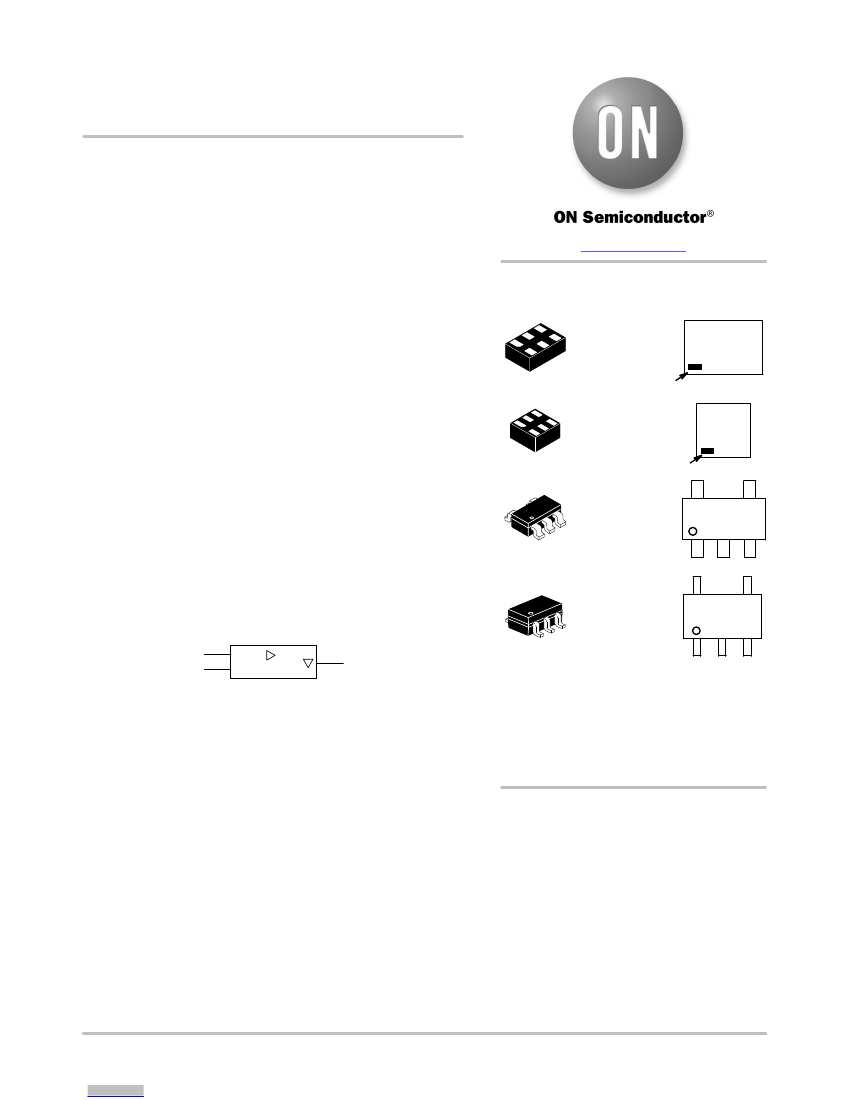

Figure 1. Logic Symbol
= Specific Device Code
= 2−Digit Lot Run Traceability Code
= 2−Digit Date Code Format
= Assembly Plant Code
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 6 of this data sheet.
