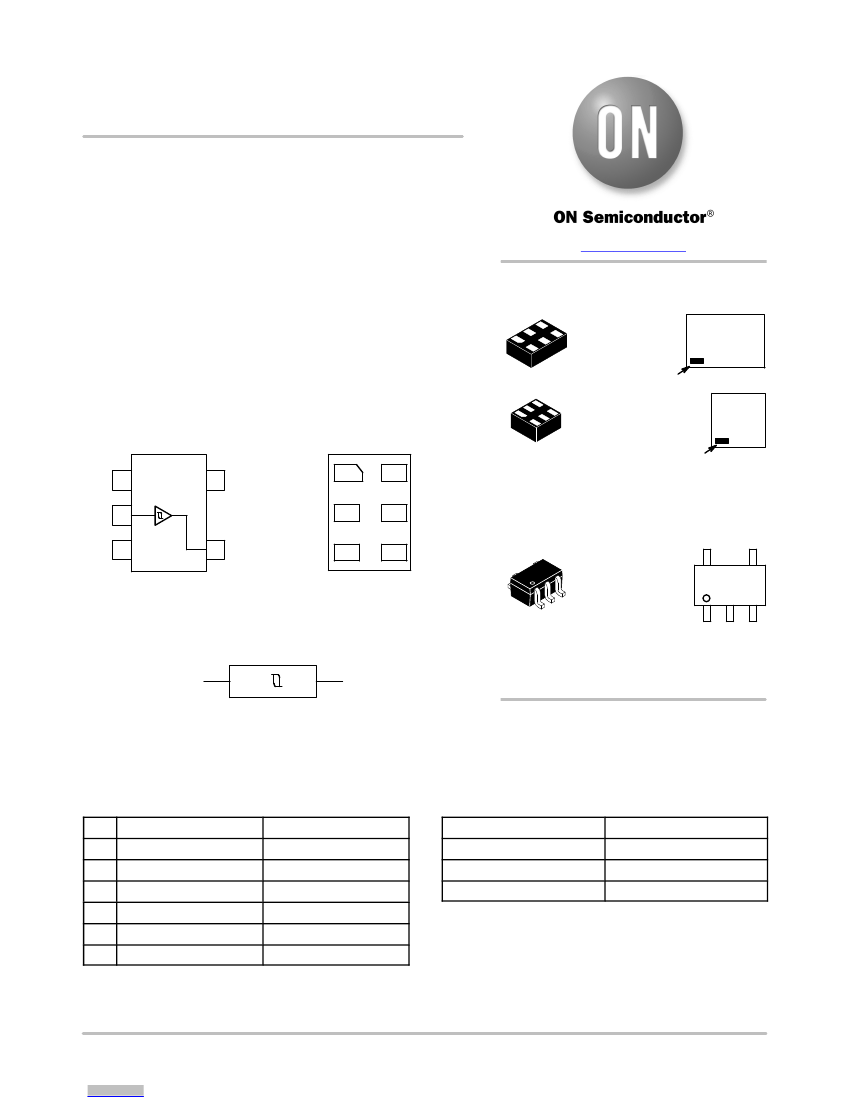

TinyLogic ULP-A Buffer
with Schmitt-Trigger Input
NC7SP17
The NC7SP17 is a single buffer with Schmitt−Trigger Input in tiny
footprint packages. The device is designed to operate for V
CC
= 0.9 V
to 3.6 V.
Features
www.onsemi.com
MARKING
DIAGRAMS
SIP6 1.45X1.0
MicroPak
CASE 127EB
Pin 1
UDFN6
MicroPak2
CASE 517DP
Pin 1
NC
A
1
2
4 Y
SC−88A
5 V
CC
NC
1
6 V
CC
5 NC
4 Y
MicroPak
SC−88A
CASE 419A−02
XXXMG
G
CC
KK
XY
Z
= Specific Device Code
= 2−Digit Lot Run Traceability Code
= 2−Digit Date Code
= Assembly Plant Code
CCKK
XYZ
CCKK
XYZ
•
•
•
•
•
•
•
Designed for 0.9 V to 3.6 V V
CC
Operation
2.6 ns t
PD
at 3.3 V (Typ)
Inputs/Outputs Over−Voltage Tolerant up to 3.6 V
I
OFF
Supports Partial Power Down Protection
Source/Sink 2.6 mA at 3.3 V
Available in SC−88A and MicroPak™ Packages
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
A 2
GND
3
GND 3
Figure 1. Pinout Diagrams
(Top Views)
XXX = Specific Device Code
M
= Date Code
G
= Pb−Free Package
A
1
Y
Figure 2. Logic Symbol
ORDERING INFORMATION
See detailed ordering, marking and shipping information on
