MC74HC4066ADR2G datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74HC4066ADR2G

MC74HC4066ADR2G: DescriptionLogic Type: SPST-Normally Close Additional Features:-; CategoryAnalog mixed-signal IC The signal circuit; File Size184KB，14 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC74HC4066ADR2G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74HC4066ADR2G	-	-	View	Buy Now

MC74HC4066ADR2G Overview

Logic Type: SPST-Normally Close Additional Features:-

MC74HC4066ADR2G Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOIC-14
Contacts	14
Manufacturer packaging code	751A-03
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	1 week
Is Samacsys	N
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e3
length	8.65 mm
Humidity sensitivity level	1
normal position	NO
Number of channels	1
Number of functions	4
Number of terminals	14
Nominal off-state isolation	40 dB
On-state resistance matching specifications	20 Ω
Maximum on-state resistance (Ron)	120 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	2/12 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Maximum disconnect time	60 ns
Maximum connection time	45 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

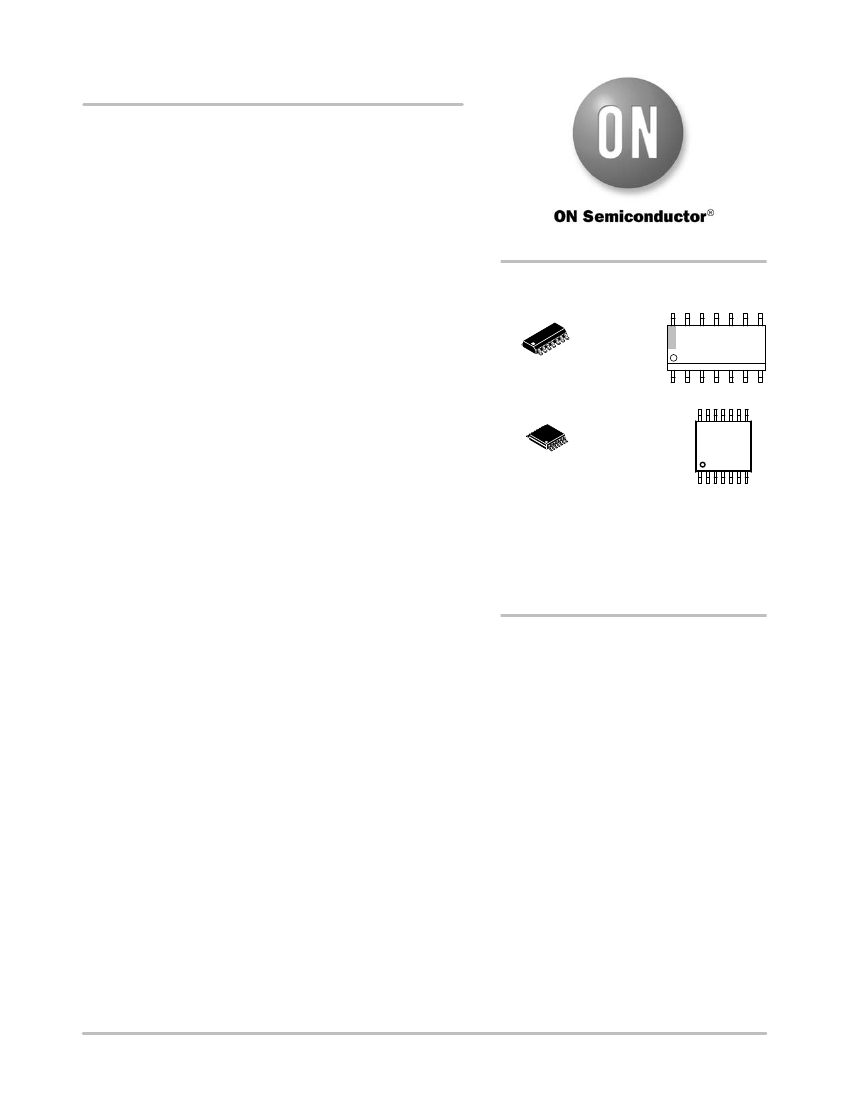

MC74HC4066A

Quad Analog Switch/

Multiplexer/Demultiplexer

High−Performance Silicon−Gate CMOS

The MC74HC4066A utilizes silicon−gate CMOS technology to

achieve fast propagation delays, low ON resistances, and low

O F F

−c

h a n n e l l e a k a g e c u r r e n t . T h i s b i l a t e r a l s w i t c h /

multiplexer/demultiplexer controls analog and digital voltages that

may vary across the full power−supply range (from V

to GND).

The HC4066A is identical in pinout to the metal−gate CMOS

MC14016 and MC14066. Each device has four independent switches.

The device has been designed so the ON resistances (R

) are more

linear over input voltage than R

of metal−gate CMOS analog

switches.

The ON/OFF control inputs are compatible with standard CMOS

outputs; with pullup resistors, they are compatible with LSTTL outputs.

For analog switches with voltage−level translators, see the HC4316A.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

WL, L

WW, W

G or

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

4066A

ALYWG

HC4066AG

AWLYWW

•

Fast Switching and Propagation Speeds

High ON/OFF Output Voltage Ratio

Low Crosstalk Between Switches

Diode Protection on All Inputs/Outputs

Wide Power−Supply Voltage Range (V

−

GND) = 2.0 to 12.0 V

Analog Input Voltage Range (V

−

GND) = 2.0 to 12.0 V

Improved Linearity and Lower ON Resistance over Input Voltage

than the MC14016 or MC14066

Low Noise

Chip Complexity: 44 FETs or 11 Equivalent Gates

These Devices are Pb−Free, Halogen Free and are RoHS Compliant

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2014

March, 2014

−

Rev. 12

Publication Order Number:

MC74HC4066A/D

MC74HC4066ADR2G Related Products

	MC74HC4066ADR2G	MC74HC4066ADTR2G	MC74HC4066ADG
Description	Logic Type: SPST-Normally Close Additional Features:-	Logic Type: SPST-Normally Close Additional Features:-	Logic Type: SPST-Normally Close Additional Features:-
Brand Name	ON Semiconductor	ON Semiconductor	ON Semiconductor
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	SOIC	TSSOP	SOIC
package instruction	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOIC-14	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSSOP-14	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOIC-14
Contacts	14	14	14
Manufacturer packaging code	751A-03	948G-01	751A-03
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	1 week	1 week	1 week
Is Samacsys	N	N	N
Analog Integrated Circuits - Other Types	SPST	SPST	SPST
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e3	e4	e3
length	8.65 mm	5 mm	8.65 mm
Humidity sensitivity level	1	1	1
normal position	NO	NO	NO
Number of channels	1	1	1
Number of functions	4	4	4
Number of terminals	14	14	14
Nominal off-state isolation	40 dB	40 dB	40 dB
On-state resistance matching specifications	20 Ω	20 Ω	20 Ω
Maximum on-state resistance (Ron)	120 Ω	120 Ω	120 Ω
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	SOP
Encapsulate equivalent code	SOP14,.25	TSSOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260
power supply	2/12 V	2/12 V	2/12 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.2 mm	1.75 mm
Maximum supply voltage (Vsup)	12 V	12 V	12 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V
surface mount	YES	YES	YES
Maximum disconnect time	60 ns	60 ns	60 ns
Maximum connection time	45 ns	45 ns	45 ns
switch	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin (Sn)	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40
width	3.9 mm	4.4 mm	3.9 mm
Base Number Matches	1	1	1
Samacsys Confidence	-	3	3
Samacsys Status	-	Released	Released
Samacsys PartID	-	2521439	225449
Samacsys Pin Count	-	14	14
Samacsys Part Category	-	Integrated Circuit	Integrated Circuit
Samacsys Package Category	-	Small Outline Packages	Small Outline Packages
Samacsys Footprint Name	-	TSSOP14 CASE 948G	SOIC-14 NB CASE751A-03 ISSUE K
Samacsys Released Date	-	2019-11-11 06:45:18	2015-08-11 09:11:29
