F-218 (Rev 11SEP18)
ERM8–013–05.0–S–DV–DS–L–TR
ERM8–030–02.0–S–DV–TR
ERM8–060–05.0–L–DV–TR
(0.80 mm) .0315"

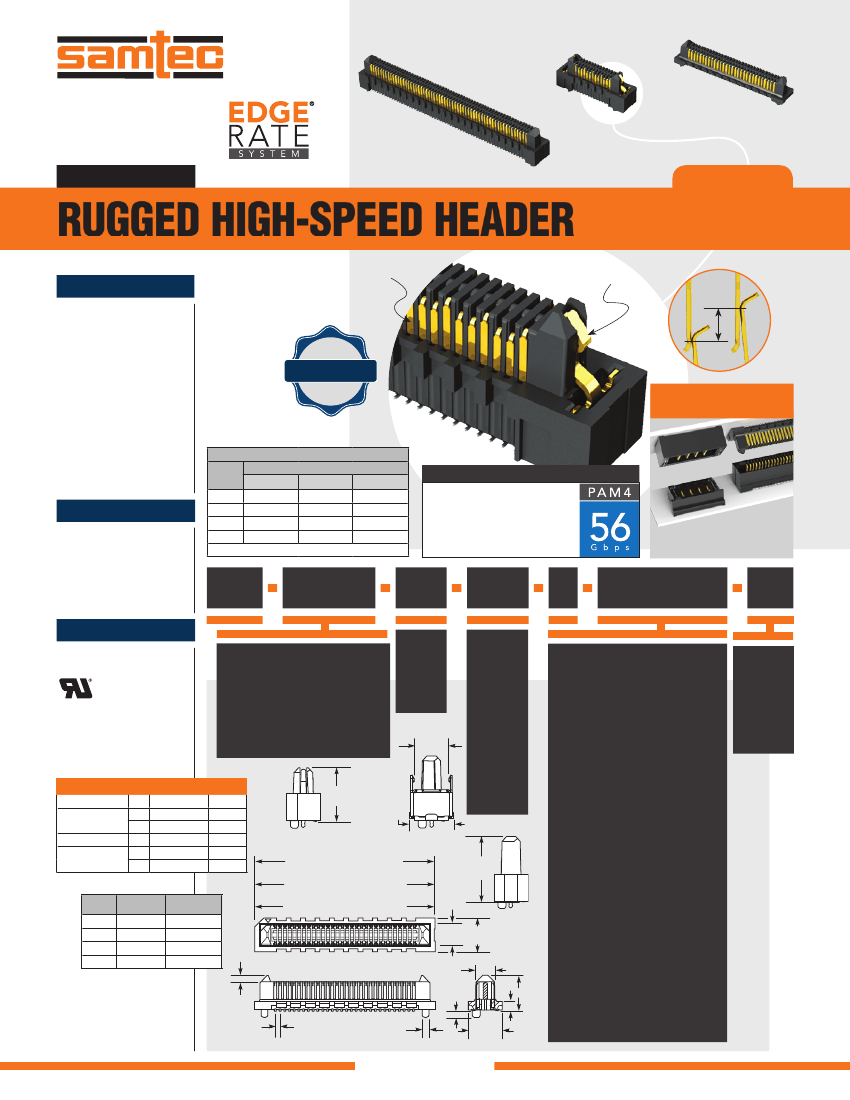

ERM8 SERIES
RUGGED HIGH-SPEED HEADER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?ERM8
Insulator Material:
Black LCP
Terminal Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating:
2.2 A per per pin
(2 pins powered)
Operating Temp Range:
-55 °C to +125 °C
Voltage Rating:
225 VAC / 318 VDC
RoHS Compliant:
Yes
Board Mates:
ERF8
Cable Mates:
ERCD, ERDP
Hot Swap
option
Designed for Rugged
Micro pitch applications
(1.50 mm)
.059"
NOMINAL
WIPE
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
10 YEAR MFG
WITH 30 µ" GOLD
POWER/SIGNAL
APPLICATION
MATED HEIGHT*
ERM8
LEAD
STYLE
ERF8 LEAD STYLE
–05.0
–07.0
–09.0
HIGH-SPEED CHANNEL PERFORMANCE
ERM8/ERF8 @ 7 mm
Mated Stack Height
Rating based on Samtec
reference channel.
For full SI performance data visit
Samtec.com or contact SIG@samtec.com
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (005-030)
(0.12 mm) .005" max (040-060)*
(0.15 mm) .006" max (070-100)*
*(.004" stencil solutions
may be available; contact
IPG@samtec.com)
–02.0
–05.0
–08.0
–09.0
(7.00) .276 (9.00) .354 (11.00) .453
(10.00) .394 (12.00) .472 (14.00) .551
(13.00) .512 (15.00) .591 (17.00) .669
(14.00) .551 (16.00) .629 (18.00) .709
*Processing conditions will affect mated height.
Compatible with
UMPT/UMPS for flexible
two-piece power/signal solutions
ERM8
POSITIONS
PER ROW
LEAD
STYLE
PLATING
OPTION
DV
OTHER OPTION
TR
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
–050, –060, –070, –075,
–100
(Available with –09.0 lead style only)
Specify
LEAD
–005, –010, –011,
STYLE
–013, –020, –025,
from
–030, –035, –040, –049,
chart
(5.70)
.224
= 10 µ"
(0.25 µm)
Gold on
contact,
Matte Tin
on tail
–L
= Differential Pair
(–05.0 lead style only)
(–010, –013, –025, –049 Positions only)
= (4.00 mm) .157" DIA
Polyimide Film Pick & Place Pad
= Latching
(–05.0 & –09.0 lead styles only)
(Not available with
–EGP & –EGPS options)
= Extended Guide Post
(–05.0 lead style only)
(Not available with –L option)
–DS
–K
–L
APPLICATIONS
STANDARD POS. PART NOs. SERIES
NEXUS5001
™
.org
11 ASP-137968-01 ERM8-DV
POWER.org
™
17 ASP-137972-01 ERM8-DV
20 ASP-130365-01 ERM8-DV
™
NEXUS5001 .org
23 ASP-130366-01 ERM8-DV
POWER.org
™
35 ASP-135020-01 ERM8-DV
(8.91)
.351
–L
(7.20)
.283
–EGPS
= 30 µ"
(0.76 µm)
Gold on
contact,
Matte Tin
on tail
–S
= Tape &
Reel
Packaging
(Not
available
with 100
positions)
–TR
–EGP
ARM/HSSTP
LEAD
STYLE
A
(1.61) .063
(4.61) .181
(7.61) .300
(8.61) .339
B
(5.97) .235
(8.91) .351
(11.91) .469
(12.91) .508
–02.0
–05.0
–08.0
–09.0
No. of Positions x
(0.80) .0315 + (6.00) .236
–L & –EGP = No. of Positions x
(0.80) .0315 + (9.00) .354
–EGPS = No. of Positions x
01
(0.80) .0315 + (10.00) .394
(10.80)
.425
–EGP
= Extended Guide Post Shield
(–05.0 & -09.0 lead style only)
(–010, –020, –025, –030 Positions only)
(Not available with –L option)
= Differential Pair + Extended
Guide Post
(–05.0 lead styles only)
(–013 & –025 Positions only)
–EGPS
–DSP
–DSS
(3.25) (5.60)
.128 .220
02
Notes:
Patented
Some lengths, styles and
options are non-standard,
non-returnable.
(1.10)
.043
(3.20)
.126
(1.07)
.042
(0.80)
.0315
(1.32)
.052
DIA
(5.60)
.220
B
A
= Differential Pair + Extended
Guide Post Shield
(–05.0 lead styles only)
(–025 positions only)
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
