Ordering number : EN2262F
2SA1552/2SC4027
Bipolar Transistor
(–)160V, (–)1.5A, Low VCE(sat) (PNP)NPN Single TP/TP-FA
Applications
•
http://onsemi.com
Converters, inverters, color TV audio output
Features
•
•
•
High voltage and large current capacity
•
Ultrahigh-speed switching
Adoption of FBET, MBIT processes
Small and slim package permitting 2SA1552 / 2SC4027-applied sets to be made more compact
Specifications
( ): 2SA1552
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
(--)180
(-
-)160
(--)6
(-
-)1.5
(-
-)2.5
Unit
V
V
V
A
A
Continued on next page.

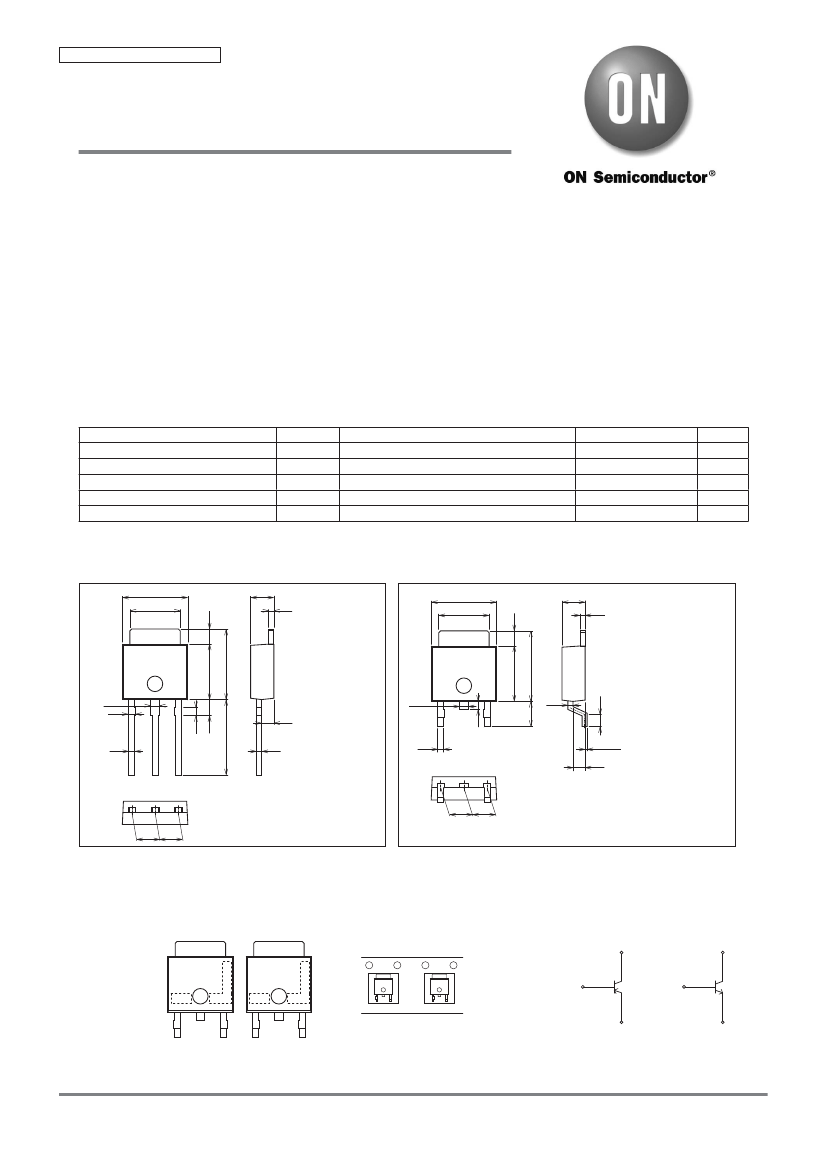

Package Dimensions
unit : mm (typ)
7518-003
6.5
5.0
4
2.3
1.5
0.5
Package Dimensions
unit : mm (typ)
7003-003
2SA1552S-E
2SA1552S-H
2SA1552T-E
2SA1552T-H
2SC4027S-E
2SC4027S-H
2SC4027T-E
2SC4027T-H
6.5
5.0
4
2.3
1.5
0.5
0.8
1.6
7.5
0.6
1
2
3
0.5
0.6
1
2
0.8
1.2
3
2.5
0.85
0.7
0.85
1.2
0.5
2SA1552S-TL-E
2SA1552S-TL-H
2SA1552T-TL-E
2SA1552T-TL-H
2SC4027S-TL-E
2SC4027S-TL-H
2SC4027T-TL-E
2SC4027T-TL-H
1 : Base
2 : Collector
3 : Emitter
4 : Collector
TP-FA
7.0
5.5
5.5
7.0
0 to 0.2
1.2
1 : Base
2 : Collector
3 : Emitter
4 : Collector
TP
2.3
2.3
2.3
2.3
Product & Package Information
• Package : TP
• JEITA, JEDEC : SC-64, TO-251
• Minimum Packing Quantity : 500 pcs./bag
• Package : TP-FA
• JEITA, JEDEC : SC-63, TO-252
• Minimum Packing Quantity : 700 pcs./reel
Marking
(TP, TP-FA)
A1552
RANK
LOT No.
Packing Type (TP-FA) : TL
C4027
Electrical Connection
2,4
2,4
1
RANK
LOT No.
TL
1
2SA1552
3
2SC4027
3
Semiconductor Components Industries, LLC, 2013
December, 2013
D1813 TKIM TC-00003080/60612 TKIM/91708 TIIM TC-00001624/D0505CB MSIM X-0448/ No.2262-1/7
53002RM (KT)/72098HA (KT)/8109MO/5137TA, TS
2SA1552 / 2SC4027
Continued from preceding page.
Parameter
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
PC
Tj
Tstg
Tc=25°C
Conditions
Ratings
1
15
150
--55 to +150
Unit
W
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector to Emitter Saturation Voltage
Base to Emitter Saturation Voltage
Collector to Base Breakdown Voltage
Collector to Emitter Breakdown Voltage
Emitter to Base Breakdown Voltage
Turn-On Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE1
hFE2
fT
Cob
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
VCB=(--)120V, IE=0A
VEB=(--)4V, IC=0A
VCE=(--)5V, IC=(--)100mA
VCE=(--)5V, IC=(--)10mA
VCE=(--)10V, IC=(--)50mA
VCB=(--)10V, f=1MHz
IC=(--)500mA, IB=(--)50mA
IC=(--)500mA, IB=(--)50mA
IC=(--)10μA, IE=0A
IC=(--)1mA, RBE=∞
IE=(--)10μA, IC=0A
See specified Test Circuit.
(--)180
(-
-)160
(--)6
60
(0.7)1.2
(50)80
140*
80
120
(22)12
(--0.2)0.13
(-
-)0.85
(--0.5)0.45
(-
-)1.2
MHz
pF
V
V
V
V
V
ns
μs
ns
Ratings
min
typ
max
(--)1.0
(--)1.0
400*
Unit
μA
μA
*
: The 2SA1552 / 2SC4027 are classified by 100mA hFE as follows : (unit :
μ
A)
Rank
hFE
S
140 to 280
T
200 to 400
Switching Time Test Circuit
IB1
PW=20μs
D.C.≤1%
INPUT
VR
50Ω
RB
IB2
+
+
OUTPUT
RL
140Ω
470μF
100V
100μF
--5V
10IB1= --10IB2=IC=0.7A
For PNP, the polarity is reversed.
Ordering Information
Device
2SA1552S-E
2SA1552S-H
2SA1552T-E
2SA1552T-H
2SC4027S-E
2SC4027S-H
2SC4027T-E
2SC4027T-H
2SA1552S-TL-E
2SA1552S-TL-H
2SA1552T-TL-E
2SA1552T-TL-H
2SC4027S-TL-E
2SC4027S-TL-H
2SC4027T-TL-E
2SC4027T-TL-H
Package
TP
TP
TP
TP
TP
TP
TP
TP
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
TP-FA
Shipping
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
500pcs./bag
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
700pcs./reel
memo
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
Pb Free
Pb Free and Halogen Free
No.2262-2/7

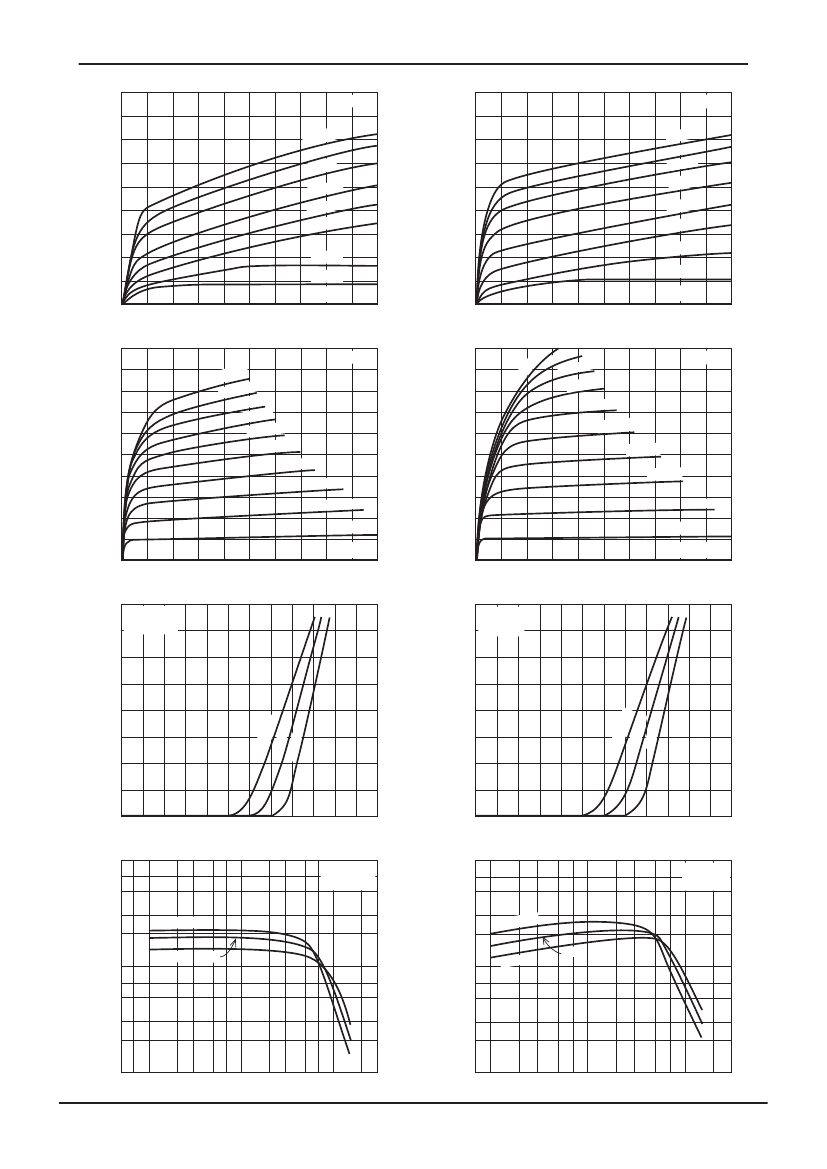

2SA1552 / 2SC4027
--1.8
--1.6
IC -- VCE
2SA1552
1.8
1.6
IC -- VCE
2SC4027
50mA
40mA
30mA
20mA
Collector Current, IC -- A
Collector Current, IC -- A
--1.4
--1.2
--1.0
--0.8
--0.6
--0.4
--0.2
0
0
--1
--2
--3
A
--80m
A
--60m
A
--40m
A
--20m
A
--10m
--5mA
--2mA
--1mA
IB=0mA
--4
--5
ITR03969
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
10mA
5mA
2mA
1mA
IB=0mA
1
2
3
4
5
ITR03970
Collector to Emitter Voltage, VCE -- V
--1.0
IC -- VCE
Collector to Emitter Voltage, VCE -- V
1.0
IC -- VCE
Collector Current, IC -- A
Collector Current, IC -- A
--0.8
--0.6
A
--5.0m
--4.5mA
A
--4.0m
--3.5mA
--3.0mA
--2.5mA
--2.0mA
--1.5mA
--1.0mA
0.8
5.0
mA
2SA1552
A
4.5m
mA
4.0
3.5mA
2SC4027
3.0mA
0.6
2.5mA
2.0mA
--0.4
0.4
1.5mA
1.0mA
--0.2
0.2
--0.5mA
0
0
--10
--20
--30
0.5mA
0
0
10
20
30
IB=0mA
--40
--50
ITR03971
IB=0mA
40
50
ITR03972
Collector to Emitter Voltage, VCE -- V
--1.6
IC -- VBE
Collector to Emitter Voltage, VCE -- V
1.6
IC -- VBE
2SA1552
VCE= --5V
Collector Current, IC -- A
2SC4027
VCE=5V
1.2
Collector Current, IC -- A
--1.2
5
°
C
25
°
C
--25
°
C
Ta=
7
--0.4
0.4
0
0
--0.2
--0.4
--0.6
--0.8
--1.0
--1.2
0
0
0.2
0.4
0.6
0.8
1.0
1.2
ITR03974
Base to Emitter Voltage, VBE -- V
1000
7
5
ITR03973
1000
Base to Emitter Voltage, VBE -- V
hFE -- IC
2SA1552
VCE= --5V
DC Current Gain, hFE
Ta=75
°
C
--25
°
C
hFE -- IC
2SC4027
VCE=5V
7
5
3
2
DC Current Gain, hFE
3
2
Ta=75
°
C
--25
°
C
25
°
C
100
7
5
3
2
25
°
C
100
7
5
3
2
10
5 7 --0.01
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
10
7 0.01
2
3
5
7 0.1
2
3
5
7 1.0
2
3
Collector Current, IC -- A
ITR03975
Collector Current, IC -- A
Ta=
7
5
°
C
25
°
C
--25
°
C
--0.8
0.8
ITR03976
No.2262-3/7

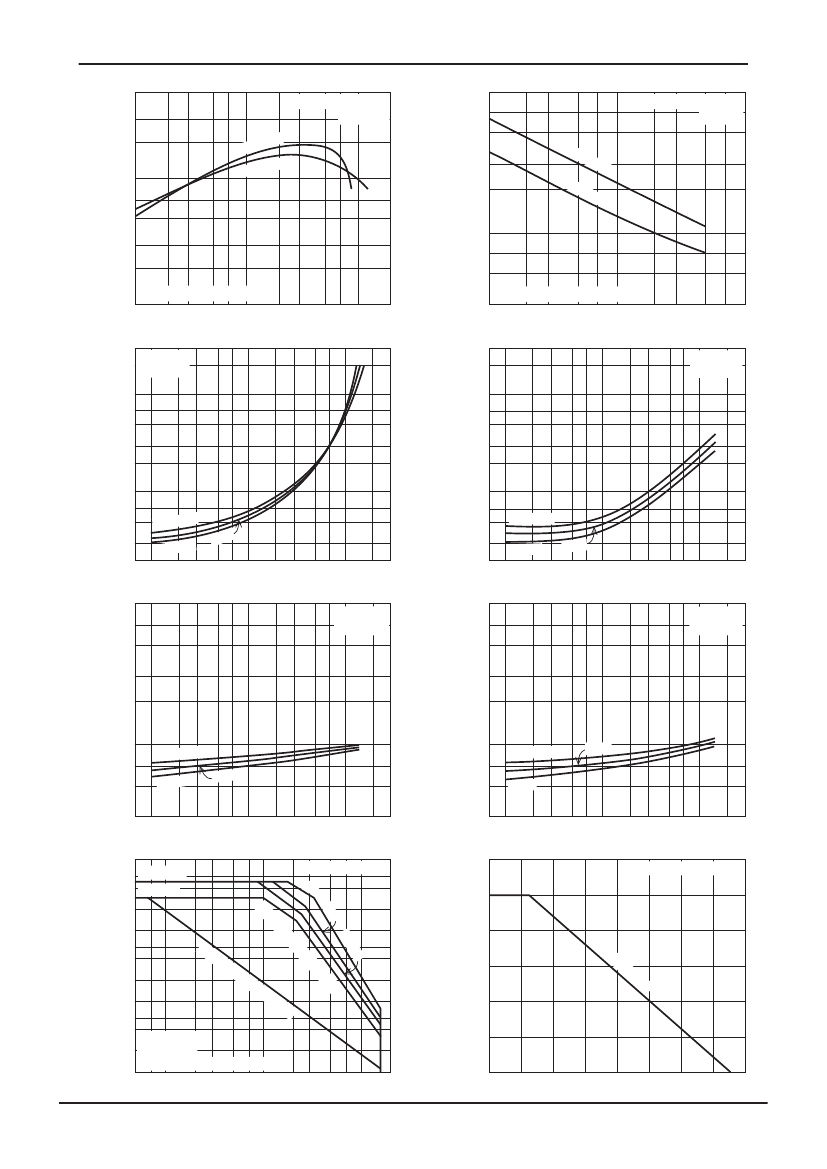

2SA1552 / 2SC4027
5
f T -- IC
2SA1552 / 2SC4027
VCE=10V
Output Capacitance, Cob -- pF
100
7
5
Cob -- VCB
2SA1552 / 2SC4027
f=1MHz
Gain-Bandwidth Product, f T -- MHz
3
2
100
7
5
3
2
027
2SC4
52
2SA15
3
2
2SA
155
2
2SC
402
7
10
7
5
10
0.01
For PNP minus sign is omitted.
2
3
5
7
0.1
2
3
5
7
Collector Current, IC -- A
3
2
2
1.0
ITR03977
3
1.0
For PNP minus sign is omitted.
2
3
5
7
10
2
3
5
7
100
VCE(sat) -- IC
Collector to Base Voltage, VCB -- V
3
2
ITR03978
VCE(sat) -- IC
Collector to Emitter
Saturation Voltage, VCE(sat) -- V
--1000
7
5
3
2
--100
7
5
3
2
7 --0.01
Collector to Emitter
Saturation Voltage, VCE(sat) -- V
2SA1552
IC / IB=10
2SC4027
IC / IB=10
1000
7
5
3
2
100
7
5
3
2
Ta=75
°
C
--25
°
C
2
3
Ta=75
°
C
--25
°
C
7 0.01
2
3
25
°
C
5
7 --0.1
2
3
5
7 --1.0
2
3
25
°
C
5
7 0.1
2
3
5
7 1.0
2
3
Collector Current, IC -- A
--10
7
ITR03979
10
VBE(sat) -- IC
Collector Current, IC -- A
ITR03980
VBE(sat) -- IC
Base to Emitter
Saturation Voltage, VBE(sat) -- V
5
Base to Emitter
Saturation Voltage, VBE(sat) -- V
2SA1552
IC / IB=10
7
5
2SC4027
IC / IB=10
3
2
3
2
--1.0
7
5
3
Ta=--25
°
C
1.0
7
5
3
Ta= --25°C
75
°
C
7 0.01
2
3
5
25
°
C
75
°
C
25
°
C
7 --0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
7
0.1
2
3
5
7
1.0
2
3
Collector Current, IC -- A
5
3
2
ITR03981
1.2
SOA
Collector Current, IC -- A
ITR03982
PC -- Ta
ICP=2.5A
IC=1.5A
2SA1552 / 2SC4027
1m
s
Collector Dissipation, PC -- W
10
2SA1552 / 2SC4027
1.0
Collector Current, IC -- A
1.0
5
3
2
0.1
5
3
2
0.01
5
5
DC
op
er
ati
ms
10
0.8
DC
s
0m
on
op
era
tio
n(
No
0.6
c
(T
=2
C
5
°
he
a
ts
Ta
=
in
k
)
25
°
C
)
0.4
Tc=25
°
C
Single Pulse
For PNP minus sign is omitted.
7 1.0
2
3
5
7
10
2
3
5
0.2
0
7 100
2
V
ITR03983
0
20
40
60
80
100
120
140
160
Collector to Emitter Voltage, VCE --
Ambient Temperature, Ta --
°
C
IT10480
No.2262-4/7
2SA1552 / 2SC4027
16
15
14
PC -- Tc
2SA1552 / 2SC4027
Collector Dissipation, PC -- W
12
10
8
6
4
2
0
0
20
40
60
80
100
120
140
160
Case Temperature, Tc --
°
C
IT10479
No.2262-5/7
