Series 79 Micro-Crimp Connector Adapter
Top or Side Entry
E
Adapters and
Transitions

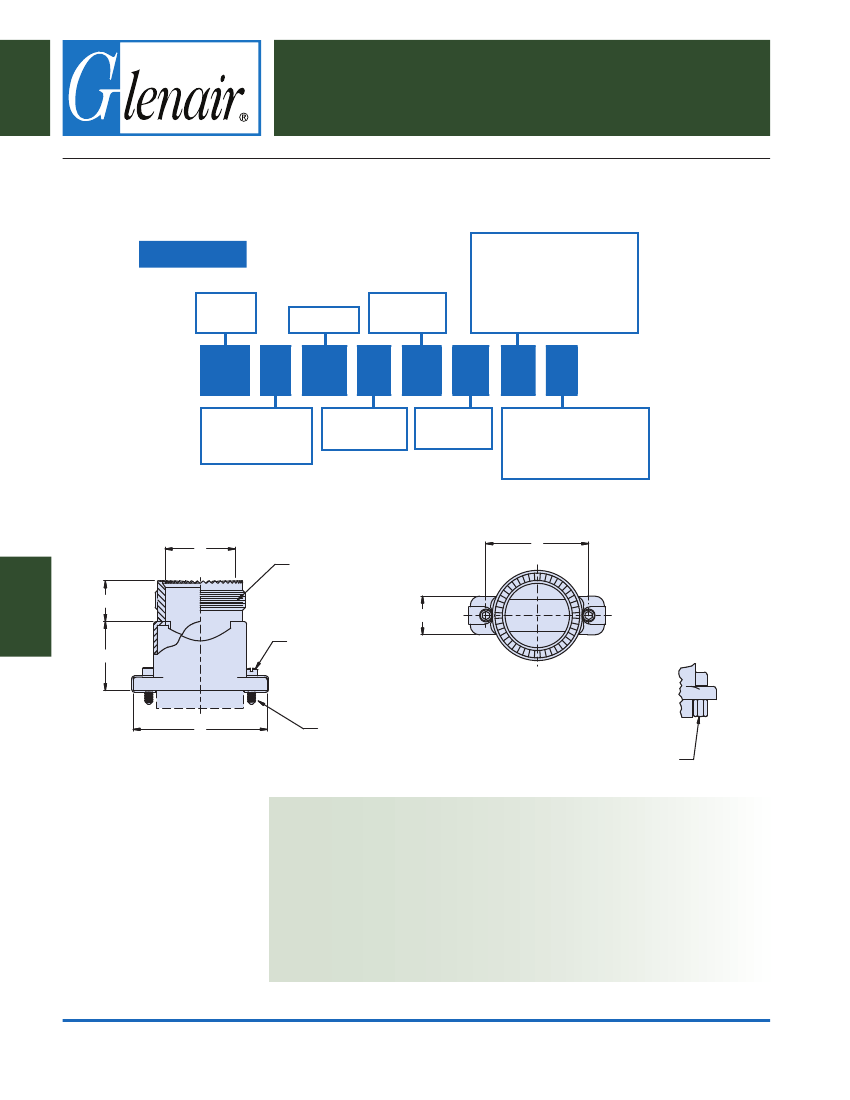

Series 79 Micro-Crimp connector adapter with MIL-DTL-38999 Series III (H code)
accessory thread and interface teeth
How To Order
Hardware Option
Sym B
= Fillister Head
Sym H
= Hex Socket Head
Sym E
= Extended Knurled
Slotted Head
Sym F
= Female Jackpost
Product
Series
Basic No.
Shell Size
(Table III)
713
T
366 M
Finish Sym
(Table II)
D
09
H 08
Height Code
in 1/8” Increments
(Style T Only)
Range = 06-10 (.75” - 1.25”)
Cable Entry Style
T
= Top
S
= Side
Entry Size
(Table IV)
ØD
Typ
C
E Thread
Typ
B
.44
Height
Fillister Head
Symbol B Shown
A
2-56 (Sizes A-G, J & K
4-40 (Sizes H & L)
Female Jackpost
Symbol F Shown
Style T
Top Entry
Material and Finish
• Adapter: See Table II
• Retaining Clip, Washers, Jackscrews, Nuts, Jackposts: CRES/Passivate
Notes
• Symbol E hardware is not available with style T (Top) cable entries for shell sizes A through
E, and for max entries on shell sizes F and G. Symbol E hardware with Style T cable entries
may interfere with coupling from mating backshell.
• Consult factory for use of Symbol E hardware on Style T (Top) cable entries.
• MIL-DTL-38999, Series III accessory interface (Glenair Code H). Entry size corresponds
to MIL-DTL-38999 Series III shell size.
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-12
E-Mail: sales@glenair.com
Top or Side Entry
Table II: Finish
Finish Description
Cadmium, Olive Drab
Anodize, Black
Electroless Nickel
Aluminum
Nickel-PTFE
Cadmium/Olive Drab Over Electroless Nickel
Zinc Cobalt/Black
Zinc Nickel/Olive Drab Over Electroless Nickel
Zinc Nickel/Black Over Electroless Nickel
Passivate
Electroless Nickel
Nickel-PTFE
Cadmium/Olive Drab Over Electroless Nickel
Sym
B
C
M
C
MT
NF
UCR
ZN
ZNU
Z1
ZM
ZMT
ZW
Material
B
.44
Stainless
Steel

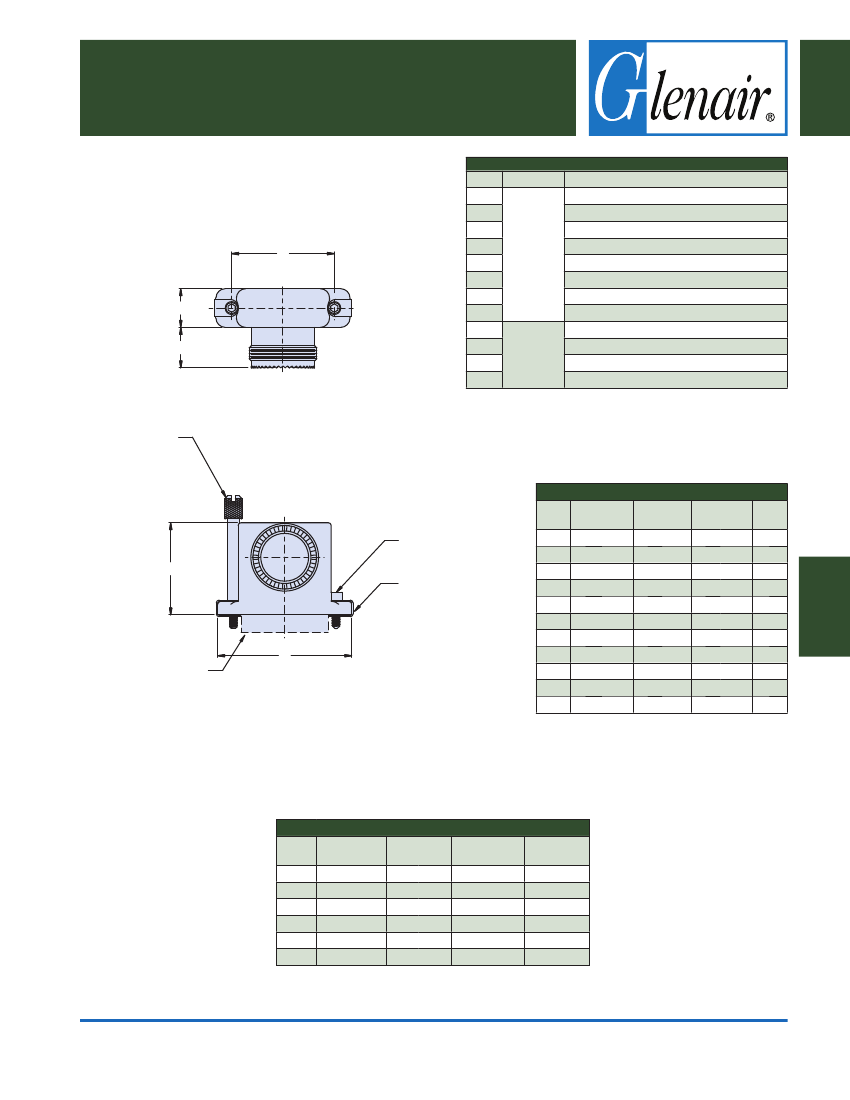

Extended Head
Symbol E Shown
Shell
Size
Socket Head
Symbol H Shown
F
Retaining Clip
Typ.
A
B
C
D
E
F
G
H
J
K
L
Table III: Shell Size
A
B
C
Max
Max
Dim
.935 (23.7) .450 (11.4) .565 (14.4)
1.085 (27.6) .450 (11.4) .715 (18.2)
1.235 (31.4) .450 (11.4) .865 (22.0)
1.335 (33.9) .450 (11.4) .965 (24.5)
1.485 (37.7) .450 (11.4) 1.115 (28.3)
1.635 (41.5) .450 (11.4) 1.265 (32.1)
1.585 (40.3) .533 (13.5) 1.215 (30.9)
2.320 (58.9) .560 (14.2) 1.800 (45.7)
1.990 (50.5) .450 (11.4) 1.615 (41.0)
2.385 (60.6) .450 (11.4) 2.015 (51.2)
2.556 (64.9) .560 (14.2) 2.036 (51.7)
Max
Entry
09
11
11
13
13
15
15
17
17
17
19
A
Connector
Shown for
Reference Only
Style S
Side Entry
Table IV: Entry Size
Entry
Size
09
11
13
15
17
19
Conduit Size
(Ref)
06, 09
10, 12
14, 16
20
24
28
ØD
.281
.397
.511
(7.14)
(10.1)
(13.0)
E Thread
ISO Metric
M12 X 1.0-6g
M15 X 1.0-6g
M18 X 1.0-6g
M22 X 1.0-6g
M25 X 1.0-6g
M28 X 1.0-6g
F
Max
.97
1.09
1.21
(24.6)
(27.7)
(30.7)
.636 (16.2)
.761 (19.3)
.875 (22.2)
1.37 (34.8)
1.49 (37.8)
1.60 (40.6)
