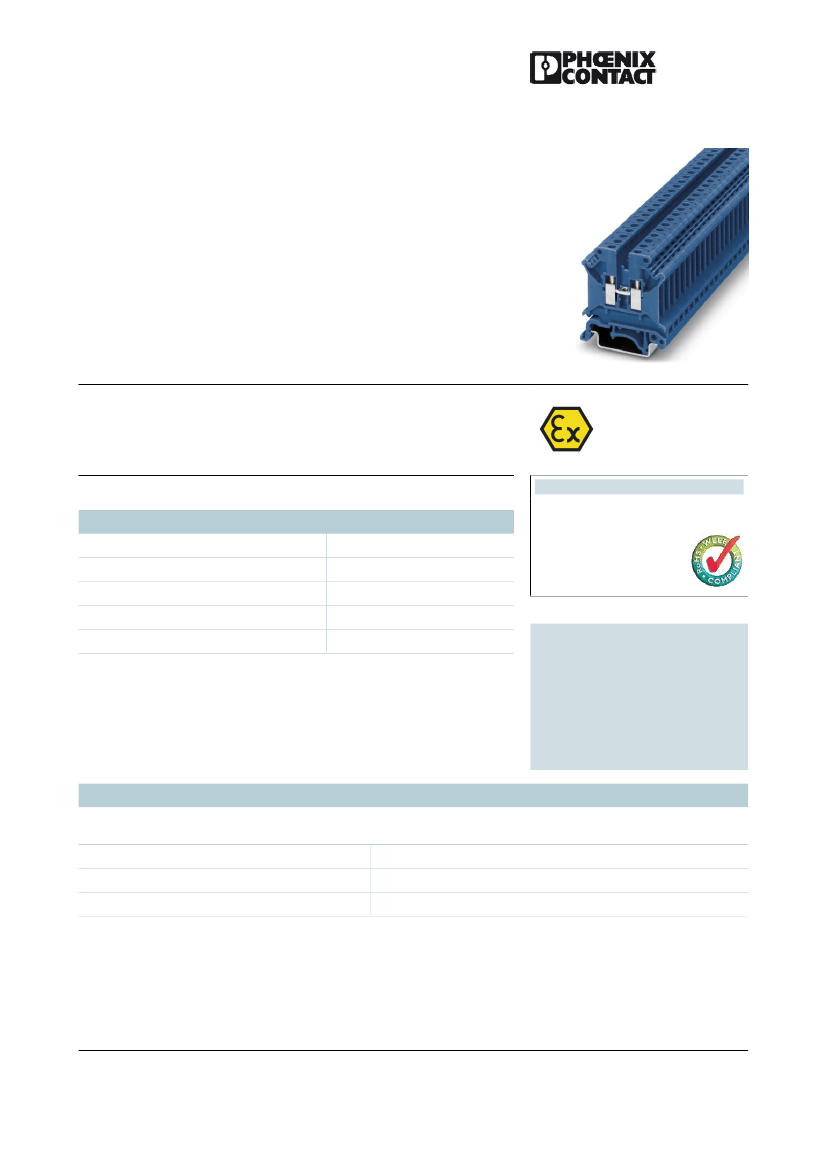

Order No.: 3004388
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004388
Feed-through modular terminal block, Type of connection: Screw
connection, Cross section: 0.2 mm² - 6 mm², AWG 24 - 10, Width: 6.2
mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15, NS 32
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918090777
50 pcs.
85369010
0.009243 KG
Page 343 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
General
Number of levels
Number of connections
Color
1
2
blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 9
Mar 24, 2010
UK 5 N BU
Order No.: 3004388
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004388
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
PA
V0
6.2 mm
42.5 mm
47 mm
54.5 mm
52 mm
41 A (with 6 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
32 A
800 V
ja
2
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
0.25 mm²
4 mm²
0.25 mm²
2.5 mm²
0.2 mm²
1.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 9
Mar 24, 2010
UK 5 N BU
Order No.: 3004388
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004388
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.2 mm²
1.5 mm²
0.5 mm²
2.5 mm²
0.25 mm²
1.5 mm²
4 mm²
4 mm²
Screw connection
8 mm
A4
M3
0.6 Nm
0.8 Nm
Certification
Certification Ex:
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CCA, CSA, CUL, DNV, GL, GOST, KEMA, UL
FM, GL-EX, IECEx, KEMA-EX, UL-EX
600 V
40 A
28-10
600 V
30 A
30-10
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 9
Mar 24, 2010
UK 5 N BU
Order No.: 3004388
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004388
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
3003224
3022218
ATP-UK
CLIPFIX 35
Partition plate, Length: 56 mm, Width: 1.5 mm, Height: 59 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 35.9 mm,
Color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 47 mm,
Color: blue
End clamp, for assembly on NS 32 or NS 35/7,5 DIN rail
Single covers, color: transparent
Single covers, for covering one terminal block, with black symbol
(lightning flash) snap fit, color: transparent/yellow
Cross connection rail, for fixed bridging of identical inputs and
outputs, made of Cu, nickel-plated, 1 m long
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
Designation
Description
600 V
30 A
30-10
3003020
3003101
1201442
1024014
1024085
0201595
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
D-UK 4/10
D-UK 4/10 BU
E/UK
EA 5
EA 5-WS
FB-150 METER
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 9
Mar 24, 2010
UK 5 N BU
Order No.: 3004388
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3004388
1201895
1201730
1201714
1201798
0204110
0204107
1302215
2303608
0200017
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
STL 10N/5N
STL 35/ 5
TS-K
ZSR
ZSR-EX
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Cross connector/bridge, Color: aluminum
Cross connector/bridge, Color: white aluminum
Separating plate, Length: 22.7 mm, Height: 30.5 mm, Color: gray
Distance piece, metal, for branches of FB-150, with screw and
thrust washer
Distance piece, metal, for branches of FB-150, with screw and
thrust washer
Bridges
0201155
0201142
0201139
0201456
0201469
0201029
0201184
0201281
0201524
0203438
0203250
0201650
0201867
1302338
0301505
0201485
0202280
0202358
0202293
0202303
EB 2- 6
EB 3- 6
EB 10- 6
FB 2- 6-EX
FB 3- 6-EX
FB 5- 6
FB 10- 6
FB 10- 6-EX
FB 100- 6
FBI 2- 6
FBI 10- 6
FBI 100- 6
FBI 20- 6
IS-K 4
ISSBI 10- 6
KB- 6-EX
LB 10-6 BU
LB 10-6 GY
LB 10-6 RD
LB 100-6 BU
Cross connector/bridge, Number of positions: 2, Color: gray
Cross connector/bridge, Number of positions: 3, Color: gray
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 2, Color: aluminum
Cross connector/bridge, Number of positions: 3, Color: aluminum
Cross connector/bridge, Number of positions: 5, Color: aluminum
Cross connector/bridge, Number of positions: 10, Color: aluminum
Cross connector/bridge, Number of positions: 10, Color: aluminum
Cross connector/bridge, Number of positions: 100,
Color: aluminum
Cross connector/bridge, Number of positions: 2, Color: aluminum
Cross connector/bridge, Number of positions: 10, Color: silver
Cross connector/bridge, Number of positions: 100,
Color: aluminum
Cross connector/bridge, Number of positions: 20, Color: aluminum
Bridge bar isolator, Color: gray
Switching jumper, Number of positions: 10, Color: silver
Cross connector/bridge, Number of positions: 1, Color: silver
Cross connector/bridge, Number of positions: 10, Color: blue
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 10, Color: red
Cross connector/bridge, Number of positions: 100, Color: blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 9
Mar 24, 2010
