BAS40-06HMFHT116 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-06HMFHT116

BAS40-06HMFHT116: DescriptionDC reverse withstand voltage (Vr): 40V Average rectified current (Io): 120mA Forward voltage drop (Vf): 1V @ 40mA; CategoryDiscrete semiconductor diode; File Size957KB，7 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

BAS40-06HMFHT116 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS40-06HMFHT116	-	-	View	Buy Now

BAS40-06HMFHT116 Overview

DC reverse withstand voltage (Vr): 40V Average rectified current (Io): 120mA Forward voltage drop (Vf): 1V @ 40mA

BAS40-06HMFHT116 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
Factory Lead Time	12 weeks
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	0.6 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	10 µA
Reverse test voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

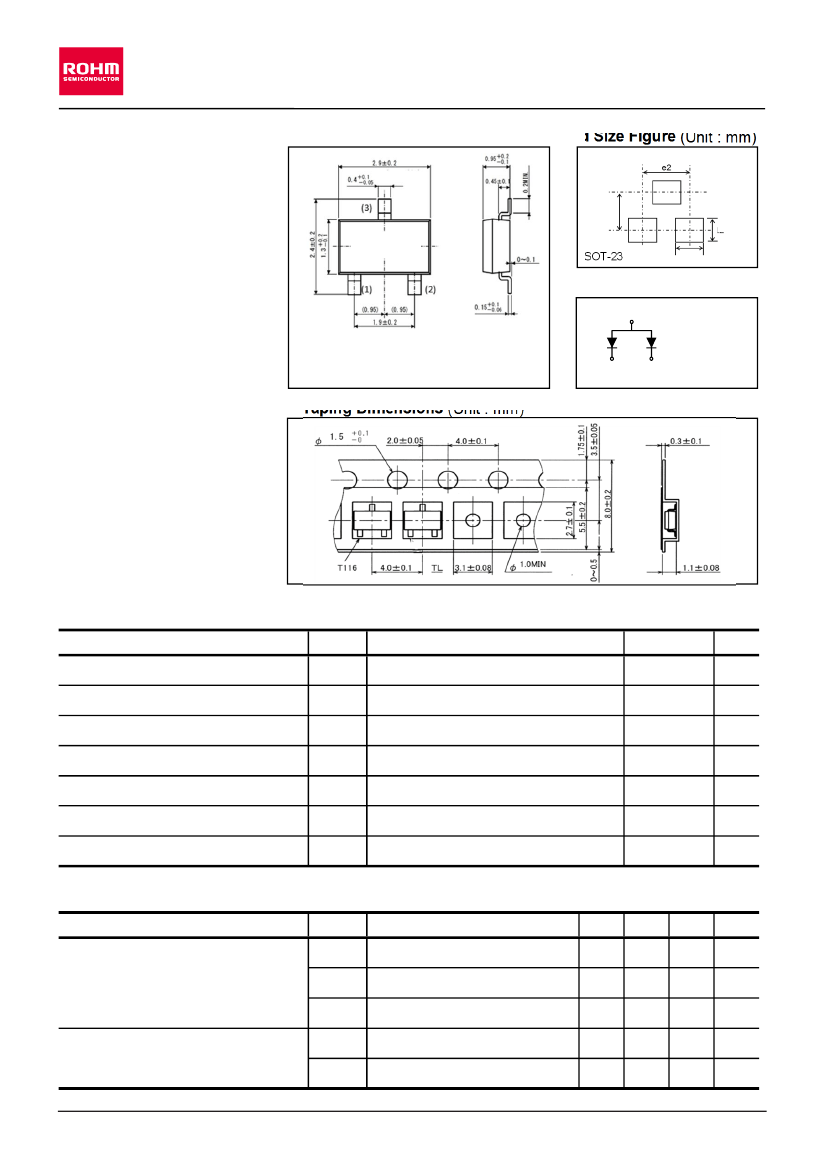

Schottky Barrier Diode

BAS40-06HMFH

Application

Small current rectification

2.4

Datasheet

Dimensions

(Unit : mm)

AEC-Q101 Qualified

Land

Size Figure

(Unit : mm)

1.9

Features

1) Small mold type

(SOT-23)

2) High reliability

3) Low V

ROHM : SSD3

JEDEC : SOT-23

JEITA : -

1.0MIN

SOT-23

0.8MIN

Structure

(3)

(1) Cathode

(2) Cathode

(1)

(2)

(3) Anode

Construction

Silicon epitaxial planar type

Taping

Dimensions

(Unit : mm)

T116

Absolute

Maximum Ratings

= 25°C)

Parameter

Repetitive peak reverse voltage

Reverse voltage

Average forward rectified current

Repetitive peak forward current

Non-repetitive forward surge current

Symbol

FRM

FSM

stg

Conditions

Duty≦0.5

Direct reverse voltage

Direct current, per diode

≦1s,

Duty≦0.5, per diode

Square wave, tp<10ms,

non-repetitive at T

=25ºC, per diode

Limits

120

0.6

150

55

150

Unit

°C

Operating junction temperature

Storage temperature

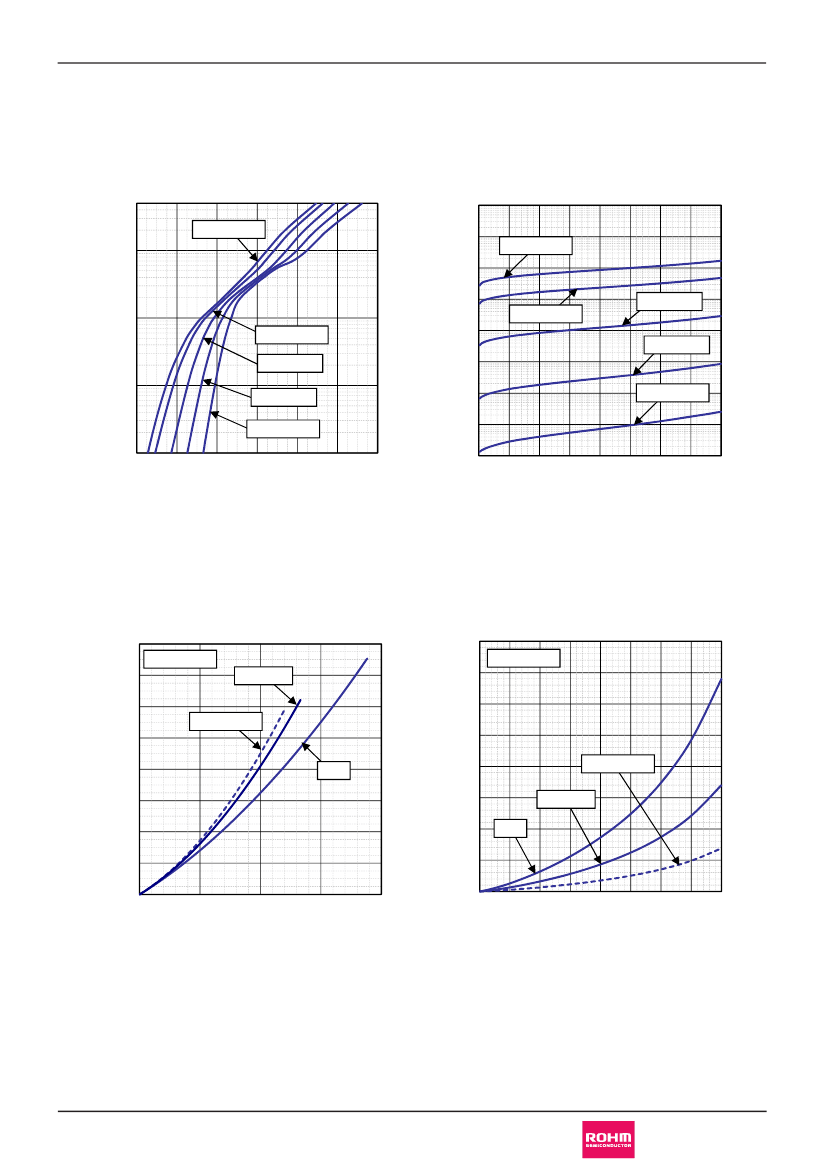

Electrical

Characteristics

= 25°C)

Parameter

Symbol

Forward voltage

Reverse current

Conditions

=1mA

=10mA

=40mA

=30V

=40V

Min.

Typ. Max. Unit

0.38

0.50

A

www.rohm.com

1/3

2016.11 - Rev.B
