BAV99HM
Switching Diode (High speed switching)
Data sheet
●
Outline
V
RM
I
FM
I
F
I
FSM
100
500
215
4000
V
mA
mA
mA
●
Features
●
Inner Circuit
High reliability
Small mold type
●
Application
High speed switching
●
Structure
Epitaxial planar
●
Absolute Maximum Ratings
●
Packaging Specifications
Packing
Embossed T
ape
Reel Size(mm)
180
T
aping Width(mm)
8
Basic Ordering Unit(pcs)
3000
T
aping Code
T116
Marking
D7Y
Parameter
Repetitive peak reverse voltage
Reverse voltage
Power dissipation
Repetitive peak reverse forward current
Peak forward surge current
Forward current
Junction temperature
Storage temperature
※
Caution
：
static electricity
(T
a
= 25ºC)
Symbol
V
RM
V
R
P
D
I
FM
I
FSM
I
F
T
j
T
stg
Conditions
-
-
T
≦
25
℃
a
Per diode
t=1μs
Per diode
Per device
-
-
Limits
100
80
250
500
4000
215
125
150
-65
½
150
Unit
V
V
mW
mA
mA
mA
mA
℃
℃
www.rohm.com
1/5
© 2017 ROHM Co., Ltd. All rights reserved.
2018/04/11_Rev.003
BAV99HM
Data sheet
●
Characteristics
(T
a
= 25ºC)
Value per element
Parameter
Forward voltage
Symbol
V
F
Conditions
I
F
=1mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=80V T
j
=25
℃
V
R
=25V T
j
=150
℃
V
R
=80V T
j
=150
℃
V
R
=0V f=1.0MHz
I
F
=I
R
=10mA R
L
=100Ω I
rr
=1mA
Min. Typ. Max. Unit
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
715
855
1.00
1.25
0.1
30
50
2.0
4.0
mV
mV
V
V
μA
μA
μA
pF
ns
Reverse current
Capacitance between terminals
Reverse recovery time
I
R
C
t
t
rr
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
2/5
2018/04/11_Rev.003
BAV99HM
●

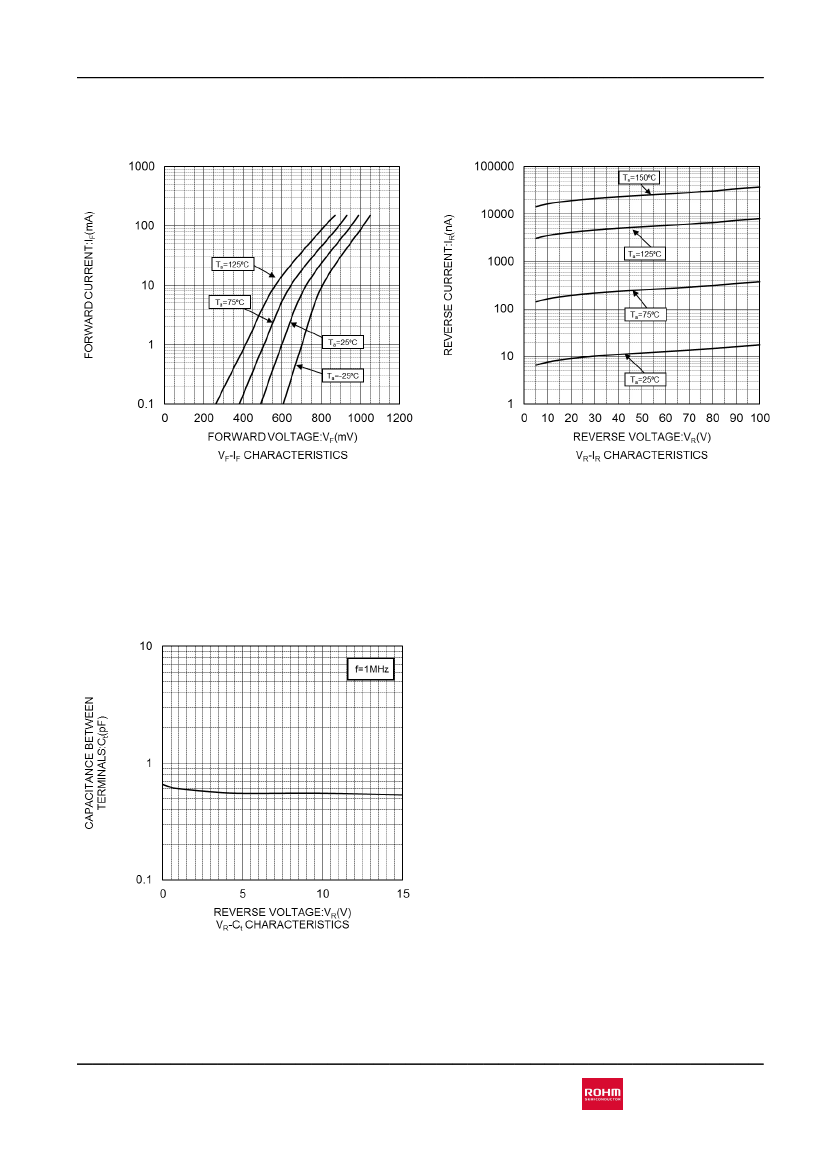

Characteristic Curves
Data sheet
www.rohm.com
3/5
© 2017 ROHM Co., Ltd. All rights reserved.
2018/04/11_Rev.003
BAV99HM
●

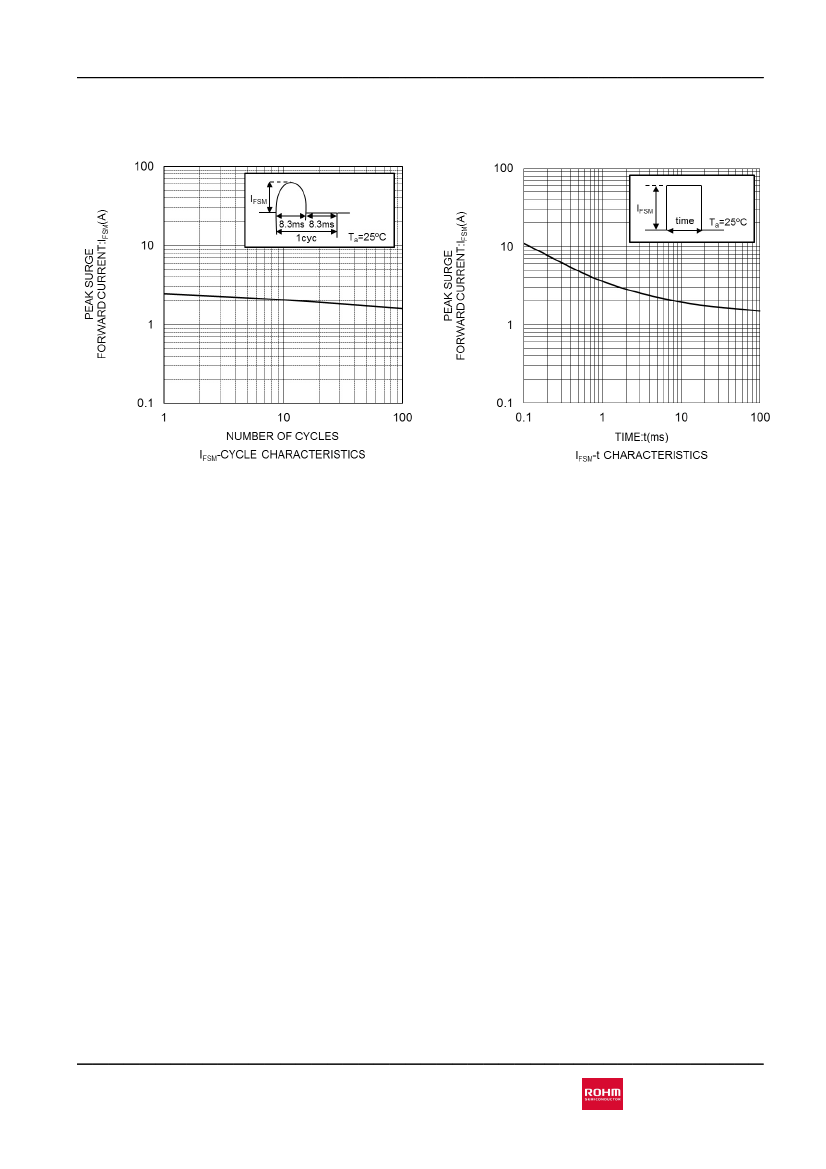

Characteristic Curves
Data sheet
www.rohm.com
4/5
© 2017 ROHM Co., Ltd. All rights reserved.
2018/04/11_Rev.003
BAV99HM
●
Dimensions
(SOT-23 SSD3)
Data sheet
●
Taping (Unit:mm)
www.rohm.com
5/5
© 2017 ROHM Co., Ltd. All rights reserved.
2018/04/11_Rev.003
