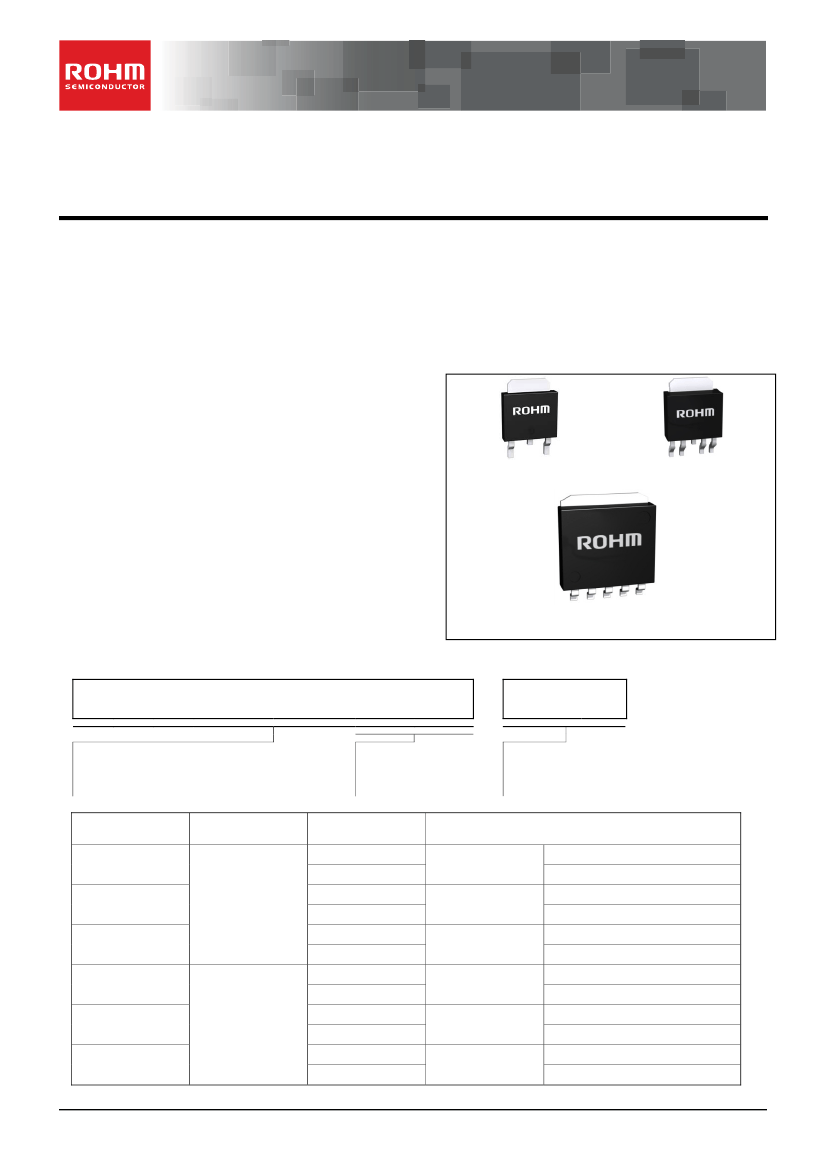

Datasheet
Single-Output LDO Regulators
High Voltage LDO Regulators
BD357xYFP-M
General Description
BD357xYFP-M BD357xYHFP-M Series regulators feature a high withstand voltage (50 V) and are suitable to use with
onboard vehicle microcontrollers. They offer an output current of 500 mA while limiting the quiescent current to 30 µA (Typ).
With these devices, a ceramic capacitor may be used at the output for stable operation. The output tolerance is within ±2 %
over their operating temperature range (-40 °C to +125 °C). The short circuit protection is folded-type to minimize generation
of heat during malfunction. These devices are developed to offer the most robust power supply design under harsh
automotive environments. The BD357xYFP-M BD357xYHFP-M Series provide an ideal solution to lower current
consumption as well as to simplify the use with battery direct-coupled systems.
BD357xYHFP-M
Series
Features
Low-Saturation Voltage Type P-Channel DMOS
Output Transistors
High Output Voltage Precision: ±2 %
(lo = 200 mA)
Low-ESR Ceramic Capacitors can be used as
Output Capacitors.
V
CC
Power Supply Voltage = 50 V
Built-in Overcurrent Protection Circuit and Thermal
Shutdown Circuit
Packages
W (Typ) x D (Typ) x H (Max)
TO252-3
TO252-5
6.50 mm x 9.50 mm x 2.50 mm 6.50 mm x 9.50 mm x 2.50 mm
Key Specifications
Recommended V
CC
Power Supply Voltage: 36 V (Max)
Output Voltage Type:
Fixed / Variable
Output Current:
500 mA (Max)
Low Quiescent Current:
30 µA (Typ)
Operating Temperature Range:
-40 °C to +125 °C
HRP5
9.395mm x 10.540mm x 2.005mm
Applications
Onboard Vehicle Devices (Body Control, Car Stereos,
Satellite Navigation Systems, etc.)
Ordering Information
B
D
3
5
7
x
Y
x
F
P
-
M
x
x
Part Number
Package
FP: TO252-3 / 5
HFP: HRP5
Packaging and forming specification
E2: Embossed tape and reel (TO252-3 / 5)
TR: Embossed tape and reel (HRP5)
Lineup
Output Voltage
3.3 V
5.0 V
Variable
3.3 V
5.0 V
Variable
〇Product
structure : Silicon monolithic integrated circuit
.
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
Switch
Package
TO252-3
HRP5
TO252-3
HRP5
TO252-5
HRP5
TO252-5
HRP5
TO252-5
HRP5
TO252-5
HRP5
Orderable Part Number
Reel of 2000
Reel of 2000
Reel of 2000
Reel of 2000
Reel of 2000
Reel of 2000
BD3570YFP-ME2
BD3570YHFP-MTR
BD3571YFP-ME2
BD3571YHFP-MTR
BD3572YFP-ME2
BD3572YHFP-MTR
BD3573YFP-ME2
BD3573YHFP-MTR
BD3574YFP-ME2
BD3574YHFP-MTR
BD3575YFP-ME2
BD3575YHFP-MTR
Not Included
Included
〇This
product has no designed protection against radioactive rays
1/17
TSZ02201-0T2T0AN00160-1-2
19.Sep.2013 Rev.002
BD357xYFP-M
BD357xYHFP-M
Series
Datasheet

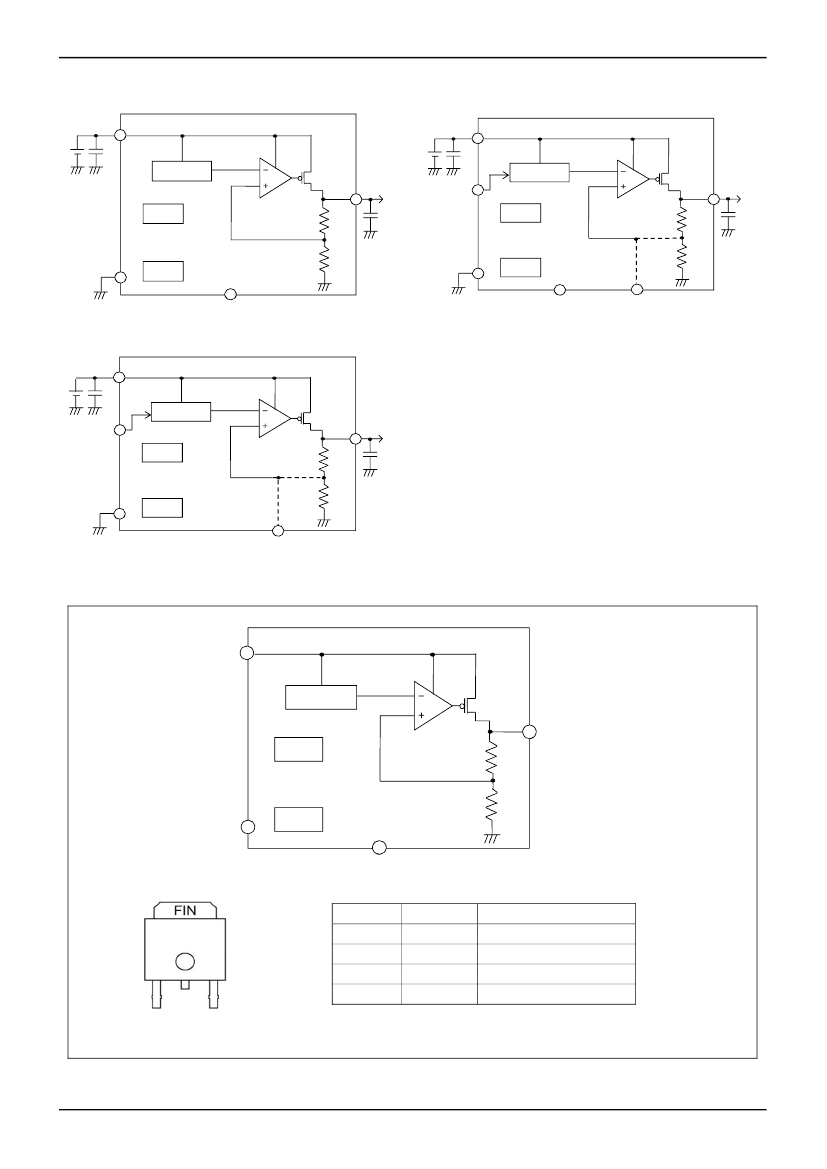

Typical Application Circuits
VCC
1
Cin
Vref
VO
3
OCP
Co
OCP
(Note1)
SW
2
5
Co
Cin
Vref
VO
VCC
1
GND
TSD
Fin
2
N.C.
GND
TSD
Fin
3
N.C.
4
(Note2)
ADJ (N.C.
(Note 1)
)
Figure 1. TO252-3
VCC
1
Cin
Vref
SW
2
5
OCP
(Note1)
Co
VO
Figure 2. TO252-5
(Note 1) For fixed voltage regulator only
(Note 2) For adjustable voltage regulator only
GND
3
Fin
4
TSD
(Note2)
ADJ (N.C.
(Note 1)
)
Figure 3. HRP5

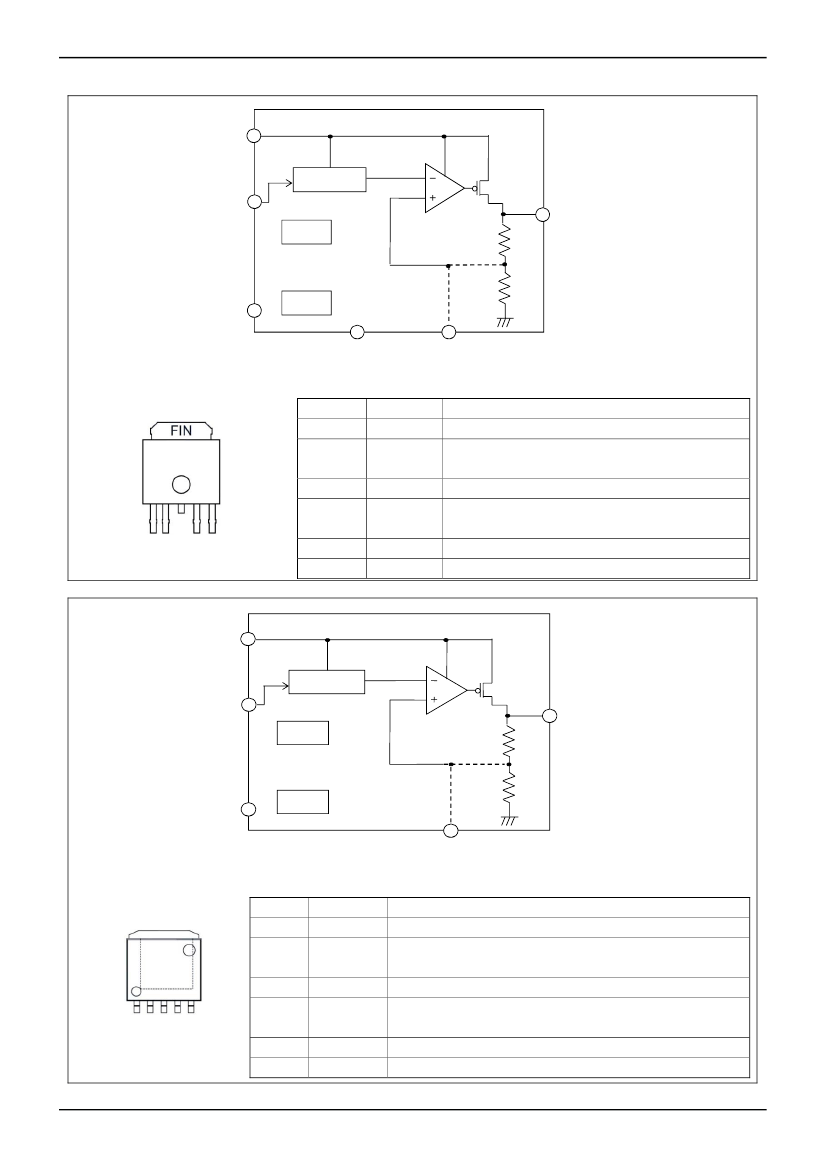

Block Diagrams / Pin Configurations / Pin Descriptions
[TO252-3]
VCC 1
Vref
3
VO
OCP
GND
TSD
2
N.C.
(TOP VIEW)
Pin No.
1
2
3
Fin
1
2
3
Pin Name
VCC
N.C.
VO
GND
N.C. pin
Voltage output pin
GND pin
Function
Power supply pin
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
2/17
TSZ02201-0T2T0AN00160-1-2
19.Sep.2013 Rev.002
BD357xYFP-M
BD357xYHFP-M
Series
Datasheet
Block Diagrams / Pin Configurations / Pin Descriptions – continued
[TO252-5]
VCC 1
Vref
SW 2
5 VO
OCP
(Note 3)
(Note 4)
GND
TSD
3
N.C.
4
ADJ (N.C.
(Note 3)
)
(Note 3) For fixed voltage regulator only
(Note 4) For adjustable voltage regulator only
(TOP VIEW)
Pin No.
1
2
3
4
Pin Name
VCC
SW
N.C.
N.C.
N.C.
ADJ
VO
GND
Power supply pin
Function
VO ON / OFF function pin
N.C. pin (BD3572Y only)
N.C. pin
N.C. pin
Output voltage setting pin (BD3572Y, 3575Y only)
Voltage output pin
GND pin
1 2 3 4 5
5
Fin
[HRP5]
VCC 1
Vref
SW 2
OCP
(Note 5)
5 VO
(Note 6)
GND 3
TSD
4
ADJ (N.C.
(Note 5)
)
(Note 5) For fixed voltage regulator only
(Note 6) For adjustable voltage regulator only
Pin No.
(TOP VIEW)
1
2
3
1 2 3 4 5
4
5
Fin
Pin Name
VCC
SW
N.C.
GND
N.C.
ADJ
VO
GND
Power supply pin
Function
VO ON / OFF function pin
N.C. pin (BD3570Y, 3571Y, 3572Y only)
GND pin
N.C. pin
Output voltage setting pin (BD3572Y, 3575Y only)
Voltage output pin
GND pin
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
3/17
TSZ02201-0T2T0AN00160-1-2
19.Sep.2013 Rev.002
BD357xYFP-M
BD357xYHFP-M
Series
Datasheet
Absolute Maximum Ratings
(Ta = 25 °C)
Parameter
Supply Voltage
Switch Supply Voltage
Output Current
Symbol
V
CC
V
SW
I
O
Limit
50
(Note 7)
50
(Note 8)
500
1.20 (TO252-3)
(Note 9)
Power Dissipation
Pd
1.30 (TO252-5)
(Note 10)
1.60 (HRP5)
(Note 11)
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
(Note 7)
(Note 8)
(Note 9)
(Note 10)
(Note 11)
Caution:
Unit
V
V
mA
W
Topr
Tstg
Tjmax
-40 to +125
-55 to +150
150
°C
°C
°C
Not to exceed Pd and ASO.
For ON / OFF SW Regulator only
TO252-3: Reduced by 9.6 mW / °C at 25 °C, when mounted on a glass epoxy board (70 mm x 70 mm x 1.6 mm).
TO252-5: Reduced by 10.4 mW / °C at 25 °C, when mounted on a glass epoxy board (70 mm x 70 mm x 1.6 mm).
HRP5: Reduced by 12.8 mW / °C at 25 °C, when mounted on a glass epoxy board (70 mm x 70 mm x 1.6 mm).
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is
operated over the absolute maximum ratings.
Recommended Operating Conditions
Parameter
Input Voltage
Output Current
Variable Output Voltage Range
BD3570Y, 3572Y, 3573Y, 3575Y
BD3571Y, 3574Y
Symbol
V
CC
V
CC
I
O
V
O
Min
4.5
(Note 12)
5.5
(Note 12)
-
2.8
Max
36.0
36.0
500
12
Unit
V
V
mA
V
(Note 12) Please consider that the output voltage would decrease (dropout voltage) according to the output current.
Electrical Characteristics
(Unless
otherwise specified, Ta = -40 °C to +125 °C, V
CC
= 13.2 V, SW = 3 V
(Note 13)
, V
O
settings is 5 V
(Note 14)
)
Parameter
Shut Down Current
Bias Current
Output Voltage
ADJ Terminal Voltage
Output Current
Dropout Voltage
Ripple Rejection
Line Regulation
Load Regulation
Switch Threshold Voltage H
Switch Threshold Voltage L
Switch Bias Current
(Note 13)
(Note 13)
(Note 13)
(Note 14)
(Note 13)
Symbol
lshut
lb
V
O
V
ADJ
I
O
ΔVd
R.R.
Reg.I
Reg.L
SWH
SWL
SWI
Limit
Min
-
-
V
O
x
0.98
1.235
0.5
-
45
-
-
2.0
-
-
Typ
-
30
V
O
1.260
-
0.25
55
10
20
-
-
22
Max
10
50
V
O
x
1.02
1.285
-
0.48
-
30
40
-
0.5
60
Unit
µA
µA
V
V
A
V
dB
mV
mV
V
V
µA
Conditions
SW = GND
I
O
= 0 mA
I
O
= 200 mA,
V
O
: Please refer to product line.
I
O
= 200 mA
V
CC
= 4.75 V, l
O
= 200 mA
(Note 15)
f = 120 Hz, ein = 1 Vrms,
I
O
= 100 mA
V
CCD(Note 16)
≤
V
CC
≤
25 V
I
O
= 0 mA
0 mA
≤
I
O
≤
200 mA
I
O
= 0 mA
I
O
= 0 mA
SW = 5 V, l
O
= 0 mA
(Note 13) BD3573Y, 3574Y, 3575Y only
(Note 14) BD3572Y, 3575Y only
(Note 15) BD3571Y, 3572Y, 3574Y, 3575Y only
(Note 16) BD3570Y, 3573Y: V
CCD
= 5.5 V
(Note 16)
BD3571Y, 3572Y, 3574Y, 3575Y: V
CCD
= 6.5 V
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
4/17
TSZ02201-0T2T0AN00160-1-2
19.Sep.2013 Rev.002
BD357xYFP-M
BD357xYHFP-M
Series
Datasheet

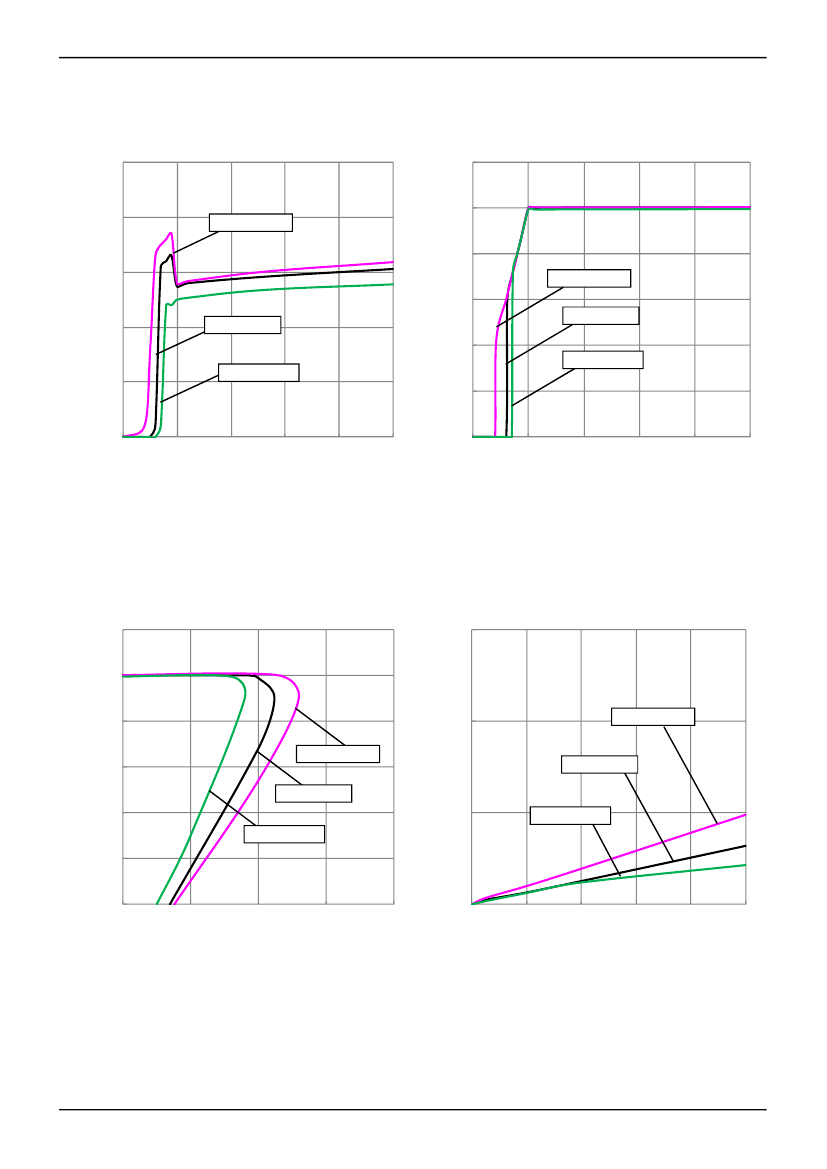

Typical Performance Curves
BD3574YHFP-M(Unless otherwise specified, Ta = 25 °C, V
CC
= 13.2 V, SW = 3 V)
50
6
40
5
Circuit Current: I
CC
[μA]
Output Voltage: V
O
[V]
Ta = 125 °C
4
30
Ta = 125 °C
3
20
Ta = 25 °C
Ta = 25 °C
2
Ta = -40 °C
10
Ta = -40 °C
1
0
0
5
10
15
20
Supply Voltage: V
CC
[V]
25
0
0
5
10
15
20
Supply Voltage: V
CC
[V]
25
Figure 4. Circuit Current vs Supply Voltage
(“Total Supply Current”)
Figure 5.
Output Voltage vs
Supply Voltage
6
3
5
Dropout Voltage:
ΔVd
[V]
Output Voltage: V
O
[V]
4
2
Ta = 125 °C
Ta = 125 °C
3
Ta = 25 °C
Ta = 25 °C
2
1
Ta = -40 °C
Ta = -40 °C
1
0
0
500
1000
1500
Output Current: I
O
[mA]
2000
0
0
100
200
300
400
Output Current: I
O
[mA]
500
Figure 6. Output Voltage vs Output Current
Figure 7.
Dropout Voltage vs Output Current
