System motor driver for CD/DVD Player
5ch System Motor Driver
for Car AV
BD8205EFV-M
General Description
BD8205EFV-M is a 5-Channel system motor driver
developed for DC motors (Spindle motor, Sled motor,
Loading motor) and coils (Tracking, Focus) drive for
actuator. This IC can drive the motor and the coil of a
CD/DVD drive.
Key Specifications
■
Driver Power Supply Voltage Range
POWVCC1
6V to10V
POWVCC2
4.3V toV
POW VCC1
Operating Temperature Range
-40°C to +85°C
Output Offset (CHs 1,2,3)
±100mV (Max)
Output Offset (CHs 4,5)
±50mV (Max)
Maximum Output Range (All CHs)
6V (Typ)
W(Typ)
D(Typ)
H(Max)
7.80mm × 7.60mm × 1.00mm
Features
■
5CH BTL Driver
■
POWVCC1 for CHs 1, 2, and 3 (DC motors) and
POWVCC2 for CHs 4 and 5 (actuator) are
independent for efficient drive configuration.
■
Built-in protection functions (TSD, UVLO, BIAS
Drop Mute)
■
AEC-Q100 Qualified
■
■
■
■
Package
HTSSOP-B24
Application
Car Audio
HTSSOP-B24

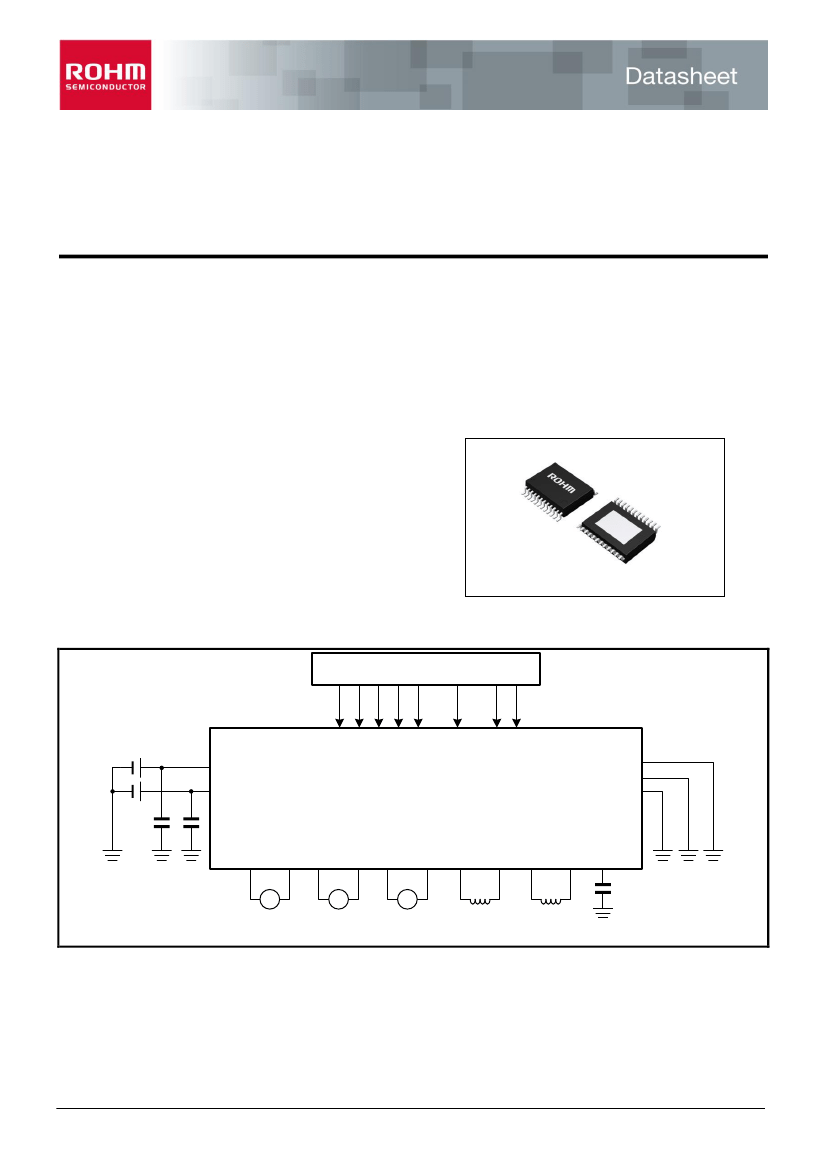

Typical Application Circuit
DSP
MUTE1245
MUTE3
IN1
IN2
IN3
IN4
IN5
BIAS
POWVCC1
POWVCC2
BD8205EFV-M
VO2M
VO3M
VO4M
VO1P
VO2P
VO3P
PREGND
POWGND1
POWGND2
M
Spindle
M
Sled
M
Loading
Tracking
Focus
Figure 1. Typical Application Circuit
〇Product
structure : Silicon monolithic integrated circuit
.
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
〇This
product has no designed protection against radioactive rays
1/19
TSZ02201-0P5P0BK00810-1-2
04.Dec.2014 Rev.001
VREG
VO1M
VO5M
VO4P
VO5P
BD8205EFV-M

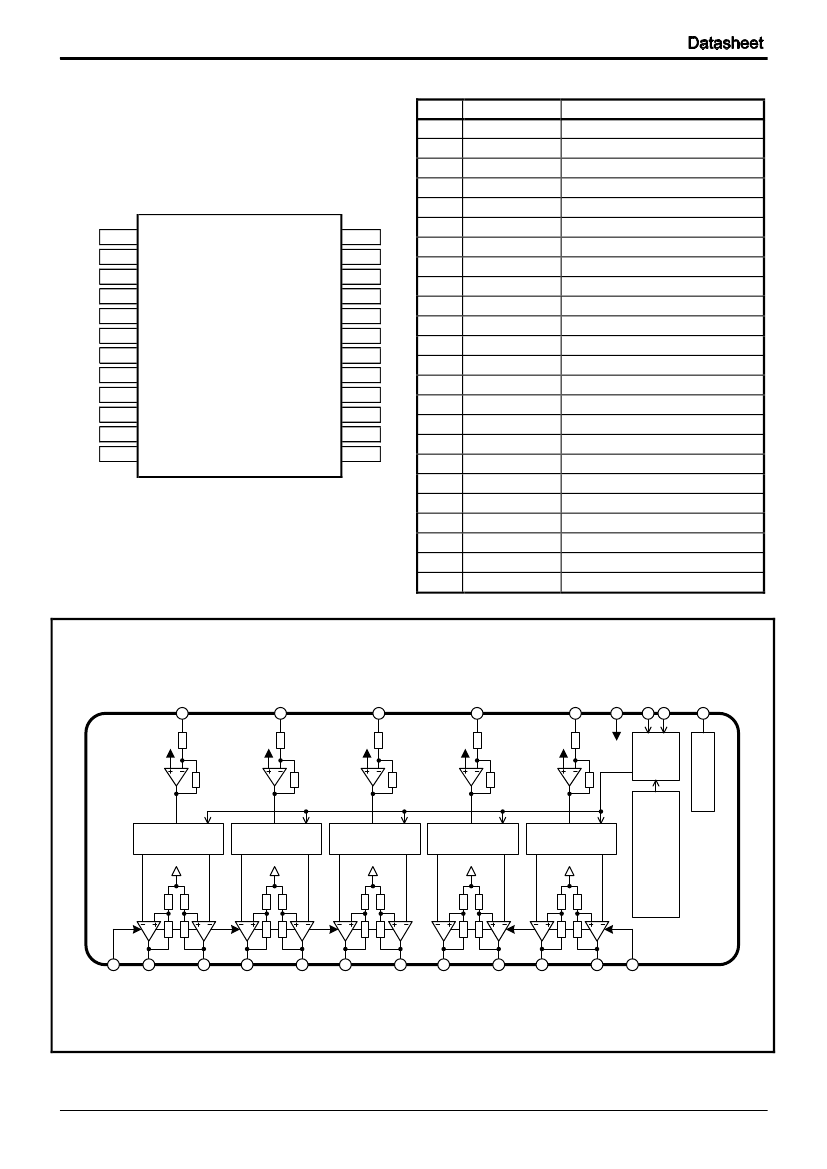

Pin Configuration
Pin Descriptions
No.
1
2
3
(TOP VIEW)
4
5
1
2
3
4
5
6
7
8
9
10
11
12
POWGND1
VO1M
VO1P
VO2M
VO2P
VO3M
VO3P
VO4M
VO4P
VO5M
VO5P
POWGND2
POWVCC1
IN1
IN2
IN3
IN4
IN5
BIAS
MUTE3
PREGND
MUTE1245
VREG
POWVCC2
24
23
22
21
20
19
18
17
16
15
14
13
Pin Name
POWGND1
VO1M
VO1P
VO2M
VO2P
VO3M
VO3P
VO4M
VO4P
VO5M
VO5P
POWGND2
POWVCC2
VREG
MUTE1245
PREGND
MUTE3
BIAS
IN5
IN4
IN3
IN2
IN1
POWVCC1
Function
Power GND1
CH1 driver negative output
CH1 driver positive output
CH2 driver negative output
CH2 driver positive output
CH3 driver negative output
CH3 driver positive output
CH4 driver negative output
CH4 driver positive output
CH5 driver negative output
CH5 driver positive output
Power GND2
Power supply voltage 2
Power supply for internal logic
Mute control input for CHs 1, 2, 4, 5
Pre GND
Mute control input for CH 3
Standard voltage input
CH5 input
CH4 input
CH3 input
CH2 input
CH1 input
Power supply voltage 1
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Figure 2. Pin Configuration
Block Diagram
MUTE1245
MUTE3
Control
Logic
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT
POWVCC1
Figure 3. Block Diagram
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
2/19
TSZ02201-0P5P0BK00810-1-2
04.Dec.2014 Rev.001
POWVCC2
VO1M
VO2M
VO3M
VO4M
VO5M
VO1P
VO2P
VO3P
VO4P
VO5P
T.S.D.
POWVCC1 UVLO
BIAS Drop Mute
Regulator
VREG
BIAS
IN1
IN2
IN3
IN4
IN5
BD8205EFV-M
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Power Supply Voltage 1
Power Supply Voltage 2
Input Pin Voltage 1
Input Pin Voltage 2
Package Dissipation
Operating Temperature Range
Storage Temperature Range
Maximum Junction Temperature
Symbol
V
POWVCC1
V
POWVCC2
V
IN1 (Note 1)
V
IN2 (Note 2)
Pd
Topr
Tstg
Tjmax
Rating
12
V
POWVCC1
12
7
1.10
(Note 3)
3.99
(Note 4)
-40 to +85
-55 to +150
+150
W
°C
°C
°C
Unit
V
V
V
V
(Note 1) This is applicable to pins MUTE1245 and MUTE3.
(Note 2) This is applicable to pins IN1, IN2, IN3, IN4, IN5, and BIAS.
(Note 3) Glass epoxy substrate dimensions are 70mm×70mm×1.6mm, 1 layer substrate, (Copper foil 0mm×0mm)
Reduce power dissipation capability by 8.8mW for each degree above 25°C.
(Note 4) Glass epoxy substrate dimensions are 70mm×70mm×1.6mm, 4 layer substrate, (Copper foil 70mm×70mm)
Reduce power dissipation capability by 32.0mW for each degree above 25°C.
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is
operated over the absolute maximum ratings.
Recommended Operating Conditions
(Ta = -40°C to +85°C)
Parameter
Pre Block Power Supply,
DC Motor System Power Supply
(Note 1)
Actuator System Power Supply
(Note 1)
Symbol
V
POWVCC1
V
POWVCC2
Min
6
4.3
Typ
8
8
Max
10
V
POWVCC1
Unit
V
V
(Note 1) Please decide the power supply voltage after considering power dissipation.
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
3/19
TSZ02201-0P5P0BK00810-1-2
04.Dec.2014 Rev.001
BD8205EFV-M
Electrical Characteristics
(Unless otherwise noted Ta=25°C, V
POW VCC1
=V
POW VCC2
=8V, V
BIAS
=1.65V, R
L
=8Ω)
Limit
Parameter
Quiescent Current
< Driver >
Output Offset (CHs 1, 2, 3)
Output Offset (CHs 4, 5)
Maximum Output Range
(CHs 1, 2, 3, 4, 5)
Closed Circuit Loop Gain
(CHs 1, 2, 3)
Closed Circuit Loop Gain (CHs 4, 5)
Input Impedance (CHs 1, 2, 3)
Input Impedance (CHs 4, 5)
< Others >
MUTE1245,3 Low Level Voltage
MUTE1245,3 High Level Voltage
MUTE1245,3 Input Current
BIAS Drop Mute
BIAS Input Current
UVLO Detection Voltage
UVLO Release Voltage
VREG Voltage
V
ML
V
MH
I
MUTE
V
BIAS
I
BIAS
V
UVLOD
V
UVLOR
V
VREG
－
2.0
32
0.5
32
3.4
3.6
－
－
－
52
0.7
52
3.8
4.0
5.0
0.5
－
74
0.9
74
4.2
4.4
－
V
V
μA
V
μA
V
V
V
C
VREG
=0.1μF
V
BIAS
=1.65V
V
MUTE1245,3
=3.3V
V
OOF123
V
OOF45
V
OM
G
V123
G
V45
R
IN123
R
IN45
-100
-50
5.3
24.0
15.5
13
30
0
0
6.0
25.7
17.5
20
47
100
50
－
27.4
19.5
27
64
mV
mV
V
dB
dB
kΩ
kΩ
Total RON=2.5Ω(Typ)
Equivalent
Symbol
I
Q
Min
－
Typ
13
Max
30
Unit
mA
Condition
At no-load, V
MUTE1245,3
=H
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
4/19
TSZ02201-0P5P0BK00810-1-2
04.Dec.2014 Rev.001
BD8205EFV-M
Electrical Characteristics
(Unless otherwise noted Ta=-40°C to 85°C, V
POWVCC1
=V
POW VCC2
=8V, V
BIAS
=1.65V, R
L
=8Ω)
Limit
Parameter
Quiescent Current
< Driver >
Output Offset (CHs 1, 2, 3)
Output Offset (CHs 4, 5)
Maximum Output Range
(CHs 1, 2, 3, 4, 5)
Closed Circuit Loop Gain
(CHs 1, 2, 3)
Closed Circuit Loop Gain (CHs 4, 5)
Input Impedance (CHs 1, 2, 3)
Input Impedance (CHs 4, 5)
< Others >
MUTE1245,3 Low Level Voltage
MUTE1245,3 High Level Voltage
MUTE1245,3 Input Current
BIAS Drop Mute
BIAS Input Current
UVLO Detection Voltage
UVLO Release Voltage
VREG Voltage
V
ML
V
MH
I
MUTE
V
BIAS
I
BIAS
V
UVLO
V
UVLOR
V
VREG
－
2.0
22
0.3
22
3.4
3.6
－
－
－
52
0.7
52
3.8
4.0
5.0
0.4
－
108
1.1
108
4.2
4.4
－
V
V
μA
V
μA
V
V
V
C
VREG
=0.1μF
V
BIAS
=1.65V
V
MUTE1245,3
=3.3V
V
OOF123
V
OOF45
V
OM
G
V123
G
V45
R
IN123
R
IN45
-100
-50
4.8
24.0
15.5
10
28
0
0
6.0
25.7
17.5
20
47
100
50
－
27.4
19.5
28
66
mV
mV
V
dB
dB
kΩ
kΩ
Total RON=2.5Ω(Typ)
Equivalent
Symbol
I
Q
Min
－
Typ
13
Max
33
Unit
mA
Condition
At no-load, V
MUTE1245,3
=H
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
5/19
TSZ02201-0P5P0BK00810-1-2
04.Dec.2014 Rev.001
