Wire-wound Chip Power Inductors (CB series)
CBMF1608T100K
Features
Item Summary
10uH±10%, 0.115A, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
Inductance
Case Size (EIA/JIS)
Rated Current (max)
Saturation Current (max)
Temperature Rise Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (168 subst.)
Soldering
Yes
Yes
Reflow
10 uH ± 10 %
0603/1608
0.115 A
0.115 A
0.38 A
0.468 Ω
0.36 Ω
2.52 MHz
32 MHz
-40 to +105 ℃
(Including-self-generated heat)
± 25 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.2 mm
0.8 ±0.2 mm
0.8 ±0.2 mm
0.45 ±0.15 mm
2017.01.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor

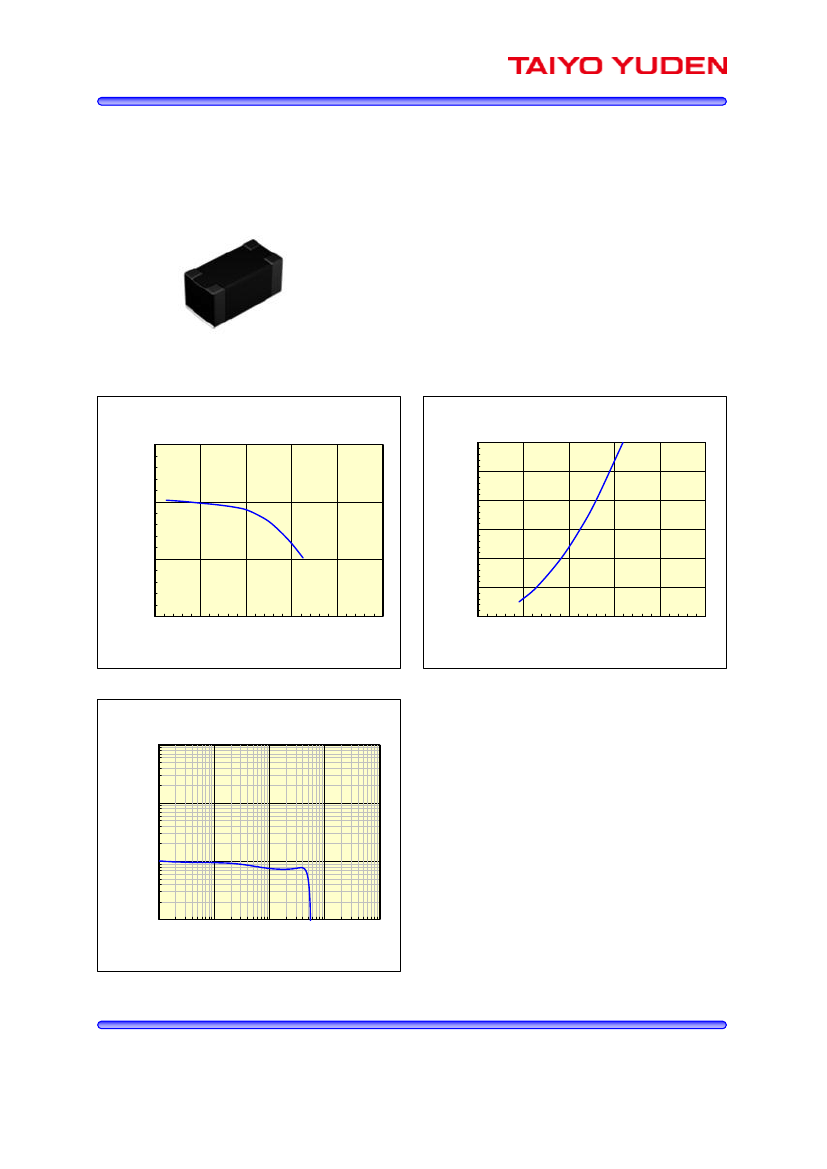

-Electrical Characteristics Data-
2016/8/23
Wire-wound Chip Power Inductors (CB series)
Dimension
Length :
Width :
Height :
Inductance :
DC Resistance :
Saturation Current :
Temp. rise Current :
unit : mm
1.6 + / - 0.2
0.8 + / - 0.2
0.8 + / - 0.2
unit : inch
( 0.063 + / - 0.008 )
( 0.031 + / - 0.008 )
( 0.031 + / - 0.008 )
CBMF1608T100K
10
uH
( test freq at 2.52MHz )
ohm ( typ / max )
0.36
/ 0.468
115 mA ( max )
380 mA ( max )
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
DC Bias vs Inductance
15
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
40
80
120
160
200
50
40
30
20
10
0
0
200
400
600
800
1000
Inductance [uH]
10
5
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
1000
Inductance [uH]
100
10
1
0.1
1
10
100
1000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
