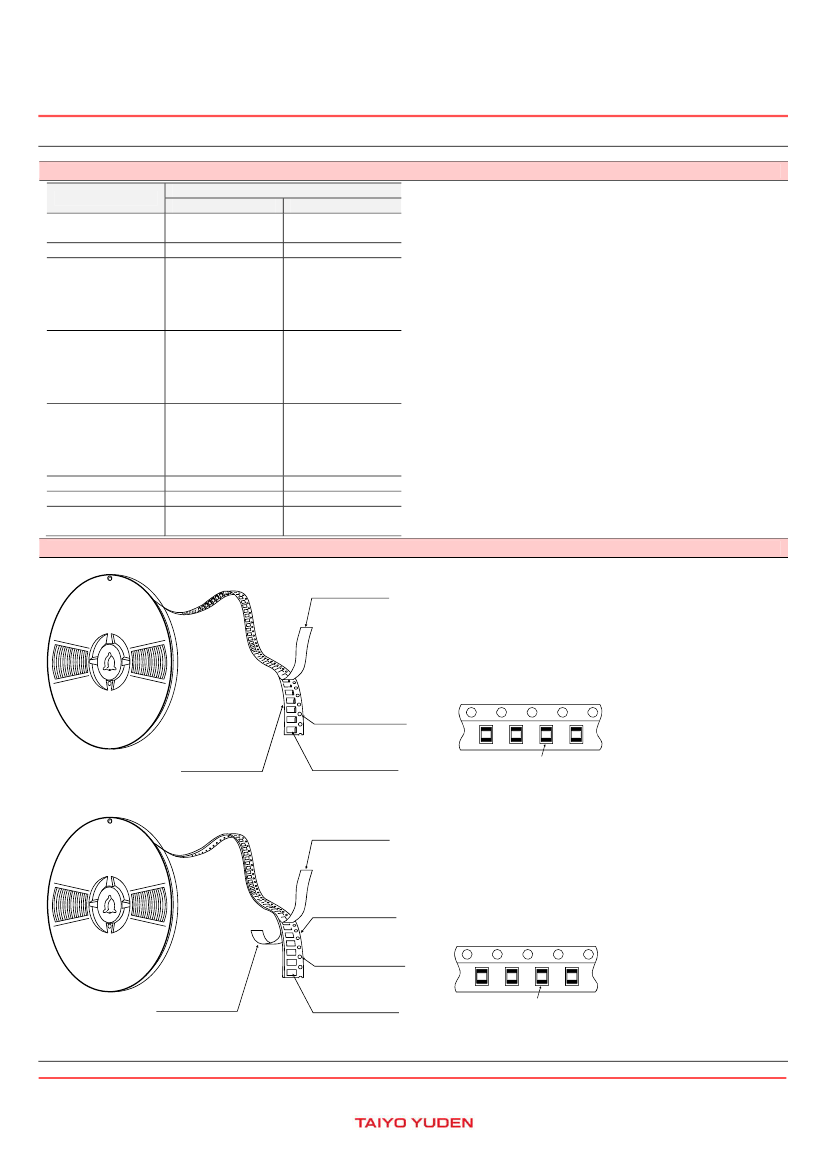

WIRE-WOUND CHIP INDUCTORS FOR SIGNAL LINES (LB SERIES M TYPE)
■PACKAGING
①Minimum Quantity
Type
LB C3225
CB C3225
LB 3218
LB R2518
LB C2518
LB 2518
CB 2518
CB C2518
LBM2016
LB C2016
LB 2016
CB 2016
CB C2016
LB 2012
LB C2012
LB R2012
CB 2012
CB C2012
CB L2012
LB 1608
LBMF1608
CBMF1608
②Tape material
●Embossed
tape
Standard Quantity ［pcs½
Paper Tape
Embossed Tape
－
－
1000
2000
－
2000
－
2000
－
3000
4000
4000
－
－
－
3000
Top tape
Chip Filled
Sprocket hole
Base tape
Chip cavity
Chip
●Card
board carrier tape
Top tape
Base tape
Chip Filled
Sprocket hole
Bottom tape
Chip cavity
Chip
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
i_wound_CB_LB_pack_e-E05R01
③Taping Dimensions
●Embossed
Tape （0.315 inches wide）
φ1.5＋0.1/－0
(φ0.059＋0.004/-0)
1.75±0.1
(0.069±0.004）
3.5±0.05
(0.138±0.002)
4.0±0.1
(0.157±0.004)
2.0±0.1
(0.079±0.004)
Sprocket hole
A
B
F
Type
LBM2016
LB C3225
CB C3225
LB
3218
Chip cavity
A
1.75±0.1
（0.069±0.004）
2.8±0.1
（0.110±0.004）
2.1±0.1
（0.083±0.004）
2.15±0.1
（0.085±0.004）
B
2.1±0.1
（0.083±0.004）
3.5±0.1
（0.138±0.004）
3.5±0.1
（0.138±0.004）
2.7±0.1
（0.106±0.004）
8.0±0.3
(0.315±0.012)
Insertion pitch
F
4.0±0.1
（0.157±0.004）
4.0±0.1
（0.157±0.004）
4.0±0.1
（0.157±0.004）
4.0±0.1
（0.157±0.004）
Tape thickness
T
0.3±0.05
（0.012±0.002）
0.3±0.05
（0.012±0.002）
0.3±0.05
（0.012±0.002）
0.3±0.05
（0.012±0.002）
K
1.9max.
（0.075max.）
4.0max.
（0.157max.）
2.2max.
（0.087max.）
2.2max.
（0.087max.）
LB 2518
CB 2518
LB C2518
CB C2518
LB R2518
LB 2016
CB 2016
LB C2016
CB C2016
LB 2012
CB 2012
LB C2012
CB C2012
LB R2012
LBMF1608
CBMF1608
1.75±0.1
（0.069±0.004）
2.1±0.1
（0.083±0.004）
4.0±0.1
（0.157±0.004）
0.3±0.05
（0.012±0.002）
1.9max.
（0.075max.）
1.45±0.1
（0.057±0.004）
1.1±0.1
（0.043±0.004）
2.25±0.1
（0.089±0.004）
1.9±0.1
（0.075±0.004）
4.0±0.1
（0.157±0.004）
4.0±0.1
（0.157±0.004）
0.25±0.05
（0.010±0.002）
0.25±0.05
（0.010±0.002）
1.45max.
（0.057max.）
1.2max.
（0.047max.）
Unit：mm（inch）
●Card
board carrier tape（0.315 inches wide）
φ1.5＋0.1/－0
(φ0.059＋0.004/-0)
1.75±0.1
(0.069±0.004）
Sprocket hole
T
3.5±0.05
(0.138±0.002)
4.0±0.1
(0.157±0.004)
2.0±0.1
(0.079±0.004)
A
B
F
Type
CB L2012
LB
1608
Chip cavity
A
1.55±0.1
（0.061±0.004）
1.0±0.1
（0.039±0.004）
B
2.3±0.1
（0.091±0.004）
1.8±0.1
（0.071±0.004）
8.0±0.3
(0.315±0.012)
Insertion pitch
F
4.0±0.1
（0.157±0.004）
4.0±0.1
（0.157±0.004）
Tape thickness
T
1.1max.
（0.043max.）
1.1max.
（0.043max.）
Unit：mm（inch）
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
