Spec Sheet
SMD Power Inductors (NR series S type)
NRS6010T3R3MMGF
Features
Item Summary
3.3uH±20%, 1.5A, 6.0x6.0x1.0mm
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 1000pcs
Products characteristics table
Inductance
Case Size (mm)
Rated Current (max)
Saturation Current (max)
Saturation Current (typ)
Temperature Rise Current (max)
Temperature Rise Current (typ)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
3.3 uH ± 20 %
6.0x6.0
1.5 A
1.6 A (⊿L=30%)
1.75 A (⊿L=30%)
1.5 A (⊿T=40℃)
1.75 A (⊿T=40℃)
0.162 Ω
0.135 Ω
100 kHz
42 MHz
-25 to +125 ℃
(Including-self-generated heat)
± 20 %
External Dimensions
Dimension L
Dimension W
Dimension H
Dimension e
Dimension f
Dimension ΔI
6.0 ±0.2 mm
6.0 ±0.2 mm
Max 1.0 mm
1.35 ±0.2 mm
4.0 ±0.2 mm
Typ 2.3 mm
Recommended Land Patterns
2018.12.19
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor
-Electrical Characteristics Data-
2014/10/30

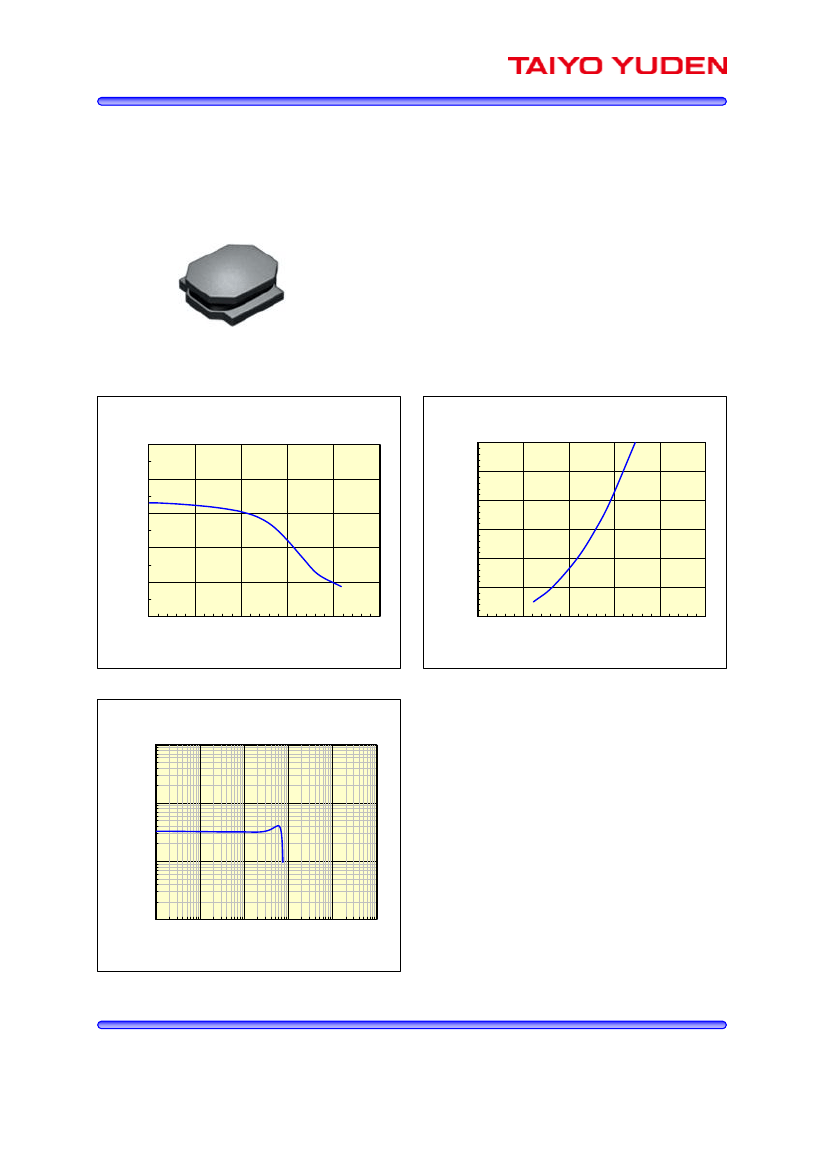

SMD Power Inductors (NR series S type)
Dimension
Length :
Width :
Height :
unit : mm
6.0 + / - 0.2
6.0 + / - 0.2
1.0
max.
unit : inch
( 0.236 + / - 0.008 )
( 0.236 + / - 0.008 )
( 0.039
max. )
NRS6010T3R3MMGF
Inductance :
3.3
uH
( test freq at 0.1MHz )
ohm ( typ / max )
DC Resistance : 0.135 / 0.162
Saturation Current :
1,600 mA ( max )
Temp. rise Current :
1,500 mA ( max )
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
DC Bias vs Inductance
5
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
600
1200
1800
2400
3000
4
50
40
30
20
10
0
0
600
1200
1800
2400
3000
Inductance [uH]
3
2
1
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
100
Inductance [uH]
10
1
0.1
0.1
1
10
100
1000
10000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
